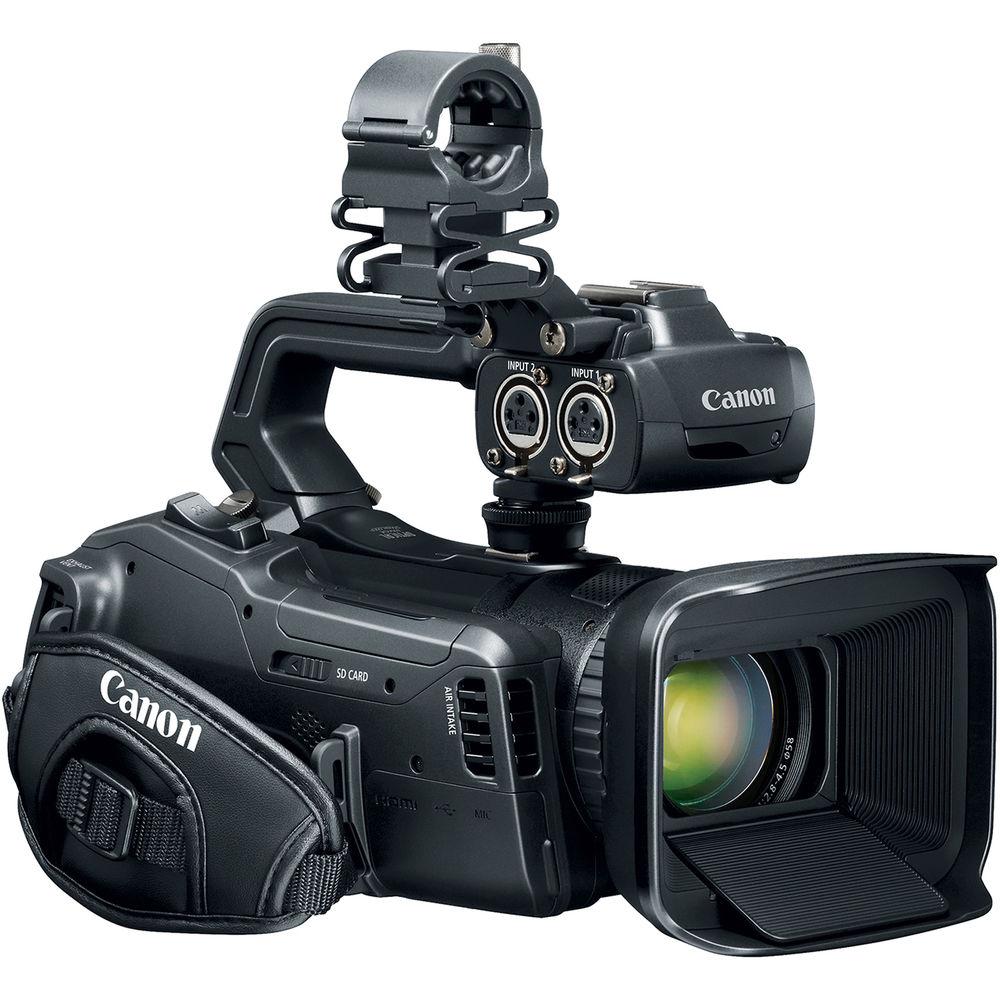

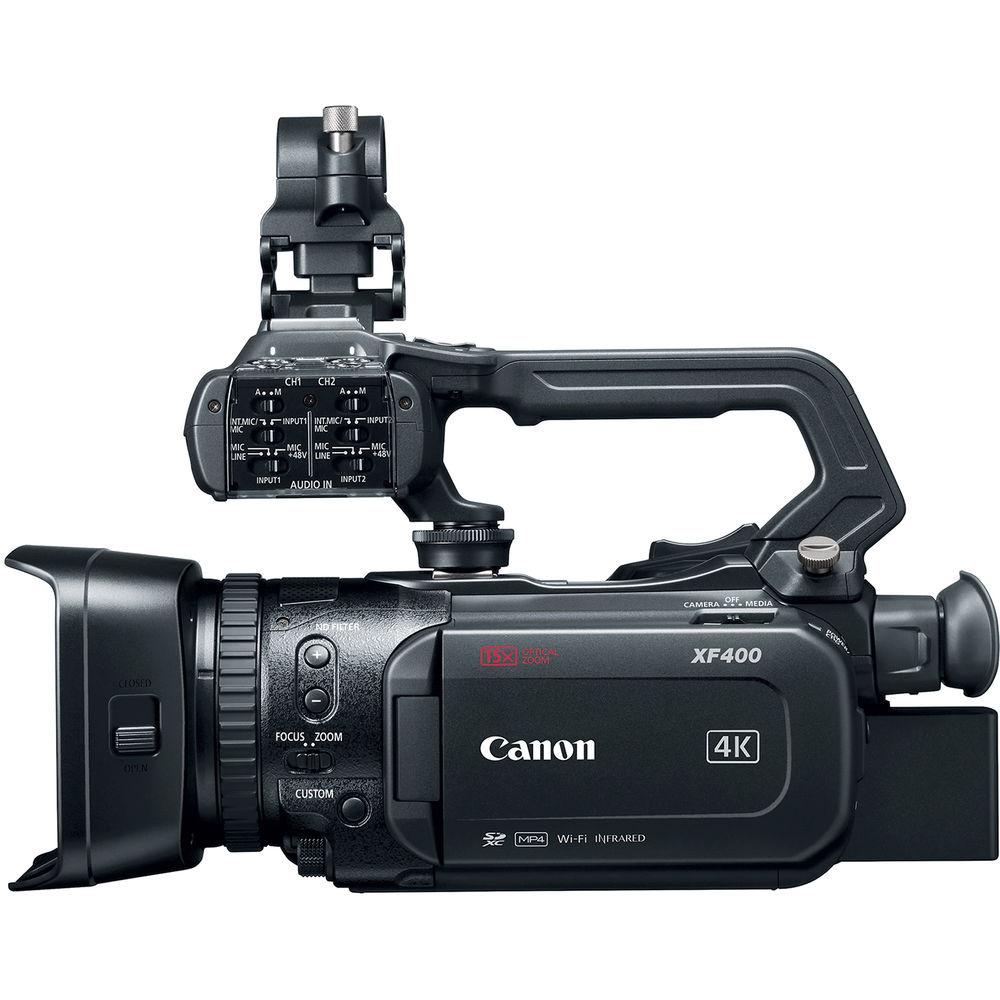

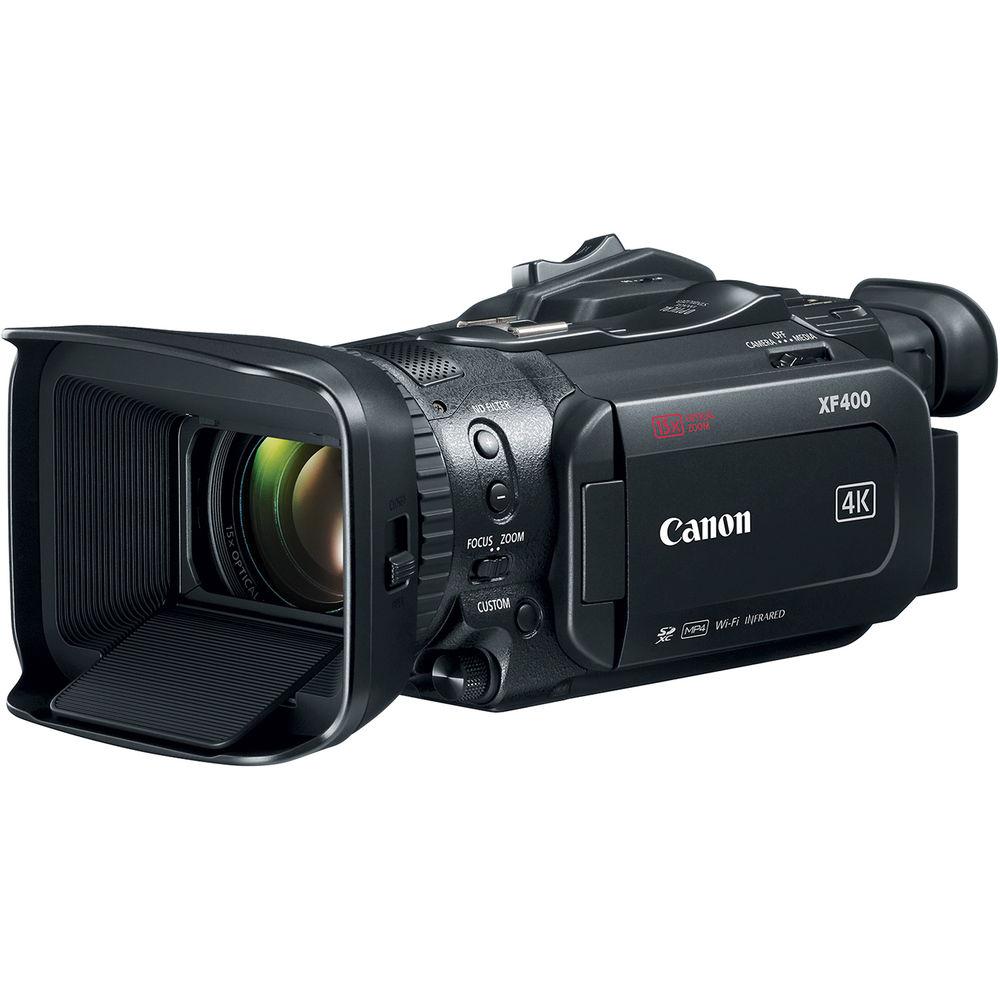

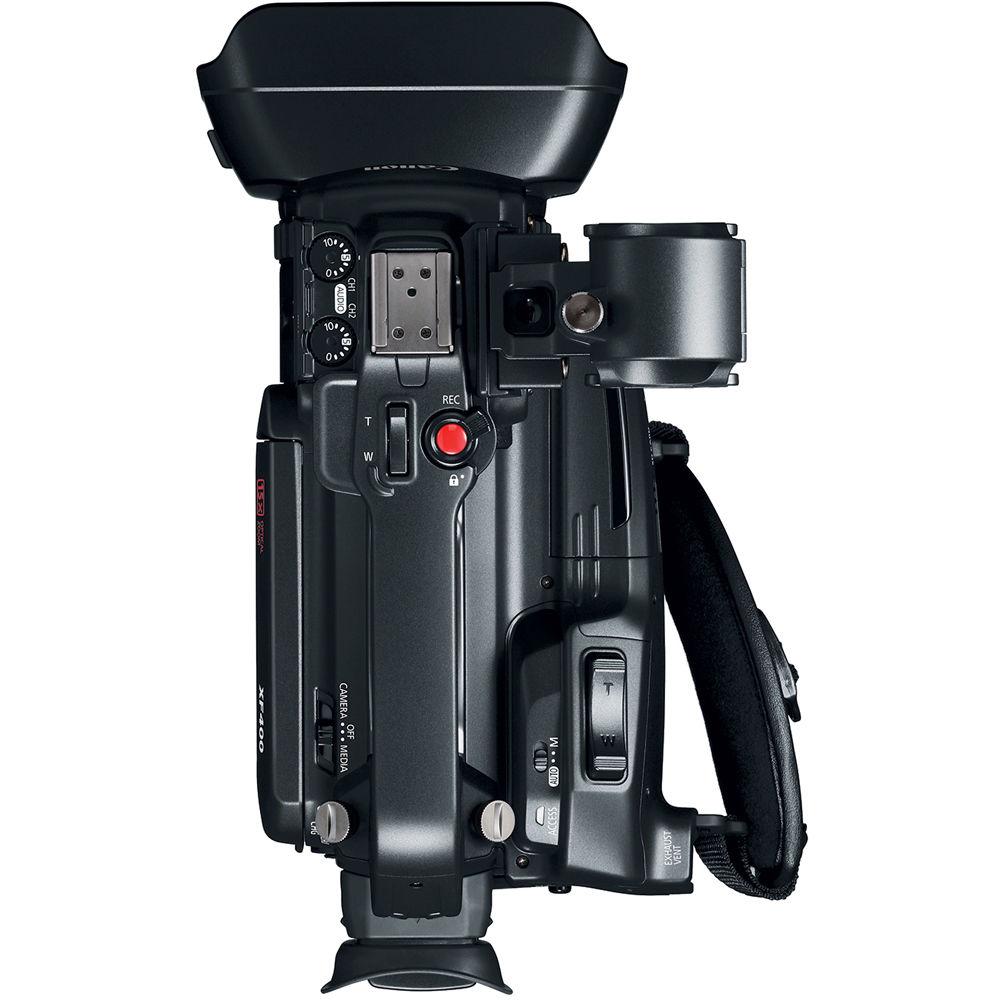

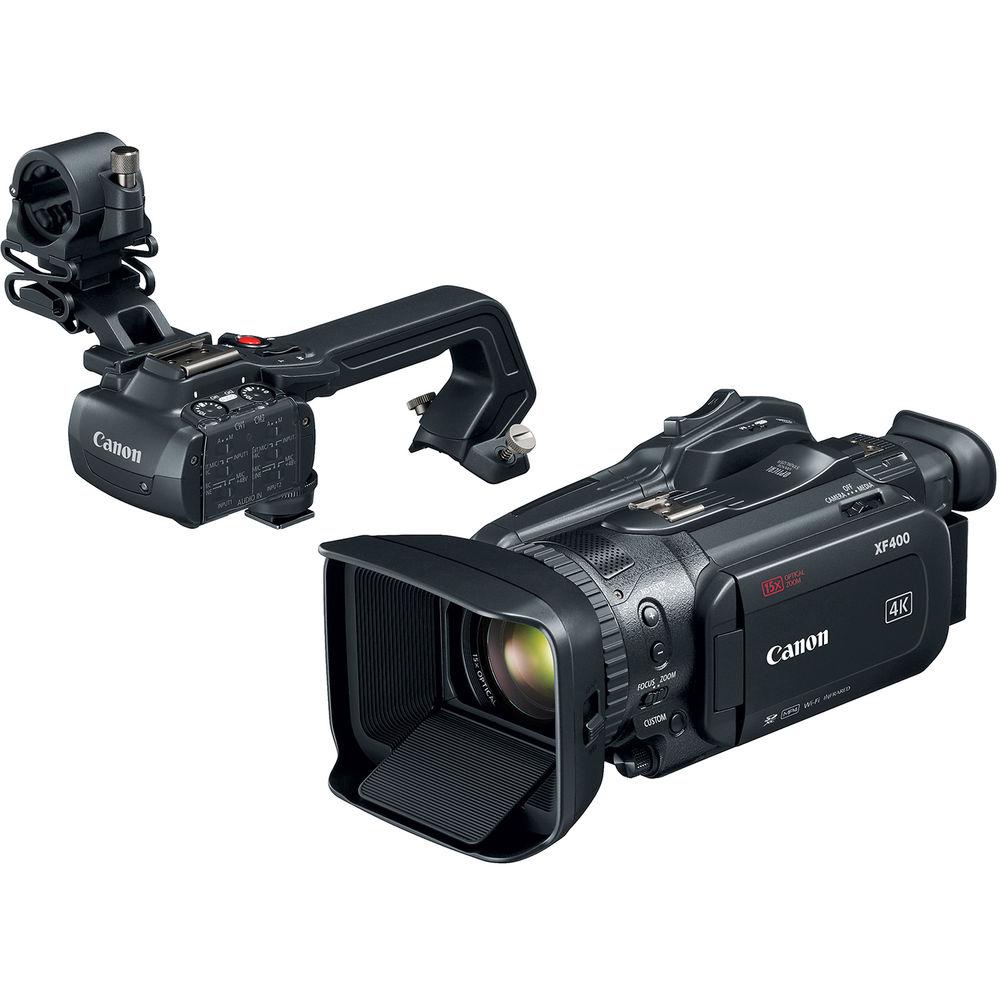

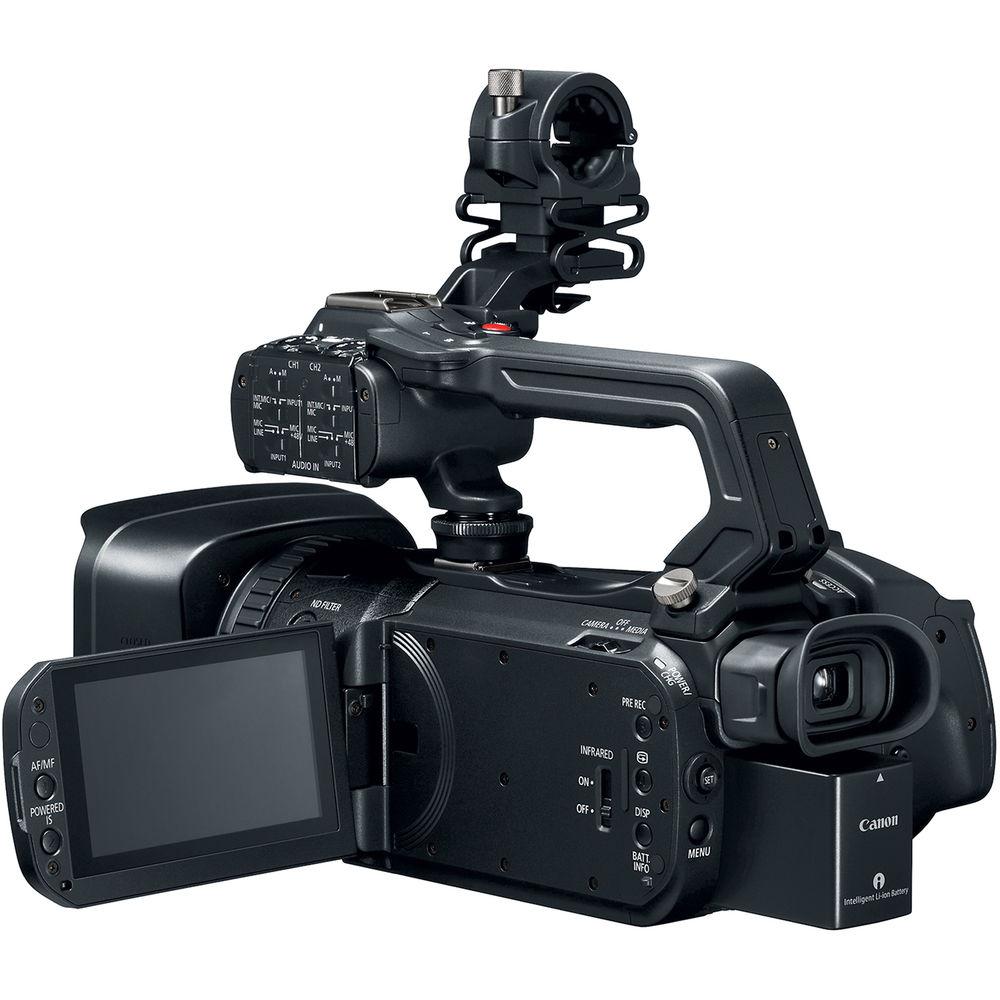

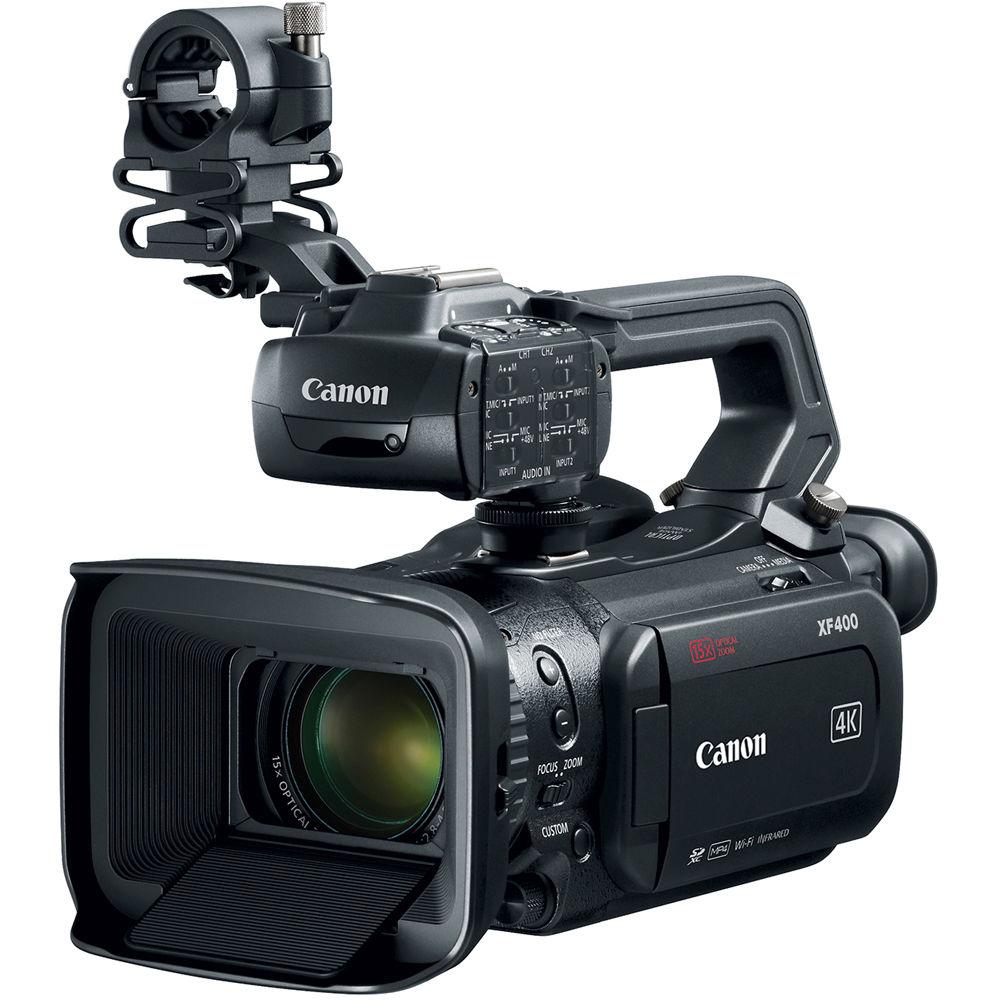

User Manual for Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Click to enlarge the picture
Contents of the user manual for the Canon XF400 UHD 4K60 Camcorder with
- Product category: Camcorders Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Camcorders
 |
User manual for the Canon XF400 UHD 4K60 Camcorder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Canons New XF400 and XF405 UHD 4K Camcorders with XLR Inputs Read More The Canon XF400 Camcorder is a compact, ergonomic camera featuring UHD 4K capture, a 1" CMOS sensor, IP streaming, and two XLR audio inputs. The XF400's optics include an integrated 15x HD optical zoom with up to 30x Advanced Zoom, a nine-bladed iris for more natural highlights, and five-axis optical image stabilization. Pro-style features include Dual-Pixel Autofocus (DPAF), and dual DIGIC DV 6 image processors with high sensitivity and low noise, supporting Wide DR Gamma.The camera records Full HD 1080p and UHD 4K up to 60 fps—captured to dual SD card slots—and outputs via an HDMI 2.0 port. On the audio side, the XF400 features four channels of audio with manual/automatic recording levels, and two XLR inputs. Built-in Wi-Fi allows you to control the camera's functions via browser and transfer proxy files. Camera control is also available using the included WL-D89 remote.Firmware version 1.0.3.0 adds IP streaming, improved clip reel functions, the ability to assign the custom white balance function to a button, reduced moiré and jagged edges, and updated iris display values. - Features
-
- 8.29MP, 1" CMOS sensor
- Integrated 15x optical zoom lens
- Advanced Zoom up to 30x
- UHD 4K 60 fps, HD 120 fps onboard recording
- XF-AVC, MP4, H.264 IP streaming at 1080i50/60 using a compatible decoder
- Dual XLR inputs, four channels of audio
- Dual-pixel CMOS autofocus feature
- Two DIGIC DV 6 processors
- Two SD memory card slots
- HDMI 2.0 output only

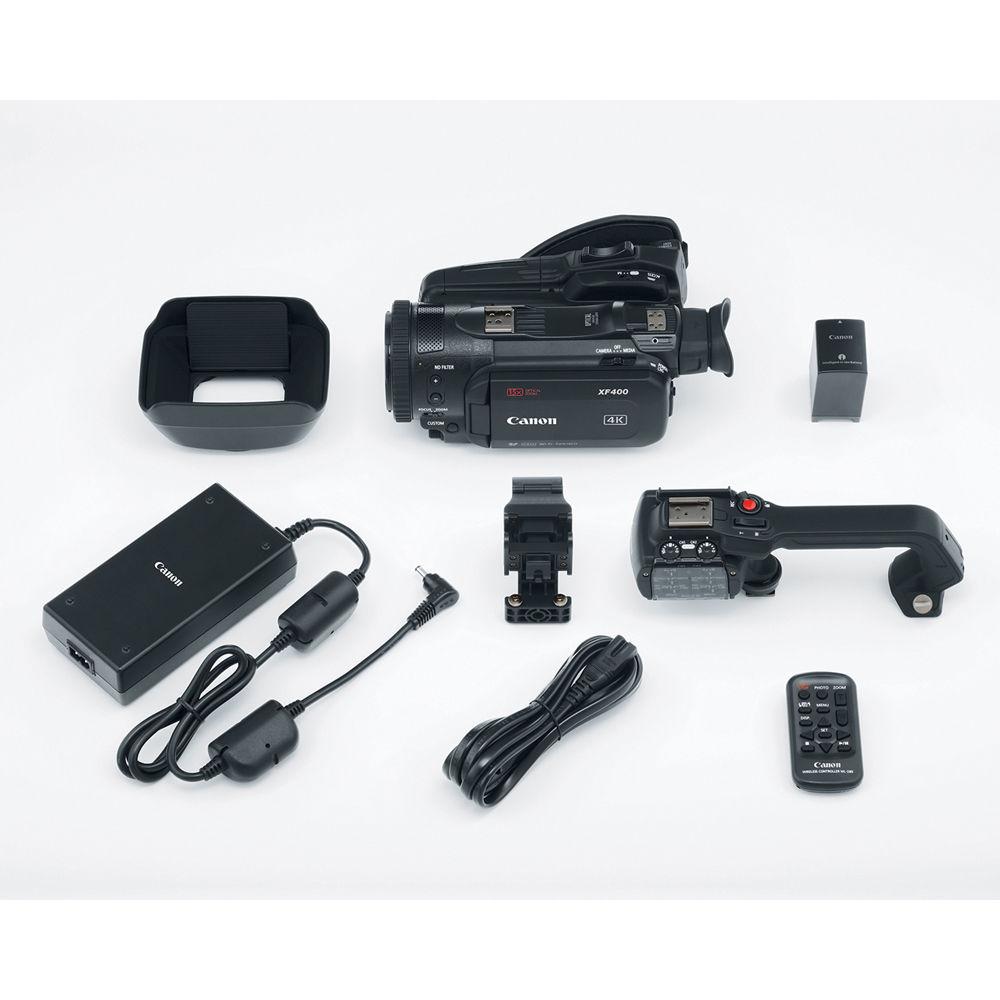

UPC: 013803290011 In the Box Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus CA-946 Compact Power Adapter for Select Canon Cinema EOS Cameras and Camcorders BP-828 Lithium-Ion Battery Pack (2670mAh) Microphone Holder Handle Lens Hood Lens Cap WL-D89 Wireless Controller Limited 1-Year Warranty User Manual PDF 9.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon XF400 Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Sensor Resolution | 4268 x 3148 (13.4 MP) | | Effective Sensor Resolution | 3840 x 2160 (8.29 MP) | | Minimum Illumination | 1.7 lux at 1/30 Shutter Speed
0.1 lux at 1/2 Shutter Speed | | White Balance Range | 2000 to 15,000K | | | | Focal Length | 8.3 to 124.5mm | | 35mm Equivalent Focal Length | 25.5 to 382.5mm | | Optical Zoom Ratio | 15x | | Max Digital Zoom | 30x | | Maximum Aperture | f/2.8 to 4.5 | | Minimum Focusing Distance | Macro: 0.4" / 1.0 cm
Entire Zoom Range: 23.6" / 60.0 cm | | Filter Size | 58 mm | | Control Rings | Focus
Zoom Selectable | | Image Stabilization | Optical | | Focus Control | Autofocus
Manual Focus | | | | Shutter Speed | 1/24 to 1/2000 sec | | Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Stereo | | Recording Media | 2 x SD (Unspecified Type) Card Slots | | | | Broadcast System Compatibility | NTSC | | Recording Modes | XF-AVC 4:2:0 8-Bit:
3840 x 2160p at 23.98/29.97/59.94 fps (160 Mb/s)
1920 x 1080p at 23.98/29.97/59.94 fps (17 to 45 Mb/s)
1920 x 1080i at 59.94 fps (45 Mb/s)
H.264 4:2:2:
3840 x 2160p at 24/30/60 fps (150 Mb/s)
1920 x 1080p at 24/30/60 fps (17 to 35 Mb/s)
1280 x 720p at 60 fps (8 Mb/s)
1280 x 720p at 30 fps (4 Mb/s) | | Variable Frame Rates | UHD: 30 to 120 fps
1080p: 30 to 120 fps
720p: 30 to 120 fps | | Audio Recording | 2-Channel 16-Bit 48 kHz AAC Audio
4-Channel 16-Bit 48 kHz LPCM Audio | | IP Streaming | FTP, MP4, H.264: 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s) | | | | Video Connectors | 1 x Mini-HDMI Output | | Audio Connectors | 2 x 3-Pin XLR Input
1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output | | Other I/O | 1 x USB Mini-B
1 x RJ45 LAN
1 x 2.5 mm LANC Control | | Wireless Interfaces | Wi-Fi Control | | | | Display Type | LCD | | Screen Size | 3.5" | | Touchscreen | Yes | | Screen Resolution | 1,560,000 Dots | | | | EVF Display Type | LCD | | Screen Size | .24" | | EVF Resolution | 1,560,000 Dots | | | | Battery Type | Canon BP-8 Series | | Power Connectors | 1 x Barrel (8.4 VDC) Input | | | | Operating Temperature | 23 to 113°F / -5 to 45°C | | Operating Humidity | 60% | | | | Dimensions | 5.9 x 8.5 x 10.5" / 14.9 x 21.6 x 26.7 cm | | Weight | 3.7 lb / 1.7 kg | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 14.7 x 13.4 x 12.4" |
