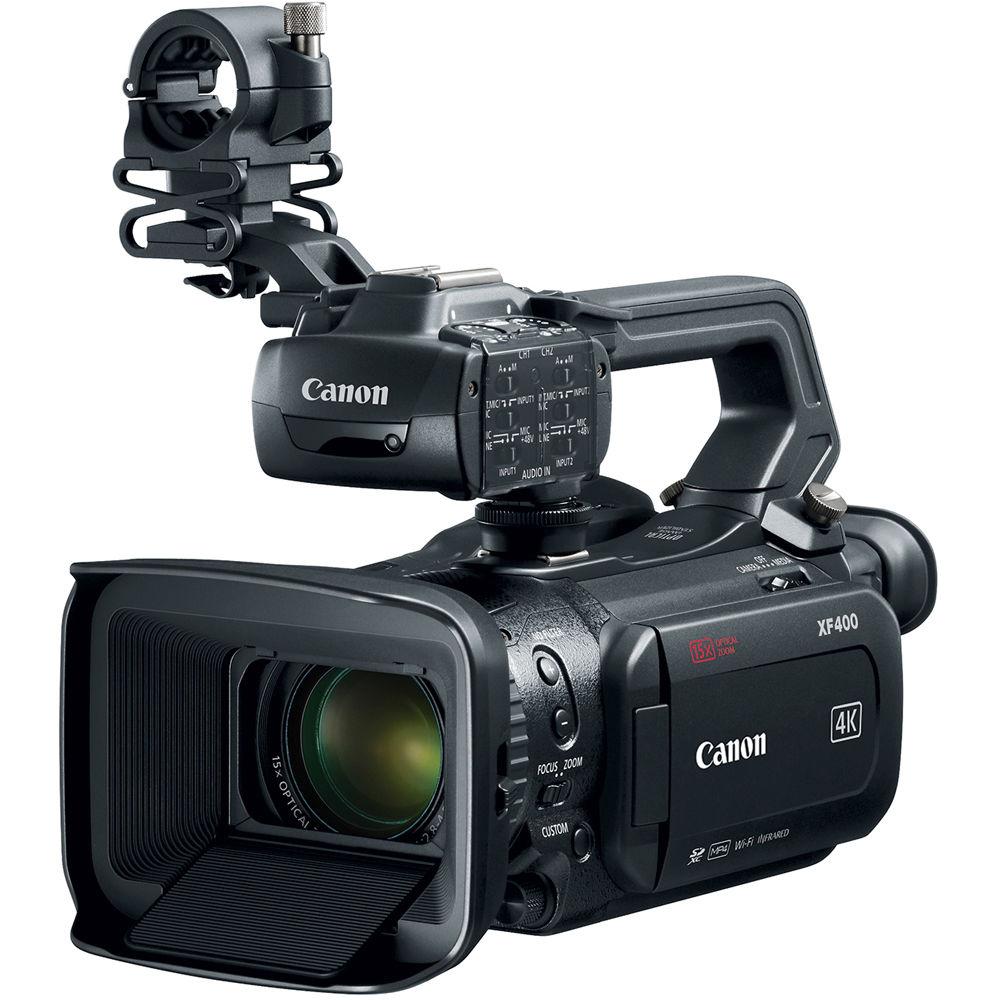

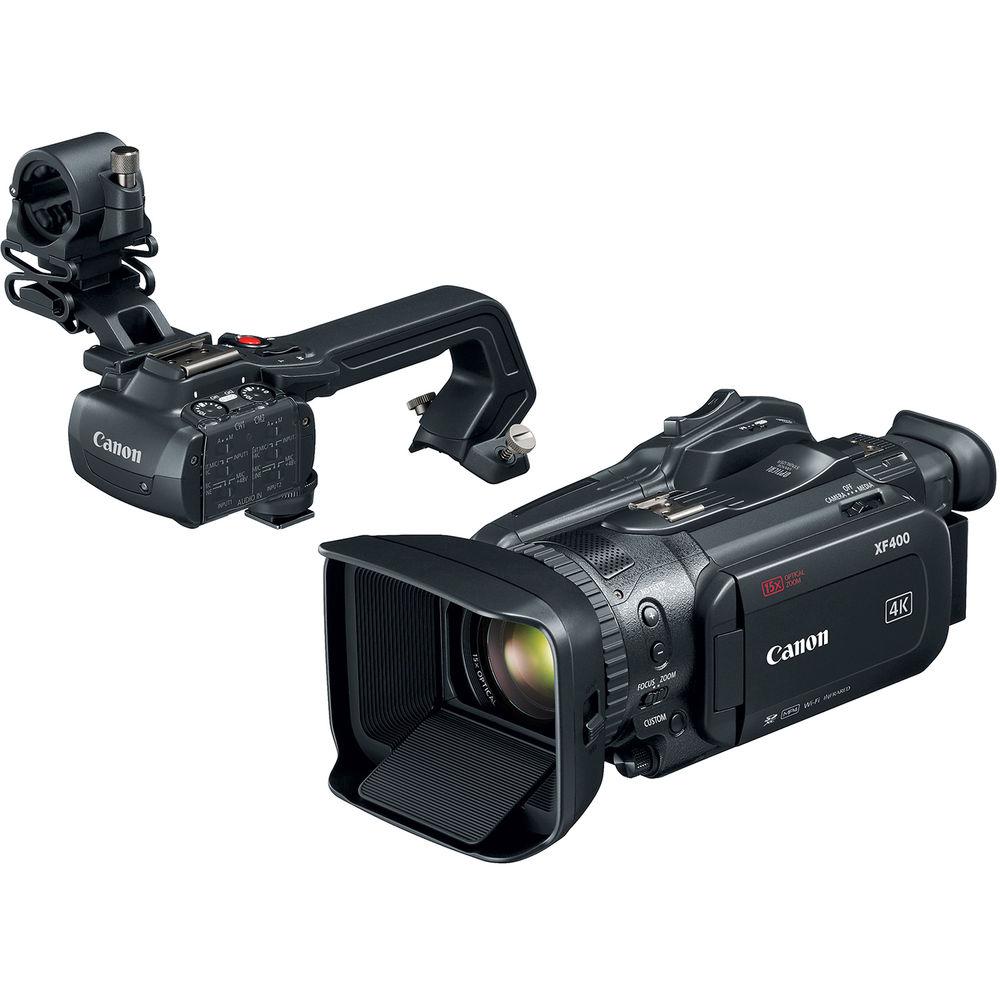

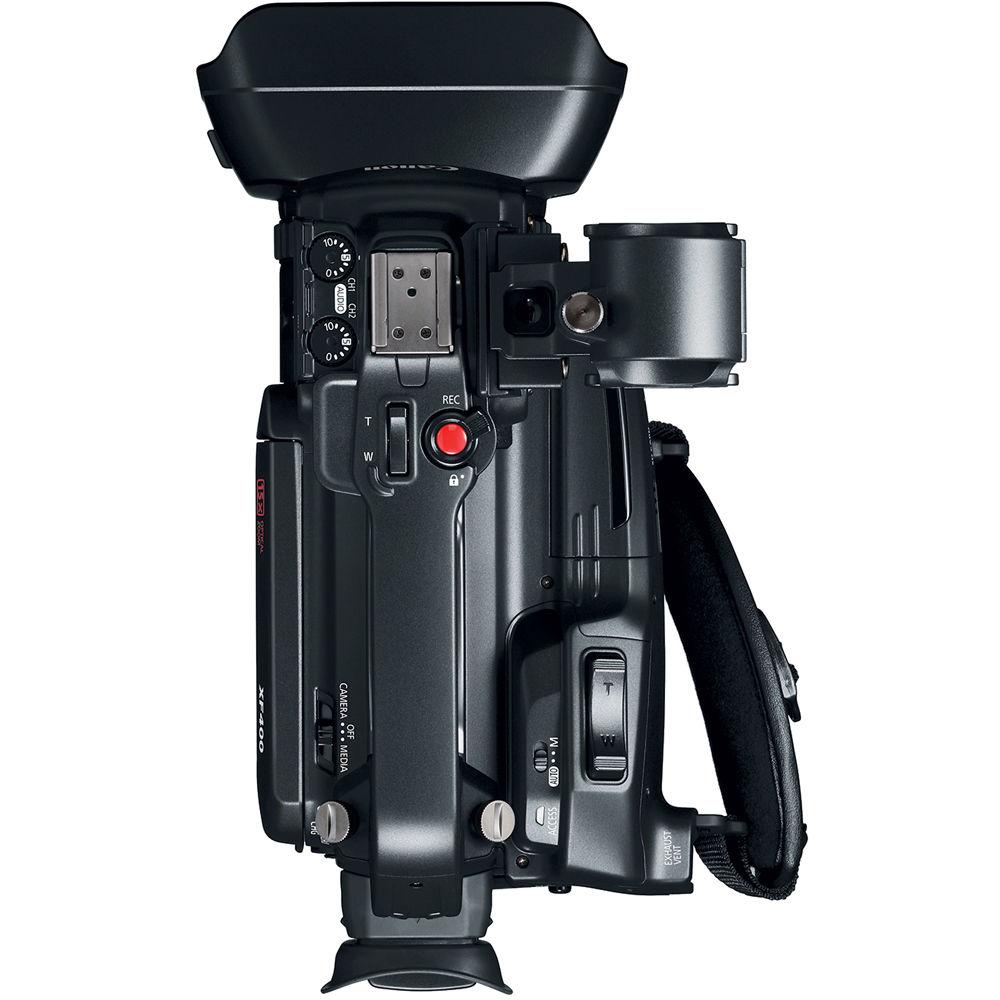

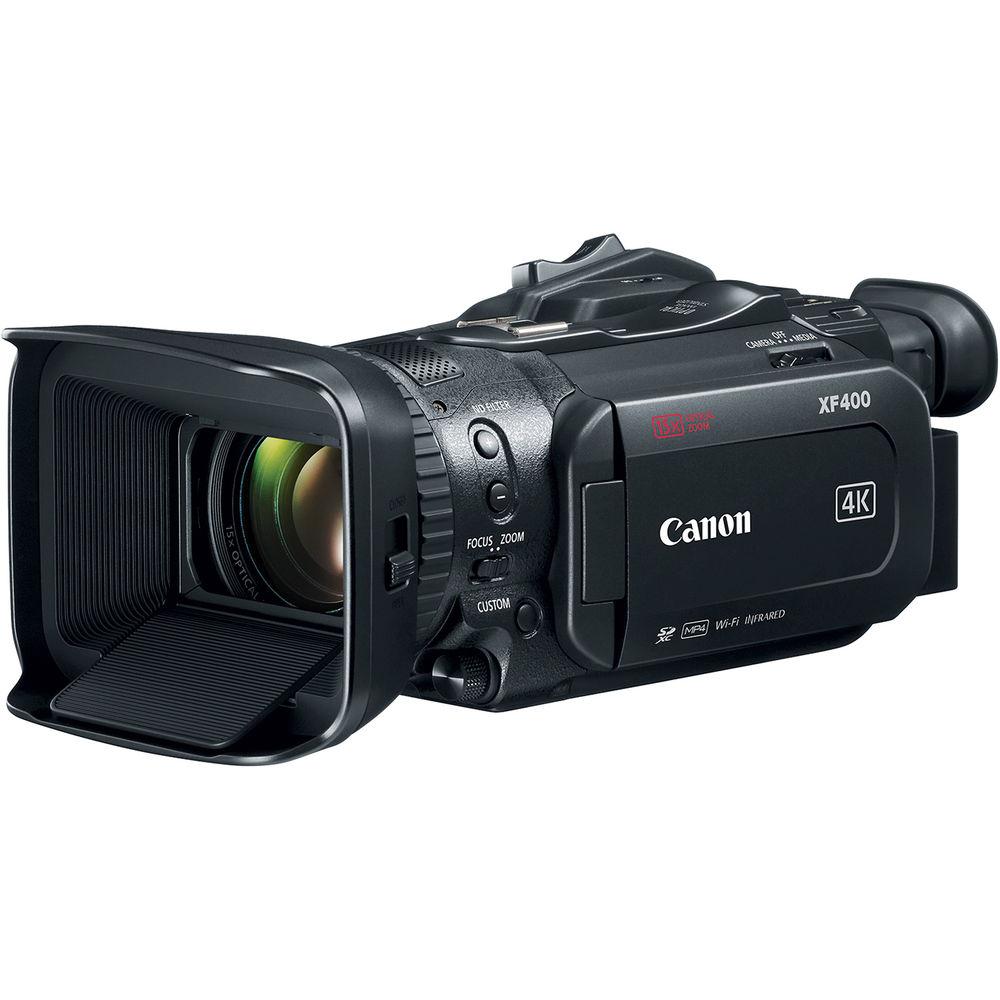

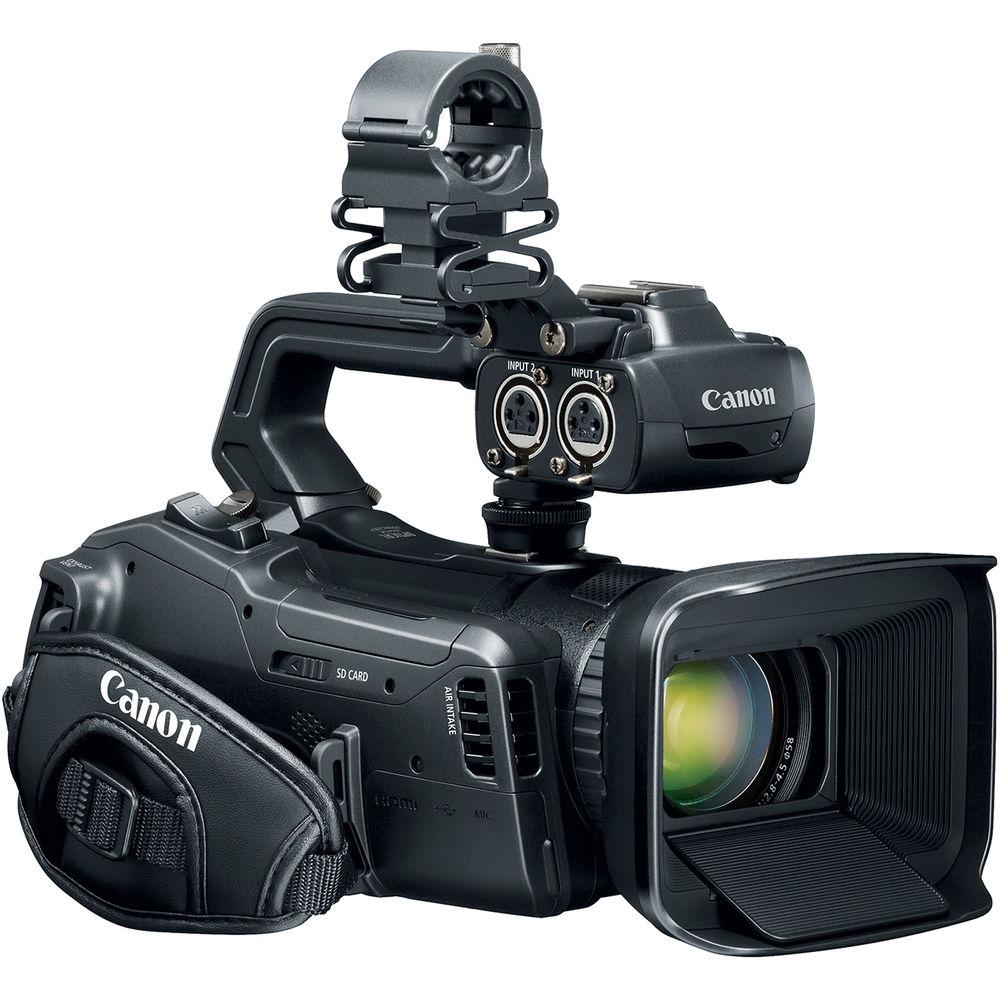

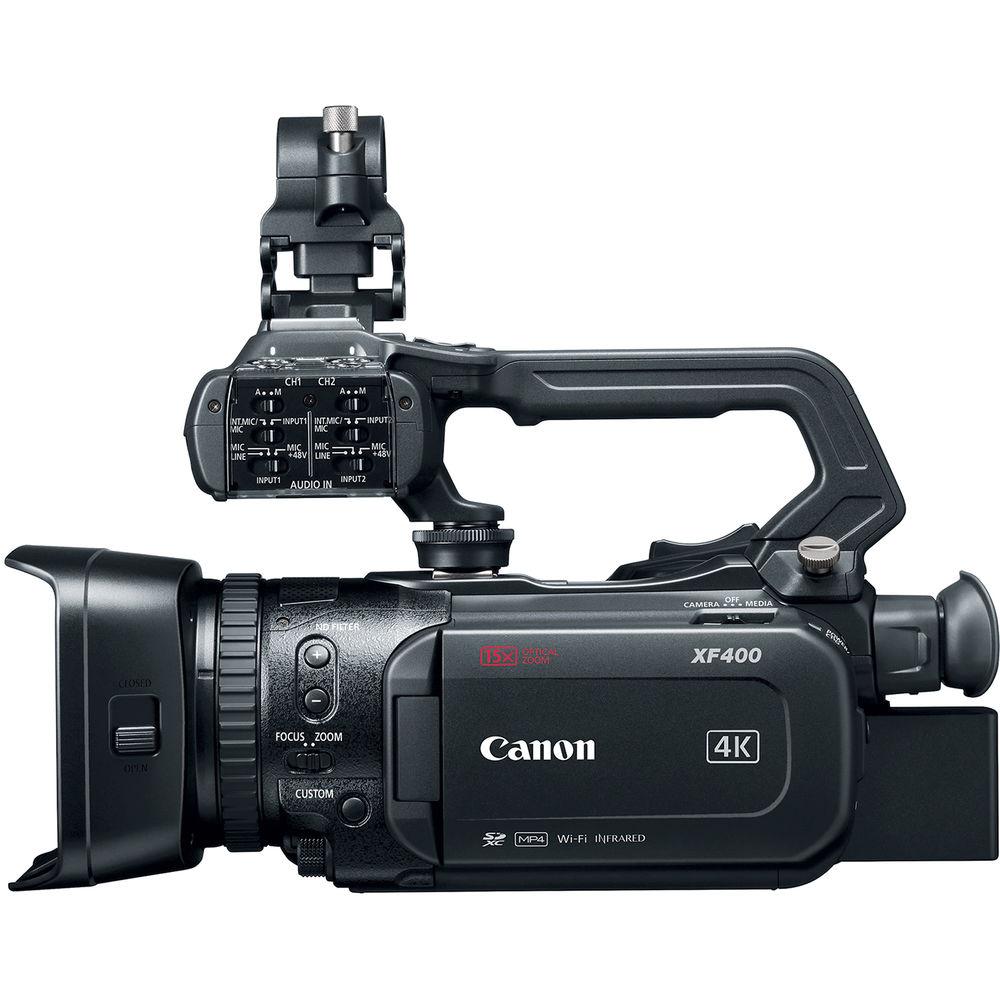

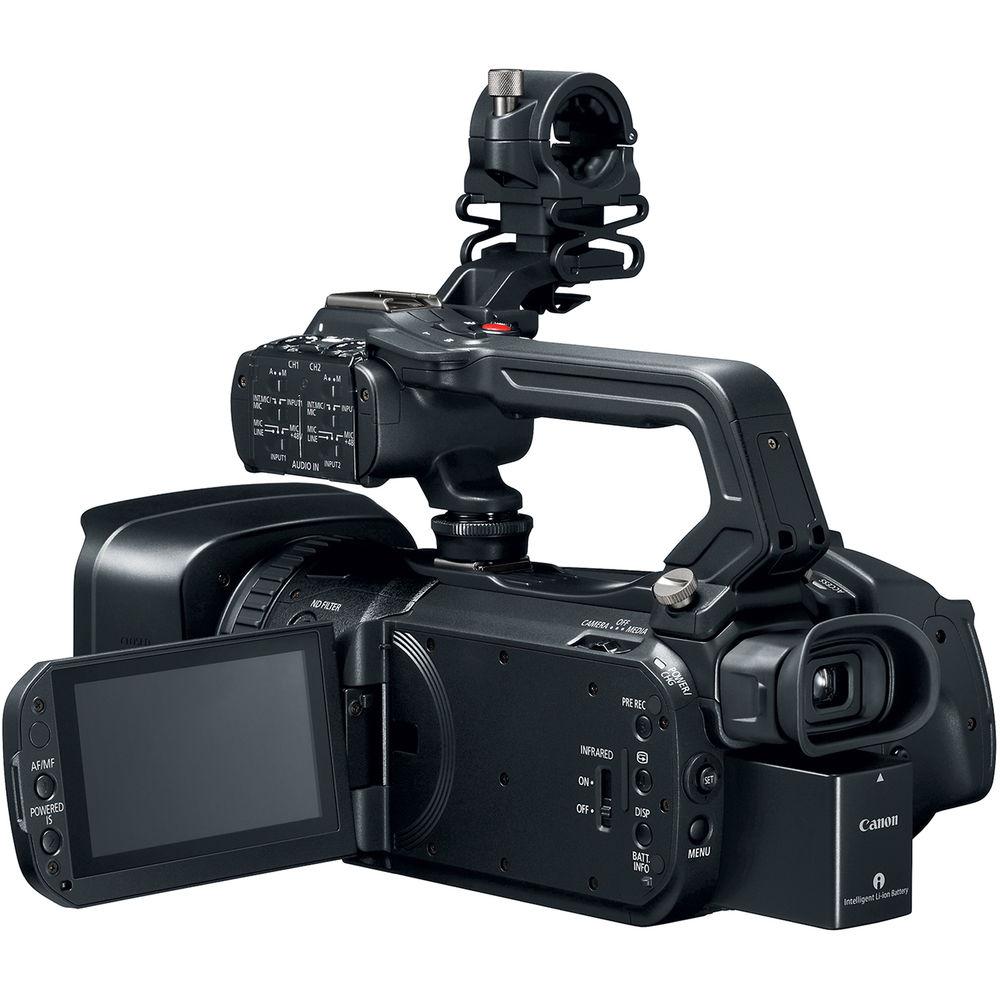

User Manual for Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus

Click to enlarge the picture
Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Contents of the user manual for the Canon XF400 UHD 4K60 Camcorder with
  • Product category: Uncategorized Canon
  • Brand: Canon
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Canon Uncategorized

Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus
User manual for the Canon XF400 UHD 4K60 Camcorder with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Canon product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!



Product description

The Canon XF400 Camcorder is a compact, ergonomic camera featuring UHD 4K capture, a 1" CMOS sensor, IP streaming, and two XLR audio inputs. The XF400's optics include an integrated 15x HD optical zoom with up to 30x Advanced Zoom, a nine-bladed iris for more natural highlights, and five-axis optical image stabilization. Pro-style features include Dual-Pixel Autofocus (DPAF), and dual DIGIC DV 6 image processors with high sensitivity and low noise, supporting Wide DR Gamma.The camera records Full HD 1080p and UHD 4K up to 60 fps—captured to dual SD card slots—and outputs via an HDMI 2.0 port. On the audio side, the XF400 features four channels of audio with manual/automatic recording levels, and two XLR inputs. Built-in Wi-Fi allows you to control the camera's functions via browser and transfer proxy files. Camera control is also available using the included WL-D89 remote.Firmware version 1.0.3.0 adds IP streaming, improved clip reel functions, the ability to assign the custom white balance function to a button, reduced moiré and jagged edges, and updated iris display values.
    Features
    • 8.29MP, 1" CMOS sensor
    • Integrated 15x optical zoom lens
    • Advanced Zoom up to 30x
    • UHD 4K 60 fps, HD 120 fps onboard recording
    • XF-AVC, MP4, H.264 IP streaming at 1080i50/60 using a compatible decoder
    • Dual XLR inputs, four channels of audio
    • Dual-pixel CMOS autofocus feature
    • Two DIGIC DV 6 processors
    • Two SD memory card slots
    • HDMI 2.0 output only

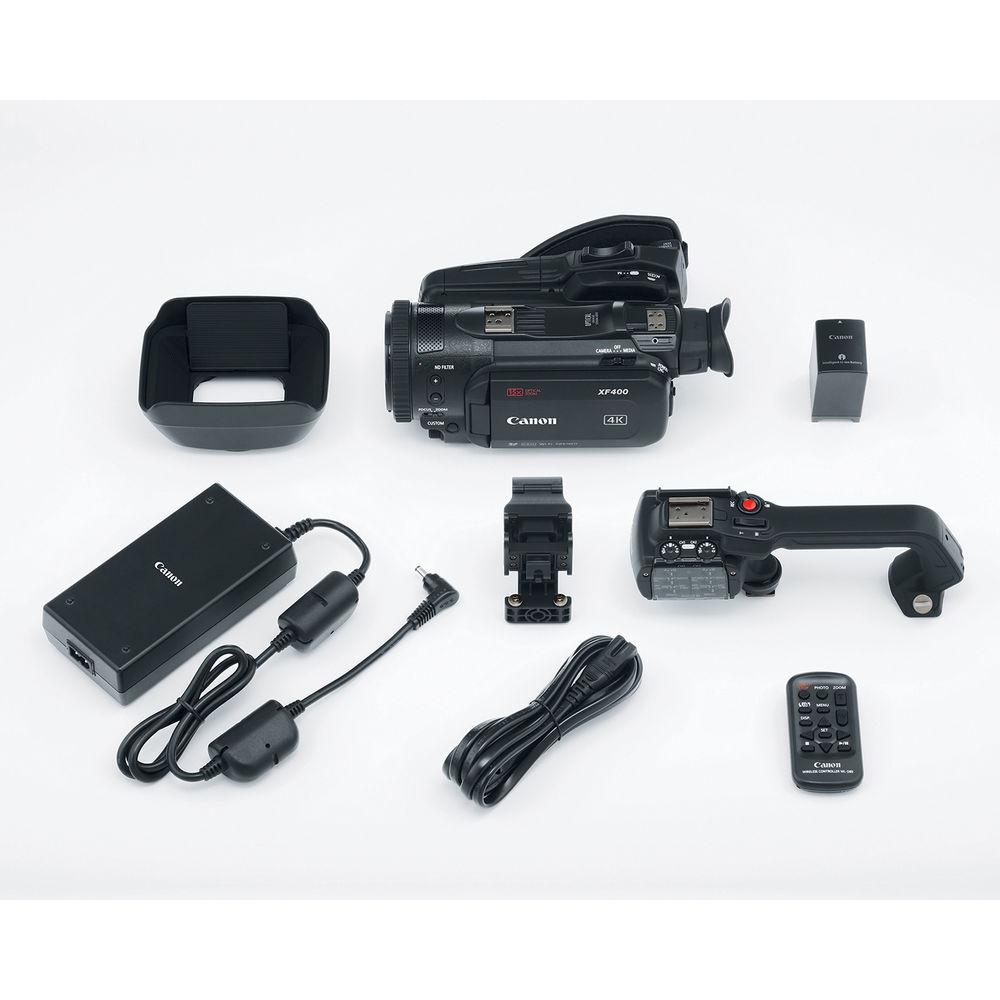

In the Box Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus
  • CA-946 Compact Power Adapter for Select Canon Cinema EOS Cameras and Camcorders zasxbaqdvqzrfuzrtvczzczywar
  • BP-828 Lithium-Ion Battery Pack (2670mAh)
  • Microphone Holder
  • Handle
  • Lens Hood
  • Lens Cap
  • WL-D89 Wireless Controller
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Canon XF400 UHD 4K60 Camcorder with Dual-Pixel Autofocus in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Image Sensor 1-Chip 1" CMOS Sensor
    Sensor Resolution 4268 x 3148 (13.4 MP)
    Effective Sensor Resolution 3840 x 2160 (8.29 MP)
    Minimum Illumination 1.7 lux at 1/30 Shutter Speed
    0.1 lux at 1/2 Shutter Speed
    White Balance Range 2000 to 15,000K
    Focal Length 8.3 to 124.5mm
    35mm Equivalent Focal Length 25.5 to 382.5mm
    Optical Zoom Ratio 15x
    Max Digital Zoom 30x
    Maximum Aperture f/2.8 to 4.5
    Minimum Focusing Distance Macro: 0.4" / 1.0 cm
    Entire Zoom Range: 23.6" / 60.0 cm
    Filter Size 58 mm
    Control Rings Focus
    Zoom Selectable
    Image Stabilization Optical
    Focus Control Autofocus
    Manual Focus
    Shutter Speed 1/24 to 1/2000 sec
    Built-In ND Filter Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
    Built-In Microphone Type Stereo
    Recording Media 2 x SD (Unspecified Type) Card Slots
    Broadcast System Compatibility NTSC
    Recording Modes XF-AVC 4:2:0 8-Bit:
    3840 x 2160p at 23.98/29.97/59.94 fps (160 Mb/s)
    1920 x 1080p at 23.98/29.97/59.94 fps (17 to 45 Mb/s)
    1920 x 1080i at 59.94 fps (45 Mb/s)
    H.264 4:2:2:
    3840 x 2160p at 24/30/60 fps (150 Mb/s)
    1920 x 1080p at 24/30/60 fps (17 to 35 Mb/s)
    1280 x 720p at 60 fps (8 Mb/s)
    1280 x 720p at 30 fps (4 Mb/s)
    Variable Frame Rates UHD: 30 to 120 fps
    1080p: 30 to 120 fps
    720p: 30 to 120 fps
    Audio Recording 2-Channel 16-Bit 48 kHz AAC Audio
    4-Channel 16-Bit 48 kHz LPCM Audio
    IP Streaming FTP, MP4, H.264: 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s)
    Video Connectors 1 x Mini-HDMI Output
    Audio Connectors 2 x 3-Pin XLR Input
    1 x 1/8" / 3.5 mm Stereo Mic Level Input
    1 x 1/8" / 3.5 mm Stereo Headphone Output
    Other I/O 1 x USB Mini-B
    1 x RJ45 LAN
    1 x 2.5 mm LANC Control
    Wireless Interfaces Wi-Fi Control
    Display Type LCD
    Screen Size 3.5"
    Touchscreen Yes
    Screen Resolution 1,560,000 Dots
    EVF Display Type LCD
    Screen Size .24"
    EVF Resolution 1,560,000 Dots
    Battery Type Canon BP-8 Series
    Power Connectors 1 x Barrel (8.4 VDC) Input
    Operating Temperature 23 to 113°F / -5 to 45°C
    Operating Humidity 60%
    Dimensions 5.9 x 8.5 x 10.5" / 14.9 x 21.6 x 26.7 cm
    Weight 3.7 lb / 1.7 kg
    Package Weight 9.5 lb
