User Manual for Canon XF405-E Camcorder Click to enlarge the picture
Contents of the user manual for the Canon XF405-E Camcorder
- Product category: PAL Camcorders Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon PAL Camcorders
 |
User manual for the Canon XF405-E Camcorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

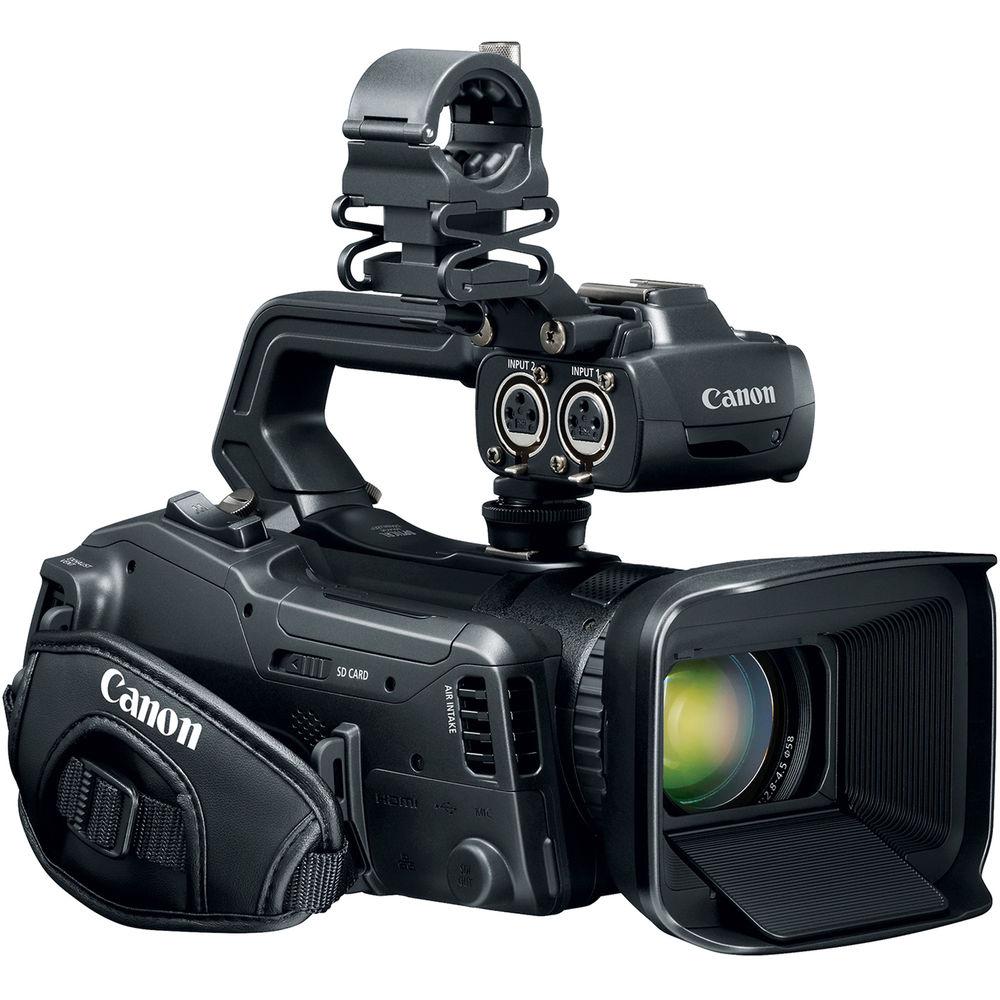

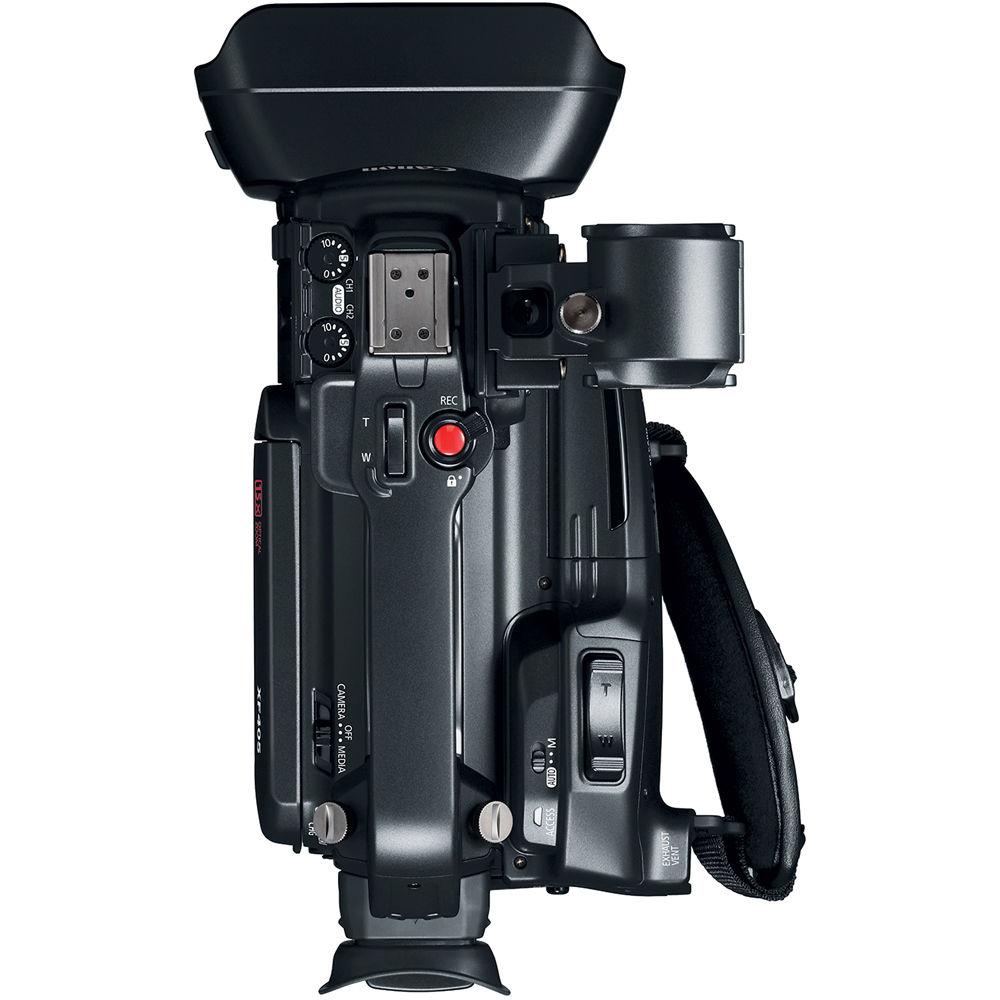

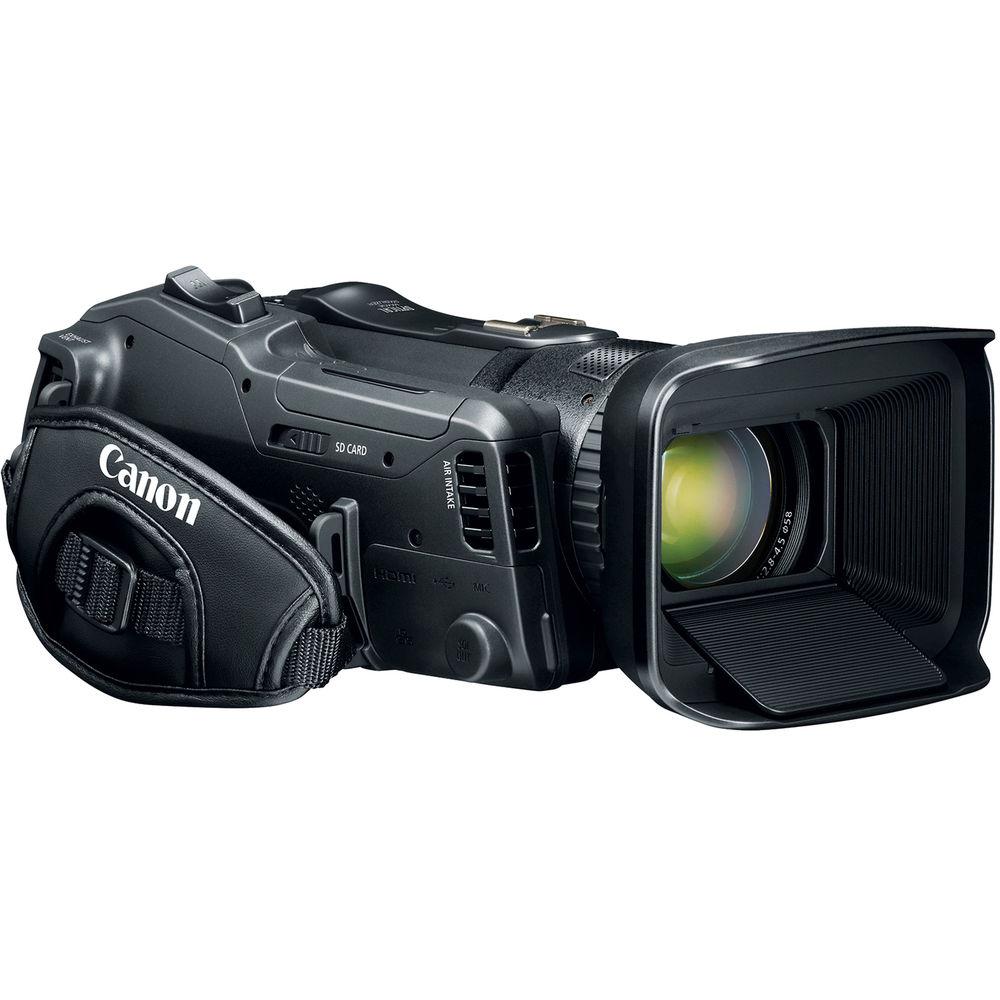

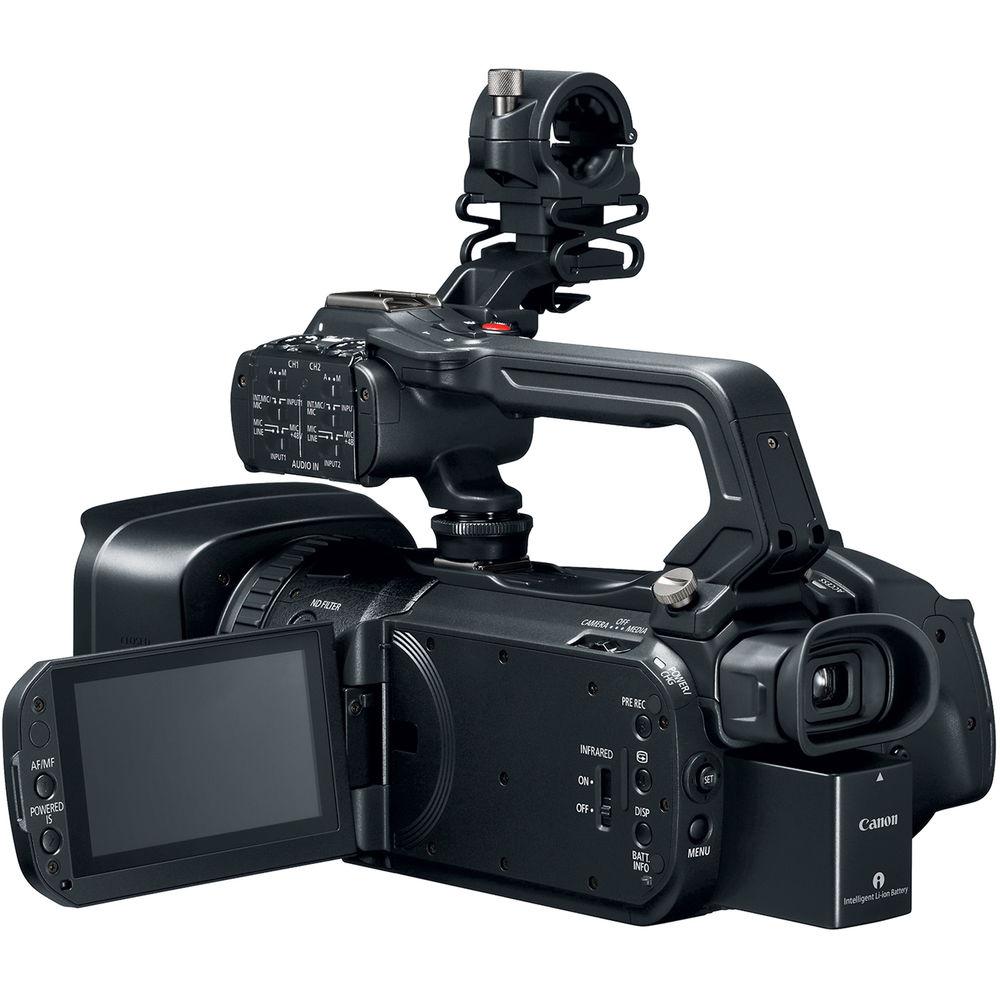

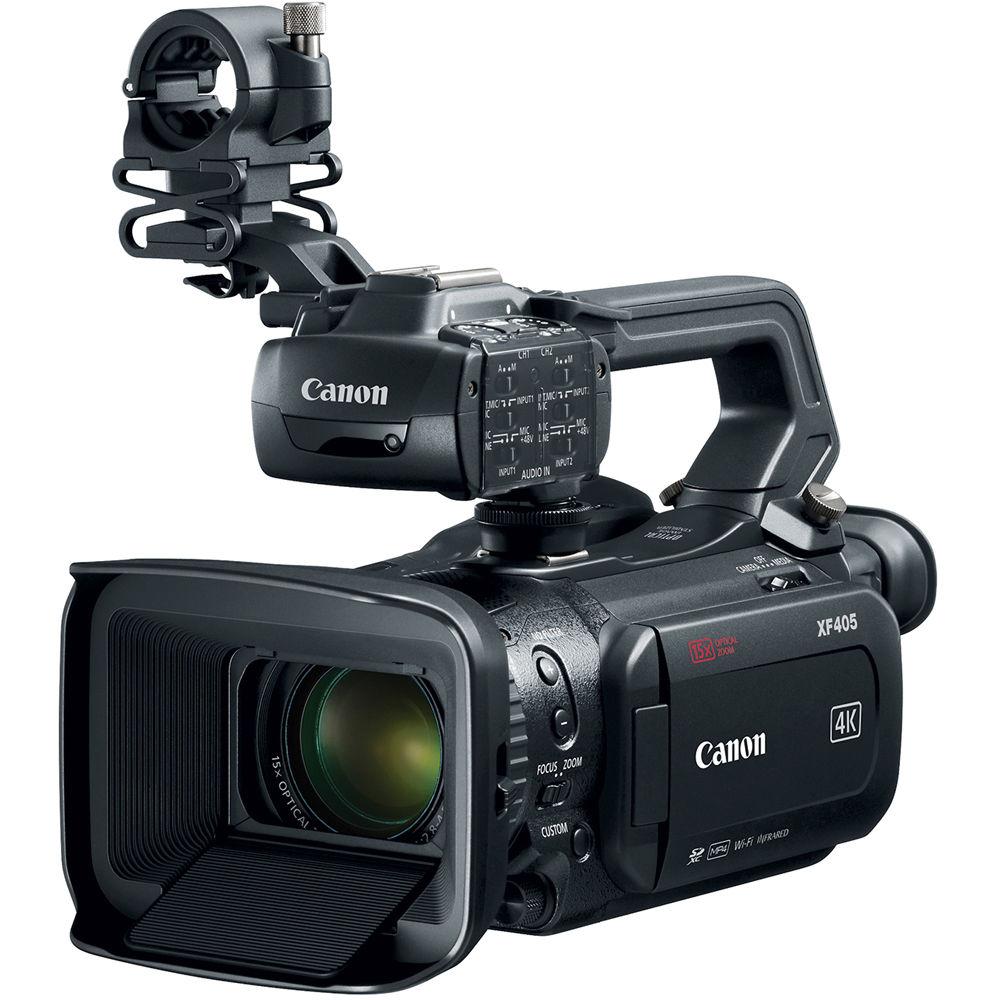

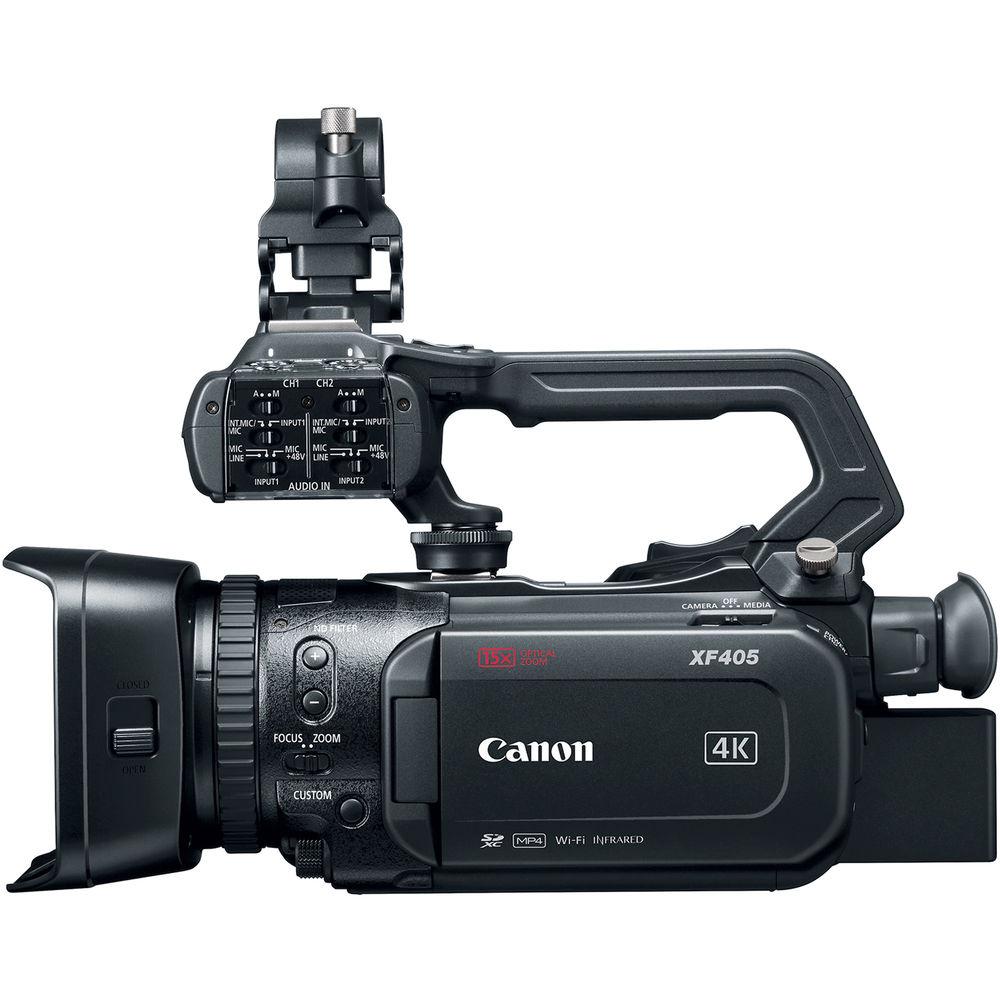

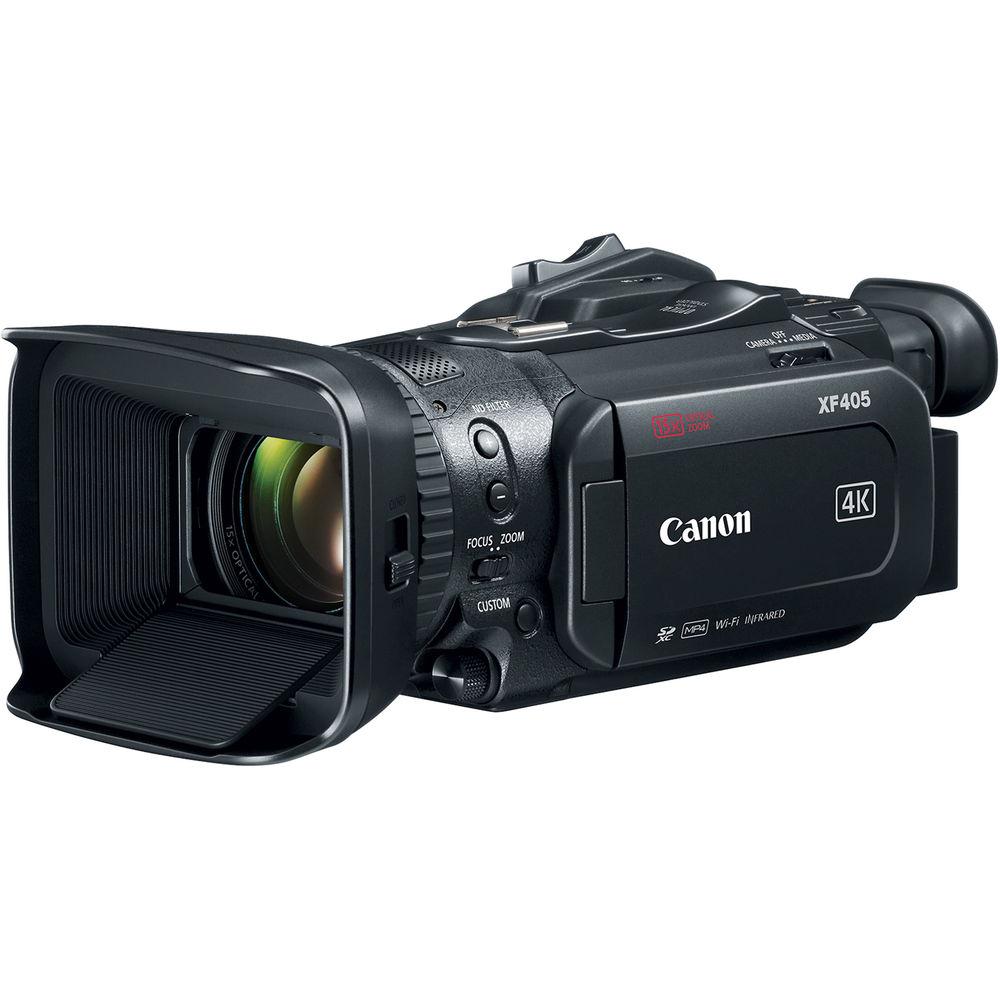

Product description The Canon XF405-E Camcorder is a compact, ergonomic camera featuring UHD 4K capture, a 1" CMOS sensor, and two XLR audio inputs. This PAL model is designed to work with European broadcast standards, and records at 50p and 25p fps. Continuous HFR (high frame rate) recording is available at 100p fps.The XF405-E's optics include an integrated 15x HD optical zoom with up to 30x Advanced Zoom, a nine-bladed iris for more natural highlights, and five-axis optical image stabilization. Pro-style features include Dual-Pixel Autofocus (DPAF), three internal ND filter options, and dual DIGIC DV 6 image processors with high sensitivity and low noise, supporting Wide DR Gamma.The camera records Full HD 1080p and UHD 4K up to 50 fps—captured to dual SD card slots—and outputs via HDMI 2.0 and 3G-SDI ports. On the audio side, the XF405-E features four channels of audio with manual/automatic recording levels, and two XLR inputs. Built-in Wi-Fi allows you to both control the camera's functions via browser and to transfer proxy files. Camera control is also available using the included WL-D89 remote. XF-AVC UHD 4K 50p Long GOP recording is scheduled to be available through a firmware update in 2018. Note: An optional upgrade to enable switching between PAL and NTSC standards is available for purchase through select European Canon service centers. - Key Features
-
- PAL-configured with UHD 4K 50 fps, HFR 100 fps onboard recording
- 8.29MP, 1" CMOS sensor
- Integrated 15x optical zoom lens
- Advanced digital zoom up to 30x
- Three internal ND filters: 1/4, 1/16, and 1/64
- Dual XLR inputs, four channels of audio
- Dual-pixel CMOS autofocus feature
- Two DIGIC DV 6 processors
- Two SD memory card slots
- HDMI 2.0 and 3G-SDI output
- Additional Features
-
- Infrared shooting mode
- Tally lamp
- EBU / SMPTE color bars
- Cold accessory shoe
- Five assignable buttons:
- Color bars: EBU / SMPTE
- Built-in IR lamp in handle unit
- Five Assignable Buttons
-
- Powered IS
- BLC always on
- Face-only AF
- WB priority
- Pre-record
- IR light
- Audio output channel
- Focus guide
- Auto/manual focus
- Rec review
- Enlarged display
- Photo
- Off
- Custom Dial
-
- A/V / TV / M
- Exposure compensation
- AGC limit
- Off
- Remote Control Features
-
- Aperture (including ND control)
- Focus: Three-step control of the amount by which the focus is driven toward NEAR and toward FAR
- White balance
- Shutter speed
- Gain
- Exposure compensation
- Shooting mode
- Zooming and Slot Select control can be exercised
- Free memory remaining on the media, timecode, remaining battery charge, etc. can be checked
- Live View

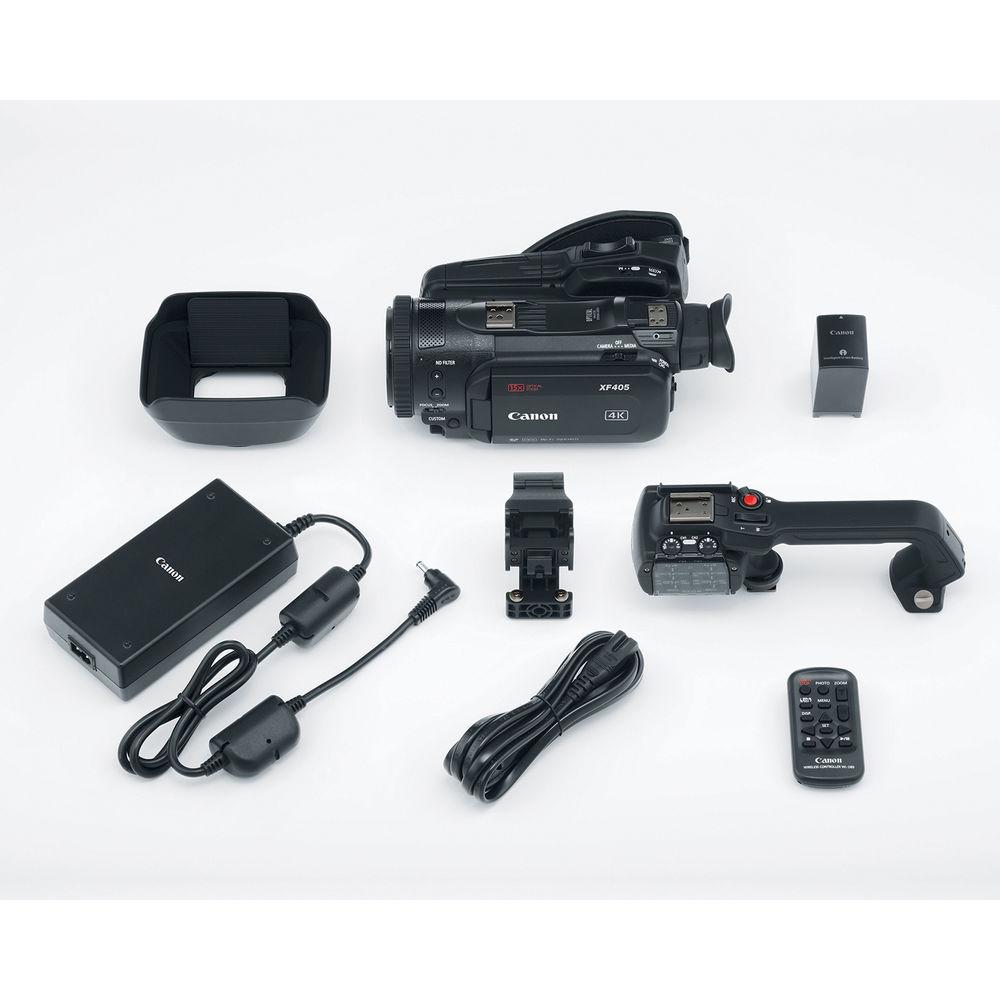

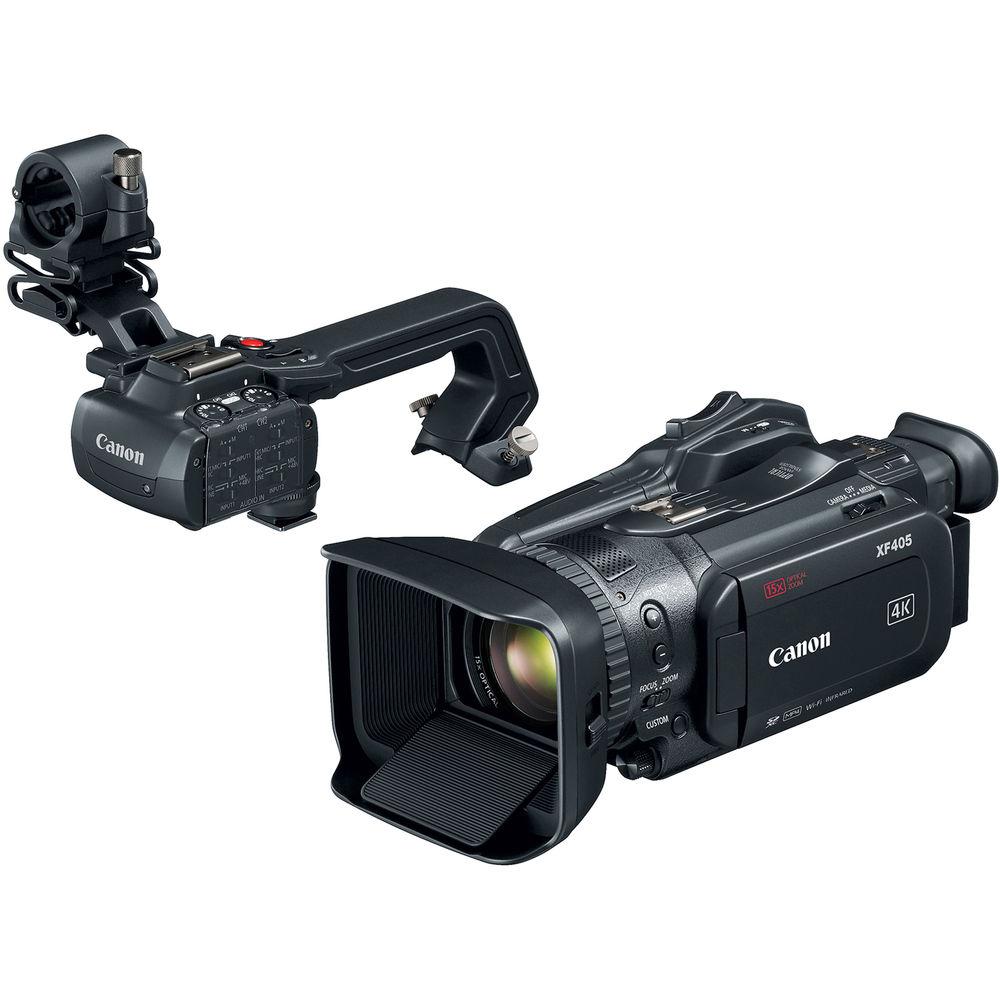

In the Box Canon XF405-E Camcorder (PAL) Handle Unit Lens Hood Lens Cap BP-828 Lithium-Ion Battery Pack (2670mAh) CA-946 Compact Power Adapter for Select Canon Cinema EOS Cameras and Camcorders AC Cable Microphone Holder WL-D89 Wireless Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon XF405-E Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon XF405E Specs | | | CMOS Sensor | 1.0" type | | Filter | RGB | | Total Pixels | 13.4 MP | | Effective Pixels | 8.29 MP | | Illumination Range | 0.1 to 100,000 lux | | Minimum Illumination | Approximate:
Program Mode: 1.4 lux (1/25 sec shutter speed, 50p Auto Slow Shutter on)
Low Light Mode: 0.1 lux (1/2 sec shutter speed) | | | | Zoom Ratio | Optical: 15 x
Advanced Digital: 30x (Full HD) | | Focal Length | 25.5–382.5mm | | Minimum Focus Distance | Wide Angle: 0.4" / 10 mm
Across Zoom Range: 23.6"/ 60 cm | | Aperture Range | f/2.8–11 (A/V Priority and Manual modes) | | Filter Diameter | 58 mm | | Elements/Groups | 18 / 14 | | Number of Aperture Blades | 9 | | Digital Zoom | Digital Zoom: 300x
Digital Teleconverter: 2x | | Video Recording | Compression: MPEG-4 AVC/H.264
Color Sampling: 4:2:2 or 4:2:0 (mode-dependent)
File Format: MP4 | | | | Type | Dual DIGIC DV6 | | Dynamic Range | WDR Mode: 12 stops (800%) | | Sampling | YCC 4:2:0 | | Bit Depth | 8-bit | | | | Supported Storage Media | SD/SDHC/SDXC card, Class 3 or higher recommended | | Maximum Recording Time | On 64 GB Card:
150 Mb/s: 55 min
35 Mb/s: 240 min | | Recording Resolution | MP4:
3840 x 2160p: 50/25 (150 Mb/s)
1080p: 50/25 (35/17 Mb/s)
720p: 50/25 (8/4 Mb/s) | | Recording Frame Rates | 50p, 25p | | Slow/Fast Motion | 3840 x 2160:
50p: x2, x4, x10, x20, x60, x120, x600, x1200
25p: x0.5
1920 x 1080:
50p: x0.5, x2, x4, x10, x20, x60, x120, x600, x1200
25p: x0.25, x0.5
1280 x 720:
50p (8 Mb/s): x2, x4, x10, x20, x60, x120, x600, x1200
25p (4 Mb/s): x0.5 | | Pre Recording | 3 seconds | | Still Image Capture | 3840 x 2160
1920 x 1080
1280 x 720
(dependent on video resolution) | | | | Audio Recording | MPEG-4 AAC-LC, 16-bit, 2-channel
LPCM, 16-bit, 48 kHz, 4-channel | | Control | Manual or Auto | | Reference Tone | 1 kHz: -12 dB / -18 dB / -20 dB / Off | | Audio Level Meter | Microphone | | | | Type | Capacitive touchscreen LCD | | Size | 3.5" / 8.9 cm (1.56 million dots, approx.) | | Adjustable | Yes | | Waveform | No | | Focus Assist | Yes, in MF mode | | Peaking | Selectable (red / blue / yellow) | | Zebra | 70, 100% | | Markers | Horizontal (gray, white)
Grid (gray, white) | | Live View Resolution | Camera Setting Mode: 680 x 383
Simplified Setting Mode: 284 x 160 | | | | Size | 0.24" / 0.6 cm TFT LCD EVF (1.56 million dots, approx.) | | Adjustable | Yes | | Viewing Angle | 100% | | Correction Lens | +2.0 to -5 diopter | | | | Audio In | 2 x 3-pin XLR, balanced (on handle unit)
1 x 3.5 mm stereo jack (on camera body) | | Headphones Output | 1 x 3.5 mm | | Other | Video Monitor Output: No
HDMI: Yes
USB Mini-B, high-speed supported
Timecode Output: Via HDMI only
Genlock: No
AV Terminal: No | | Video Output | 1 x BNC, HD/SD-SDI | | LAN | 1 x RJ45, 1000BASET (Gigabit) Ethernet | | Power Supply | DC Input: 8.4 VDC | | Remote Control | 1 x 2.5 mm mini jack | | Media Card Slots | 2 x SD | | | | Wireless LAN Standard | 802.11 b/g/n/a, (2.4/5 GHz) | | Wi-Fi | Browser Remote (Camera mode)
FTP file transfer (Media mode) | | Browser Support | Internet Explorer 8 or later
Safari (iOS 9 or 10), Safari (Mac OS)
Android standard browser 4.4 - 6.0 | | | | Exposure Metering | Center-Weighted Average Metering:
Auto, P, A/V, TV, Portrait, Sports, Low Light, IR modes
Segment-Evaluative Metering:
Snow, Beach, Sunset, Spotlight, Night modes
No Metering:
Fireworks, Fixed Exposure (1/50 sec.), M (manual exposure) | | Exposure Compensation | Highlight AE, Exposure lock, Auto backlight compensation
Exposure compensation amount shown as ±3 when locked, or ±2 in Auto (±8 increments) | | Auto Exposure Control | P, TV, AV
Scene (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks) | | Automatic Gain Control | Auto Gain Control Limit (in 1 dB increments):
In Manual Exposure (P, A/V, and TV modes): 0-29 dB
Not Wide DR Mode, Not S & F x 1/4: 0-29 dB
Not Wide DR Mode, S & F x 1/4: 9-29 dB
Wide DR Mode, Not S & F x 1/4: 9-29 dB
Wide DR Mode, S & F x 1/4: 18-29 dB
Gain Setting (in 1 dB increments):
M (Manual) shooting
Not Wide DR: 0-39 dB
Wide DR: 9-39 dB | | White Balance | Settings:
Auto, Manual
Presets:
Daylight: 5600K
Tungsten: 3200K
Default Value for Set 1, Set 2: 5600K
Color Temperature (Kelvin) Setting Range: 2000 to 15,000K | | | | Settings | Count-Up System: Rec run / Free run
Start Value Setting: 23:59:59:24
Drop Frame: DF / NDF
User BIT Type: Setting (00 00 00 00 - FF FF FF FF) / Time / Date | | | | Control Modes | Manual, TV, Auto, P Mode | | Shutter Speed | 1/2 to 1/2000 sec | | Slow Shutter | 50p:
Auto slow Shutter On: 1/25 to 1/500 sec
Auto Slow Shutter Off: 1/50 to 1/500 sec
25p:
Auto Slow Shutter On: 1/12.5* to 1/500 sec (*display is 1/12)
Auto Slow Shutter Off: 1/25 to 1/500 sec | | Clear Scan | No | | | | Power Consumption | 8.4 W (MP4, 3840 x 2160, 50p, panel in use) | | External Battery Pack | Canon battery pack BP-828 (supplied)
Canon battery pack BP-820 (optional) | | Continuous Recording Time | BP-828: 125 mins (MP4, 3840 x 2160, 50p, panel in use) | | | | Operating Temperature | 23 to 113°F / -5 to 45°C | | Dimensions | 5.9 x 8.5 x 10.5" / 14.9 x 21.6 x 26.7 cm | | Weight | 2.5 lb / 1.2 kg (camera only)
3.7 lb / 1.7 kg (with lens hood, mic holder unit, handle unit, BP-828 battery, and memory card) |
