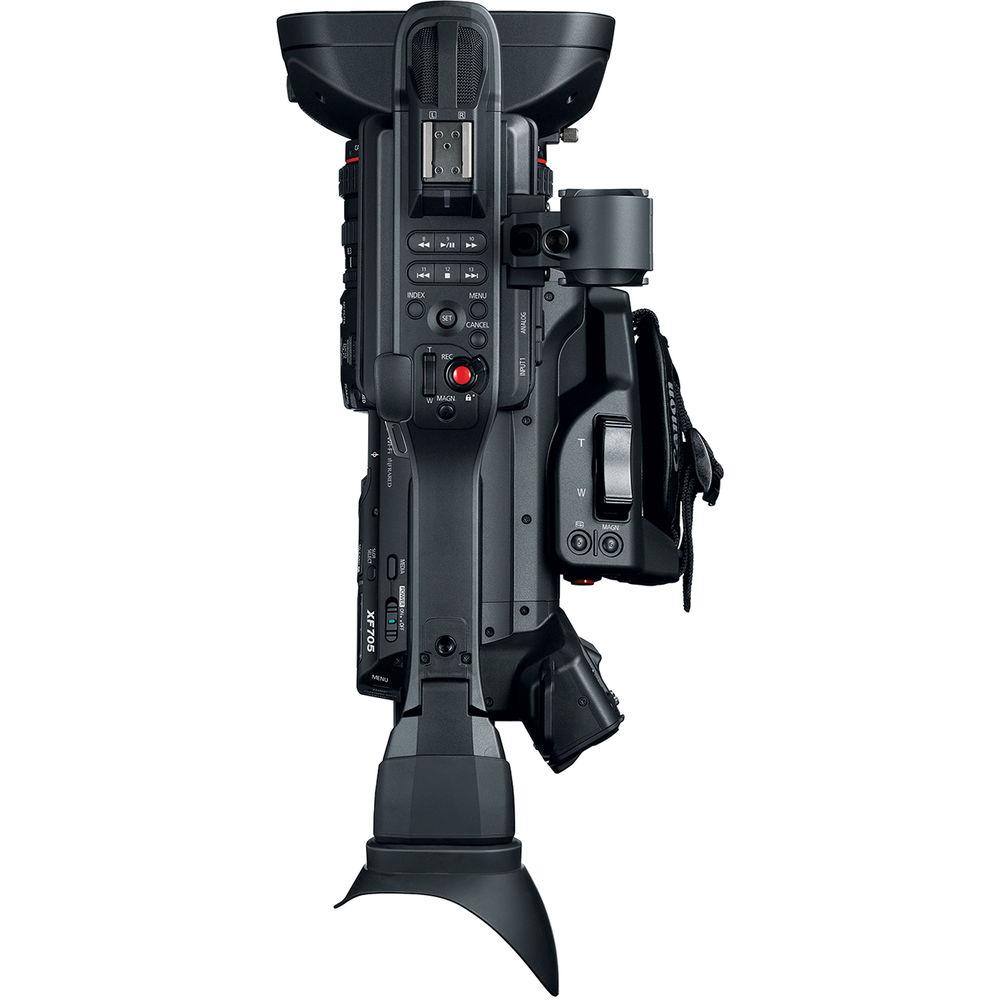

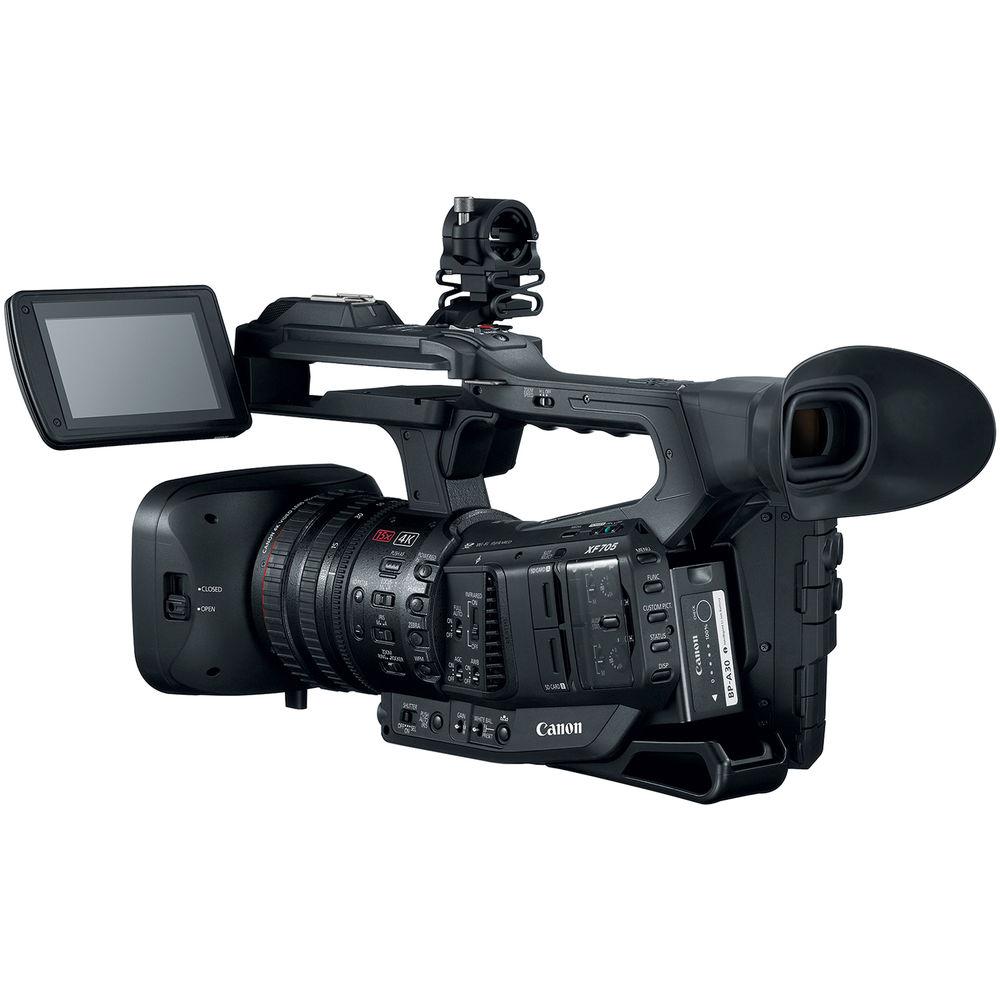

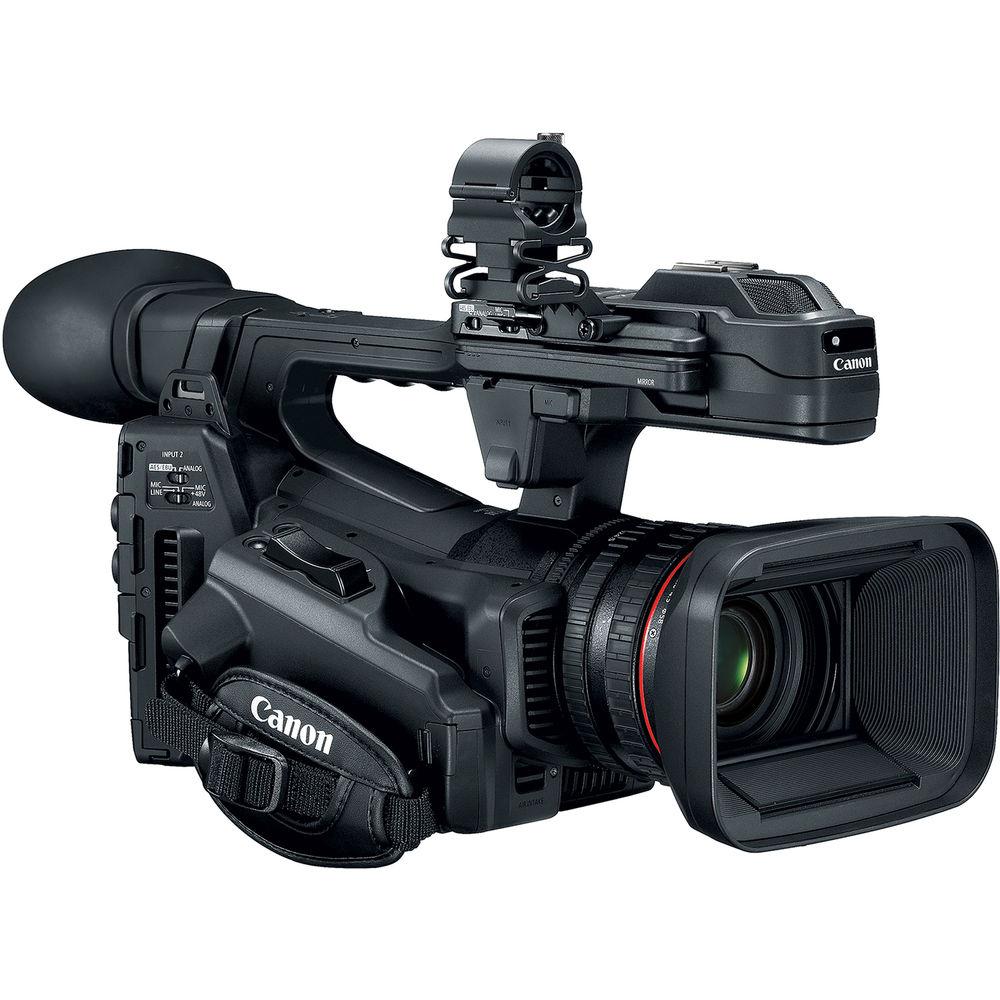

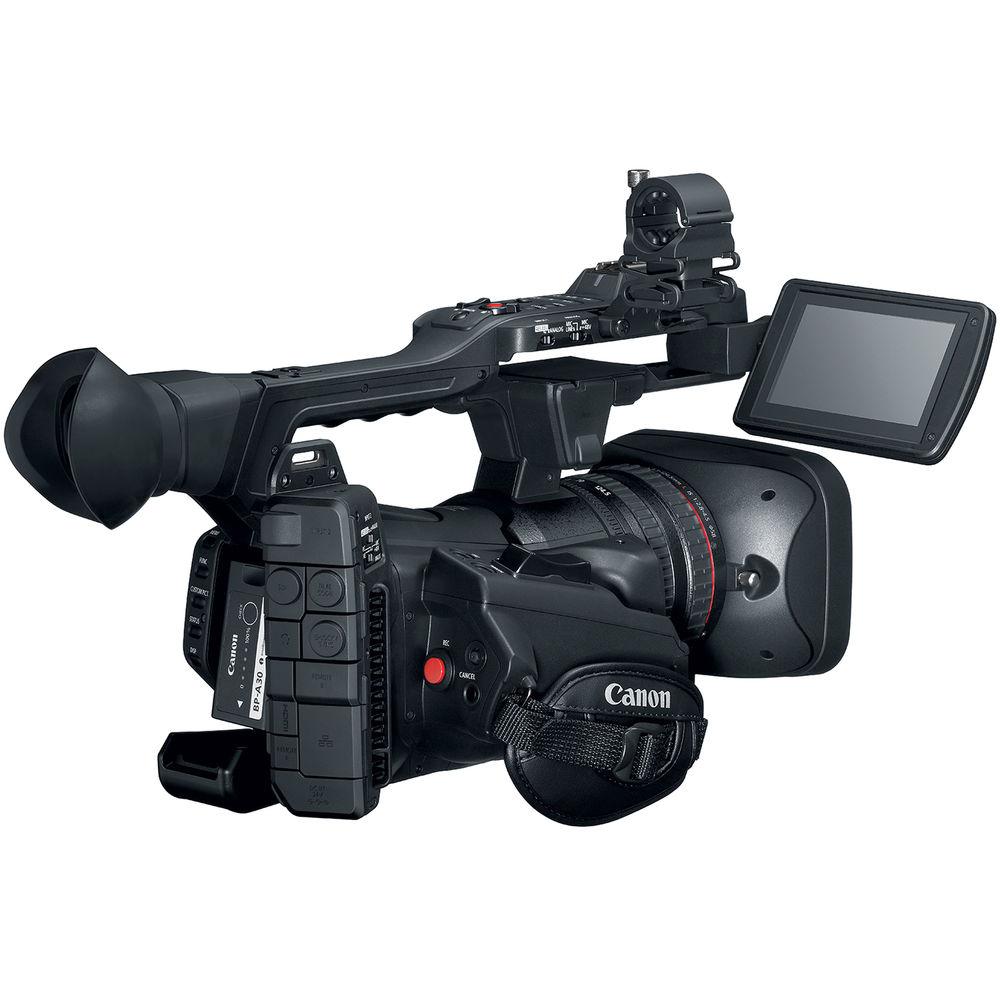

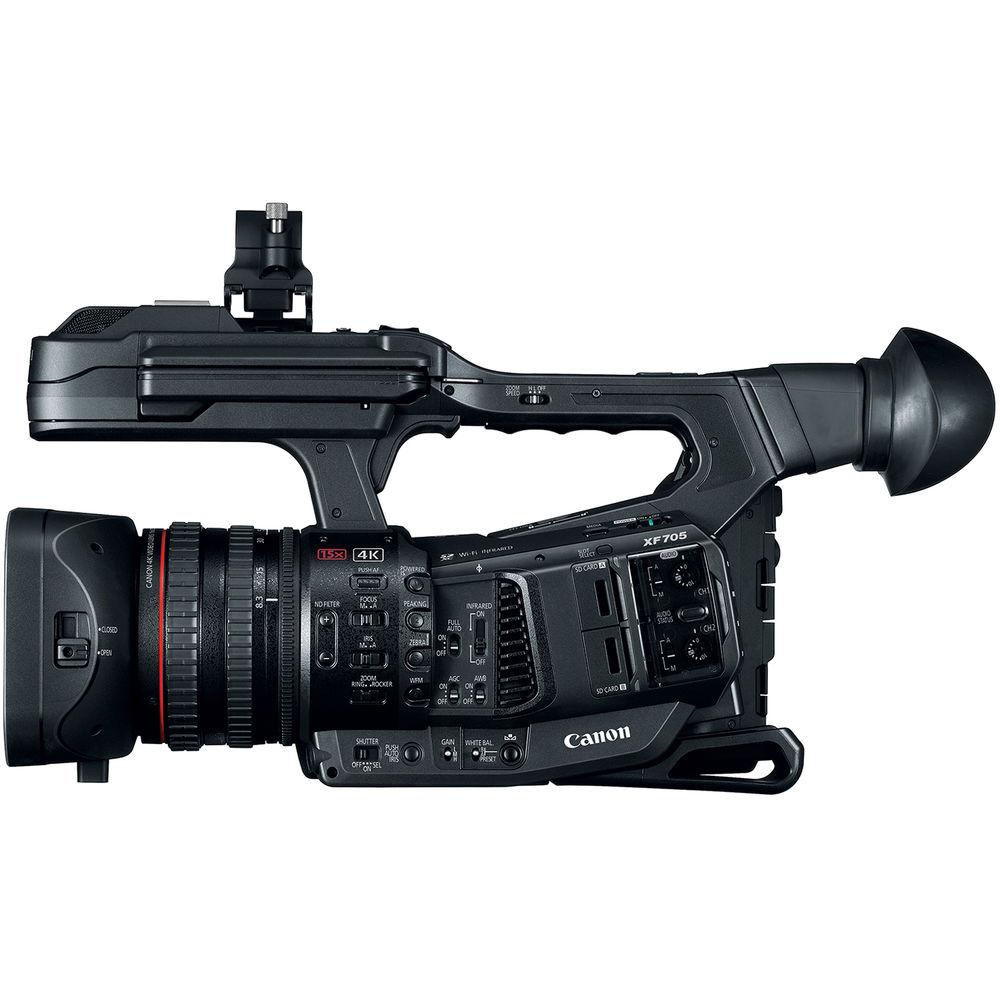

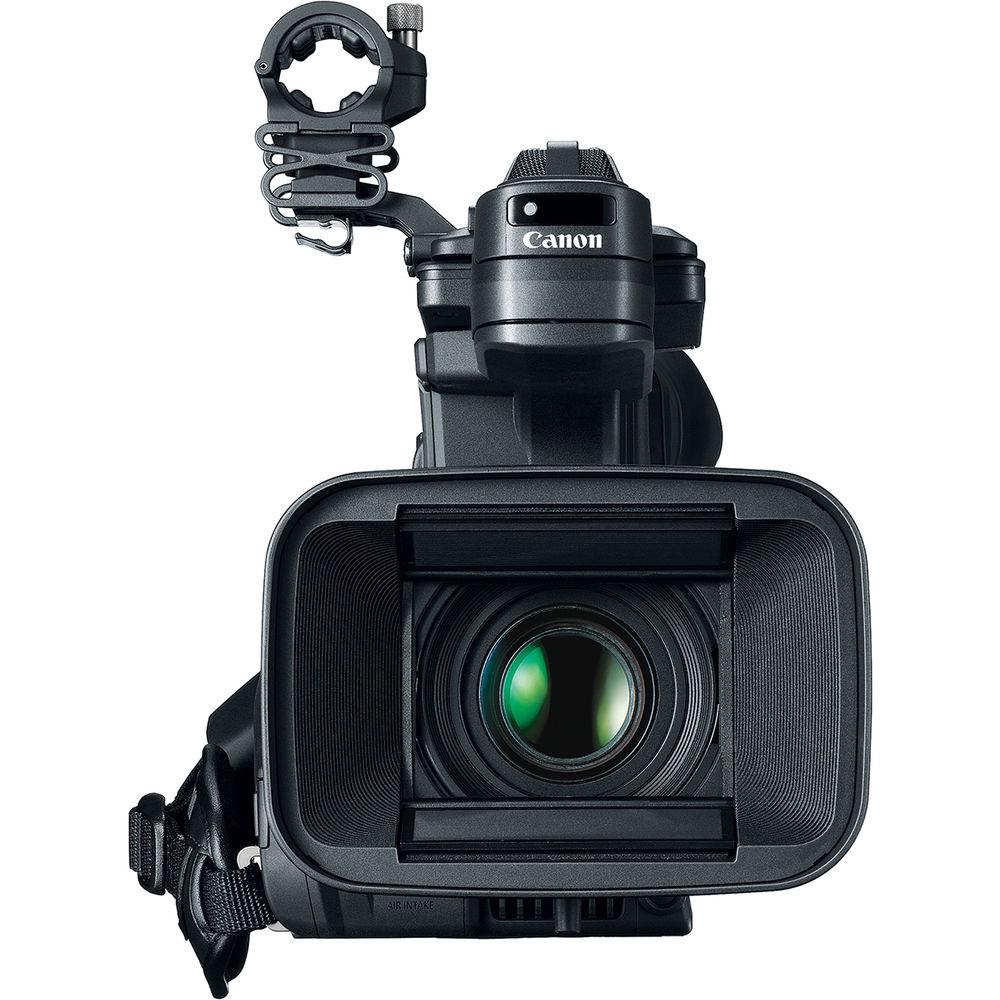

Product description Canon XF705 4K UHD and HD: the Return of the Camcorder Read More - Canon XF705 4K 1" Sensor XF-HEVC H.265 Pro Camcorder - First Look Review
Canon's XF705 4K 1" Sensor XF-HEVC H.265 Pro Camcorder uses the highly efficient H.265 codec, offering up to UHD 4K60 4:2:2 10-bit capture in a compact, ergonomic form. Its 1" CMOS sensor and dual DIGIC DV 6 processors provide high sensitivity and low noise for natural-looking images. Camera features include 1080p rates up to 120 fps, 12G-SDI and HDMI 2.0 outputs, internal ND filters, and dual XLR audio inputs. The XF705 incorporates a 15x HD optical zoom with up to 30x Advanced Zoom, a nine-bladed iris for rounded highlights, a 4" touchscreen LCD, and five-axis optical image stabilization. Imaging features include Dual-Pixel Autofocus (DPAF), Wide Dynamic Range Gamma, and both HLG (Hybrid Log Gamma) and PQ (Perceptual Quantization) HDR recording for impressive latitude. Firmware upgrade version 1.0.1.1 improves the zoom response in both ring and rocker modes, boosts the focus speed while zooming, and adds a vertical filter function to reduce artifacts like moiré and jagged edges. The camera records to dual SDXC card slots and includes genlock, timecode, Ethernet, and RS-422 ports. On the audio side, the XF705 features four channels of LCPM audio with manual/automatic recording levels, and dual XLR inputs. Built-in Wi-Fi allows you to control the camera's functions via browser and transfer proxy files. Camera control is also available using the included WL-D6000 remote - Features
-
- 1" CMOS sensor captures UHD 4K video up to 60 fps and HD up to 120 fps
- 4:2:2 10-bit recording in the highly efficient H.265/HEVC codec
- The sensor and two DIGIC DV 6 processors produce images with shallow depth of field, high sensitivity, and low noise
- Integrated 15x optical, 30x digital zoom lens with 25.5 to 382.5mm (35mm-equivalent) focal range
- Improved zoom and focusing while zooming, as well as reduction in artifacts with firmware upgrade v1.0.1.1
- 5-axis optical stabilization with Standard, Dynamic, and Powered modes
- 9-blade iris for attractive bokeh looks
- Manual ND filter wheel with ND 1/4, 1/16, and 1/64 settings
- HLG (Hybrid Log Gamma) and PQ (Perceptual Quantization HDR recording for full color rendition and wide latitude
- Two SDXC memory card slots
- Dual-pixel CMOS autofocus with touch focus on the 4" LCD panel
- Fine-tune gain during simultaneous HDR and SDR recording
- Canon Log 3 offers wide latitude in post-grading
- Wide Dynamic Range with seamless gradations and minimal blown-out highlights
- Rotatable 4.0" LCD touchscreen and 0.46" OLED EVF for accurate viewing
- HDMI 2.0 and 12G-SDI outputs
- Genlock, SMPTE timecode, Ethernet, and remote ports
- Live IP streaming in H.265 or H.264
- Dual XLR inputs, an internal stereo mic, and a mini-jack input offer up to four channels of audio input
- Compatible with the optional RC-V100 remote controller
- Compact, lightweight design is suited for ENG, documentary, and run-and-gun productions
- Wired and Wi-Fi connectivity for FTP file transfers

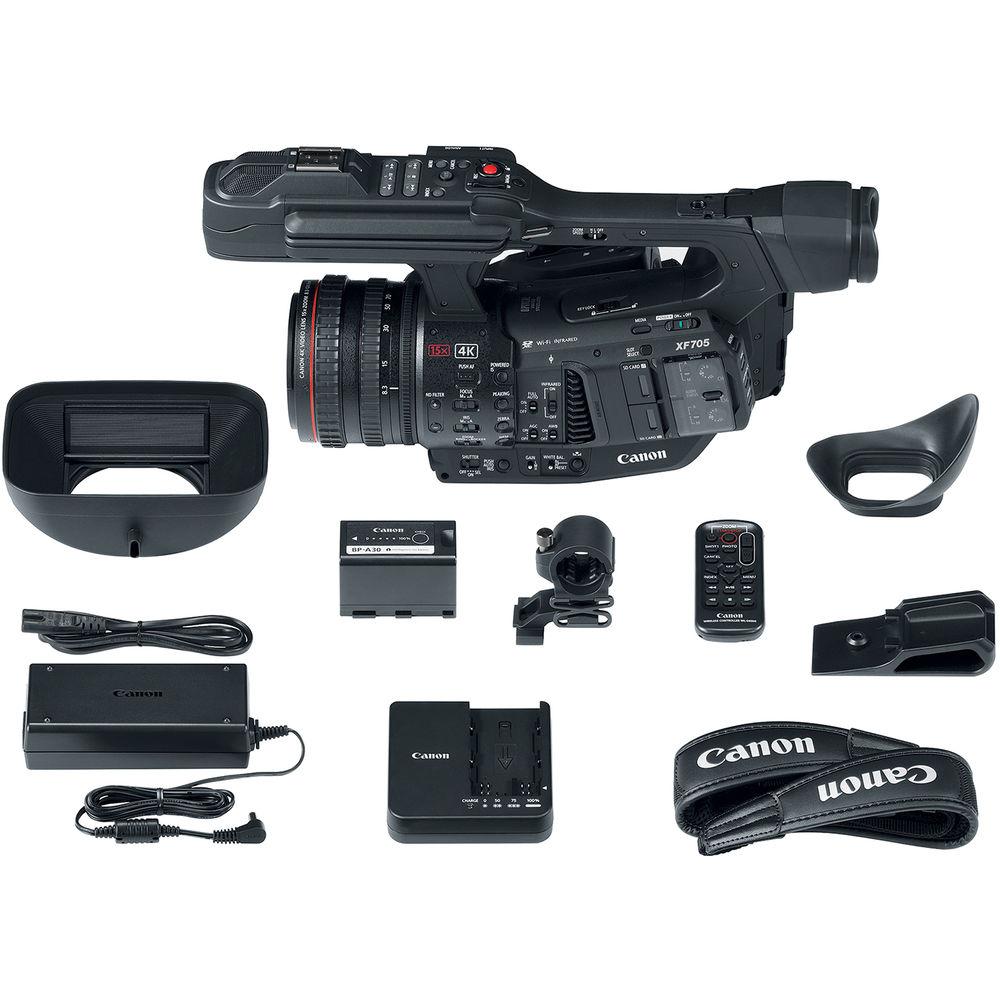

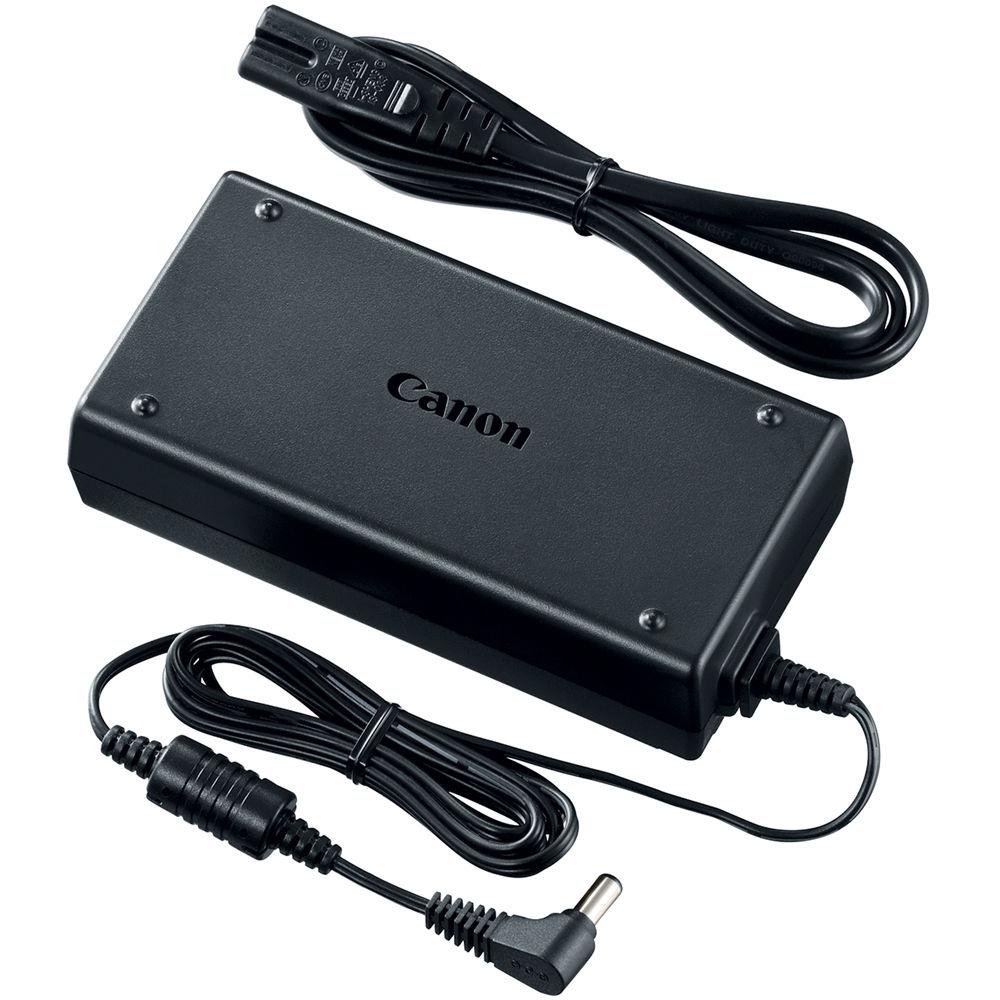

UPC: 013803305852 In the Box Canon XF705 4K 1" Sensor XF-HEVC H.265 Pro Camcorder Lens Hood with Barrier Lens Cap Microphone Holder with Screw AC Cable BP-A30 Battery Pack For EOS C300 Mark II, C200, and C200B CG-A20 Battery Charger WL-D6000 Wireless Controller with Battery Eyecup Handle Shoulder Pad SS-1200 Shoulder Strap CA-CP200L Compact AC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon XF705 4K 1" Sensor XF-HEVC H.265 Pro Camcorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon XF705 Specs | | | Image Sensor | 1-Chip 1" CMOS Sensor | | Sensor Resolution | 4268 x 3148 (13.4 MP) | | Effective Sensor Resolution | 3840 x 2160 (8.29 MP) | | Minimum Illumination | 3 lux at 1/30 Shutter Speed
2.5 lux at 1/25 Shutter Speed | | White Balance Range | 2000 to 15,000K | | | | Focal Length | 8.3 to 124.5mm | | 35mm Equivalent Focal Length | 25.5 to 382.5mm | | Optical Zoom Ratio | 15x | | Max Digital Zoom | 15x 4K: 15x
1920 x 1080: 30x | | Maximum Aperture | f/2.8 to 4.5 | | Optical Design | 18 Elements in 14 Groups | | Minimum Focusing Distance | Entire Zoom Range: 2.0' / 60.0 cm
Wide: 0.4" / 1.0 cm | | Filter Size | 58 mm | | Control Rings | Focus
Zoom
Iris | | Image Stabilization | Optical
Digital | | Focus Control | Autofocus
Manual Focus Dual-Pixel CMOS AF | | | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Stereo | | Recording Media | 2 x SDXC Card Slots | | | | Broadcast System Compatibility | NTSC, PAL | | Recording Modes | H.265 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (160 Mb/s)
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (110 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (60 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (45 Mb/s)
1920 x 1080i at 50/59.94 fps (160 Mb/s)
1920 x 1080i at 50/59.94 fps (110 Mb/s)
1920 x 1080i at 50/59.94 fps (60 Mb/s)
1920 x 1080i at 50/59.94 fps (45 Mb/s)
1920 x 1080p at 120 fps (180 Mb/s)
H.264 4:2:0 8-Bit:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (45 Mb/s) | | Still Photo | 1920 x 1080 | | Audio Recording | 4-Channel 24-Bit 48 kHz LPCM Audio | | IP Streaming | MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.00 Mb/s)
MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s) | | | | Video Connectors | 1 x HDMI (HDMI 2.0) Output
1 x BNC (12G-SDI) Output | | Audio Connectors | 2 x 3-Pin XLR Input
1 x 1/8" / 3.5 mm Stereo Input
1 x 1/8" / 3.5 mm Stereo Headphone Output | | Other I/O | 1 x USB Mini-B Output
1 x BNC Genlock, Sync Input/Output
1 x BNC Timecode Input/Output
1 x 2.5 mm Control
1 x 8-Pin D-Sub Control
1 x RJ45 LAN Input/Output | | Wireless Interfaces | 2.4 GHz, 5 GHz Wi-Fi Video Output, Audio Output, Control | | | | Display Type | LCD | | Screen Size | 4.0" | | Touchscreen | Yes | | Screen Resolution | 1,230,000 Dots | | | | EVF Display Type | OLED | | Screen Size | .46" | | EVF Resolution | 1,770,000 Dots | | | | Battery Type | Canon BP-A Series | | Power Connectors | 1 x Barrel (24 VDC) Input | | Power Consumption | 21.5 W Recording 60p with 3G-SDI output, LCD on | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 85% | | | | Tripod Mount | 1/4"-20 Female, 3/8"-16 Female | | Dimensions | 17.05 x 10.16 x 7.52" / 433 x 258 x 191 mm (With Protrusions)
14.88 x 8.27 x 6.38" / 378 x 210 x 162 mm (Without Protrusions) | | Weight | 6 lb / 2710 g Including grip belt and shoulder pad | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 21.7 x 13.2 x 12.8" |
