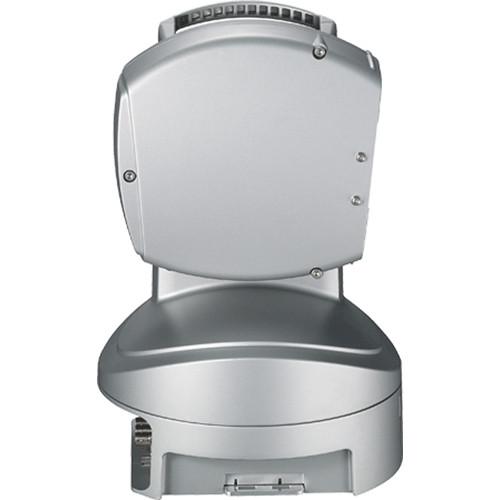

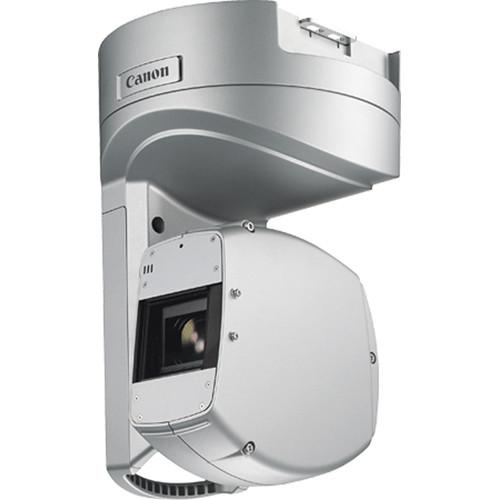

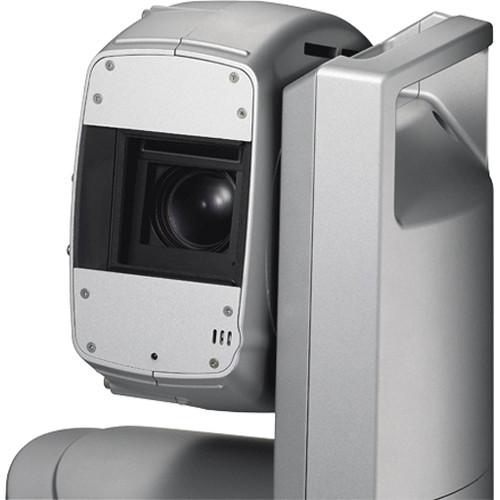

Product description The Canon XU-80 PTZ Camera features remote controllable pan, tilt, and zoom, a 1/3" CMOS sensor with 2.1MP and a 20x zoom lens for capturing HD 1080i and 720p video. The XU-80 has a water and dust resistant enclosure with an IP55 rating. The camera head pans and tilts very smoothly while simultaneously zooming, allowing for on-air movements similar to manually-operated cameras. Also, the XU-80 utilizes HD-SDI output, the standard in the broadcast market.
The XU-80 combines smooth, fast, and highly precise pan and tilt movements. In Normal Mode, operational movement has a noise rating of NC<30, making it suitable for quiet indoor environments. In High Speed Mode, the movements of the pan-tilt mechanism are accelerated by 50%, which is valuable in circumstances where higher speed is required. The XU-80 can be mounted upright or inverted (ceiling mount). In either position, the picture image will automatically flip when the tilt angle reaches 90°.
Users have the ability to select either the 1080i or 720p HD output to match their existing systems. Additionally, control can be toggled between RS-232 and RS-422, making the XU-80 extremely adaptable to new and existing multi-camera environments. Additional features include the slow-shutter function, which helps acquire extra brightness by using frame accumulation. The black & white mode without the IR cut filter will also support shooting in near-darkness. - Remote pan, tilt, and zoom with NC<30 noise rating
- 1/3" CMOS Sensor with 2.1MP
- 4.7-94mm f/1.6-3.5 wide to super telephoto zoom lens with 20x zoom ratio
- Outputs 1080/59.94i, 1080/50, 720/50p, and 720/50i
- Water and dust resistant enclosure with IP55 rating
- High Speed Mode accelerates pan and tilt speed by 50%
- Image flips automatically for upright or inverted mounting
- RS-232 and RS-422 control
- Slow-Shutter Function, Black &White mode, IR cut filter ON/OFF
In the Box Canon XU-80 PTZ Camera 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon XU-80 PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon XU-80 Specs | | | Sensor | 1/3" CMOS | | Resolution | 2.1 megapixels | | Gain | AUTO/MANU (0~+32dB) | | White Balance | AUTO/OUTDOOR/INDOOR/MANU/ATW | | Shutter Speed | 2 - 1/10,000 seconds | | Digital Zoom | 12x | | AE Control | AUTO/MANU/NIGHT/Shutter Priority/Aperture Priority | | ICR | ON/OFF | | Video Format | HD-SDI: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
SD: NTSC/PAL （linked with the HD-SDI output) | | | | Focal Length | 4.7 - 94 mm | | Aperture | f/1.6 - 3.5 | | Zoom Ratio | 20x | | 35mm Equivalent Focal Length | 33.89 - 677.74 mm | | Minimum Object Distance (M.O.D.) | At telephoto end: 3.28' (1 m) | | Angle of View | In 1920×1080 (16:9): W 59.4 - T 3.0° | | Focusing System | AUTO/MANUAL/INF | | ND Filter | OFF, 1/32 | | | | Range | Pan: ±180°
Tilt: +220 ～ -40° | | Speed | Pan/Tilt (normal speed mode): 0.3 - 40° per second
Pan/Tilt (high speed mode): 0.3 - 60° per second | | Preset Positions | 128 | | Accuracy | ±10' below (stationary) | | Noise | NC30 at 40° per second
NC45 at 60° per second

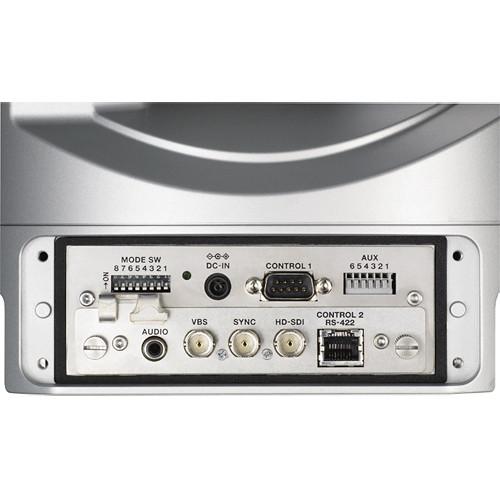

Note: when Wiper, ND Filter, and IRC Filter are not in operation | | | | Video Output | HD: BNC (HD-SDI)
SD: BNC (Composite Monitor) | | Genlock | Input: BNC (BB Sync/HD3value Sync)
Internal/External, auto switching | | Control Interface | RS-232 (x1, D-sub9)
RS-422 (x1, 6pin) | | Control Protocol | NU Protocol | | Communication Speed | 9,600 bps | | Microphone | Waterproof microphone (lower part of the camera／0dBm/600Ω unbalanced output, with limiter） | | | | Waterproof/Dustproof Rating | IP55 | | Wind Velocity Resistance | Normal Operation: 49.2 feet per second
Operation Possible: 98.4 feet per second
Non Destruction: 196.8 feet per second | | Picture Flip | Flip ON/OFF | | Operating Temperature | 5 ~ 104° F (-15 ~ 40° C) | | Operating Humidity | 90% non-condensing | | Power Source | DC12V±10% | | Power Consumption | 20 W | | Dimensions | 8.54 x 12.24 x 8.54" (217 x 311 x 217 mm)
Note: without projections | | Weight | 14.55 lb (6.6 kg)
Note: without ND Filter and Wiper | | | | Package Weight | 21.05 lb | | Box Dimensions (LxWxH) | 18.8 x 16.6 x 15.2" |
