User Manual for Canon XU-81 Full HD PTZ Camera Click to enlarge the picture
Contents of the user manual for the Canon XU-81 Full HD PTZ Camera
- Product category: PTZ Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon PTZ Cameras
 |
User manual for the Canon XU-81 Full HD PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

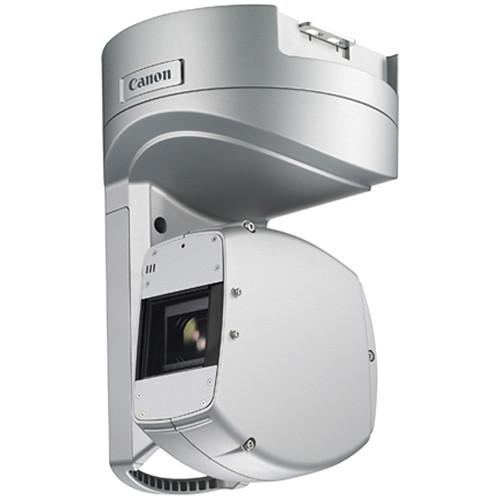

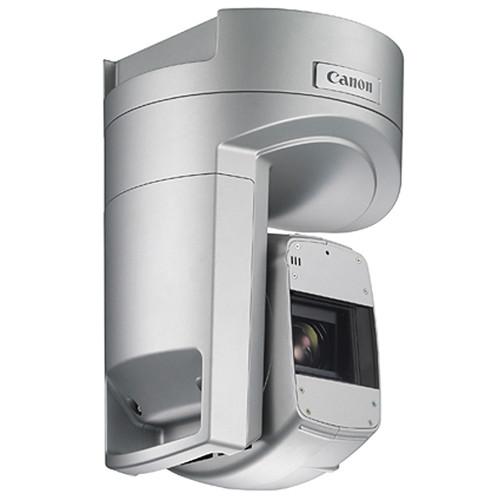

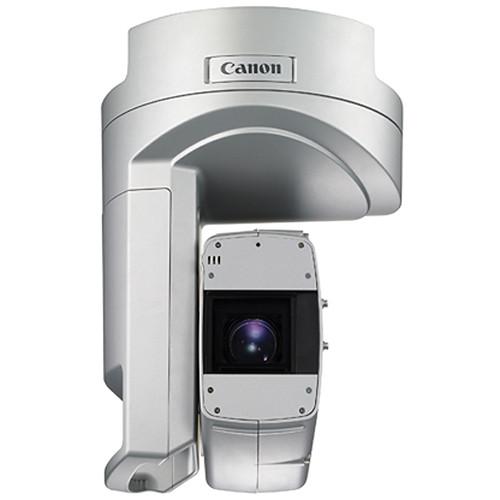

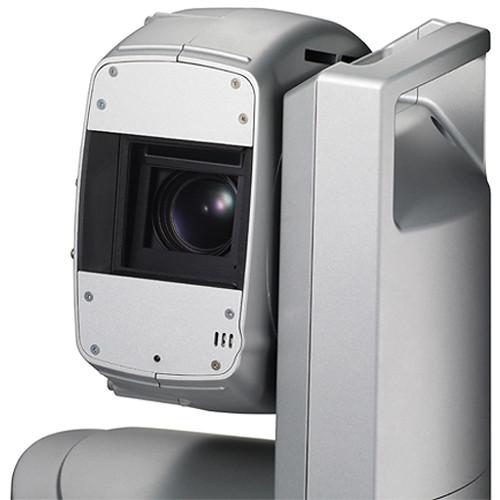

Product description The XU-81 Full HD PTZ Camera is a robotic pan, tilt, zoom camera from Canon featuring a 21 MP 1/3" CMOS Sensor, 20x optical zoom lens, and an HD-SDI output that supports up to 1080i at 59.94 fps. With upright and inverted mounting options the XU-81 is suitable for a wide range of applications, including broadcasting house worship services, IMAG, corporate event coverage, recording lectures and classes for education, video conferencing, and internet streaming.
Pan, tilt, and zoom operations of the XU-81 are designed to be fast, smooth, precise, and quiet. It features a noise rating of less than NC 30 when moving at 40 degrees per second. Where extra speed is required, such as when tracking a fast-moving subject, High Speed Mode can be engaged boosting pan/tilt speed up to 50%. - Image Flip
- Image flip enables the UX-81 to be mounted up-side-down for ceiling installation. In addition, the camera will automatically flip the image when the tilt angle passes 90°.

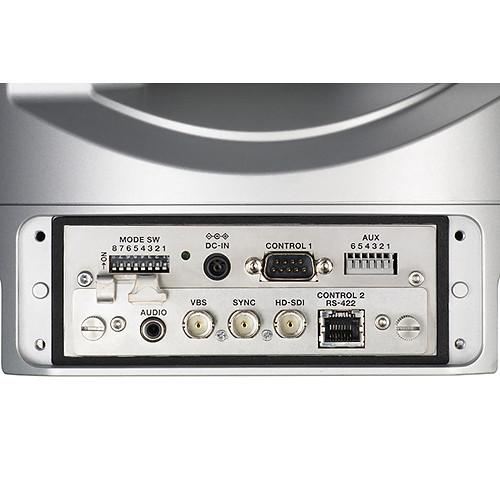

- Locally Switchable Rear Connectors
- For integration with existing A/V installations, dipswitches on the rear panel allow the HD-SDI video output to be set to either 1080i or 720p to match the existing signal. In addition, the settings allow you to choose between RS-232 or RS-422 depending on the type of control system and cables that will be used.
- Low-Light and IR Night Mode
- In low light conditions, low-light performance can be boosted using via frame accumulation by engaging the Slow Shutter Function. In addition, switching the IR Cut Filter to OFF enables black and white image capture in total darkness.
In the Box Canon XU-81 Full HD PTZ Camera Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon XU-81 Full HD PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon XU-81 Specs | | | Image Sensor | 1/3" CMOS | | Shutter Speed | 2 to 1/10,000 sec. | | Digital Zoom | 12x | | Gain | Auto / manual (0 to 32 dB) | | White Balance | Auto / outdoor / indoor / manual / ATW | | IR Cut Filter | ON / OFF | | ND Filter | OFF / 1 / 32 | | Image Flip | ON / OFF | | AE Control | Auto / Manual / Night / Shutter Priority / Aperture Priority | | Genlock | Internal / External (Auto Switching) | | Microphone | Waterproof Microphone: Lower part of the camera
0dBm / 600 ohm unbalanced output (with limiter) | | Signal System | 1080i: 59.94i, 1080/50i
720p: 59.94p, 50p
SD: NTSC / PAL (linked with HD frame rate) | | Genlock Input | BNC connector (BB sync/HD3 value sync) | | Video Output | HD: HD-SDI on BNC connector
SD: Composite on BNC connector | | Audio Output | Unbalanced RCA connector (0 dB/600 ohm with limiter) | | | | Focal Length | 4.7 to 94 mm (f/1.6 to 3.5)
35 mm Equivalent: Approximately 32.9 to 658 mm | | Zoom Ratio | 20x (12x digital) | | Angle of View | Wide: 59.4° (1920 x 1080)
Telephoto: 3.0° (1920 x 1080) | | Minimum Object Distance | Telephoto: 3.3' (1 m) | | | | Interface | RS-232C on 9-pin male D-sub connector
RS-422 on RJ45 connector | | Control Protocol | NU protocol | | Communication Speed | 9,6000 bps | | Pan/Tilt Angle | Pan: ±180°
Tilt: +220° to -40°
Stationary Accuracy: ±10° below | | Operation Speed | Pan/Tilt: 0.3 to 40°/sec (normal speed mode) Pan/Tilt: 0.3 to 60°/sec (high speed mode) | | Preset Positions | 128 | | Noise Level | NC30 at 40° per second
NC45 at 60° per second
Note: When IR cut filter is not in operation | | | | Ratings | Waterproof/Dustproof Rating: IP55 | | Wind Velocity Resistance | Normal Operation: 49.2' / 15m/s
Operation Possible: 98.4' / 30m/s
Non-Destruction: 169.9'/ 60m/s | | Operating Conditions | Environment: Indoor
Ambient Temperature: 5 to 104°F (-15 to 40°C)
Humidity: Approximately 90% (non-condensing) | | Mounting Options | Upright / inverted | | Power Requirements | DC 12 V ±10% | | Power Consumption | 20 W | | Dimensions | 8.5 x 12.2 x 8.5" (21.7 x 31.1 x 21.7 cm)
Note: Without projections | | Weight | 14.5 lb (6.6 kg) | | | | Package Weight | 20.85 lb | | Box Dimensions (LxWxH) | 18.9 x 15.4 x 11.8" |
