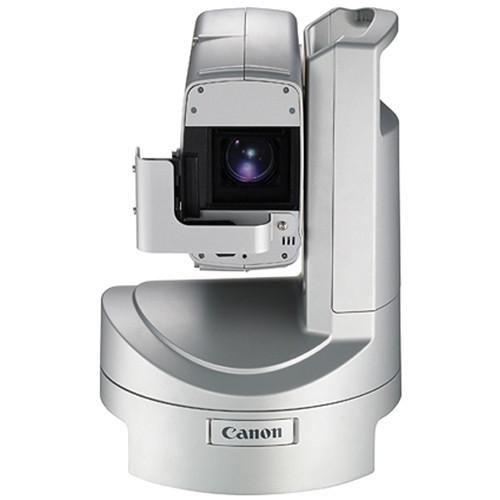

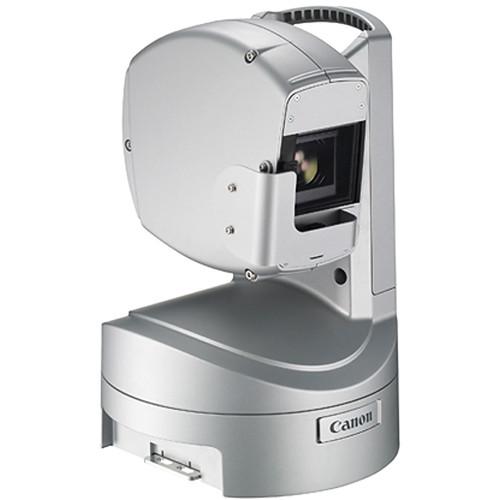

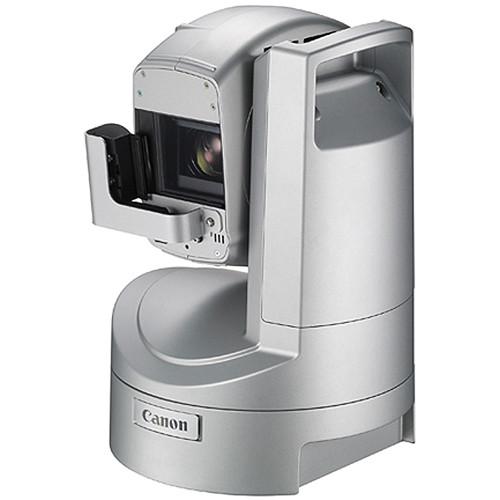

Product description The XU-81W HD PTZ Camera With Wiper is a robotic pan, tilt, zoom camera from Canon featuring a 21 MP 1/3" CMOS Sensor, 20x optical zoom lens, and an HD-SDI output that supports up to 1080i at 59.94 fps. With upright and inverted mounting options and a water and dust proof, IP55-rated enclosure, the XU-81 is suitable for a wide range of applications both indoors and out. Outdoor applications include traffic POV, weather POV, outdoor monitoring, and outdoor event coverage. Indoor applications include broadcasting house worship services, IMAG, corporate event coverage, recording lectures and classes for education, video conferencing, and internet streaming.
Pan, tilt, and zoom operations of the XU-81 are designed to be fast, smooth, precise and quiet. It features a noise rating of less than NC 30 when moving at 40 degrees per second. Where extra speed is required, such as when tracking a fast-moving subject, High Speed Mode can be engaged boosting pan/tilt speed up to 50%. - Wiper and ND Filter
- For outdoor use, he XU-81W features a wiper and an ND filter. The ND filter can be set to 1, 32 or OFF. The wiper is designed to keep the lens clear of water drops for installations where the camera will be exposed to the elements.
- Image Flip
- Image flip enables the XU-81W to be mounted up-side-down for ceiling installation. In addition the camera will automatically flip the image when the tilt angle passes 90°.
- Locally Switchable Rear Connectors

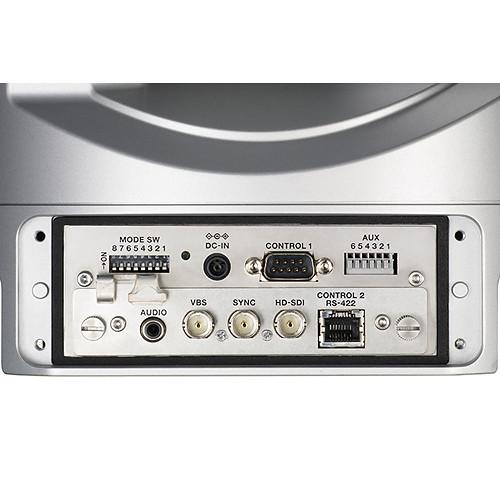

- For integration with existing A/V installations, dipswitches on the rear panel allow the HD-SDI video output to be set to either 1080i or 720p to match the existing signal. In addition, the settings allow you to choose between RS-232 or RS-422 depending on the type of control system and cables that will be used.
- Low-Light and IR Night Mode
- In low light conditions, low-light performance can be boosted using via frame accumulation by engaging the Slow Shutter Function. In addition, switching the IR Cut Filter to OFF enables black and white image capture in total darkness.
In the Box Canon XU-81W HD PTZ Camera With Wiper Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon XU-81W HD PTZ Camera With Wiper in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon XU-81W Specs | | | Image Sensor | 1/3" CMOS | | Shutter Speed | 2 to 1/10,000 sec. | | Digital Zoom | 12x | | Gain | Auto / Manual (0 to 32 dB) | | White Balance | Auto / Outdoor / Indoor / Manual / ATW | | ND Filter | 1 / 32 / OFF | | IR Cut Filter | Auto / Manual / Night / Shutter Priority / Aperture Priority | | ICR | On / Off | | Image Flip | On / Off | | Genlock | Internal / External (Auto Switching) | | Microphone | Waterproof Microphone | | Signal System | HD: 1080i59.94 / 1080i50
SD: NTSC / PAL (Linked with HD Framerate) | | Genlock Input | BNC Connector (BB Sync/HD3value Sync) | | Video Output | HD: HD-SDI on BNC Connector
SD: Composite on BNC Connector | | Audio Output | Unbalanced RCA Connector (0 dB / 600 ohm With Limiter) | | | | Focal Length | 4.7 to 94 mm (f/1.6 to 3.5)
35 mm Equivalent: Approximately 32.9 to 658 mm | | Zoom Ratio | 20x (12x Digital) | | Angle of View | Wide: 59.4° (1920 x 1080)
Telephoto: 3.0° (1920 x 1080) | | Minimum Object Distance | Telephoto: 3.3' (1 m) | | | | Interface | RS-232C on 9-Pin Male D-Sub Connector
RS-422 on RJ45 Connector | | Control Protocol | NU Protocol | | Communication Speed | 9,6000 bps | | Pan/Tilt Angle | Pan: ±180°
Tilt: +220° to -40°
Stationary Accuracy: ±10° Below | | Preset Positions | 128 | | Noise Level | NC30 at 40° Per Second
NC45 at 60° Per Second
Note: When IRC Filter, ND Filter and Wiper are not in operation | | | | Operating Conditions | Rating: IP55 Environment: Indoor / Outdoor
Ambient Temperature: 5 to 104°F (-15 to 40°C)
Humidity: Approximately 90% (non-condensing) | | Wind Velocity Resistance | Normal Operation: Approximately 49 ft/s (15 m/s)
Operation Possible: Approximately 98 ft/s (30 m/s)
Non Destruction: Approximately 197 ft/s (60 m/s) | | Mounting Options | Upright / Inverted
Dry Contacts for Washer | | Power Requirements | DC 12 V ±10% | | Power Consumption | 20 W | | Dimensions | 8.5 x 12.2 x 8.5" (21.7 x 31.1 x 21.7 cm)
Note: Without Projections | | Weight | 14.3 lb (6.5 kg)
Note: Without Wiper and ND Filter | | | | Package Weight | 21.75 lb | | Box Dimensions (LxWxH) | 18.8 x 15.4 x 11.8" |
