Product description The Carlsbro CSD120 is a compact, eight-piece electronic drum kit featuring the Commander 120/130 sound module with 250 high-quality percussion voices, 20 preset kits, 10 user-defined kits, and 20 demo songs. The kit contains a bass drum controller pedal, a dual-zone snare pad, three single-zone tom pads, a hi-hat controller pedal, and three single-zone cymbals for hi-hat, ride, and crash.

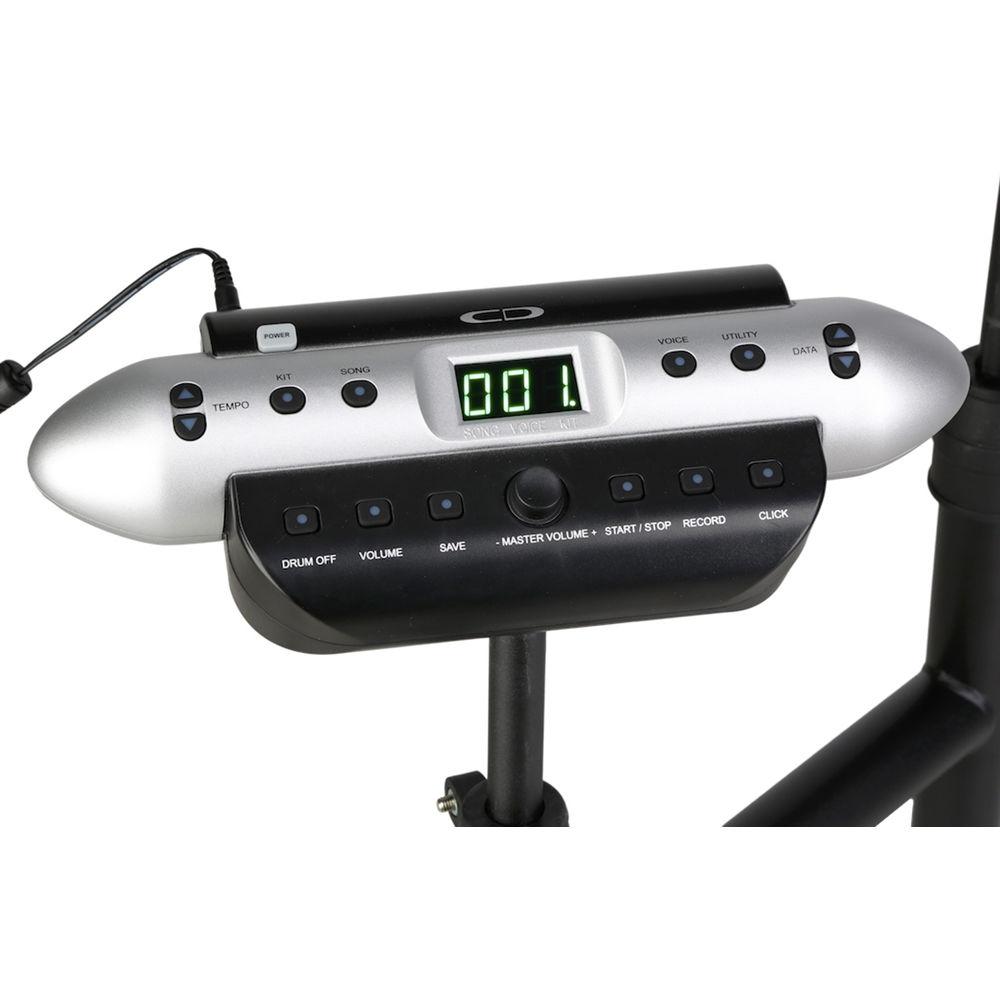

The sound module features an auxiliary input, a stereo line output, and a headphone output. It offers MIDI in and out via 5-pin DIN connectors, as well as USB MIDI. Adjustable sensitivity, crosstalk, and trigger curve settings are provided to customize the module to any player's style. Connections between the drum pads and the module are made via a DB-25 to 1/4" cable with each connector clearly labeled.
The CSD120 is highly portable with a compact, 3-legged drum rack. The entire kit can fold down and fit into an optional backpack without removing any drum hardware or cabling. - Key Features
-
- 8-piece electronic drum kit with drum module
- Collapsible design for easy transport
- Digitron drum module display
- 250 high-quality percussion voices
- 20 preset drum kits
- 10 user-defined drums kits
- 20 demo songs
- Aux input, line output, headphone output
- USB interface (USB to device), MIDI In/Out
- Recording and playback functionality
- Adjustable sensitivity
- Adjustable crosstalk
- Adjustable trigger curves
- Reverb effect
- Metronome
- Includes drum key and cable management strips
- Drumsticks included
- Kit Components
-
- 1 × Commander 120/130 sound module
- 1 × 7.5" dual-zone snare pad
- 3 × 7.5" single-zone tom pads
- 1 × 10" single-zone hi-hat cymbal pad
- 1 × 10" single-zone crash cymbal pad with choke
- 1 × 10" single-zone ride cymbal pad with choke
- 1 × bass drum pedal
- 1 × hi-hat controller pedal
- 1 × compact and portable, 3-legged drum rack with all mounting hardware and invisible cabling
In the Box Carlsbro CSD120 8-Piece Electronic Drum Kit with Drum Module Commander 120/130 Sound Module 8-Channel DB-25 to 1/4" Trigger Cable 7.5" Snare Pad 3 x 7.5" Tom Pads Bass Drum Controller Pedal 10" Hi-Hat Pad Hi-Hat Controller Pedal 10" Crash Cymbal 10" Ride Cymbal Drum Rack Mounting Hardware Pair of Drum Sticks Drum Key 12 x Cable Management Strips Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Carlsbro CSD120 8-Piece Electronic Drum Kit with Drum Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarlsbro CSD120 Specs | | | Polyphony | 32 voice maximum | | Voices | 250 percussion voices (drum, percussion, and SFX) | | Drum Kits | Preset Drum Kits: 20
User Defined Drum Kits: 10 | | Demo Songs | 20 demo songs with a drum on/off function and on-board metronome | | Recording and Playback | Real time recording with demo songs, but cannot be saved | | Tempo | BPM: 35 to 280 | | Pad Control | Adjustable pad sensitivity
Adjustable crosstalk
Multiple trigger curves | | Effects | Reverb | | | | Connectors | Drum Trigger Cable: 8-channel DB-25 to 1/4" / 6.3 mm
Audio Output: 2 x 1/4" / 6.3 mm (L/mono, R)
Auxiliary Input: Stereo 1/8" / 3.5 mm
Headphones Output: Stereo 1/4" / 6.3 mm | | MIDI | MIDI In: 5-pin DIN
MIDI Out: 5-pin DIN
USB MIDI: USB B connection | | Power Supply | 9 VDC power adapter, inner +, outer - | | Dimensions (L x W x H) | Module: 9.7 x 6.1 x 5.0" / 24.6 x 15.4 x 12.7 cm | | Weight | Module: 1.1 lb / 0.5 kg | | | | Package Weight | 36.35 lb | | Box Dimensions (LxWxH) | 26.0 x 24.0 x 11.0" |
