Carlsbro CSD130 - Compact Electronic Drum

Search your instruction manual in PDF to download

User Manual for Carlsbro CSD130 - Compact Electronic Drum Kit

Click to enlarge the picture
Carlsbro CSD130 - Compact Electronic Drum Kit Contents of the user manual for the Carlsbro CSD130 - Compact Electronic Drum
  • Product category: Electronic Drums Carlsbro
  • Brand: Carlsbro
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Carlsbro Electronic Drums

User manual for the Carlsbro CSD130 - Compact Electronic Drum contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Carlsbro product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Carlsbro user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Carlsbro product will considerably shorten its lifespan!



Product description

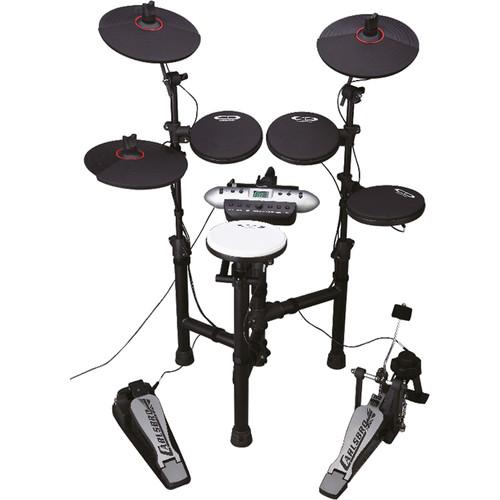

The CSD130 from Carlsbro is a compact 8-piece electronic drum kit featuring the Commander 150 sound module with 250 high-quality percussion voices, 20 preset kits, 10 user-defined kits, and 20 demo songs. The kit contains a bass drum pad and kick pedal, a dual-zone snare pad, three single-zone tom pads, a hi-hat controller pedal, and three single-zone cymbals for hi-hat, ride, and crash.

The sound module features an auxiliary input, stereo line output, and a headphone output. The module offers MIDI in and out via 5-pin DIN connectors as well as USB MIDI. Adjustable sensitivity, crosstalk, and trigger curve settings are provided to customize the module to any player's style. Connections between the drum pads and the module are made via a DB25 to 1/4" cable with each connector clearly labeled.

The CSD130 is highly portable with an ultra-compact 3-legged drum rack. The entire kit can fold down and fit into an optional backpack without removing any drum hardware or cabling.
    • 8-piece electronic drum kit with drum module
    • Collapsible design for easy transport
    • Digitron drum module display
    • 250 high-quality percussion voices
    • 20 preset drum kits
    • 10 user-defined drums kits
    • 20 demo songs
    • Aux input, Line output, Headphone output
    • USB interface (USB to device), MIDI In/Out
    • Recording and playback facility
    • Adjustable sensitivity
    • Adjustable crosstalk
    • Trigger curve settings, metronome, reverb
    • Includes drum key and cable management strips
    • Drumsticks included
In the Box Carlsbro CSD130 - Compact Electronic Drum Kit
  • Commander 150 Sound Module
  • 8-Channel DB25 to 1/4" Trigger Cable
  • 7.5" Snare Pad
  • 3 x 7.5" Tom Pads
  • 2" Bass Pad with Bass Kick Pedal
  • 10" Hi-Hat Pad
  • Hi-Hat Controlling Unit
  • 10" Crash Cymbal
  • 10" Ride Cymbal
  • Portable 3-Legged Drum Rack
  • Mounting Hardware
  • Pair of Drum Sticks
  • Drum Key
  • 12 x Cable Management Strips
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Carlsbro CSD130 - Compact Electronic Drum Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Carlsbro CSD130 Specs

    Polyphony 32 voice maximum
    Voices 250 high-quality percussion voices (drum, percussion, and SFX)
    Drum Kits Preset Drum Kits: 20
    User Defined Drum Kits: 10
    Demo Songs 20 demo songs with a drum on/off function and on-board metronome
    Recording and Playback Real time recording with demo songs, but cannot be saved
    Tempo BPM: 35 to 280
    Pad Control Adjustable pad sensitivity
    Adjustable crosstalk
    Multiple trigger curves
    Effects Reverb
    Connectors Drum Trigger Cable: 8-Channel DB25 to 1/4" / 6.35 mm
    Audio Output: 2x 1/4" / 6.35 mm (L/mono, R)
    Auxiliary Input: Stereo 1/8" / 3.5 mm
    Headphones Output: Stereo 1/4" / 6.35 mm
    MIDI MIDI In: 5-pin DIN
    MIDI Out: 5-pin DIN
    USB MIDI: USB B connection
    Power Supply 9 VDC pin positive
    Dimensions (L x W x H) Module: 9.7 x 6.1 x 5.0" / 24.6 x 15.4 x 12.7 cm
    Bass Drum Pad: 2.0" / 5.1 cm
    Snare Pad: 7.5" / 19.1 cm
    Tom Pads: 7.5" / 19.1 cm
    Cymbal Pads: 10.0" / 25.4 cm
    Weight Module: 1.1 lb / 0.5 kg
    Package Weight 38.6 lb
    Box Dimensions (LxWxH) 25.75 x 24.0 x 11.75"

    Rating

    60% users recommend this product to others. And what about you?
    Rating: 3.0 of 5

    This product has already been rated by 40 owners. Add your rating and experience with the product.
