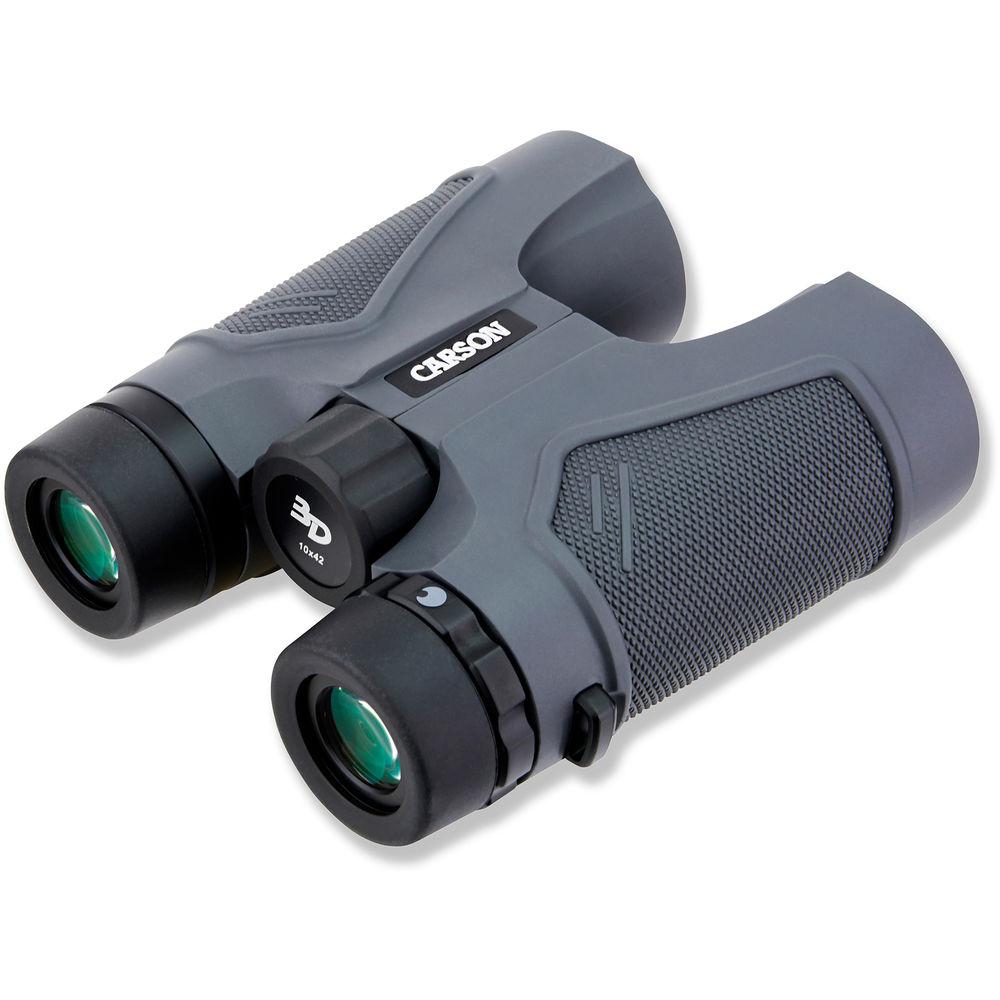

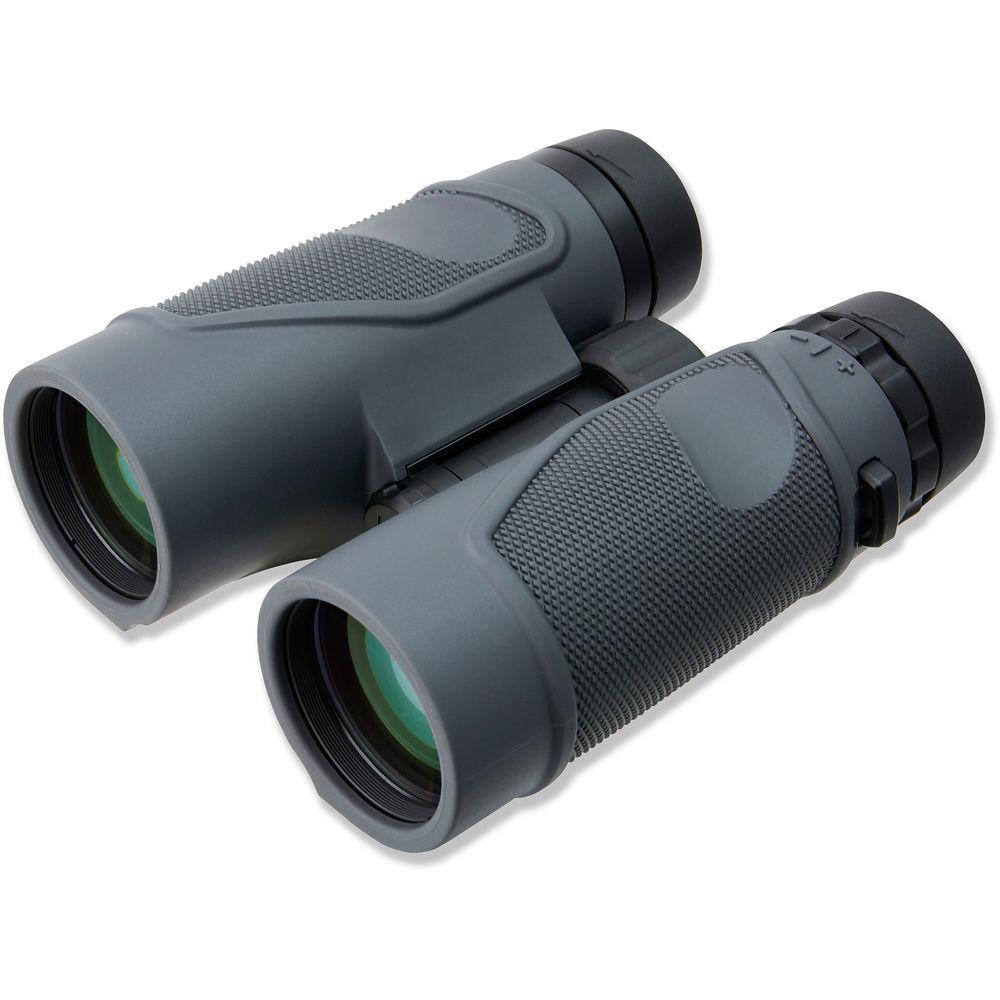

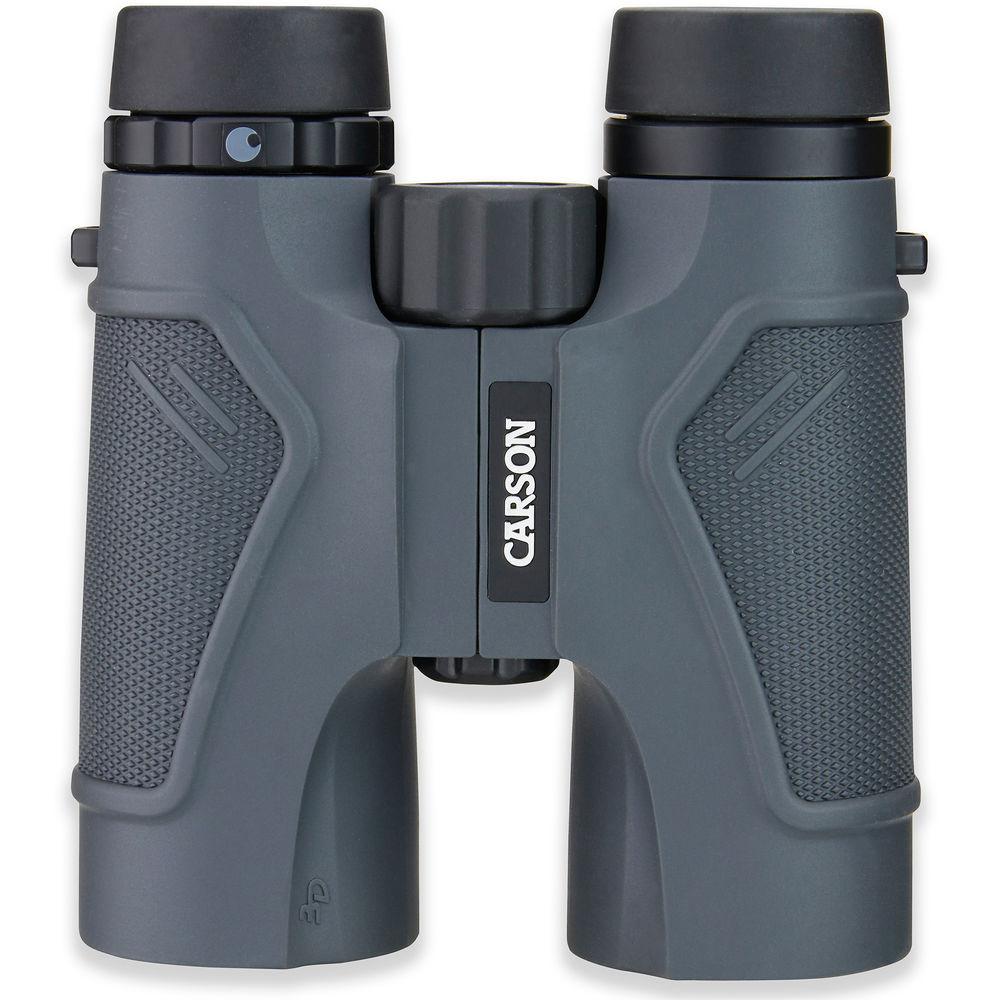

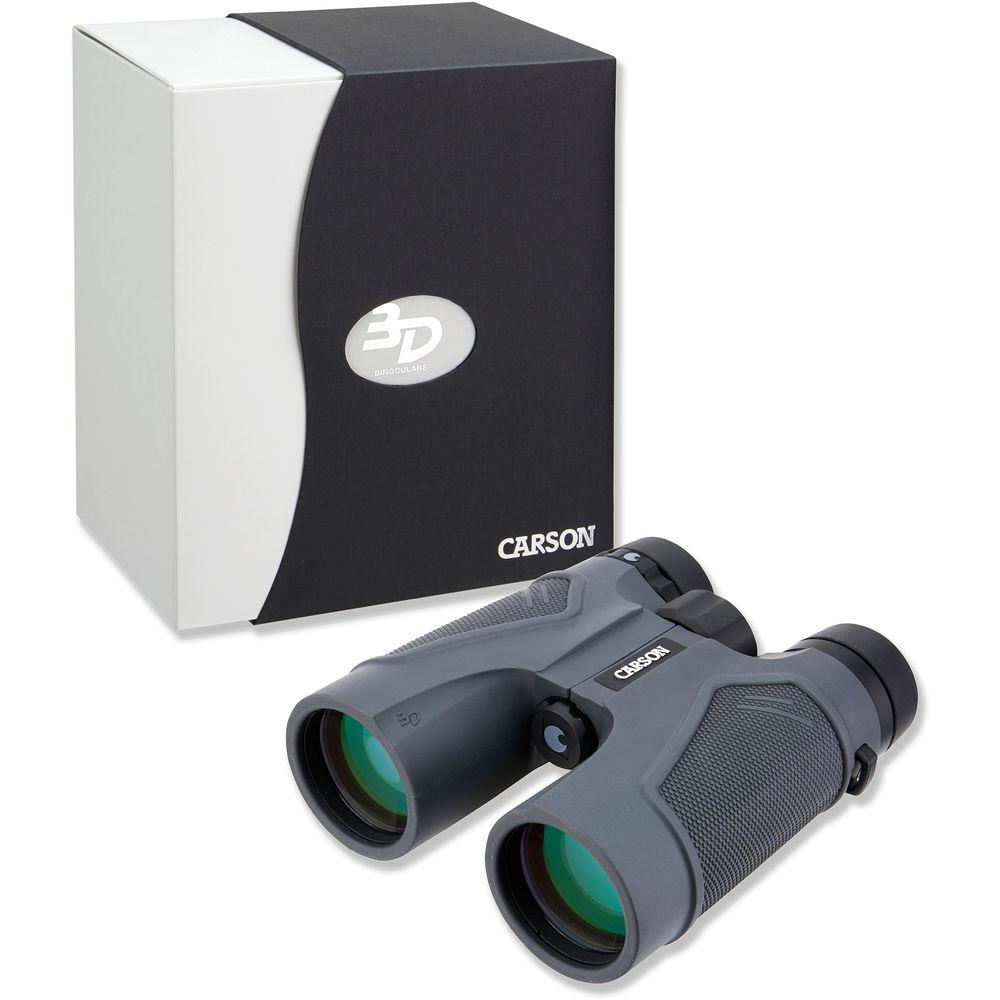

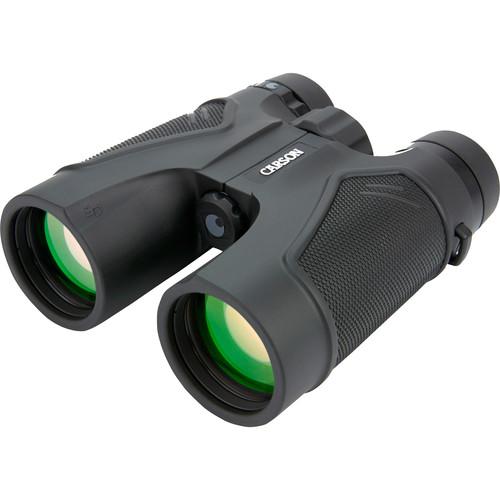

User Manual for Carson 10x42 3D-Series TD-042 Binocular Click to enlarge the picture
Contents of the user manual for the Carson 10x42 3D-Series TD-042 Binocular
- Product category: Binoculars Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson Binoculars
 |
User manual for the Carson 10x42 3D-Series TD-042 Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Designed for power and performance, the Carson Optical 10x42 3D-Series TD-042 Binocular is an ideal companion for hunters, outdoor enthusiasts, or sports fans alike. Engineered with phase-corrected high-density BAK-4 prisms and high-definition anti-reflection fully multi-coated optics, they deliver bright and clear high-contrast images with accurate color rendition. Its high 10x magnification allows distant subjects to be clearly resolved while the wide viewing angle helps to mitigate the appearance of visible hand-shake common with high-power optics — ensuring an immersive observational experience from dawn to dusk.To withstand the rigors of constant use out of doors, the chassis is wrapped in a protective rubber armor with textured palm pads and thumb-grooves that ensure a comfortable and secure grip in extreme weather conditions like rain, snow and frigid cold. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes. For comfortable use Carson includes a bino harness that transfers the optic's weight from the neck to the shoulders, and for maximum protection and security, their BinoArmor case is designed to stay on the binocular and opens quickly, completely and silently for fast and use. Note: Warning - The case for this device contains magnets which can interfere with pacemakers and implantable cardioverter defibrillators (ICD's). Individuals with pacemakers or ICD's should NOT use this product. - Optical Performance
-
- 10x magnification
- 42mm objective lenses
- Compact high-density BAK4 roof prisms
- Proprietary HD (high definition) anti-reflection fully multi-coated optics improve light transmission, image brightness, color fidelity, clarity, and contrast
- Phase-corrected prism coatings limit internal light diffraction to improve contrast and clarity
- Fog-resistant exterior lens coating
- Wide 60° apparent viewing angle
- 314' field of view at 1000-yards
- Use and Handling
-
- Closed-bridge configuration
- Large ridged center focusing knob is easy to manipulate with or without gloves
- Right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Comfortable 16mm eye relief
- 4.2mm exit pupil
- Construction Details
-
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
- Shock-absorbing rubber armoring protects while providing a slip-resistant grip
- Textured palm pads and ergonomically-placed thumb indents improve slip resistance and grip security
- BinoArmor case opens quickly and quietly, and retains optic allowing for full functionality and optimum protection
- Weight: 24 ounces

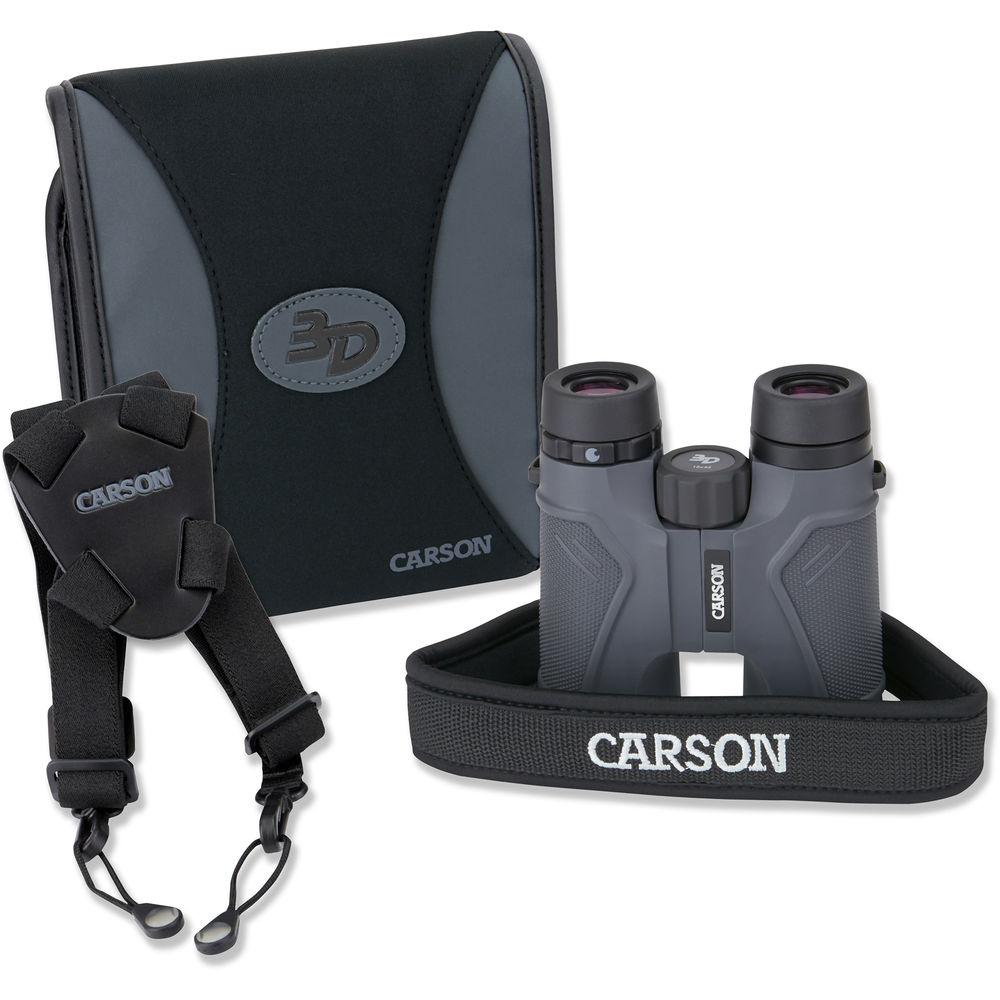

UPC: 750668008589 In the Box Carson 10x42 3D-Series TD-042 Binocular BinoArmor Deluxe Carrying Case Neck Strap Shoulder Harness Lens Cloth Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 ccxuyzwfxczzfyvbcxwbdw A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson 10x42 3D-Series TD-042 Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson TD-042 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.0° (Actual) | | Field of View | 315.0' @ 1000 yd / 105.0 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 16.0 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.5 x 5.0 x 2.0" / 14.0 x 12.7 x 5.1 cm | | Weight | 24.0 oz / 680 g | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 7.5 x 7.0 x 5.0" |
