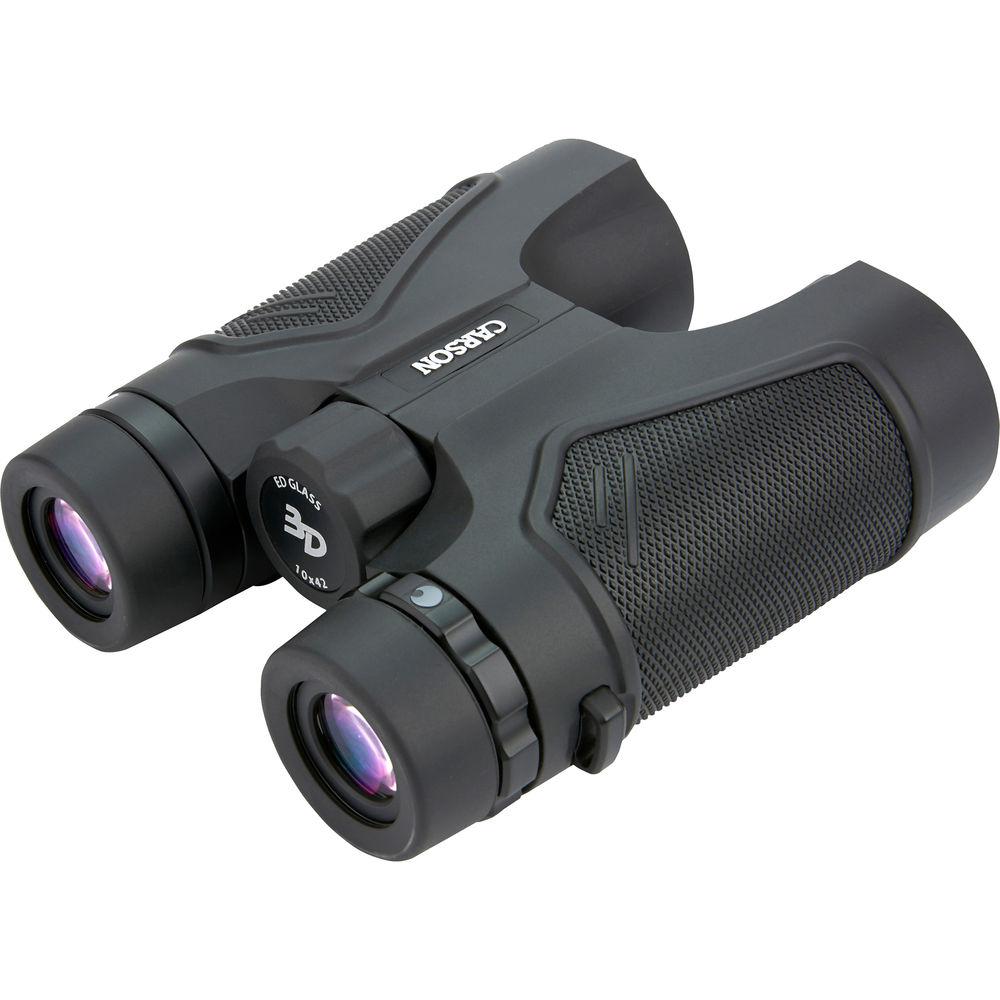

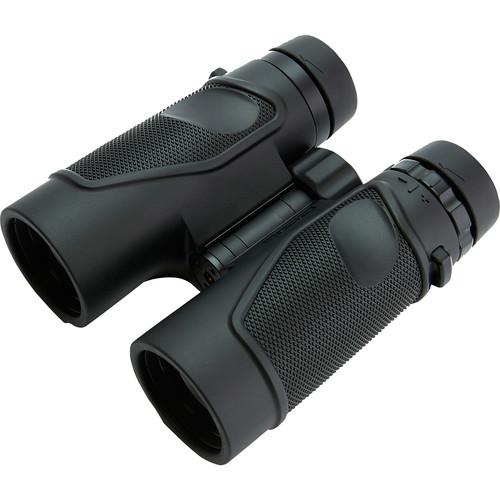

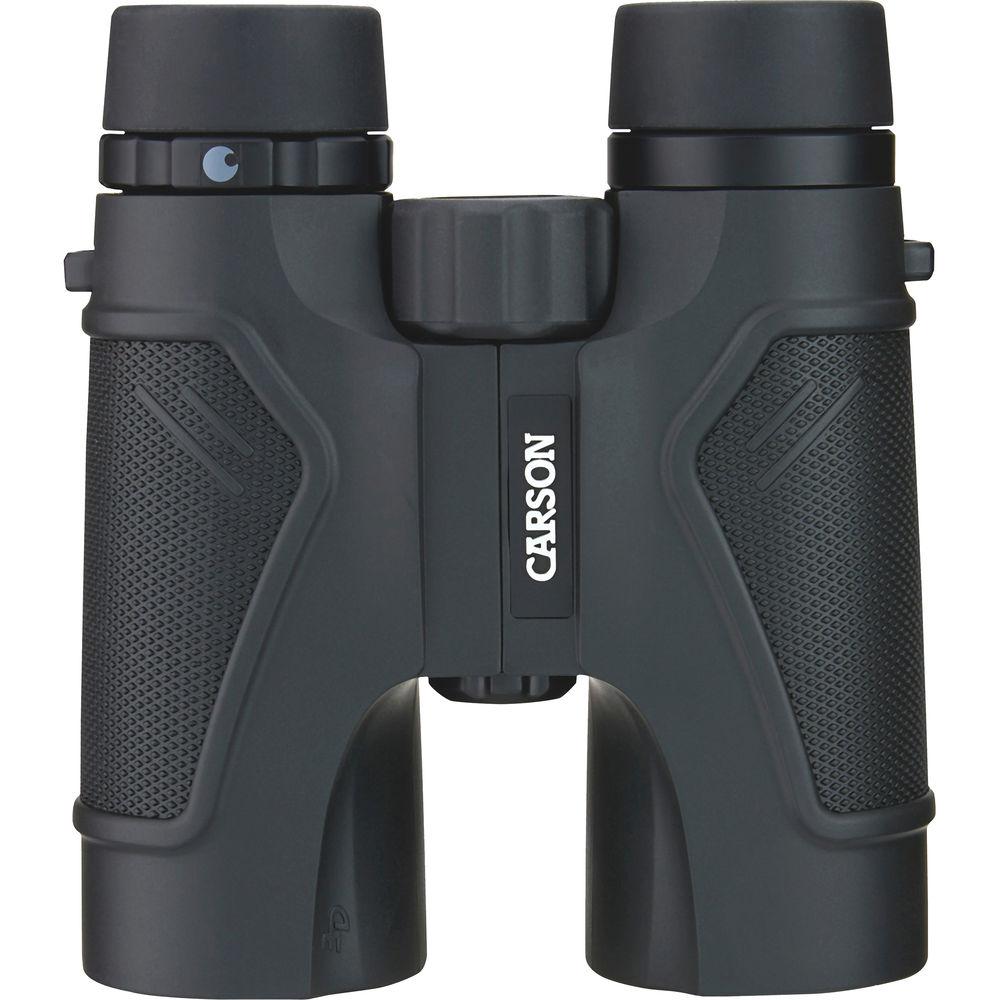

User Manual for Carson 10x42 3D Series TD-042ED Binocular Click to enlarge the picture
Contents of the user manual for the Carson 10x42 3D Series TD-042ED Binocular
- Product category: Binoculars Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson Binoculars
 |
User manual for the Carson 10x42 3D Series TD-042ED Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Carson Optical's black 10x42 TD-042ED 3D-Series Binocular features an array of optical technologies to produce a device that is ideally suited for birding, hunting, or hiking. Its optical performance begins with phase-corrected BAK4 roof prisms to enhance image color fidelity, contrast, and resolution. Next, they employ extra low-dispersion glass that corrects chromatic and spherical aberrations to enhance image clarity, and further increase contrast and color definition. Carson then applies their proprietary HD (high-definition) optical coating to fully multicoat the optical path for improved light transmission which ensures bright, sharp images, especially in low-light conditions.Rubberized black armor makes this 3D Binocular rugged and shock resistant. Thumb grooves on the under-side of the optical tubes and texture hand-holds make for a pleasant, non-slip, ergonomic grip. The body is nitrogen-filled and O-ring sealed, making it waterproof and fogproof. The TD-042ED combines twist up eyecups with a long eye relief, resulting in a great combination for long duration observation sessions with or without eye wear. Note: Warning - The case for this device contains magnets which can interfere with pacemakers and implantable cardioverter defibrillators (ICD's). Individuals with pacemakers or ICD's should NOT use this product. - Optical Performance
-
- 10x magnification
- 42mm objective lenses
- Compact BAK4 roof prisms
- Phase correction coatings on prisms to correct for chromatic aberration and enhance image contrast
- Proprietary HD anti-reflection fully multicoated optics
- Extra-Low Dispersion glass corrects for spherical and chromatic aberrations to improve image quality with true color rendition and virtually no distortion
- 314' field of view at 1000 yd
- 60° apparent field of view
- Use and Handling
-
- Closed-bridge configuration
- Knurled center focus knob
- Right-eye dioptric correction
- 16mm long eye relief
- Construction Details
-
- Nitrogen-filled, water and fogproof
- Protective black rubberized armoring provides shock-resistance
- Textured hand-holds provide slip-resistant grip
- Thumb grooves on underside provide a more secure grip
UPC: 750668009357 In the Box Carson 10x42 3D Series TD-042ED Binocular (Black) BinoArmor Deluxe Carrying Case Neck Strap Shoulder Harness Lens Cloth No-Fault Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 854.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson 10x42 3D Series TD-042ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson TD-042ED Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.0° (Actual) | | Field of View | 315.0' @ 1000 yd / 105.0 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 16 mm | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 5.5 x 5.0 x 2.0" / 14.0 x 12.7 x 5.1 cm | | Weight | 23.2 oz / 657.7 g | | | | Package Weight | 2.935 lb | | Box Dimensions (LxWxH) | 9.85 x 9.6 x 5.75" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
