User Manual for Carson 2-4x Aura Plus Night Vision Monocular Camera Click to enlarge the picture
Contents of the user manual for the Carson 2-4x Aura Plus Night Vision
- Product category: NV Monoculars & Multi-Systems Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson NV Monoculars & Multi-Systems
 |
User manual for the Carson 2-4x Aura Plus Night Vision contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|

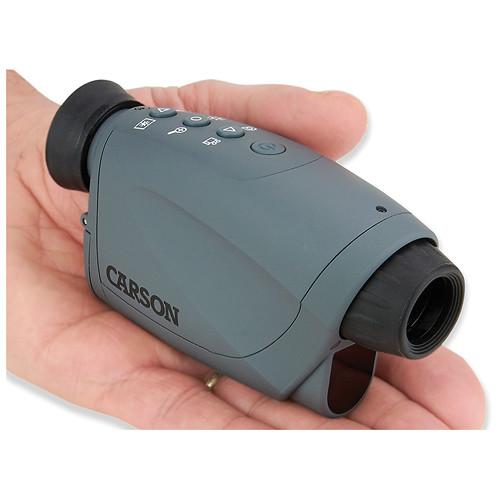

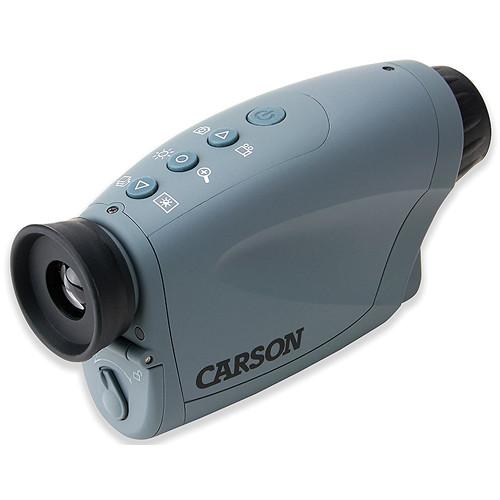

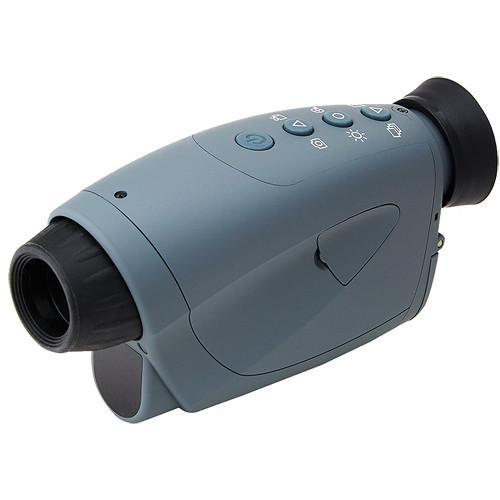

Product description - Carson Optical Aura Plus™ Digital Night Vision Monocular HD
View objects and capture still images or video in bright sunlight or in the dark with Carson Optical's 2-4x Aura Plus Night Vision Monocular/Camera. It combines an infrared illuminator, a black and white IR-sensitive digital camera with a low-magnification monocular. The camera features 640x480 resolution and selectable frame rates of 8, 15, 30 fps. Files are saved to a micro-SD card; an 8GB card is included and the Aura supports cards up to 32GB. The monocular is equipped with 2x optical magnification and 2x digital allowing for up to 4x total magnification, and its 525' field of view at 1000 yards provides wide expansive views. The integrated IR illuminator has a maximum reach of 400' with a variable intensity to eliminateThis ergonomically-designed device has the control buttons placed in natural grip location for fast and easy access to the all the functions and features. A two-step focusing system allows you to independently focus your subject using the front objective ring and the in-view display with the rear dioptric ring. This ensures that the entire view is in sharp focus for all users. The display features icons to provide feedback on the IR intensity, frame rate, photo/video mode, zoom, battery status, card status, remaining memory, and recording time. The Aura runs on 3 AAA batteries and will run for about 60 minutes of continuous operation on fresh batteries. - Optical Performance
-
- 2x optical magnification
- 2x digital zoom
- 525' field of view at 1000 yd
- 10° angle of view
- Camera Performance
-
- Capture still images and video
- Black and white CMOS sensor
- 25.9mm f/1.52 aperture
- 640x480 VGA resolution
- Adjustable frame rate: 8, 15, 30 fps
- Store images to micro-SD card
- 8GB card included, supports up to 32GB
- Transfer files to computer using included USB cable without removing the memory card
- Playback and delete saved images on device
- Programmable day/date stamp
- Use and Handling
-
- Focus eyepiece for sharp in-view display
- Focus objective to bring subject into focus
- Ergonomic design places the four control buttons within easy reach
- Adjustable in-view screen brightness
- In-view display shows IR intensity, frame rate, photo/video mode, zoom, battery status, card status, remaining memory, and recording time
- Runs on 3 readily available AAA batteries
- Locking battery door for increased security
- IR Illuminator
-
- Maximum range of 400 feet (120m)
- Variable low/med/high IR intensity reduces washout of close objects
- Turn IR completely off for use during the day

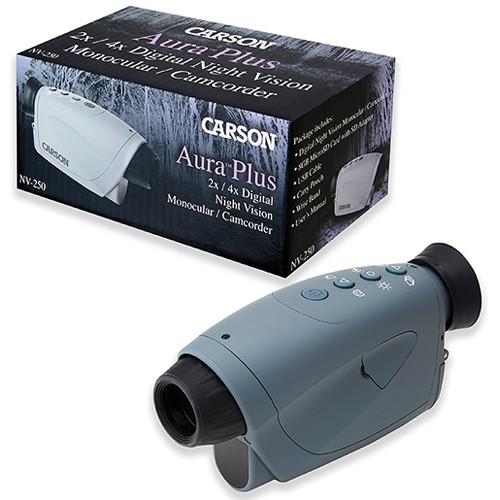

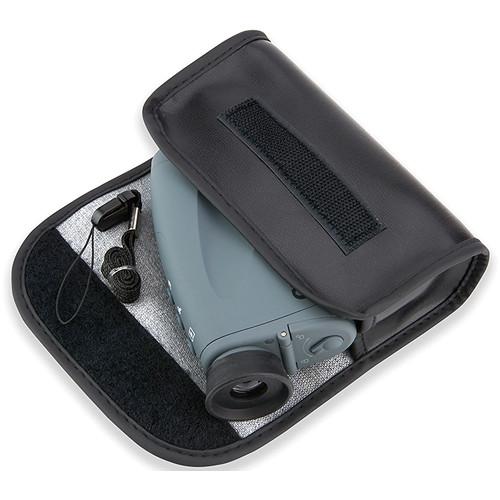

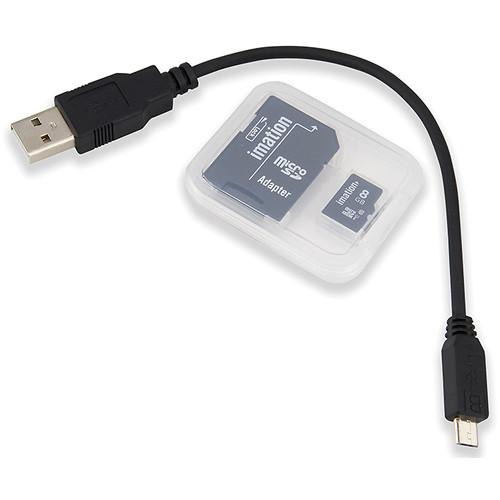

UPC: 750668011381 In the Box Carson 2-4x Aura Plus Night Vision Monocular/Camera Lanyard Padded Carrying Case 8GB Micro-SD Card with Adapter USB Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson 2-4x Aura Plus Night Vision Monocular Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson NV-250 Specs | | | Magnification | 2 - 4x | | Angle of View | 10°, actual | | Field of View | 525' @ 1000 yd / 175 m @ 1000 m | | IR Range | 400' / 120 m | | | | Sensor | Black and white CMOS | | Resolution | 640 x 480 | | Aperture | 25.9mm f/1.52 | | | | Memory Card | microSD card slot, supports up to 32 GB | | Battery | 3 x AAA | | Runtime | 60 min continuous operation | | Dimensions | 5.0 x 2.5 x 1.3" / 12.7 x 6.4 x 3.2 cm | | Weight | 4.5 oz / 127.0 g | | | | Package Weight | 0.49 lb | | Box Dimensions (LxWxH) | 5.55 x 3.15 x 2.5" |
