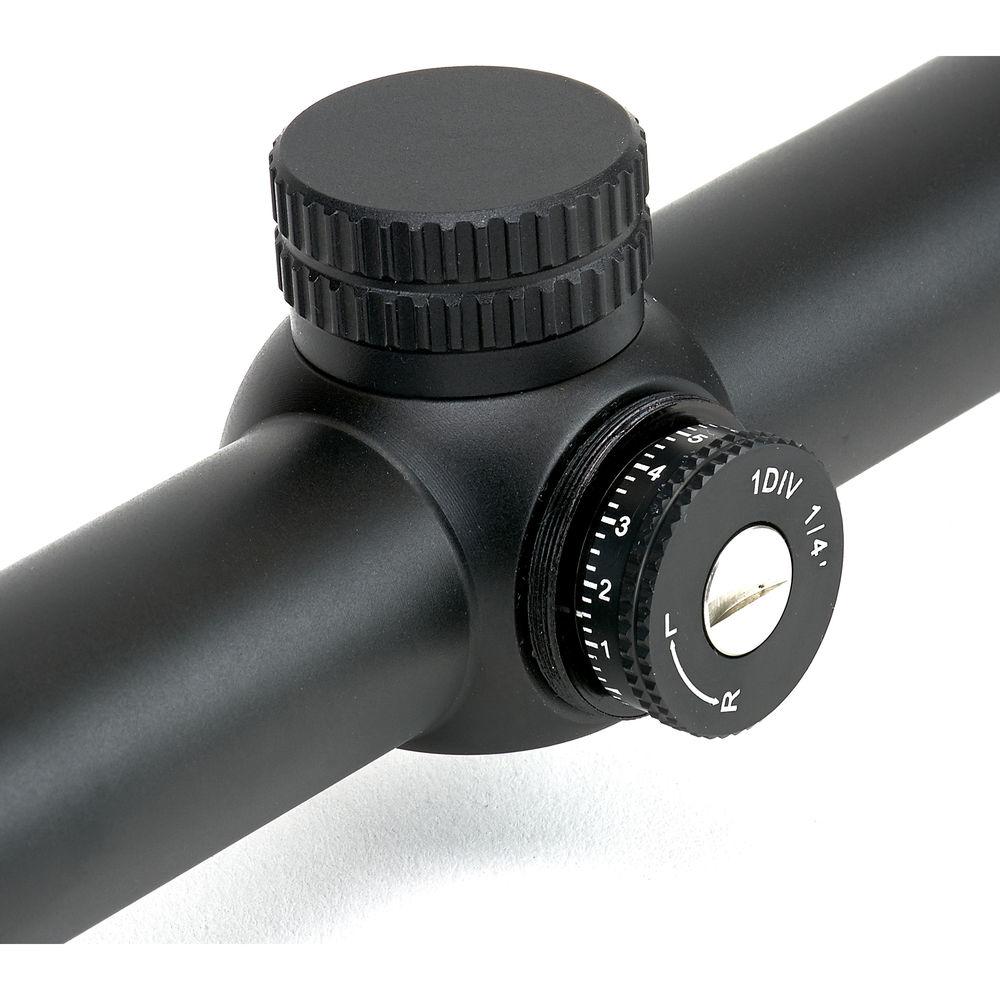

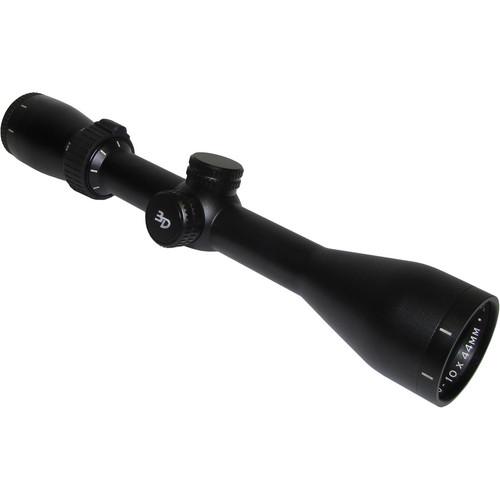

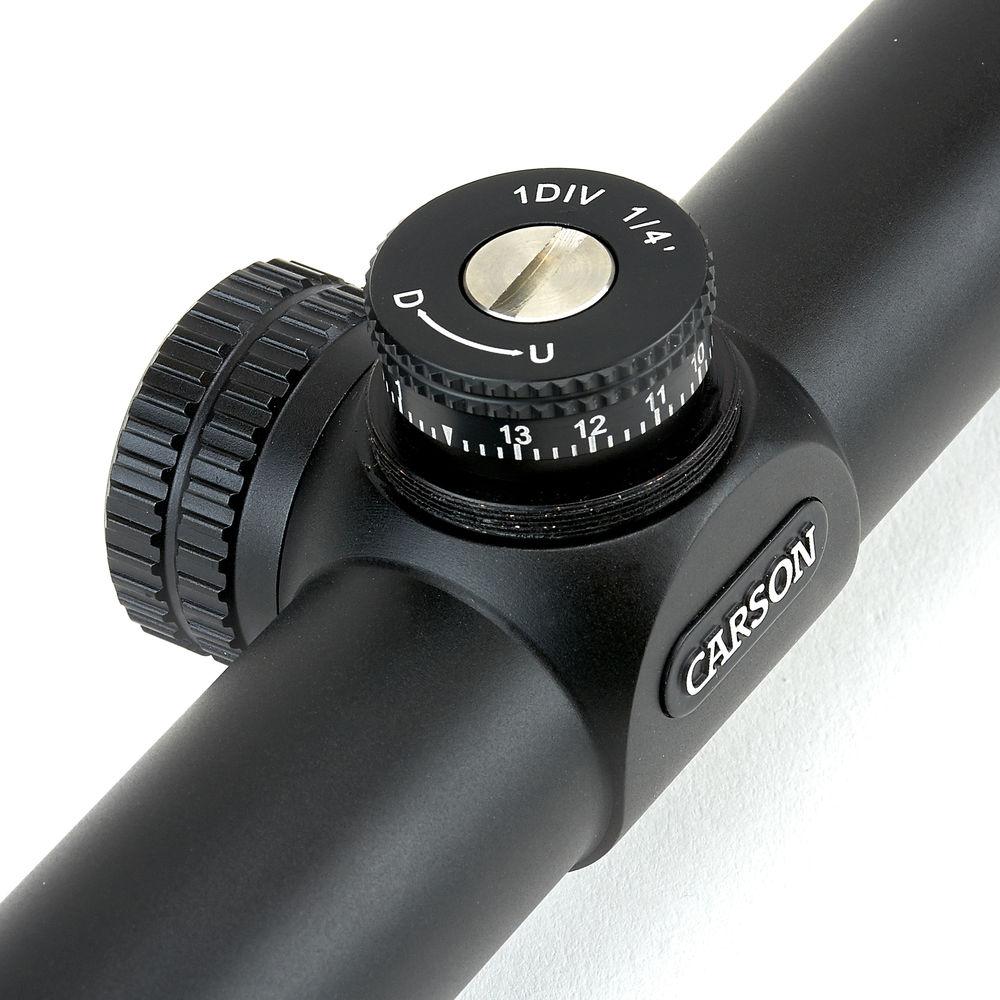

Product description Designed for distance and precision shooting, the 3D 3.5-10x44 Riflescope from Carson offers an optical system with high-transmission fully multi-coated optics and a Multiplex Reticle. The reticle features four thick posts and illuminated red crosshair. The medium-to-long range zoom allows you to work with both near and distant targets, and the 44mm aperture offers enough light for most lighting conditions. The 4" eye relief will give you enough space to be safe from recoil. To aid in correcting for ballistic drop and wind-drift, the capped windage and elevation turrets offer 1/4 MOA impact point correction with a 28 MOA of total travel.
To add durability, the housing is made from a single piece of aluminum. It can be mounted to your firearm via optional 1" rings and offers waterproof, fogproof, and impact-resistant performance. All rings and knobs are rubberized for a secure grip. Also include with this riflescope are lens caps. Multiplex Reticle -
- Four medium posts
- Thin black crosshair
Optical Performance -
- Fully multi-coated optics improve transmission
- Magnification of 3.5-1x for medium-to-long range
- 44mm objective lens enables usage in most light conditions
- Field of view: 28.8-10.5' at 100 yd
- 3.9" Eye Relief
Use and Handling -
- 1/4 MOA impact point correction
- 28 MOA windage and elevation range
Construction Details -
- 1" single-piece main tube
- Aluminum with matte black finish
- Fast-focus eyepiece with low-profile lever
- Rubberized adjustment rings and knobs
- Fogproof, waterproof, and shock-resistant

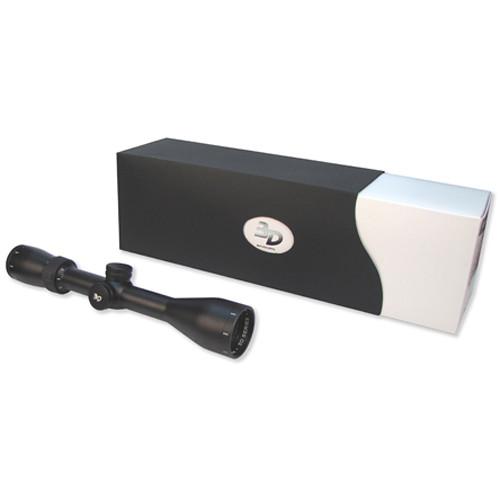

UPC: 750668008619 In the Box Carson 3D 3.5-10x44 Riflescope (Multiplex Reticle) - Lens Caps
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson 3D 3.5-10x44 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson RS-344MP Specs | | | Magnification | 3.5 to 10x | | Objective Lens Diameter | 44 mm | | Field of View | 3.5x: 28.8' @ 100 yd / 9.6 m @ 100 m
10x: 10.5' @ 100 yd / 3.5 m @ 100 m | | Exit Pupil Diameter | 3.5x: 12.5 mm
10x: 4.4 mm | | Eye Relief | 3.9" / 100 mm | | | | Reticle Type | Multiplex Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 28 MOA | | Elevation Adjustment | 28 MOA | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 13.5" / 34.3 cm
Height: 2" / 5.1 cm
Width: 2" / 5.1 cm | | Weight | 15 oz / 425.2 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 16.1 x 4.9 x 4.3" |
