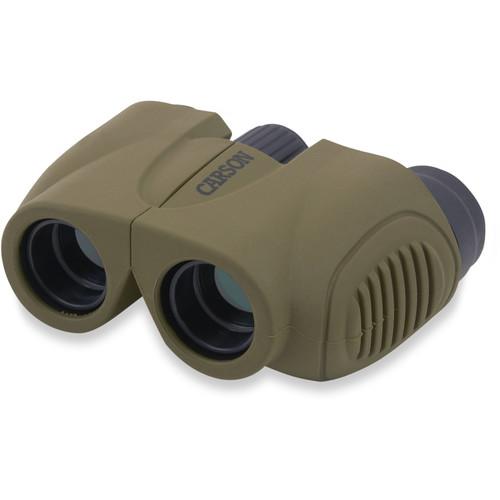

User Manual for Carson 8x22 Hornet Compact Binocular Click to enlarge the picture
Contents of the user manual for the Carson 8x22 Hornet Compact Binocular
- Product category: Binoculars Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson Binoculars
 |
User manual for the Carson 8x22 Hornet Compact Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|

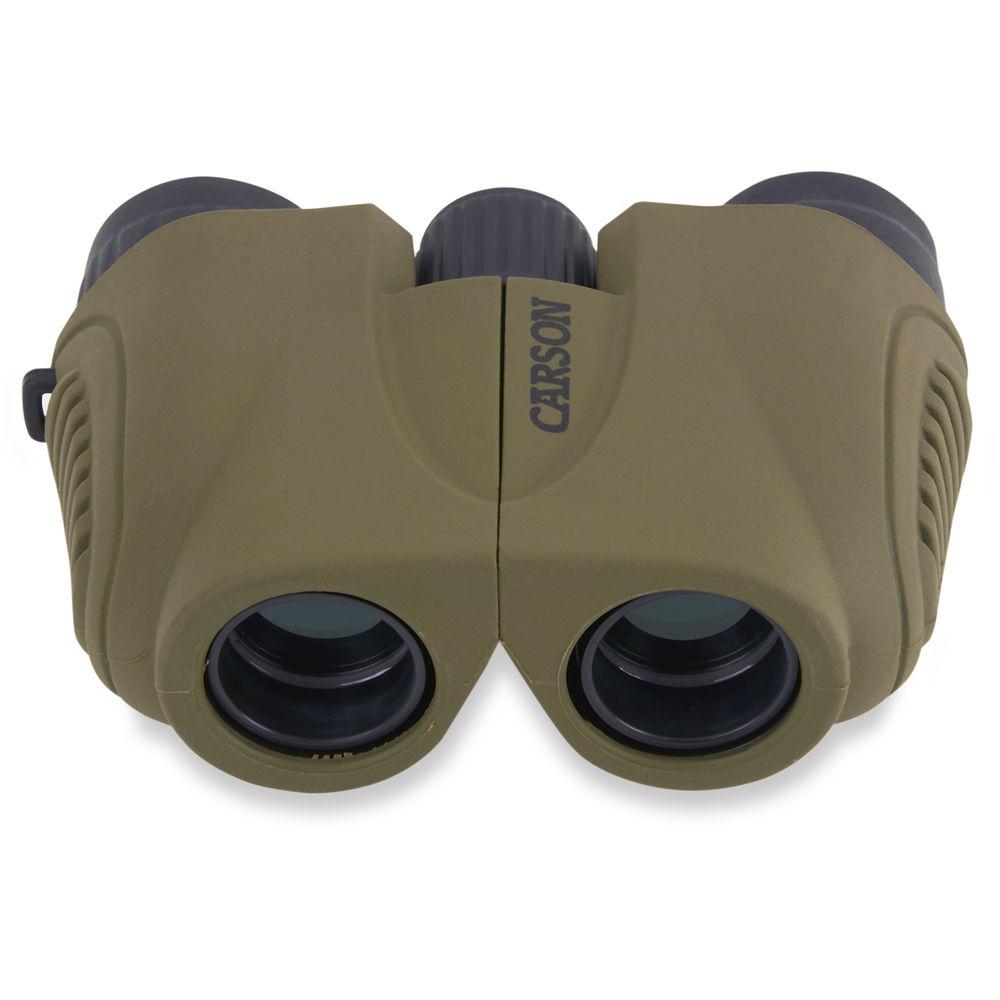

Product description The B&H Binocular Buying Guide Read More Weighing under 7 ounces and sporting a compact form factor, the Carson Optical 8x22 Hornet Compact Binocular is ideally suited for sports, festivals, sightseeing, and general all-around use. Outfitted with reverse Porro prisms and anti-reflection fully multi-coated optics for optimal light transmission, the Hornet produces bright and sharp high-contrast images. The center-focus ring is easy to reach and the rubber eyecups fold down to accommodate eyeglasses or sunglasses. Stow the Hornet in your pocket, pack, or purse and enjoy the wonders of the city or outdoors. - Performance
-
- 8x magnification brings subjects in for observation without sacrificing field of view
- 22mm objective lenses help to maintain a compact form factor
- BK7 reverse Porro prism design produces a rich depth of field without the associated width of traditional Porros
- Anti-reflection fully multi-coated optics maximize light transmission to produce bright and clear images
- Apparent angle of view approaches wide-angle to present an immersive observational experience
- 367' field of view at 1000 yards
- Use and Handling
-

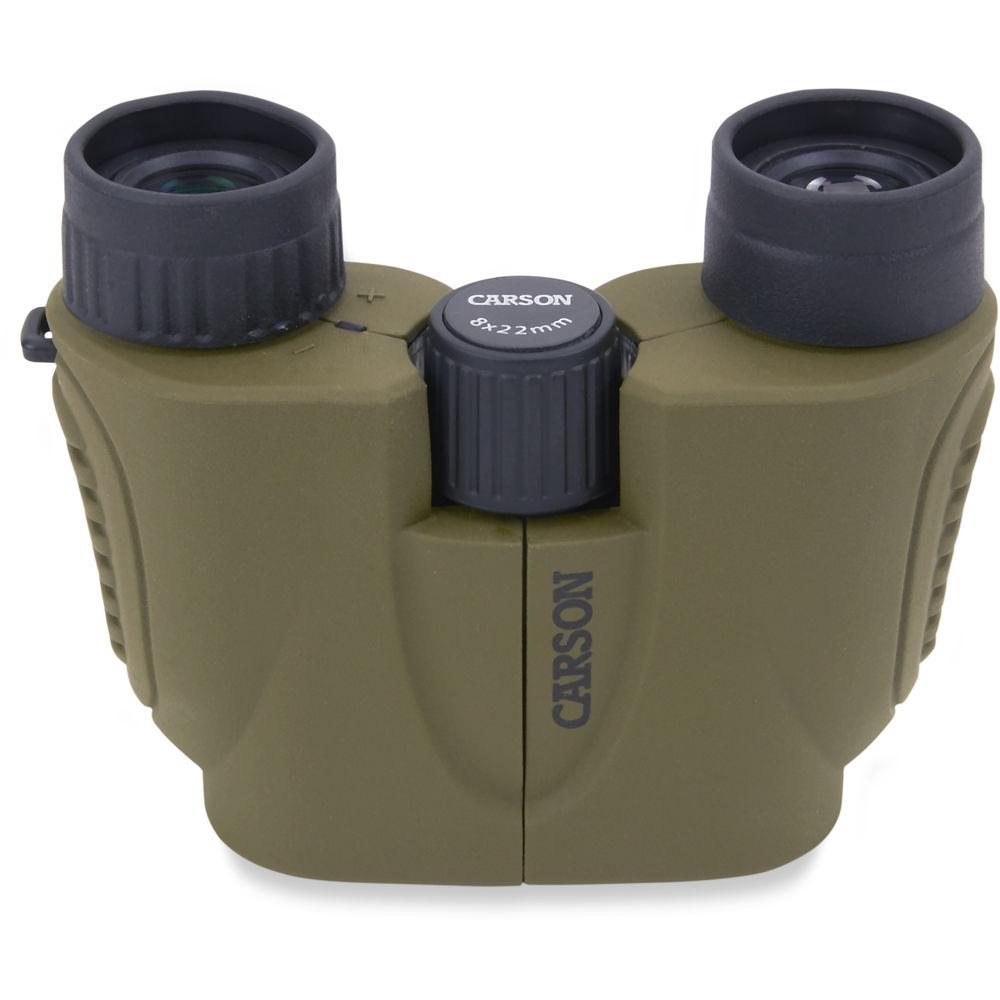

- Low-profile slip-resistant center focus wheel

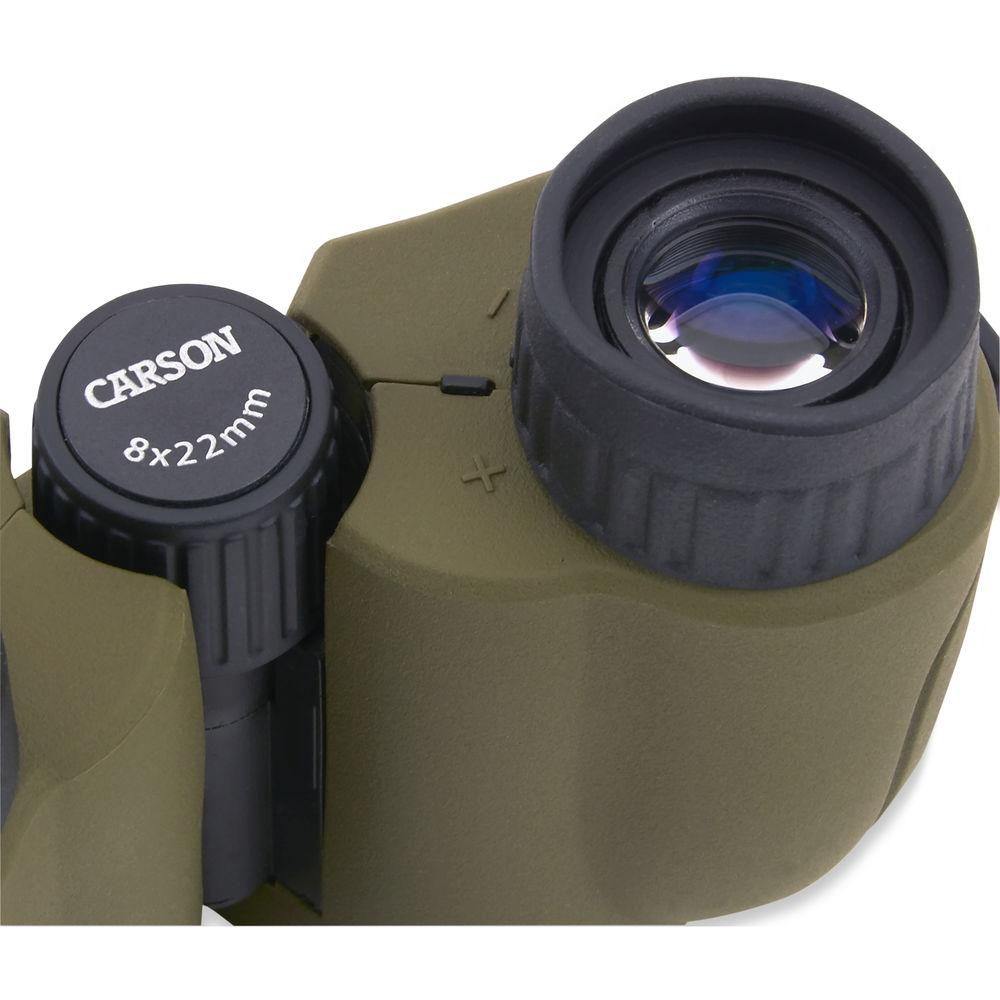

- Right-eye dioptric correction allows users to compensate for individual optical prescriptions, resulting in crisp and sharp images

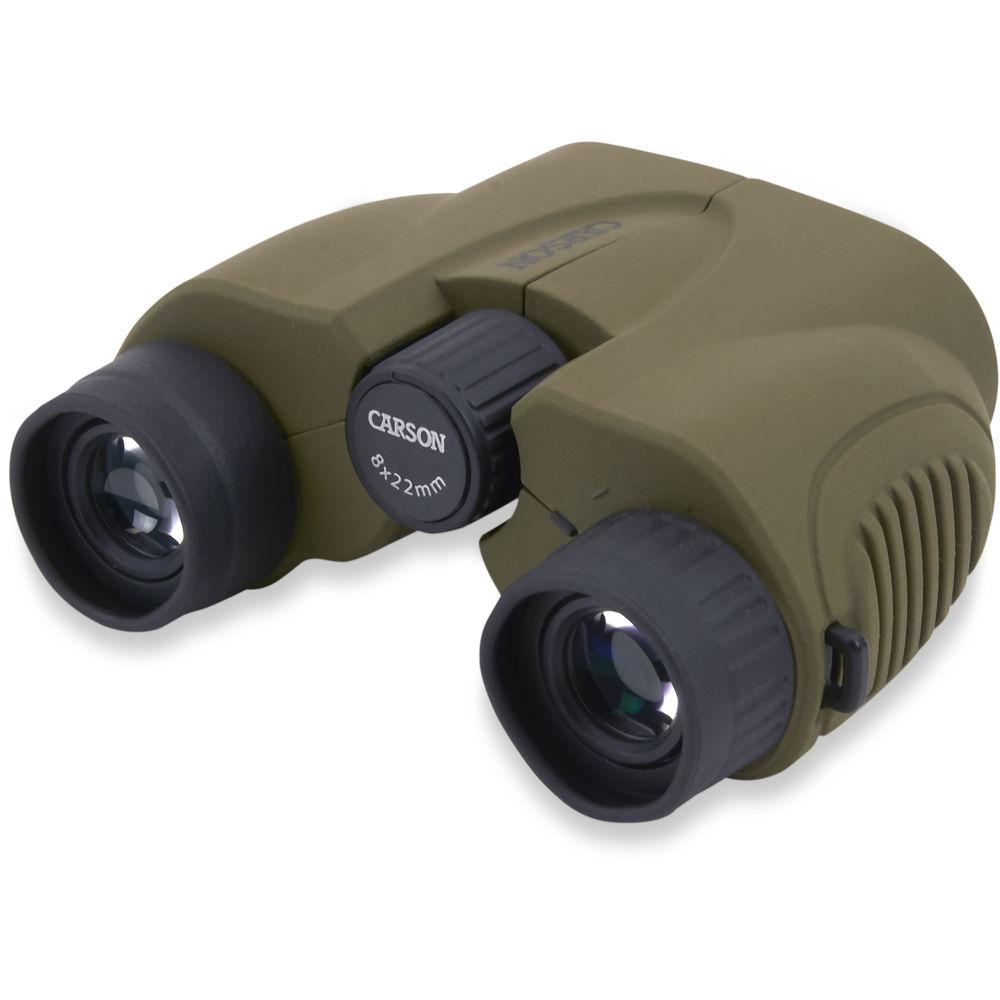

- Fold-down rubber eyecups for comfortable use with or without eyewear
- 12mm eye relief
- 2.75mm exit pupil
- Construction Details
-
- Protective rubber armoring with raised textured palm pads improves slip resistance and its feel in the hand

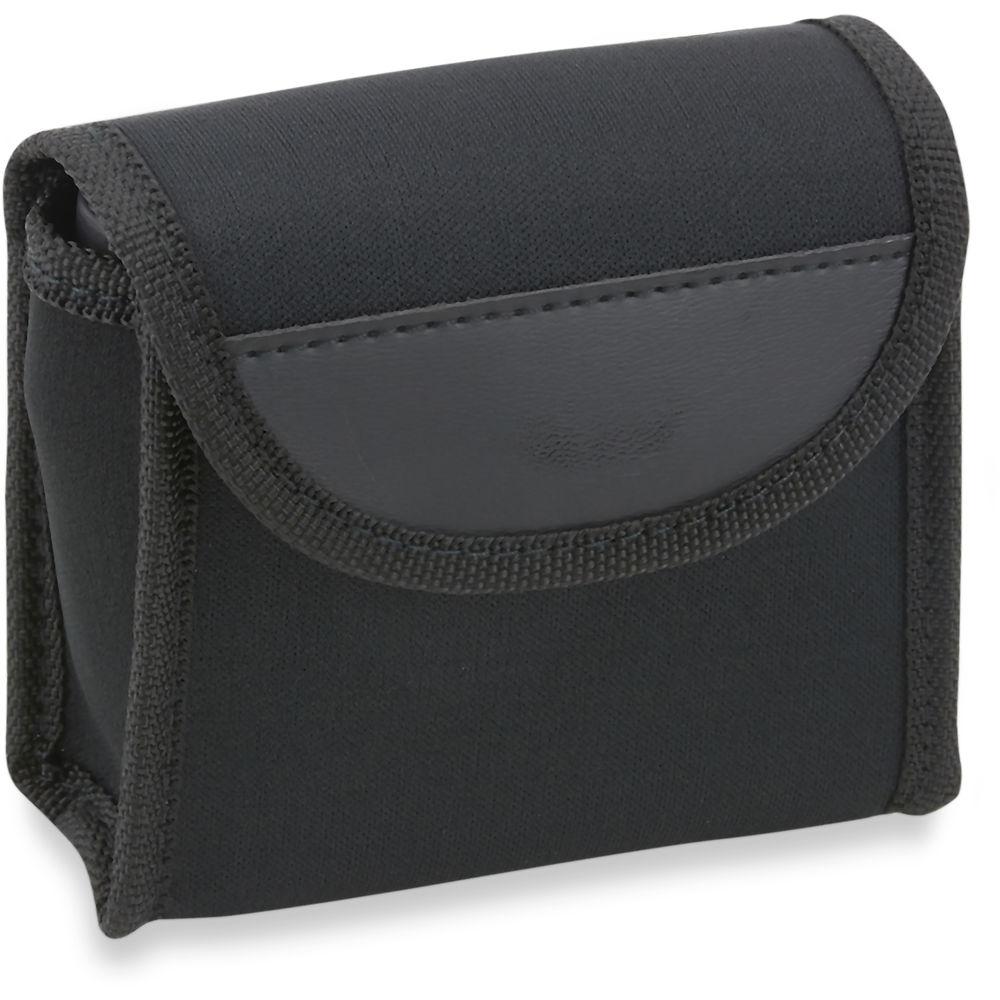

- Includes a carrying pouch and wrist strap
- 4.3 x 3.3" form factor
- Lightweight: 6.6 ounces

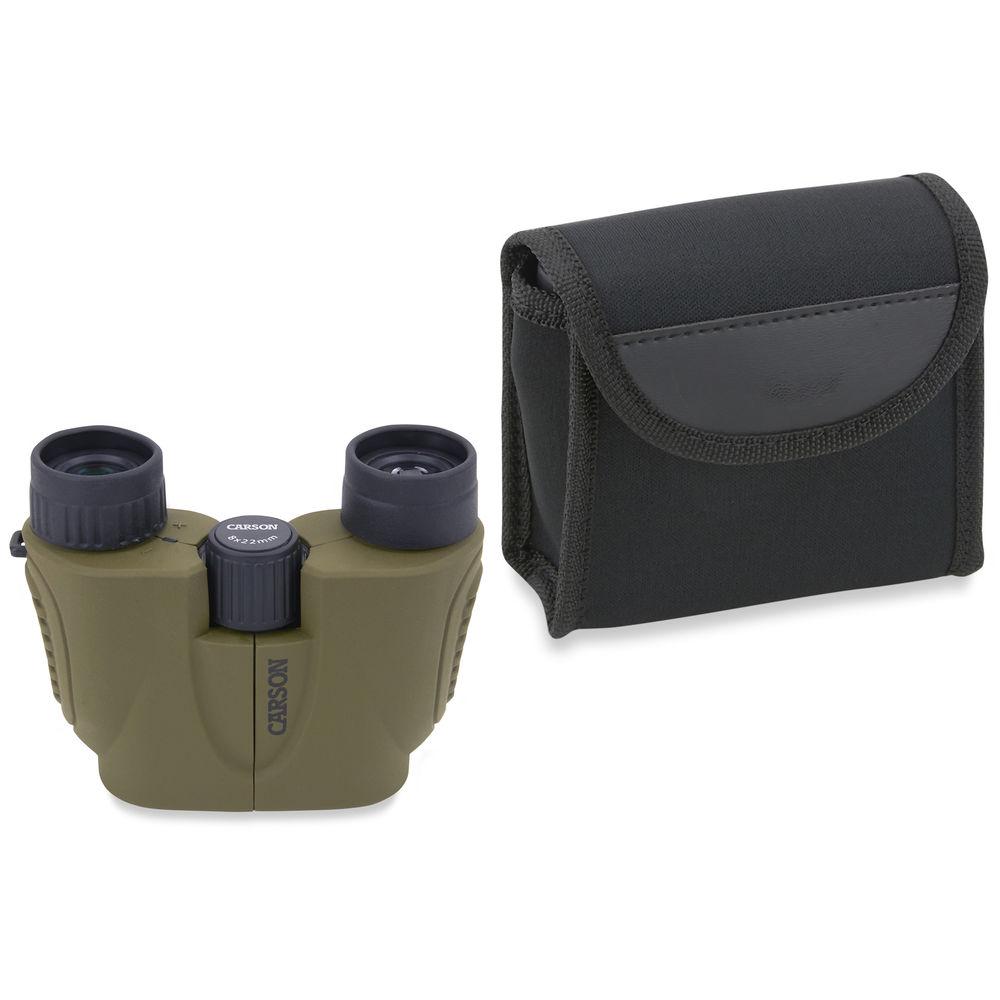

UPC: 750668012807 In the Box Carson 8x22 Hornet Compact Binocular Carrying Pouch Wrist Strap Lens Cloth 2 x Objective Lens Covers Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson 8x22 Hornet Compact Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson HT-822 Specs | Prism Type | Porro | | Magnification | 8 x | | Objective Lens Diameter | 22 mm | | Angle of View | 7.0° (Actual) | | Field of View | 367.0' @ 1000 yd / 121.8 m @ 1000 m | | Minimum Focus Distance | 11.5' / 3.5 m | | Exit Pupil Diameter | 2.75 mm | | Eye Relief | 12.0 mm | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.3 x 3.3 x 1.6" / 10.9 x 8.4 x 4.1 cm | | Weight | 6.6 oz / 187.1 g | | | | Package Weight | 0.64 lb | | Box Dimensions (LxWxH) | 5.9 x 5.85 x 2.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
