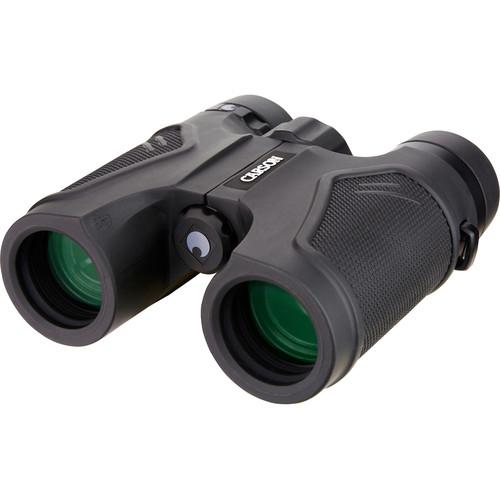

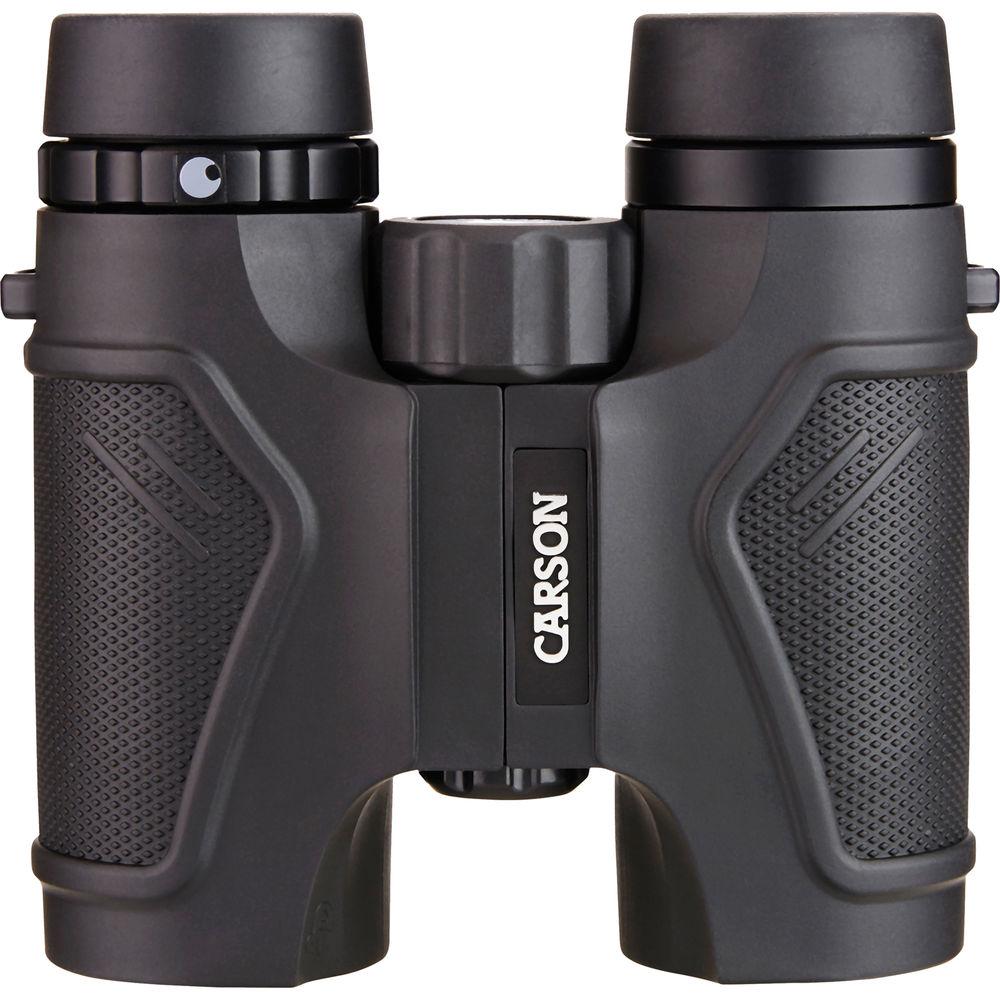

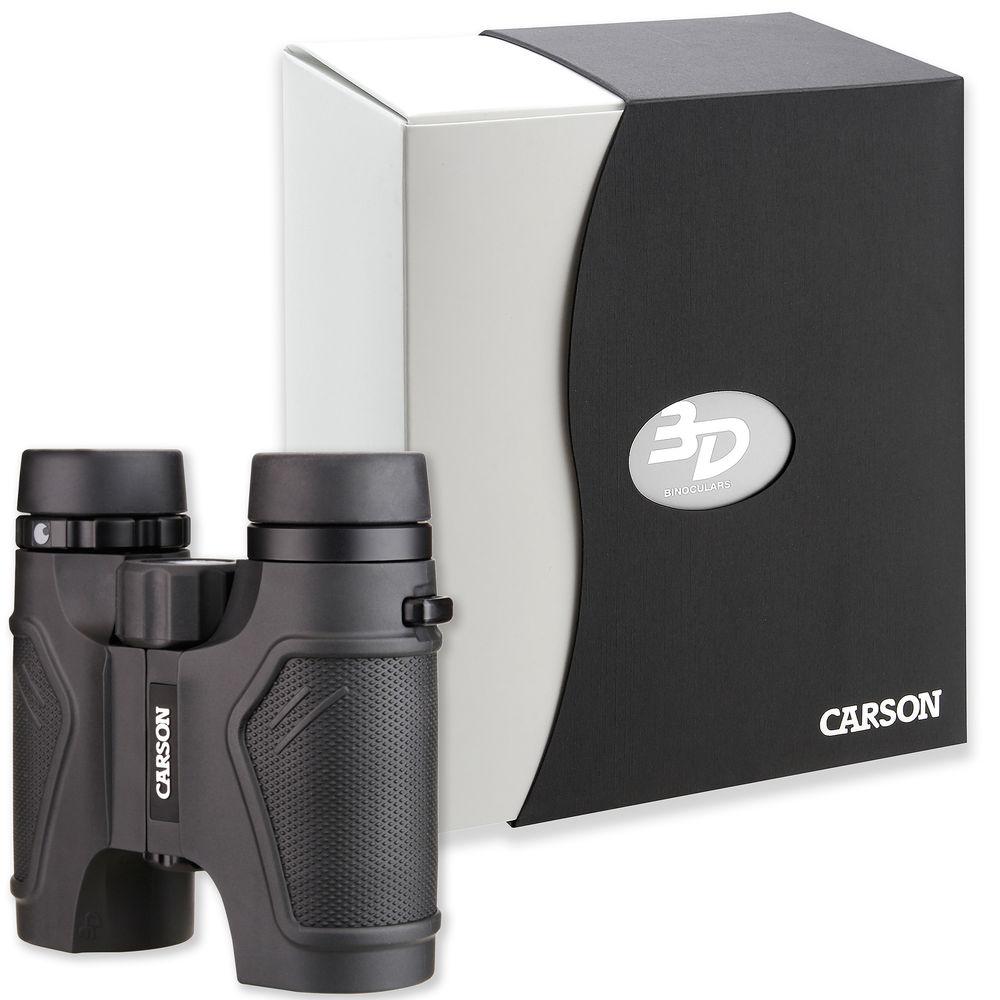

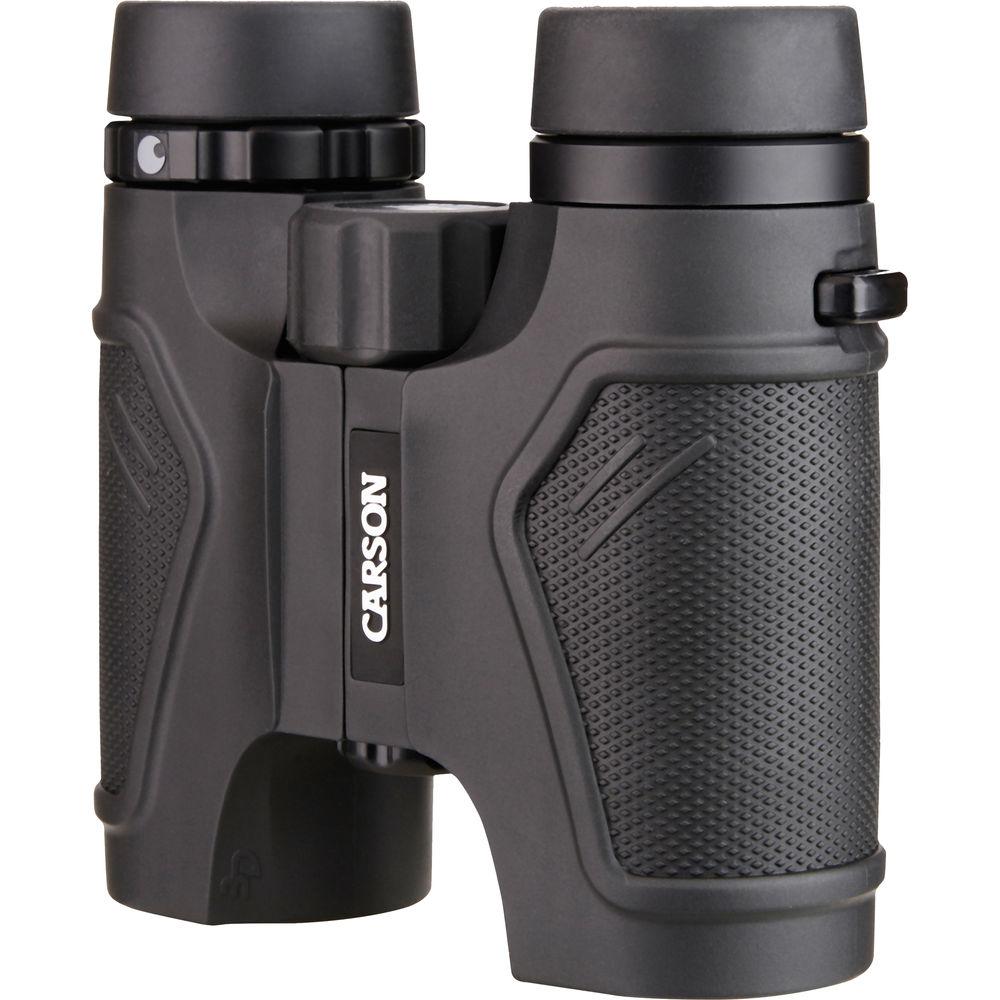

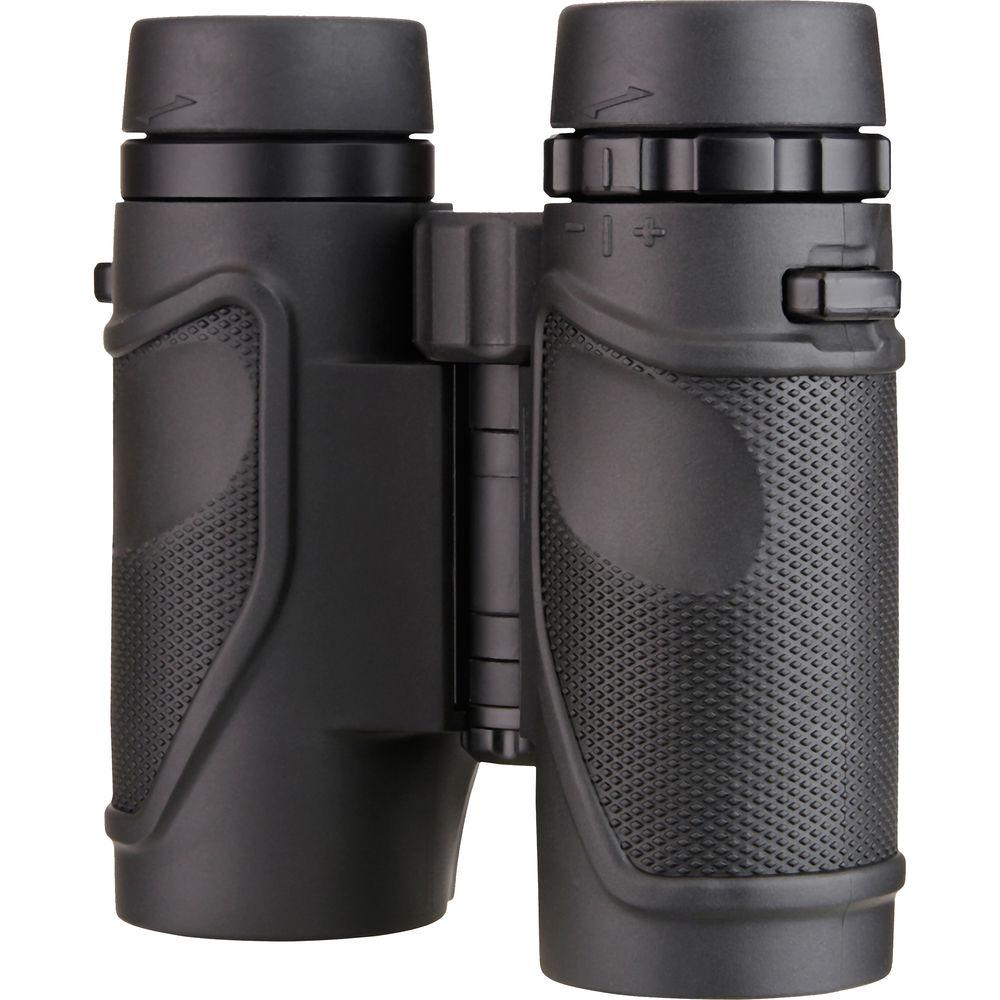

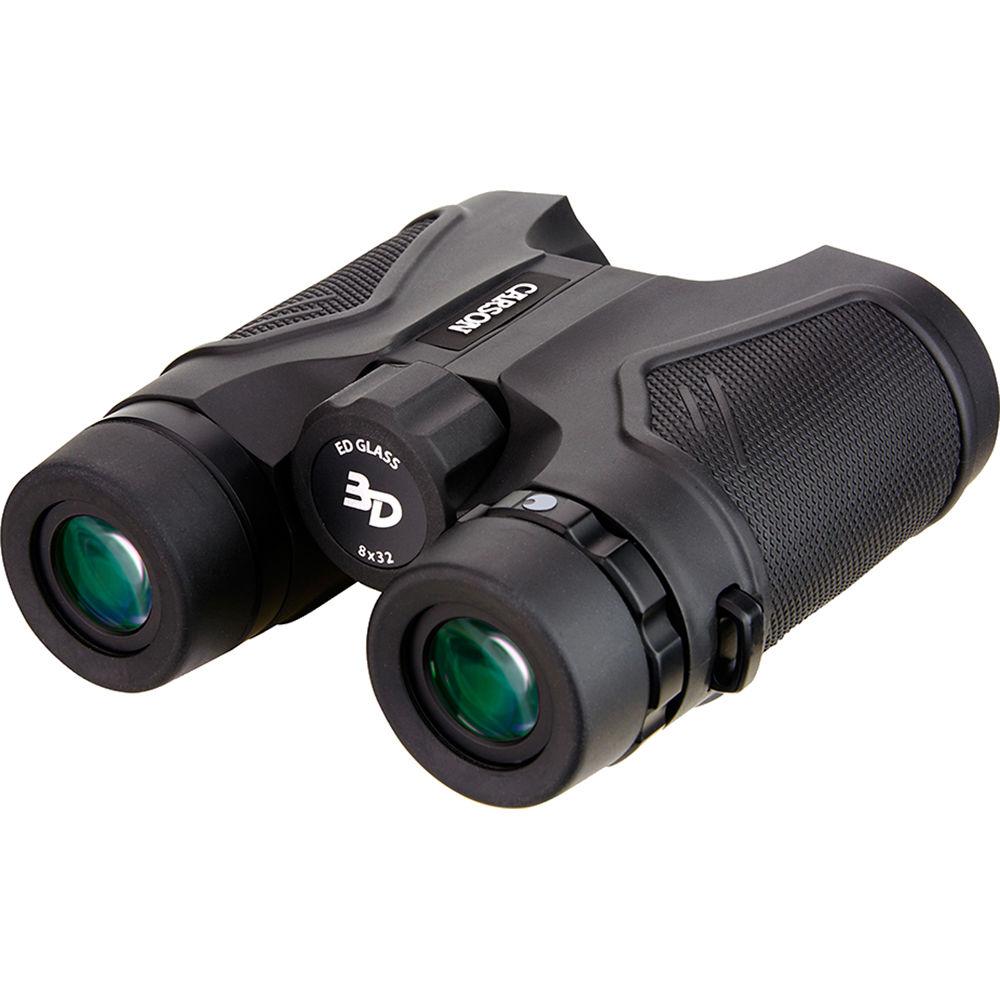

Product description The B&H Binocular Buying Guide Read More tuadbutfadttawccfau Designed with a compact form-factor and ideally suited for birding, hunting, or hiking, Carson Optical's gray 8x32 TD-832ED 3D-Series Binocular features an array of optical technologies to produce a device that doesn't take up precious pack-space, without sacrificing performance. Beginning with phase-corrected BAK4 roof prisms, color fidelity, contrast, and resolution are all enhanced. Next, Carson employs extra low-dispersion glass to correct for chromatic and spherical aberrations to enhance image clarity, and further increase contrast and color definition. They then apply their proprietary HD (high-definition) optical coating to fully multicoat the optical path to improve light transmission for bright, sharp images, especially in low-light conditions.Rubberized gray armor coating makes this 3D Binocular rugged and shock resistant. The thumb grooves and texture hand-holds make for a pleasant, non-slip, ergonomic grip. The body is nitrogen filled and O-ring sealed, making it waterproof and fogproof. The TD-042ED combines twist up eyecups with an extra-long eye relief, resulting in a great combination for the outdoor enthusiast. Note: Warning - The case for this device contains magnets which can interfere with pacemakers and implantable cardioverter defibrillators (ICD's). Individuals with pacemakers or ICD's should NOT use this product. - Optical Performance
-
- 8x magnification
- 32mm objective lenses
- Compact BAK4 roof prisms
- Phase correction coatings on prisms to correct for chromatic aberration and enhance image contrast
- Proprietary HD anti-reflection fully multicoated optics
- Extra-Low Dispersion glass corrects for spherical and chromatic aberrations to improve image quality with true color rendition and virtually no distortion
- 392' field of view at 1000 yd
- 60° apparent field of view
- Use and Handling
-
- Closed-bridge configuration
- Knurled center focus knob
- Right-eye dioptric correction
- 19.5mm long eye relief
- Construction Details
-
- Nitrogen-filled, water and fogproof
- Protective gray rubberized armoring provides shock-resistance
- Textured hand-holds provide slip-resistant grip
- Thumb grooves on underside provide a more secure grip

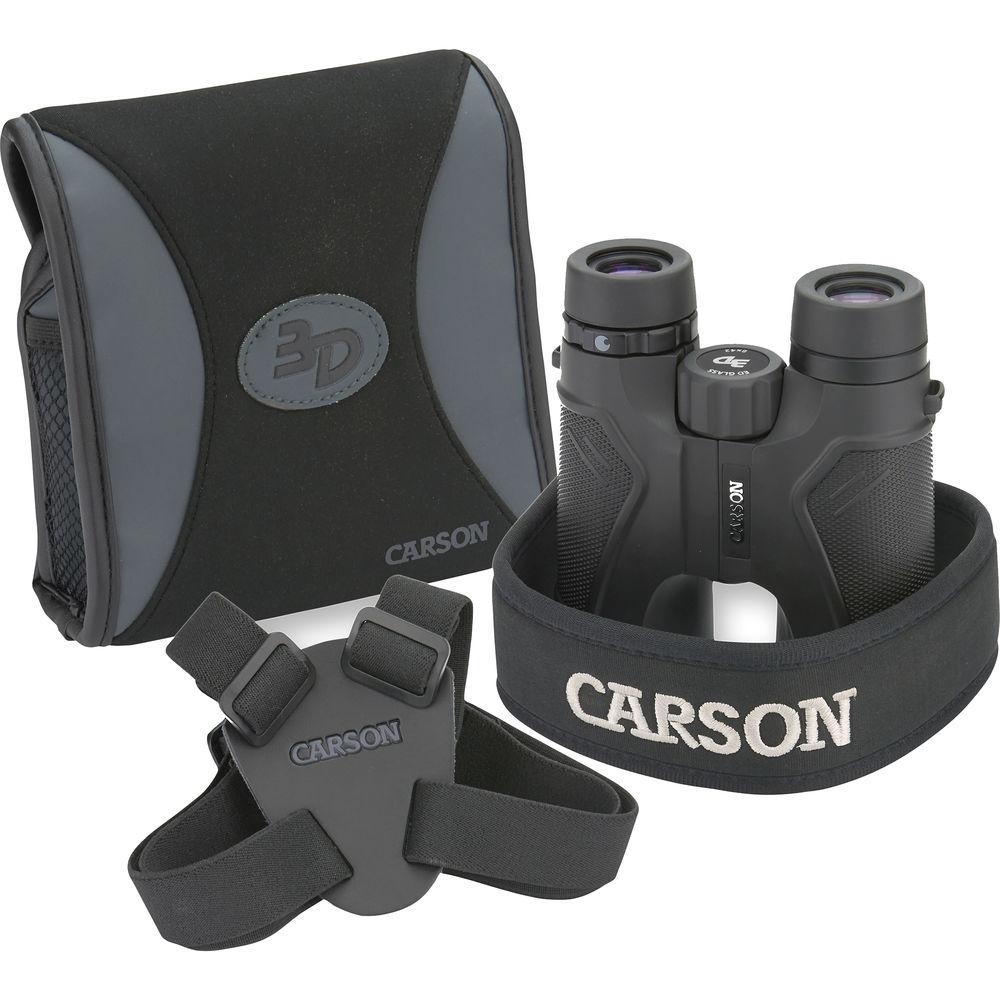

UPC: 750668011404 In the Box Carson 8x32 3D Series TD-832ED Binocular (Gray) BinoArmor Deluxe Carrying Case Neck Strap Shoulder Harness Lens Cloth No-Fault Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 854.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson 8x32 3D Series TD-832ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson TD-832ED Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 32 mm | | Angle of View | 7.5° (Actual) | | Field of View | 392' @ 1000 yd / 130.144 m @ 1000 m | | Minimum Focus Distance | 6.6' / 2 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 19.5 mm | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 4.9 x 4.8 x 1.8" / 12.4 x 12.2 x 4.6 cm | | Weight | 19.2 oz / 544.3 g | | | | Package Weight | 2.675 lb | | Box Dimensions (LxWxH) | 7.5 x 7.2 x 4.9" |
