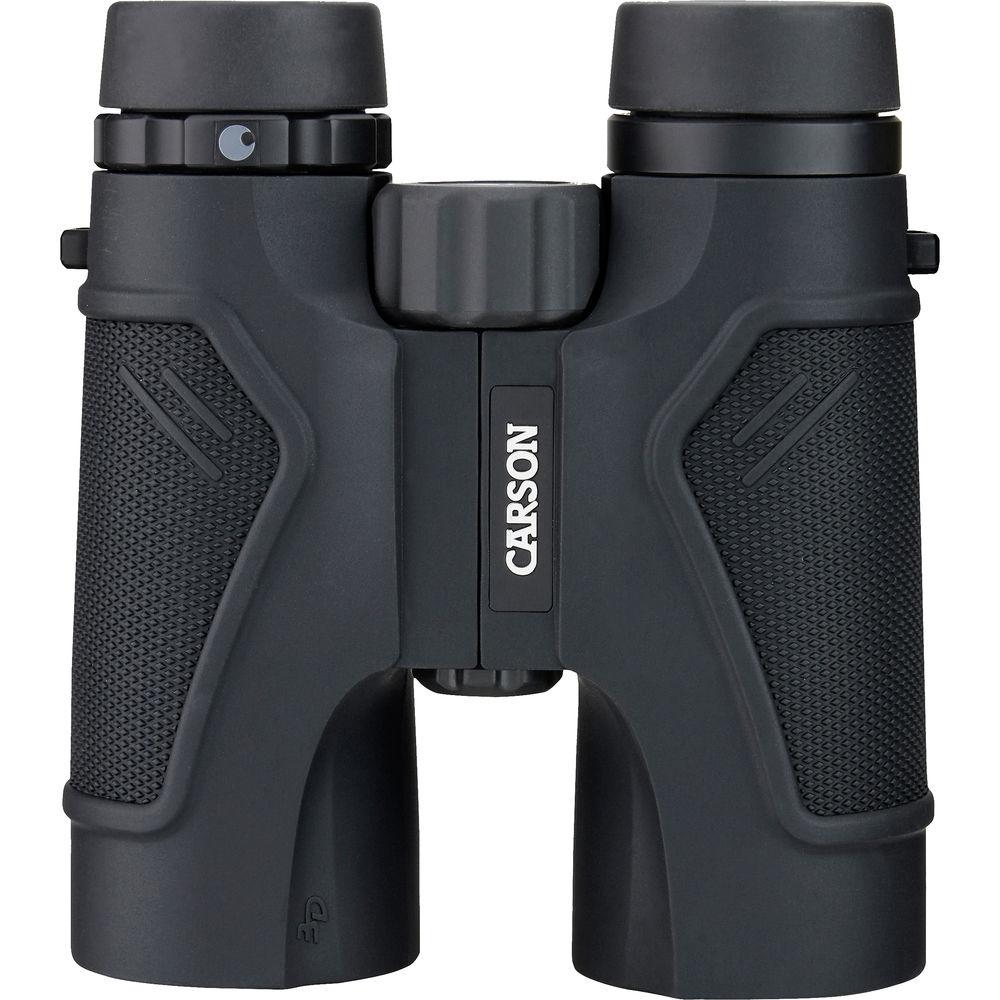

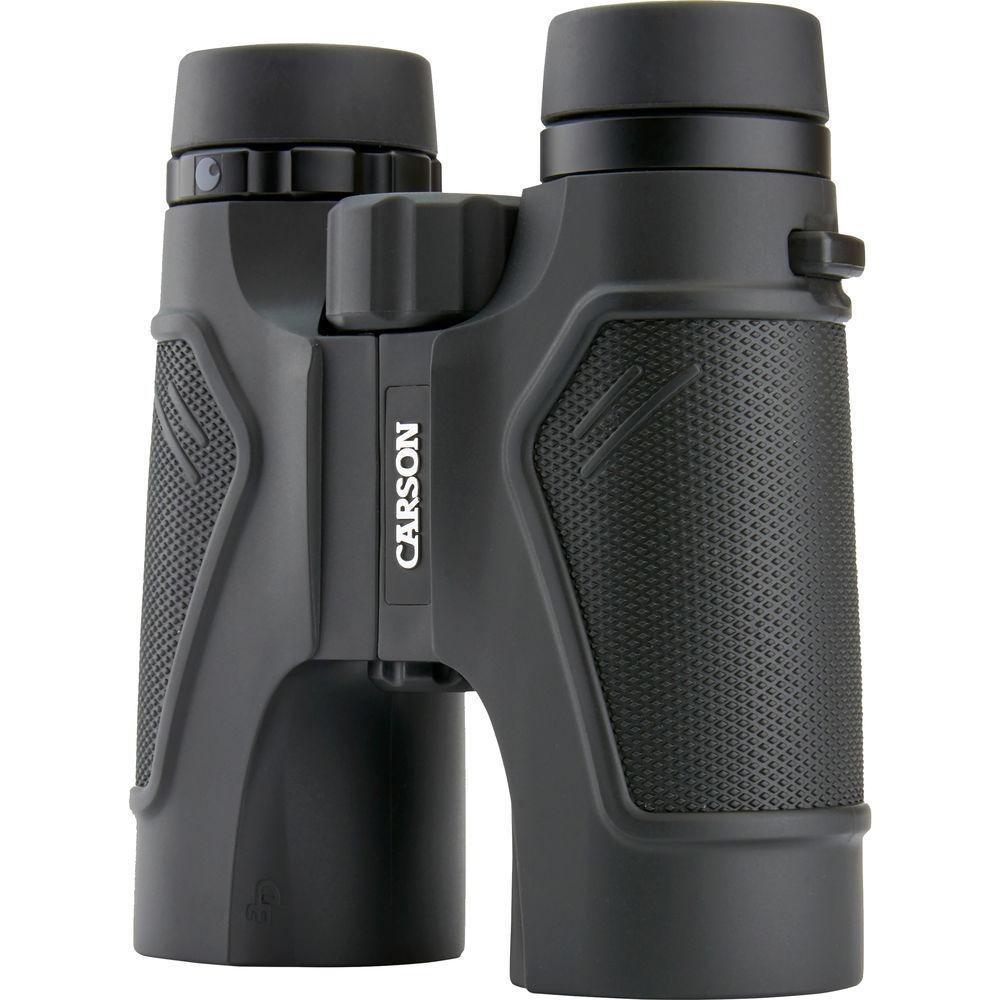

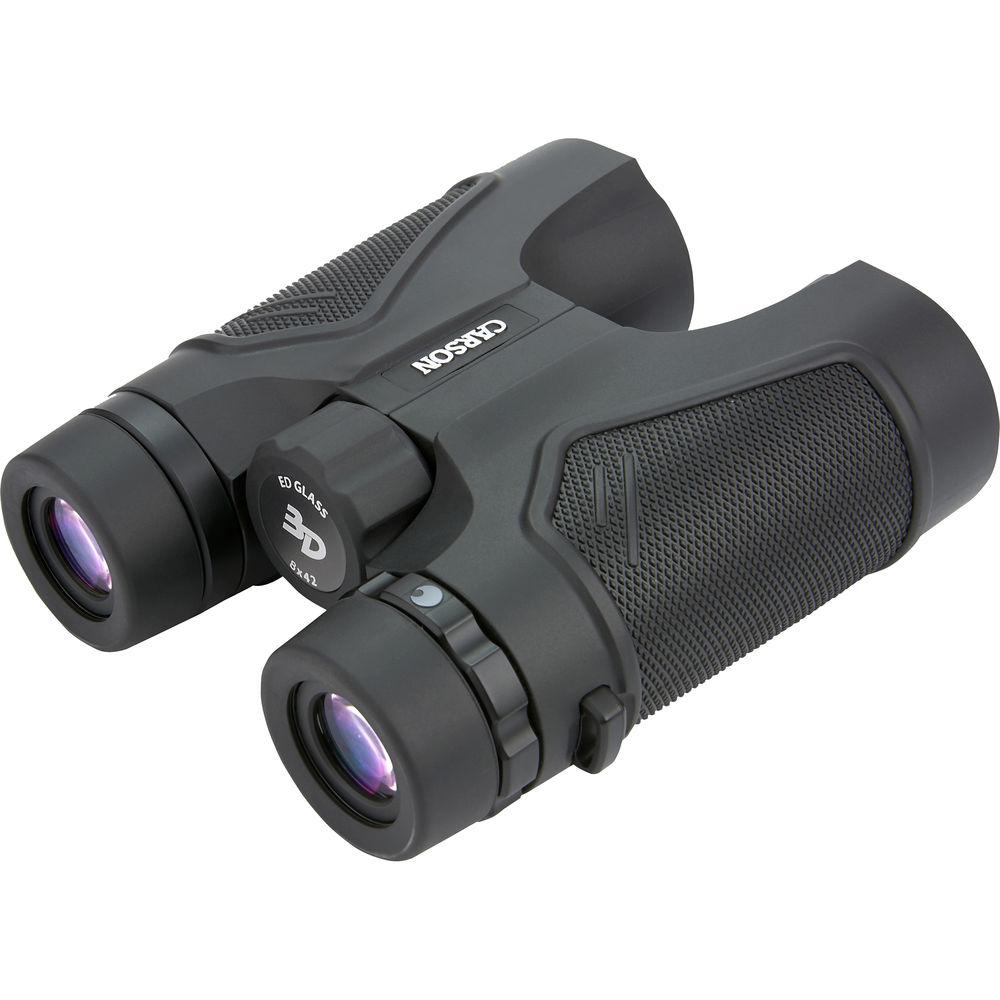

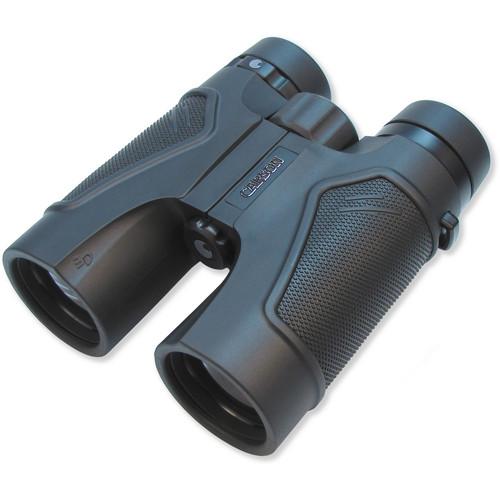

User Manual for Carson 8x42 3D Series ED Binocular Click to enlarge the picture
Contents of the user manual for the Carson 8x42 3D Series ED Binocular
- Product category: Binoculars Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson Binoculars
 |
User manual for the Carson 8x42 3D Series ED Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The 8x42 3D Series ED Binocular from Carson Optical combines extra-low dispersion (ED) glass elements with a nitrogen-filled housing to create a versatile optic that delivers a bright, sharp image and weatherproof performance. At the core of this general purpose binocular is a fully multi-coated optical path that utilizes ED lenses to transmit bright images that are color faithful and contrast-rich. To preserve image quality and maximize the color fidelity provided by the ED glass, Carson outfits its 3D Series binoculars with phase-corrected BAK4 prisms engineered to align the incoming wavelengths of light and retain lifelike details.Complementing the extra-low dispersion optical path and fogproof/waterproof construction, the 3D Series binocular features twist-up eyecups and a comfortable 19.5mm eye relief that provides a comfortable viewing distance for most observers. The 8x magnification power equips this set of glasses for a wide range of observations; a 52° apparent viewing angle and 9.8' minimum focus distance extend the functionality to include close-range tasks like birding. An included neoprene neck strap and stabilizing shoulder harness enable comfortable extended-duration observations and help make the 8x42 3D Series binocular well-suited for almost any outdoor activity. Note: Warning - The case for this device contains magnets which can interfere with pacemakers and implantable cardioverter defibrillators (ICD's). Individuals with pacemakers or ICD's should NOT use this product. - Optical Performance
-
- 8x magnification, 42mm objectives
- Fully multi-coated optics, ED glass elements
- Phase-corrected BAK4 prisms, roof prism design
- 6.5° angle of view, 52° apparent viewing angle
- 341' field of view at 1000 yd
- 9.8' close viewing distance
- 19.5mm eye relief
- Use and Handling
-
- Twist-up eyecups
- Included shoulder harness for stabilized handling
- Construction Details
-
- Nitrogen-filled housing is fogproof and waterproof
- Textured rubber armoring for non-slip grip
- 1.4 lb weight

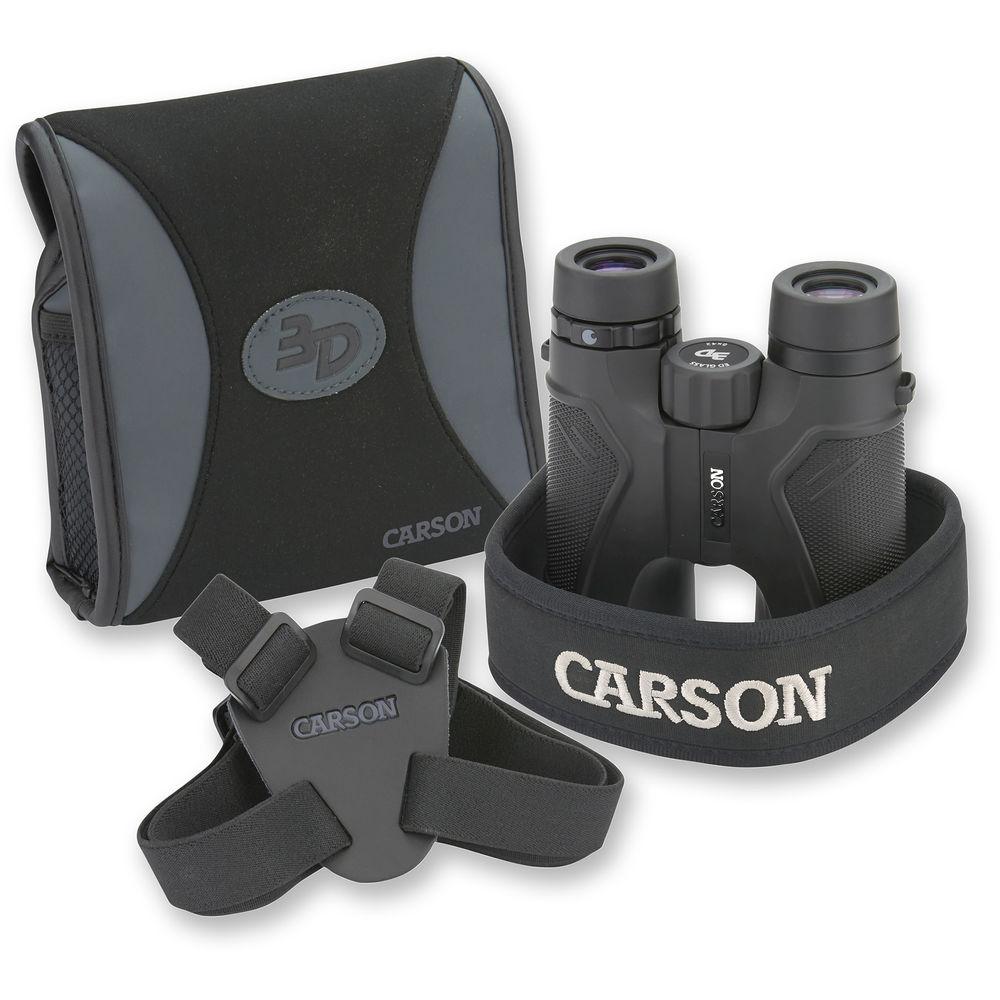

UPC: 750668009944 In the Box Carson 8x42 3D Series ED Binocular BinoArmor Deluxe Carrying Case Shoulder Harness Neck Strap Lens Cloth Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 854.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson 8x42 3D Series ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson TD-842ED Specs | Prism Type | Roof | | Magnification | 8.0 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.5° (Actual) | | Field of View | 341' @ 1000 yd / 113.212 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 19.5 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.5 x 5.0 x 2.0" / 14.0 x 12.7 x 5.1 cm | | Weight | 22.1 oz / 626.5 g | | | | Package Weight | 2.925 lb | | Box Dimensions (LxWxH) | 9.1 x 8.7 x 5.25" |
