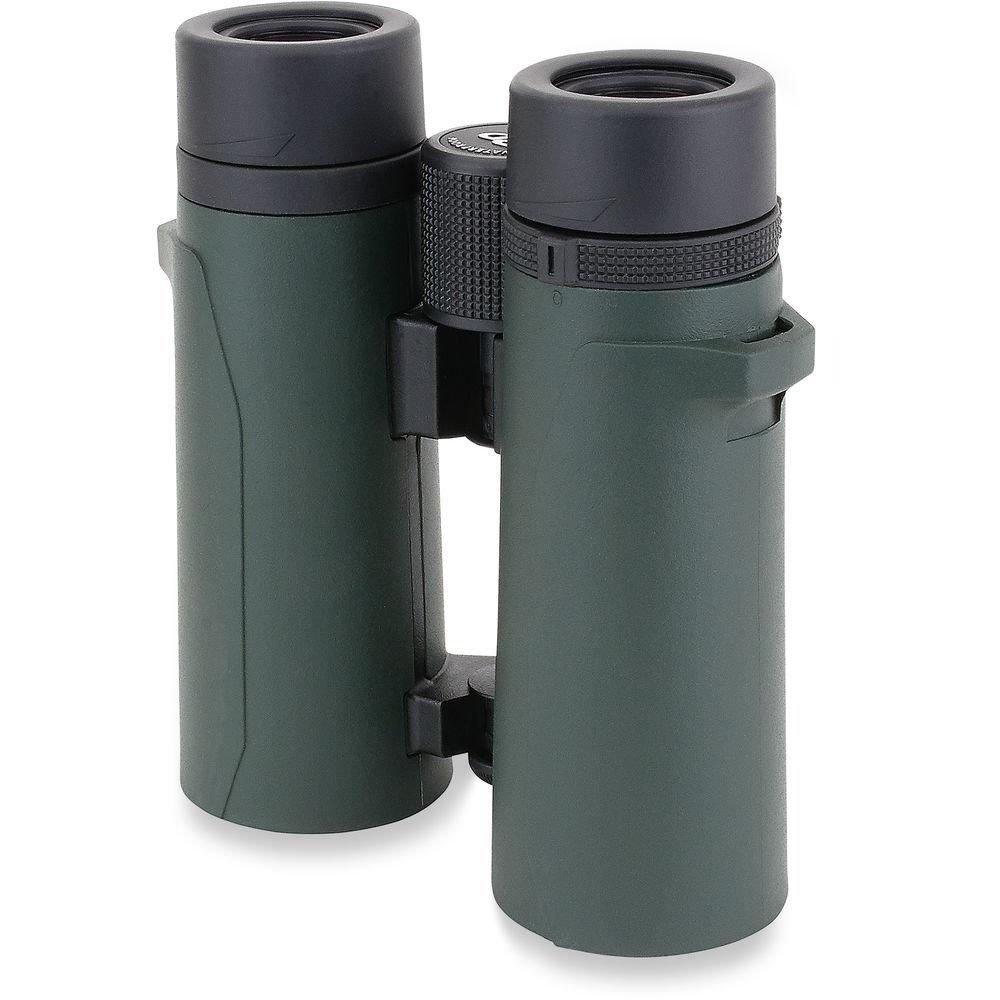

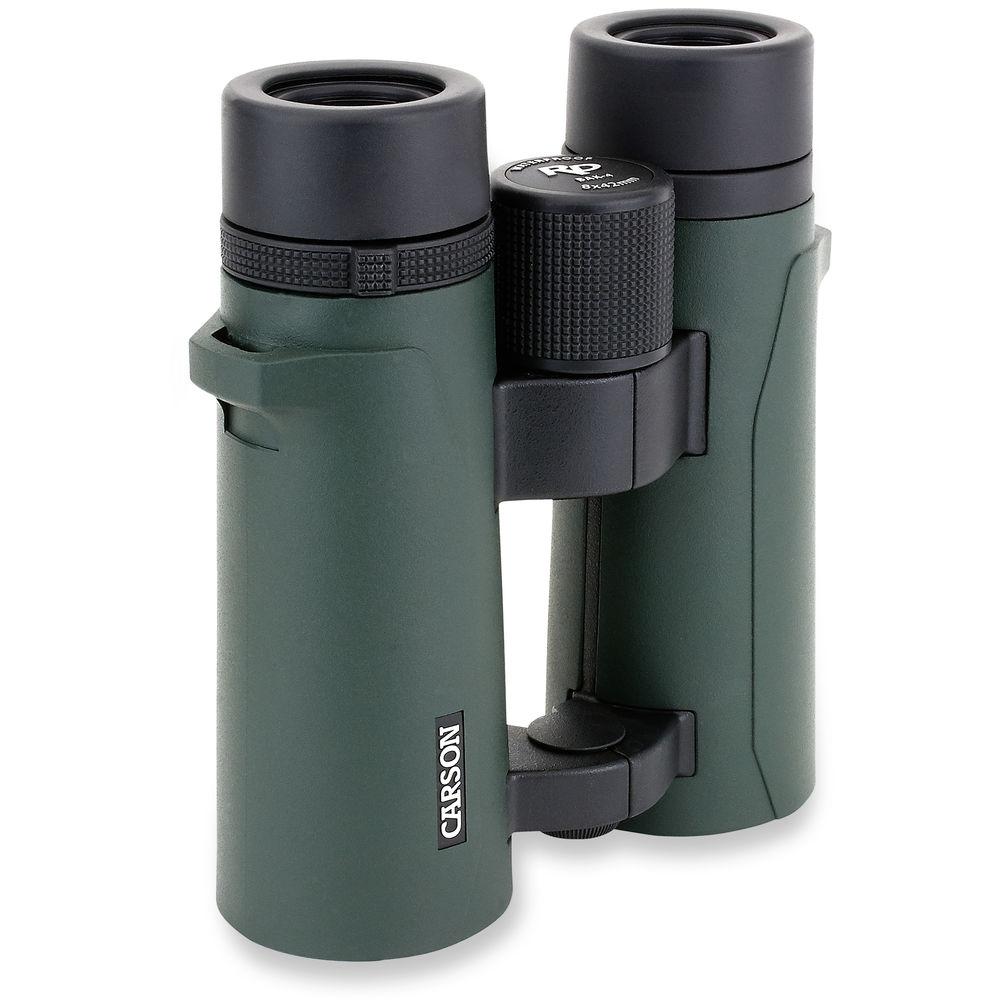

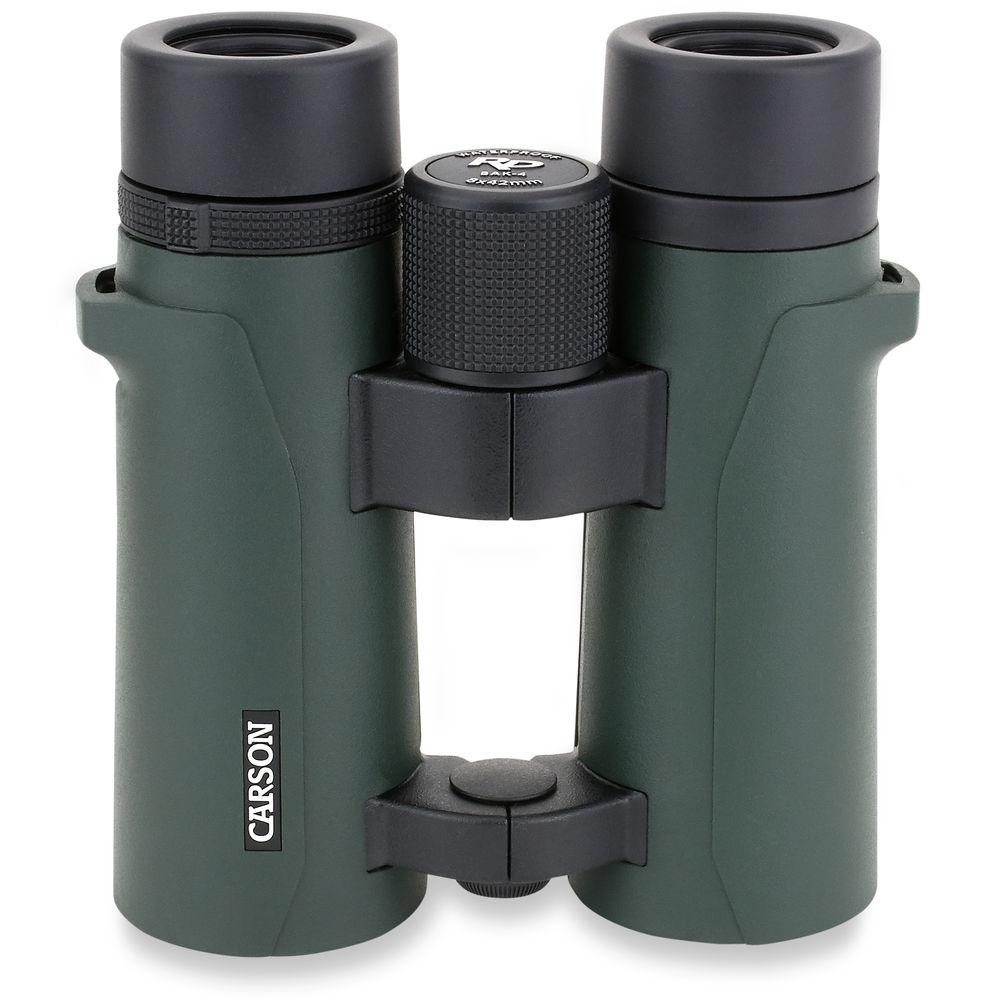

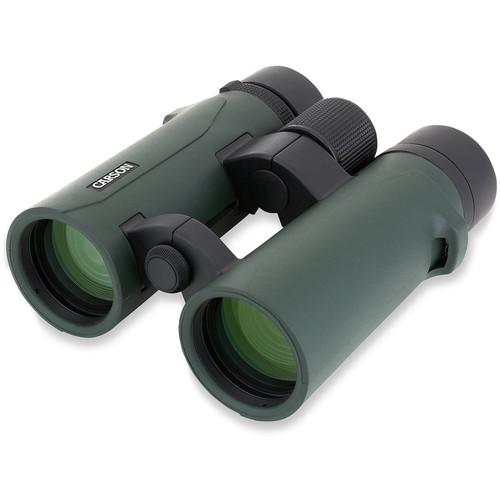

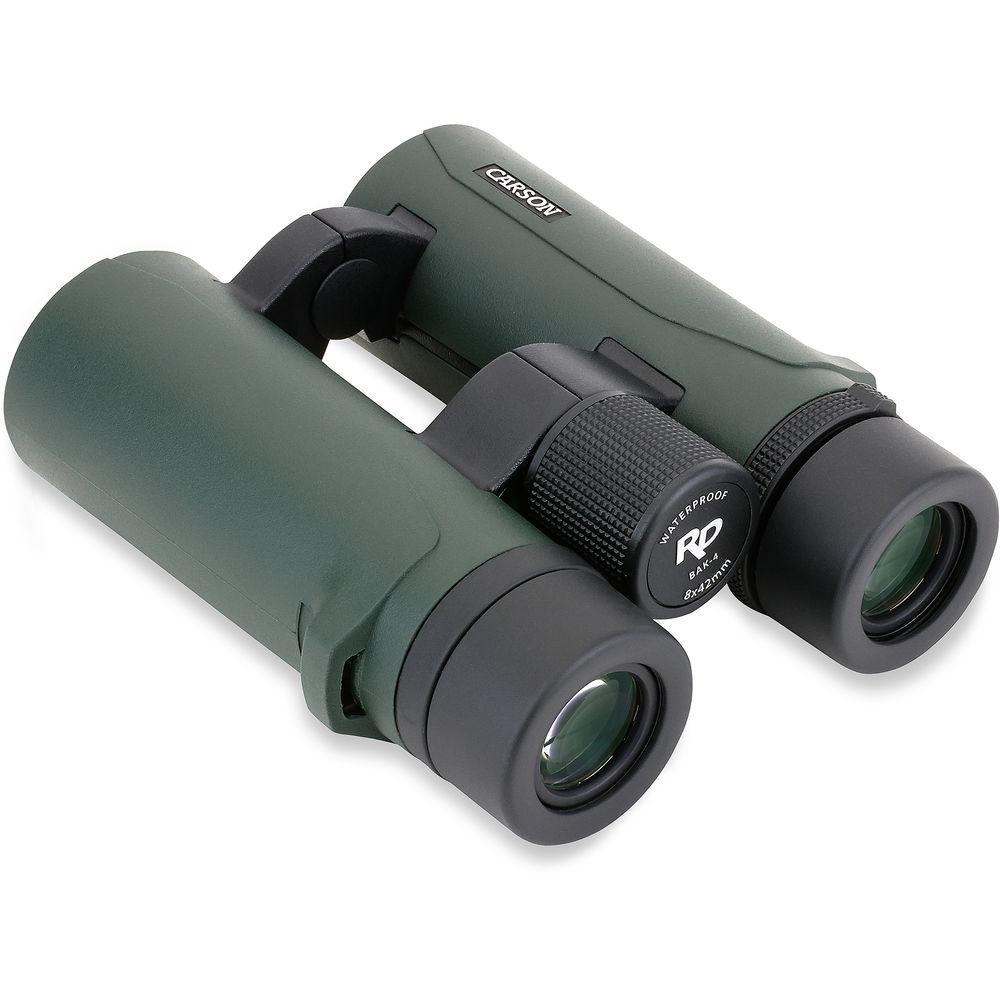

User Manual for Carson 8x42 RD Binocular Click to enlarge the picture
Contents of the user manual for the Carson 8x42 RD Binocular
- Product category: Binoculars Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson Binoculars
 |
User manual for the Carson 8x42 RD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More - Carson Optical RD Series Binoculars
Carson's 8x42 RD Binocular combines a moderate magnification with an ergonomic chassis to produce an optic that is an ideal choice for the trail, range, stadium, or boat. BAK4 glass roof prisms and fully multi-coated optics maximize light transmission through the light path for accurate color rendition; and improved clarity, contrast, and brightness. This optical performance, when added to the mid-range power and a generous field of view, produces an immersive observational experience with drastically reduced appearance of visible hand-shake or the disorientation caused by pitching or rolling decks when glassing on the water using high-power optics.The RD is engineered with an open-bridge and dual-hinge, which reduce weight and provide more gripping surface area, without sacrificing strength or stability. To withstand the rigors of the outdoors, the optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes. Its lightweight aluminum alloy chassis is wrapped in a green rubber armor that not only protects it from impacts, but provides a slip-resistant grip. For long observation sessions or hands-free use, the RD is tripod mountable when used with optional adapters. - Optical Performance
-
- 8x magnification
- 42mm objective lenses
- Compact roof prism
- High-density BAK4 glass reduces internal light diffraction for improved clarity and contrast
- Anti-reflection fully multi-coated optics improve light transmission, color rendition, image brightness, and overall contrast
- 320' field of view at 1000 yards
- Use and Handling
-
- Open-bridge/dual-hinge configuration
- Large textured center focus wheel is easy to manipulate — even while wearing gloves
- Right-eye dioptric correction
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Comfortable 17mm eye relief
- Wide 5.25mm exit pupil
- Construction Details
-
- Bridge design reduces weight without sacrificing strength, while providing more surface area to improve grip strength
- Lightweight and durable aluminum alloy chassis
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes
- Green rubber armor protects from impacts and provides a slip-resistant grip
- Weight: 22.3 ounces
UPC: 750668012364 In the Box Carson 8x42 RD Binocular Neck Strap Hard Carrying Case One-Piece Ocular Rainguard 2 x Objective Lens Caps Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 646.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson 8x42 RD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson RD-842 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.1° (Actual) | | Field of View | 372.7' @ 1000 yd / 124.2 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 17.0 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.7 x 5.3" / 14.5 x 13.4 cm | | Weight | 22.3 oz / 632 g | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 9.1 x 7.0 x 3.3" |
