User Manual for Carson Everglade 15-45x60 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Carson Everglade 15-45x60 Spotting Scope
- Product category: Spotting Scopes Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson Spotting Scopes
 |
User manual for the Carson Everglade 15-45x60 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|

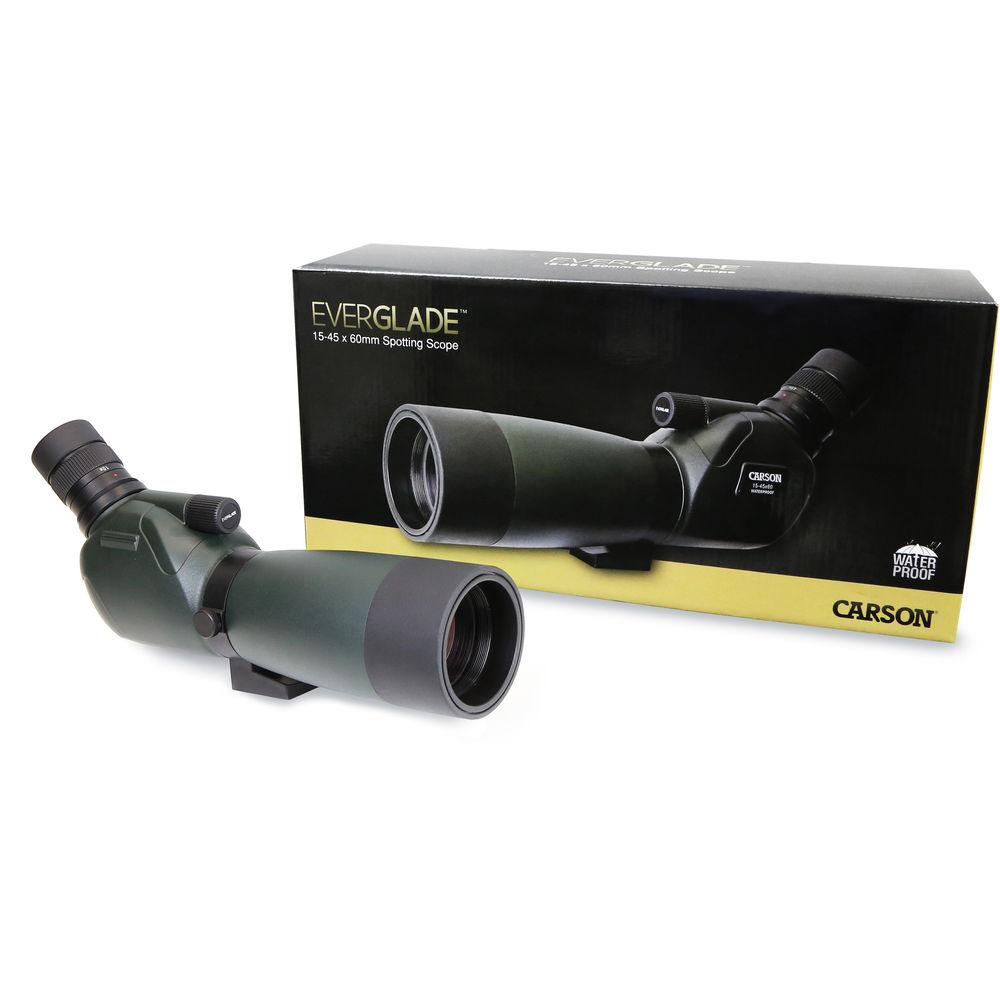

Product description A Guide to Birding with Spotting Scopes Read More cderxebswdccxfdudqedsxtfvv This angled-viewing Everglade 15-45x60 Spotting Scope from Carson Optical makes the ideal companion at the range, in the field, or on the trail. At the low 15x it can be used for taking in expansive views and to find your subjects, while dialing it up to 45x gives you the capability of making detailed observations—even at long distances. The scope's large 60mm objective, combined with fully multi-coated optics, draws in generous amounts of light, giving it competent low-light performance such as at dawn or dusk or when trying to pick game out from under heavily canopied forests. With its eyepiece set at a 45° angle relative to the optical tube, your head and neck are in a comfortable position whether you're standing, sitting, or lying prone.To withstand the rigors of a life lived outdoors, the housing is nitrogen filled and O-ring sealed to be water and fogproof, even in extreme conditions. The exterior is wrapped in a protective green armor that is textured to provide a slip-resistant grip when setting up and breaking down. To further protect the scope on the trail, Carson includes a soft stay-on/view-through case and flip-down objective lens cap. An extendable shade slides out to reduce glare on sunny days to improve image quality and helps to keep rain or snow off the objective if the weather turns. Helping to get you observing faster, also included is a tabletop tripod with a pan/tilt head. - Optical Performance
-
- 15-45x zoom magnification
- 60mm objective lens
- BAK4 roof prism optical path
- Fully multi-coated optics improve light transmission, color rendition, and contrast
- 61-115' field of view at 1000 yards
- Long 14-16mm eye relief
- 4-1.3mm exit pupil
- Use and Handling
-
- 45° angled eyepiece provides a comfortable viewing angle whether standing, sitting, or lying prone
- Retractable sliding sunshade prevents glare and keeps rain or snow off objective
- Twist-up eyecup for comfortable use with or without eyewear
- Textured focus knob
- Rotating mounting ring for precise eyepiece placement
- Standard 1/4"-20 tripod mount
- Construction Details
-
- Nitrogen filled for water and fogproof performance

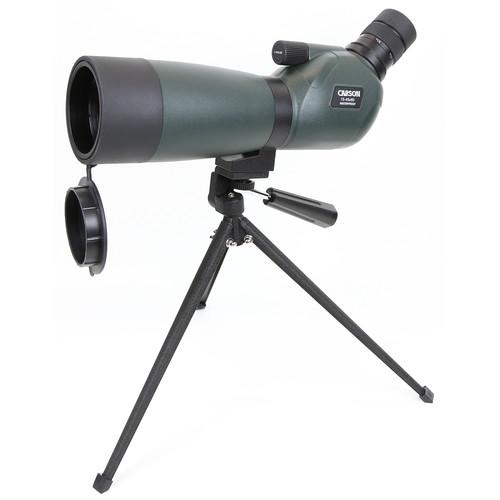

- Tabletop tripod included
- Pan/tilt head with 1/4"-20 mount
- Locking control handle to more easily find and track subjects

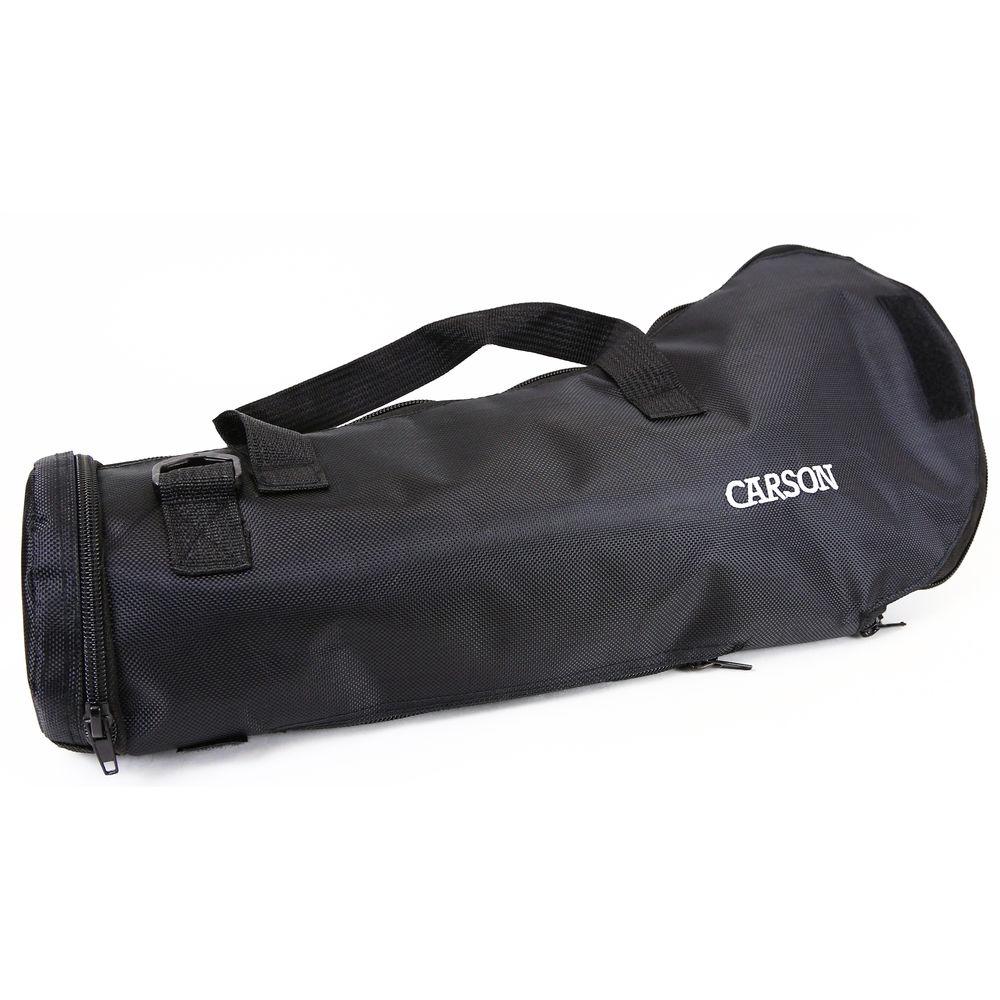

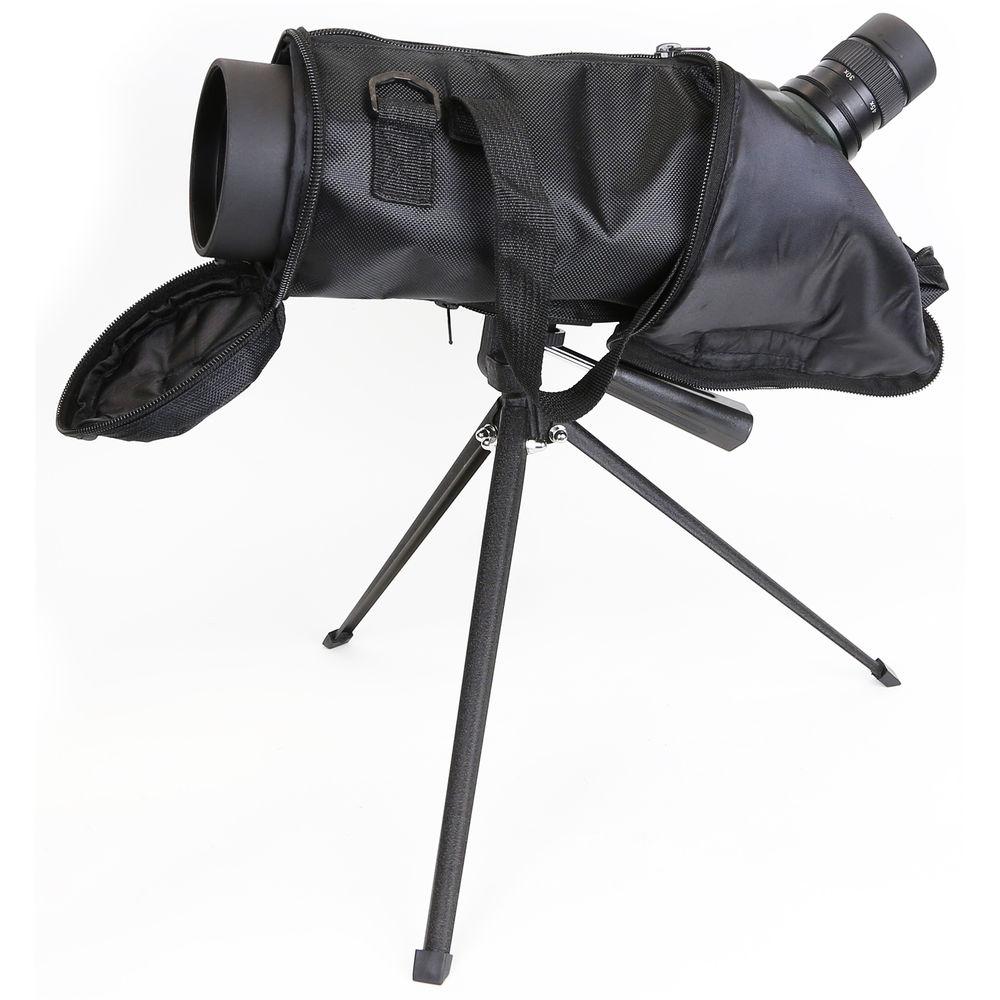

- Stay-on/view-through soft carrying case
- Flip-down objective lens cap

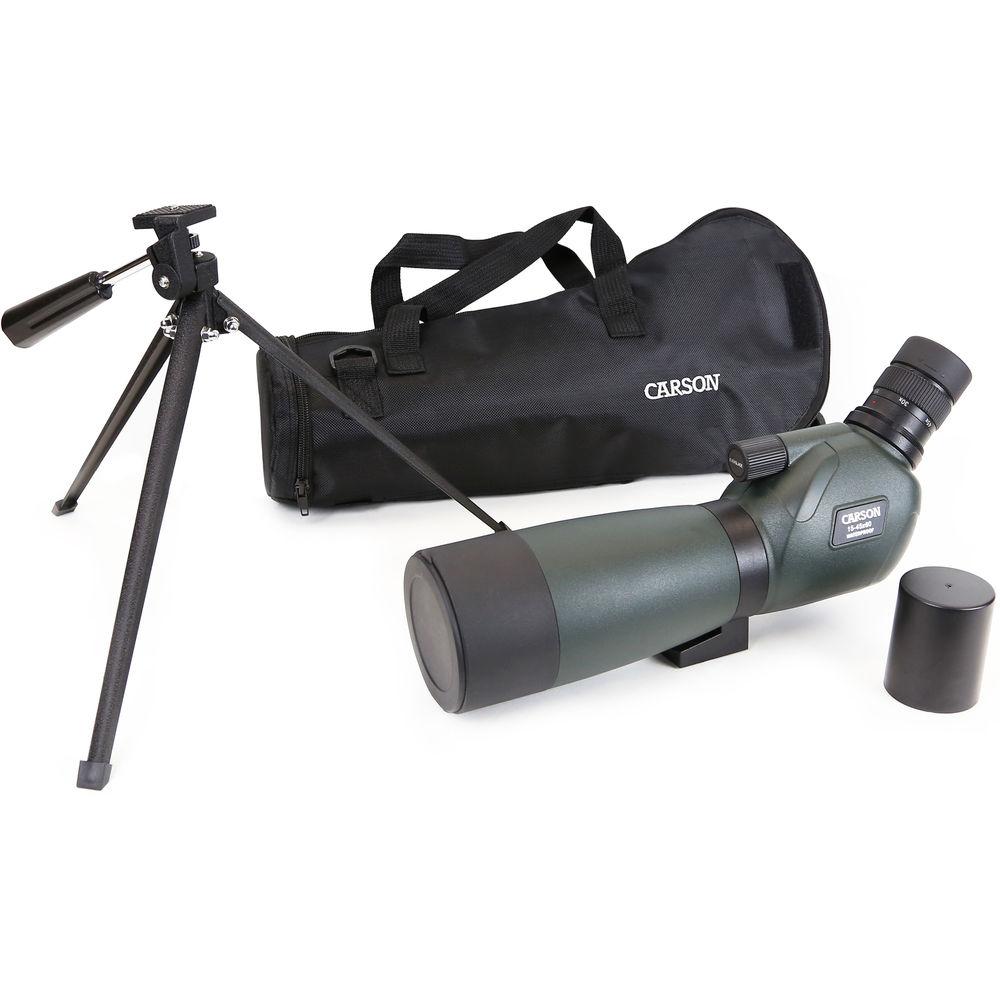

UPC: 750668012197 In the Box Carson Everglade 15-45x60 Spotting Scope (Angled Viewing) Lens Cloth Eyepiece Cap Objective Lens Cap Tabletop Tripod Soft Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson Everglade 15-45x60 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson SS-560 Specs | | | Magnification | 15 to 45x | | Objective Lens Diameter | 60 mm | | Field of View | 15x: 115.0' @ 1000 yd / 38.3 m @ 1000 m
45x: 61.0' @ 1000 yd / 20.3 m @ 1000 m | | Minimum Focus Distance | 20.0' / 6.1 m | | Exit Pupil Diameter | 15x: 4 mm
45x: 1.3 mm | | Eye Relief | 14.0 to 16.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Dimensions | L: 15.0 x H: 7.2 x W: 4.2" / L: 38.1 x H: 18.4 x W: 10.8 cm | | Weight | 34.2 oz / 970.7 g | | | | Package Weight | 3.805 lb | | Box Dimensions (LxWxH) | 15.8 x 7.75 x 4.55" |
