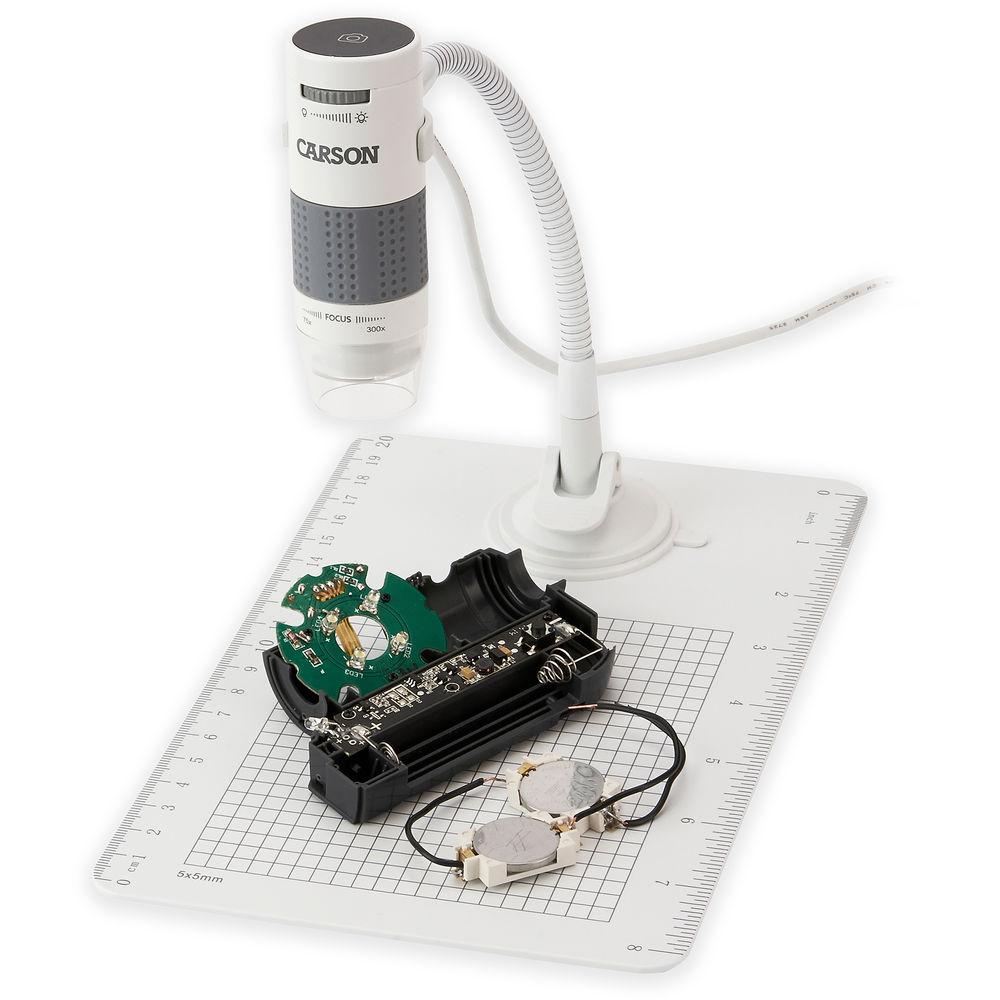

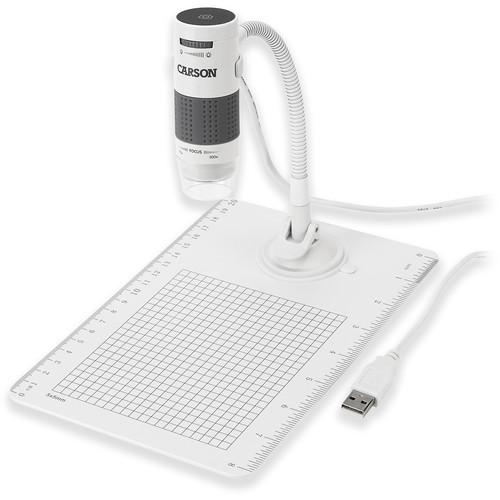

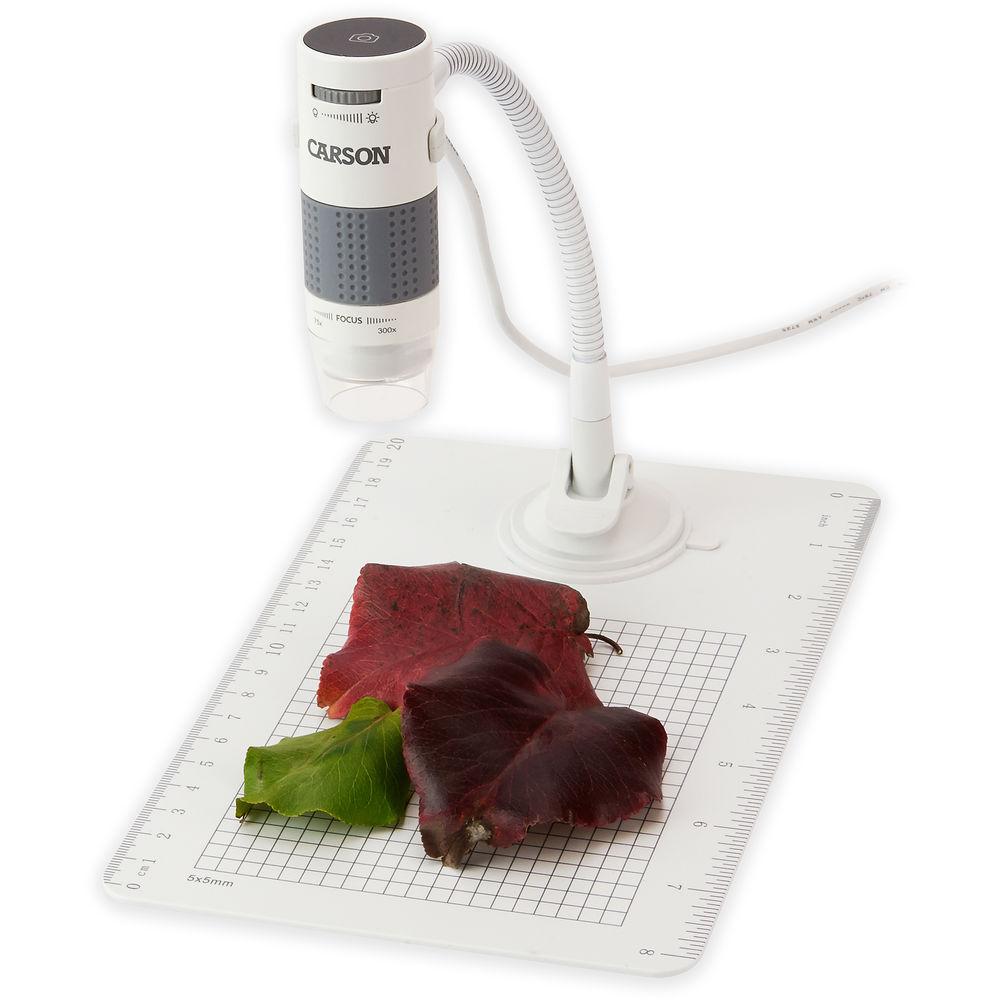

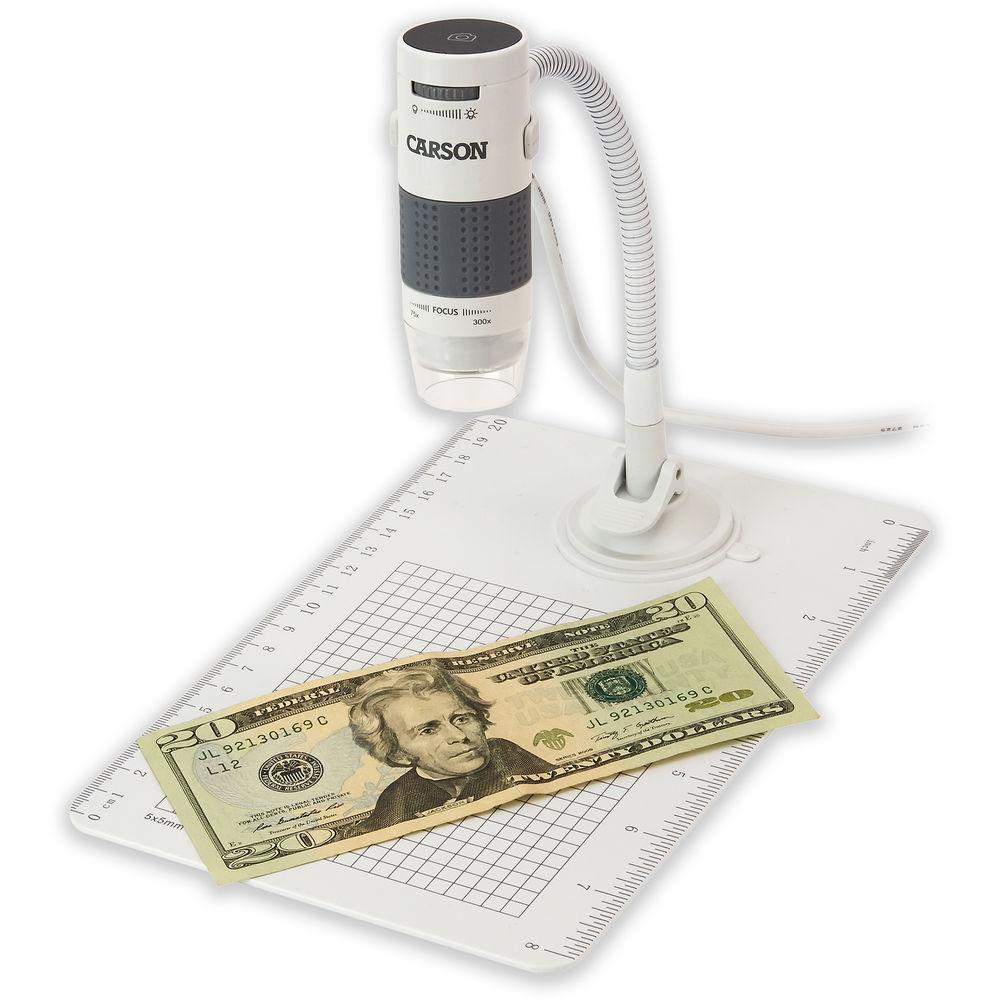

User Manual for Carson MM-840 eFlex Digital Microscope Click to enlarge the picture
Contents of the user manual for the Carson MM-840 eFlex Digital Microscope
- Product category: Digital Microscopes Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson Digital Microscopes
 |
User manual for the Carson MM-840 eFlex Digital Microscope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|
Product description - Carson Optical MM-840 eFlex Digital Microscope HD
Carson's eFlex Digital Microscope is a handy and compact magnifying tool that is ideal for hobbies, crafts, or science projects. This compact, ergonomic, and versatile scope can be used both as a handheld device or be placed into a flexible arm on a stand for hands-free operation. The flexible arm can be secured with the suction cup, for positioning the scope and attaching anywhere on the base plate or other smooth surfaces. The base plate provides references for metric, standard, angular, and other units of measurement. At the core of the device is a 1.9MP CMOS imager, capable of capturing 1600 x 1200 images and 640 x 480 videos and delivering them to your computer via a USB cable. The magnification of the resulting images is dependent on the size of your monitor and scales at 3.6 - 14.3 times the size of your monitor in inches. For example, a 21" monitor will give you 75 - 300x magnification, while a 32" television screen will produce a 114 - 457x magnification. To deliver adequate brightness and clarity in many lighting conditions, the scope features a built-in LED illumination ring that's situated around the imaging sensor, under a transparent protective polymer bezel. - Imaging and Optical Performance
-
- 1.9MP CMOS imaging sensor
- Produces still images with 1600 x 1200 resolution
- Produces videos with 640 x 480 resolution
- 75 - 300x magnification range allow a multitude of applications
- 4 white LEDs provide variable illumination system
- Use and Handling
-
- Powered by USB 2.0 port
- Compatible with Windows and Mac OS via a downloadable free software
- Construction Details
-
- Clear plastic bezel protects camera and LEDs from damage and dirt
- Handheld or stand-mounted operation
- Flexible arm can be used to position the scope in any direction
- Suction cup can be used to attach the scope to any flat smooth surface
- Wide base offers a platform for specimens and has linear and angular reference scales

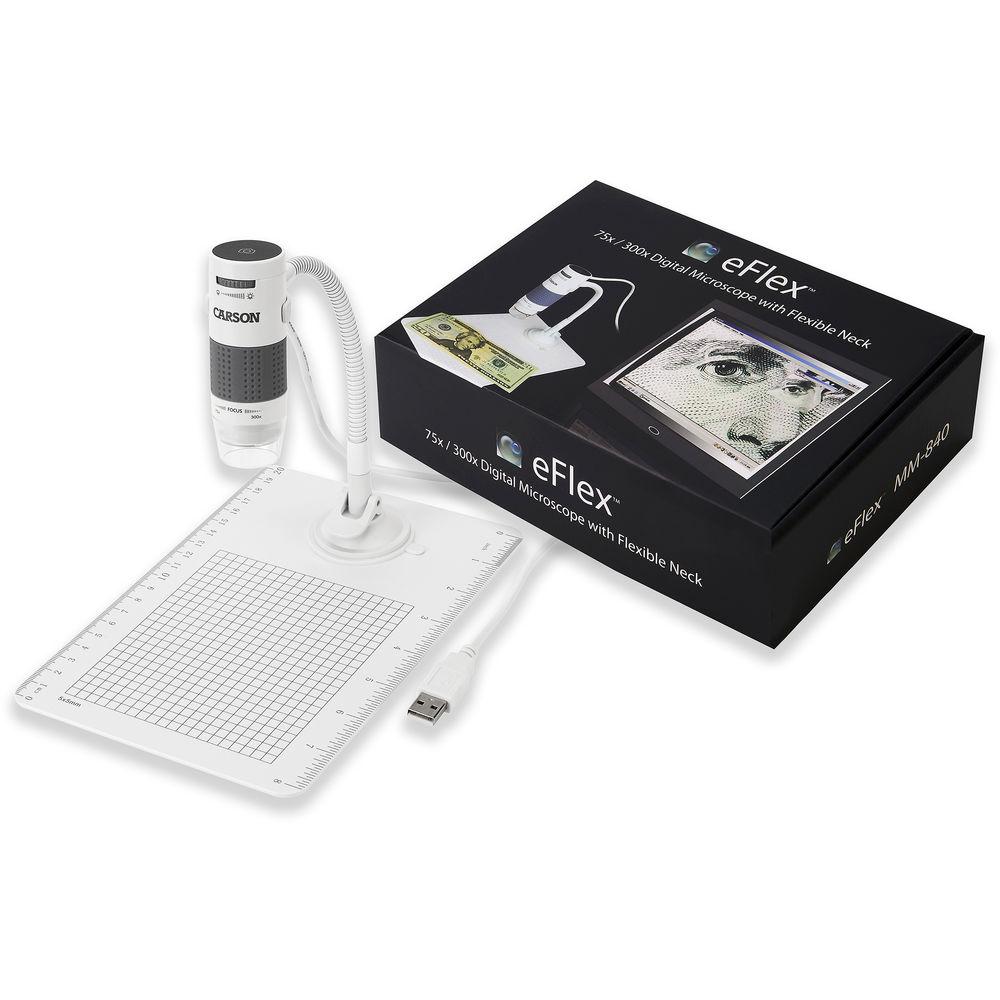

UPC: 750668011121 In the Box Carson MM-840 eFlex Digital Microscope (White) - Flexible Arm
- Graduated Base
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson MM-840 eFlex Digital Microscope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson MM-840 Specs | | | Optical Magnification | 21" Monitor: 75x to 300x | | Max Resolution | 1.9 MP: 1600 x 1200 | | Sensor | CMOS | | | | Illumination Type | 4 x LED | | | | Wired Connectivity | USB 2.0 | | | | Power | USB Power | | Dimensions |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
