User Manual for Carson MS-040 Biological Microscope & Universal Adapter for Smartphones Kit Click to enlarge the picture
Contents of the user manual for the Carson MS-040 Biological Microscope & Universal
- Product category: Microscopes Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson Microscopes
 |
User manual for the Carson MS-040 Biological Microscope & Universal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|

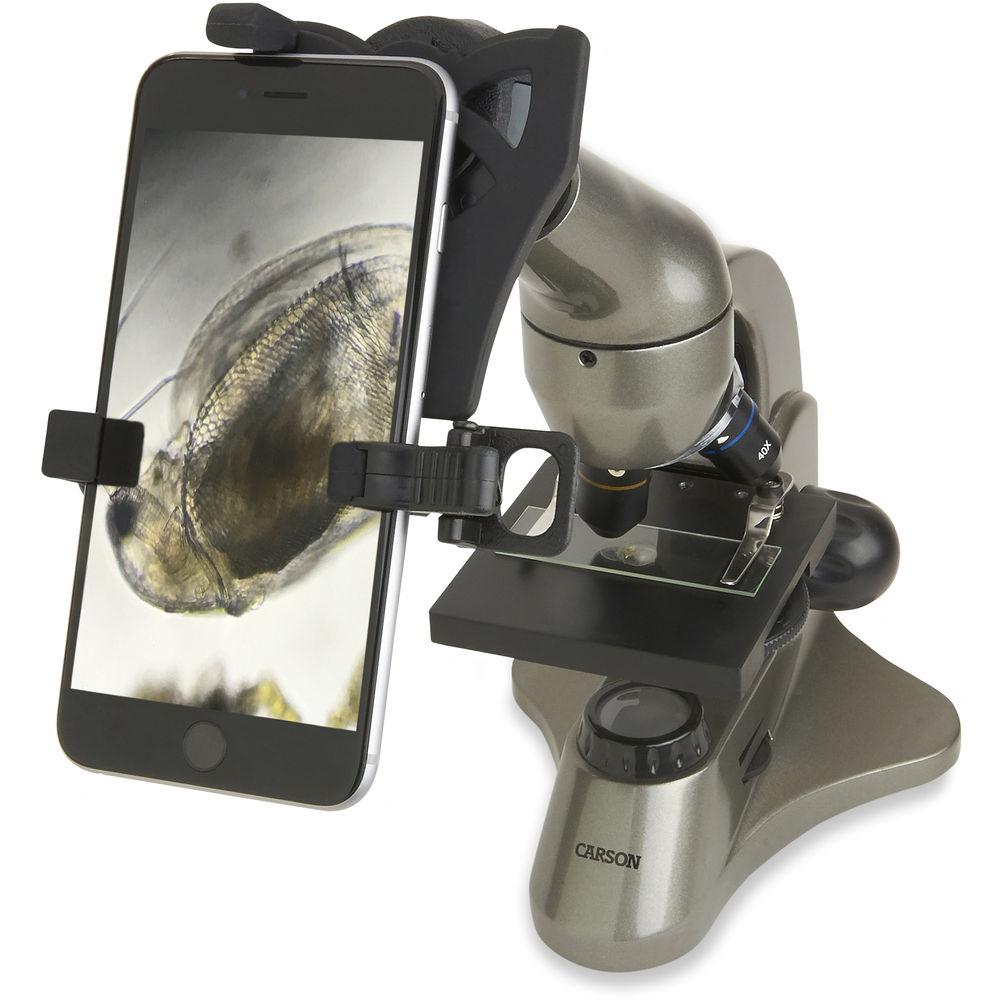

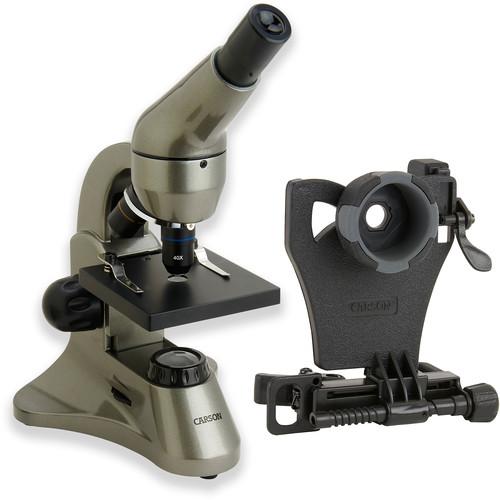

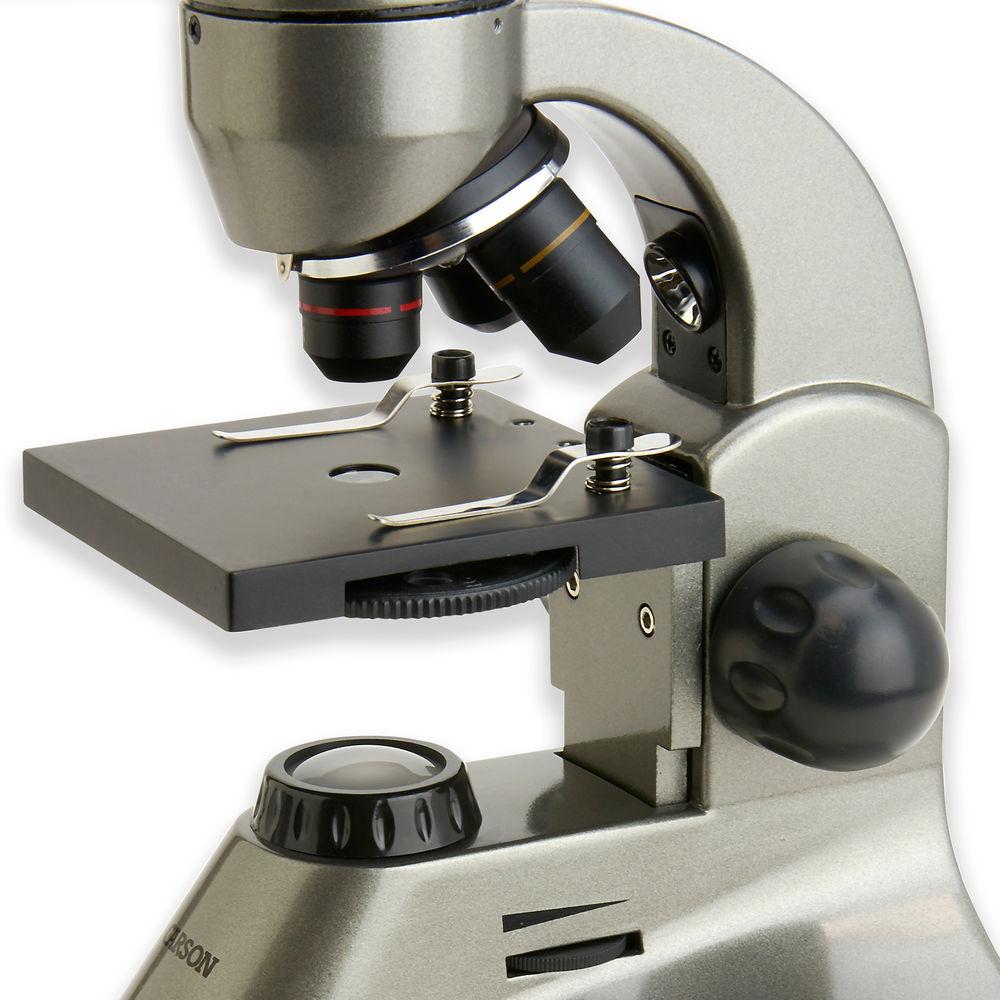

Product description Rock your lab or field trip with the MS-040 Biological Microscope & HookUpz 2.0 Universal Smartphone Adapter Kit from Carson. The kit offers a complete solution for your scientific, professional, or hobby activities by allowing you not only to make observations, but also to save and share your discoveries in a convenient and easy way — by using any smartphone up to 3.75" wide. - MS-040 Biological Monocular Microscope The MS-040 Biological Monocular Microscope from Carson is a three-objective optic with top and bottom LED illumination that provides operators with multiple configurations to view the specimen. This entry-level microscope is capable of 40x, 100x, and 400x magnification, well-suited for viewing plant life, circuit boards, and more. The 90x90mm stage can be illuminated from above and/or below using the microscope's two LED light sources. Providing even more control over specimen illumination, the MS-040 features a 0.65NA condenser with 6-position diaphragm.
- Optical Performance
-
- 10x inclined monocular eyepiece
- 4x / 10x / 40x objectives
- 400x / 100x / 400x magnification
- Use and Handling
-
- 0.65NA condenser lens
- 6-position diaphragm
- 90x90mm stage with metal clips
- Top / bottom LED illumination

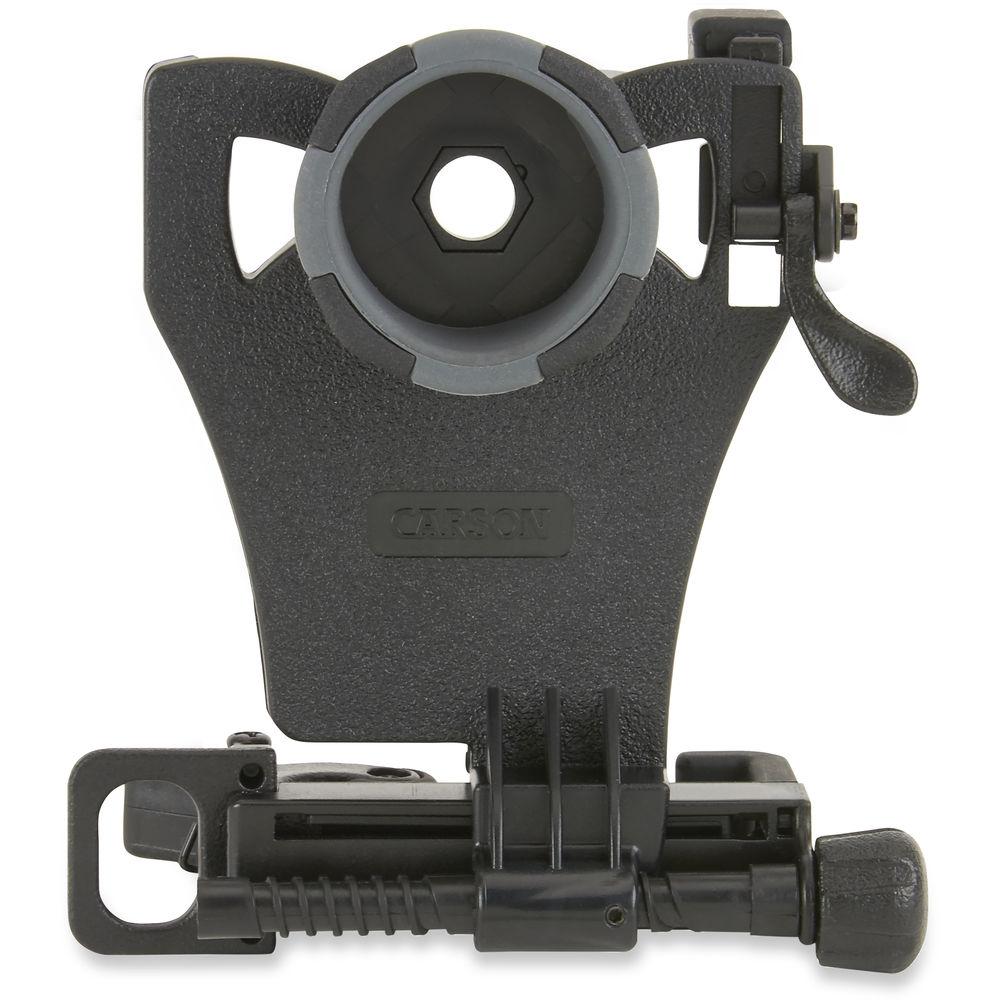

UPC: 750668010209 - HookUpz 2.0 Universal Optics Adapter for Smartphones Use the HookUpz 2.0 Universal Adapter from Carson Optics to attach your smartphone to your binocular, spotting scope, telescope, or microscope and record still images or videos. The HookUpz 2.0 securely attaches any phone up to 3.75" wide to any 25mm to 58mm optical eyepiece using a powerful, patented dual-spring clamp. A generous-sized knob operates the screw mechanism that smoothly and precisely aligns the phone's camera with the eyepiece. A locking cam further secures the phone in place. The screw mechanism also makes it easy to switch between camera-in-the-corner iPhones and center-camera Android phones, and the HookUpz 2.0 is compatible with the iPhone Xs/Xs Max, X, 8/8 Plus, 7/7 Plus, 6/6S Plus, as well as Samsung Galaxy models with cases up to 3.75 inches wide. Note: the HookUpz is not compatible with tablets or riflescopes. The adapter is designed not to interfere with your phone's side buttons. Its foam clamp pieces and handles glow in the dark, making it easier to operate in low-light situations such as digiscoping the night sky. The HookUpz 2.0 measures 4 x 1.75 x 4.5", weighs 4.4 oz, and comes with a hard foam carrying case.
-
- Fits iPhone Xs/XsMax, X, 8/8 Plus, 7/7 Plus, 6/6s, and Samsung Galaxy phones up to 3.75" wide
- Compatible with optical eyepieces with 25mm to 58mm outer edges
- Clamps tightly to binocular, spotting scope, telescope, or microscope
- Precisely align camera lens with the optic's eyepiece using the screw mechanism
- Glow-in-the-dark pieces for ease of use in low-light situations
- Lightweight, compact, & comes with a hard foam carry case
UPC: 750668011725 In the Box Bundle Items MS-040 Biological Monocular Microscope zdzedtecddzsyqeefesetzzdfzyewy - Limited Lifetime Warranty
HookUpz 2.0 Universal Optics Adapter for Smartphones - Limited Lifetime Warranty
Also Includes - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson MS-040 Biological Microscope & Universal Adapter for Smartphones Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MS-040 Biological Monocular Microscope
| Microscope Type | Compound | | Head | Inclined Monocular | | Nosepiece | 3-Position Nosepiece | | | | Optical Magnification | 40x, 100x, 400x | | Objective | 4x, 10x, 40x | | Eyepiece | 10x | | Focusing | Coarse | | | | Illumination Type | LED | | Condenser | 0.65 Numerical Aperture (NA) | | | | Dimensions | L: 3.5 x W: 3.5" / L: 90.0 x W: 90.0 mm (Specimen Stage) | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 16.4 x 8.5 x 8.1" | - HookUpz 2.0 Universal Optics Adapter for Smartphones
| Compatibility | Phones up to 3.75" / 9.5 cm wide
Optics with eyepieces 25-58 mm wide outer edges | | Dimensions | 4.0 x 1.75 x 4.5" / 10.2 x 4.4 x 11.4 cm | | Weight | 4.4 oz / 125 g | | | | Box Dimensions (LxWxH) | 7.75 x 7.4 x 3.3" |
