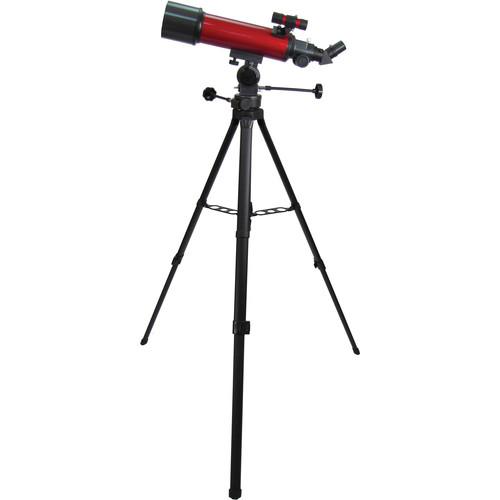

User Manual for Carson RP-200SP RedPlanet 80mm f 6.25 Refractor AZ Telescope Click to enlarge the picture
Contents of the user manual for the Carson RP-200SP RedPlanet 80mm f 6.25
- Product category: Refractors Carson
- Brand: Carson
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Carson Refractors
|
User manual for the Carson RP-200SP RedPlanet 80mm f 6.25 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Carson product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Carson user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Carson product will considerably shorten its lifespan!
|
Product description Designed as a versatile and capable starter-scope, the Carson Optic RP-200SP RedPlanet 80mm f/6.25 Refractor AZ Telescope gives users the ability to observation the Moon and planets, or to use it as a powerful spotting scope for general nature watching or other activities. It is outfitted with an easy-to-use manual alt-azimuth mount that has an altitude lock to hold it in position with slow motion cables for precise movement and tracking. Carson includes two eyepieces, a 45° diagonal, finderscope, and an adjustable aluminum tripod so you are ready to start observing right out of the box. To increase its usability, the diagonal and finderscope feature integrated erecting prisms that correct the views through them to allow the scope's use on land. Also included is a universal smartphone adapter that allows you to capture pictures and video of your observation sessions and share, stream, or post to social media quickly and easily. - Optical Tube
-
- 80mm aperture
- f/6.25 focal ratio
- 500mm focal length
- Refractor-style optical path
- Anti-reflection fully coated optics improves light transmission, color rendition, clarity, and contrast
- Resolution: 1.45 arcsec, Dawes
- Rack-and-pinion focuser with 1.25" drawtube
- Mount and Tripod
-
Mount:- Manual alt-azimuth
- Dual axis slow motion adjustment cables enable precision movement and tracking with reduced vibrations
- Altitude lock to fix position of scope
- Wide altitude adjustment range to view celestial and terrestrial objects
Tripod:- Aluminum alloy legs
- Adjustable-height with independent leg locks
- Center leg brace with 1.25" eyepiece holders
- Center shaft hook to hold packs or weights for greater stability and vibration reduction
- Included Accessories
-
Smartphone adapter:- Universal fit accepts most smartphone models
- Cap fits over eyepiece to capture photos and videos through scope
- Easily share and stream astronomical observation sessions
Eyepieces:- 1.25" barrel diameter
- Accepts most 1.25" astronomical filters
- 9mm focal length eyepiece yields 55.5x power
- 20mm focal length eyepiece produces 25x magnification
Diagonal:- Integrated erect-image prism to correct view for terrestrial use
- 45° angle puts head in comfortable position when viewing sitting or standing
Finderscope:- Integrated erecting prism to more easily find subjects during terrestrial use
- Low 8x magnification ensures a wide field of view to easily find bright alignment stars, planets, and objects
- Includes mounting bracket
UPC: 750668012562 In the Box Carson RP-200SP RedPlanet 80mm f/6.25 Refractor AZ Telescope Universal Smartphone Adapter 8x21 Erect-Image Finderscope 2 x Slow Motion Control Handles 45° Erect-Image Diagonal 20mm Eyepiece 9mm Eyepiece Aluminum Tripod Alt-Az Mount Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson RP-200SP RedPlanet 80mm f 6.25 Refractor AZ Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson RP-200SP RedPlanet Specs | Optical Design | Refractor | | Aperture | 80 mm | | Focal Length | 500mm | | Focal Ratio | f/6.25 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 45° erect-image | | Finderscope | 8x21, erect-image | | Mount Type | Manual alt-azimuth with altitude lock | | Tripod | Adjustable height, aluminum | | GoTo System | None | | Power Source | None | | Optical Tube Dimensions | 18.5 x 4.5 x 4.5" / 47.0 x 11.4 x 11.4 cm | | Weight | 7.8 lb / 3.5 kg, fully assembled | | | | Package Weight | 12.2 lb | | Box Dimensions (LxWxH) | 29.5 x 10.0 x 7.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
