Product description The Carson Optical SkyChaser 70mm f/6 Refractor AZ Telescope is an ideal instrument to introduce beginners to viewing the moon and planets as well as far-off earthbound subjects. It comes with two eyepieces that produce a low power of 16x and a high power of 44x, plus a Barlow lens which triples the magnification of each to increase their versatility. An erect-image diagonal places the head in a comfortable position whether you're watching stars or sailboats. The telescope is mounted on a simple photo-style head that is easy to use, and it is all supported on a lightweight tabletop tripod. To safely carry the telescope, tripod, and all accessories Carson includes a convenient nylon carrying bag. - Optical Tube Assembly
-
- 70mm aperture is ideal for viewing the moon and larger planets, as well as distant earth-bound subjects
- Short 400mm focal length ensures a compact form factor for easy portability
- Single-speed rack-and-pinion focuser with 1.25" eyepiece holder
- Integrated dew shield helps keep condensation off the lens
- Mount & Tripod
- Mount:
- Photo-style pan/tilt head
- Simple 1/4"-20 mounting plate for easy set up and break down
- Horizontal slow-motion knob enables lateral micro-adjustment to more easily find and track subjects
Tripod:- Tabletop design is easy to set up anywhere
- Lightweight and durable aluminum legs with matte-black non-reflective surface
- Extendable center column allows the height to be adjusted from 10-14"
- Non-slip rubber feet
- Included Accessories
- Eyepieces:
- 1.25" diameter barrels are easy to handle and look through
- Threaded to accept most filters, like colored planetary, neutral-density moon, or polarizing
- High-power 9mm eyepiece produces a high 44x for detailed viewing
- Low-power 25mm eyepiece yields 16x magnification to make wide-field observations
Barlow Lens:- 1.25" nosepiece and eyepiece holder
- 3x magnification effectively triples the magnification of any eyepiece used with it
- Does not affect eye relief, making it easier and more comfortable
- Produces 132x and 48x power with two included eyepieces
Diagonal:- 1.25" nosepiece and eyepiece holder
- 90° angle places head in a more comfortable viewing position
- Integrated erecting prism corrects view to use the telescope as a conventional spotting scope
Finderscope:- 8x magnification ensures a wide field of view for finding and tracking subjects
- 21mm objective
- Mounting bracket included

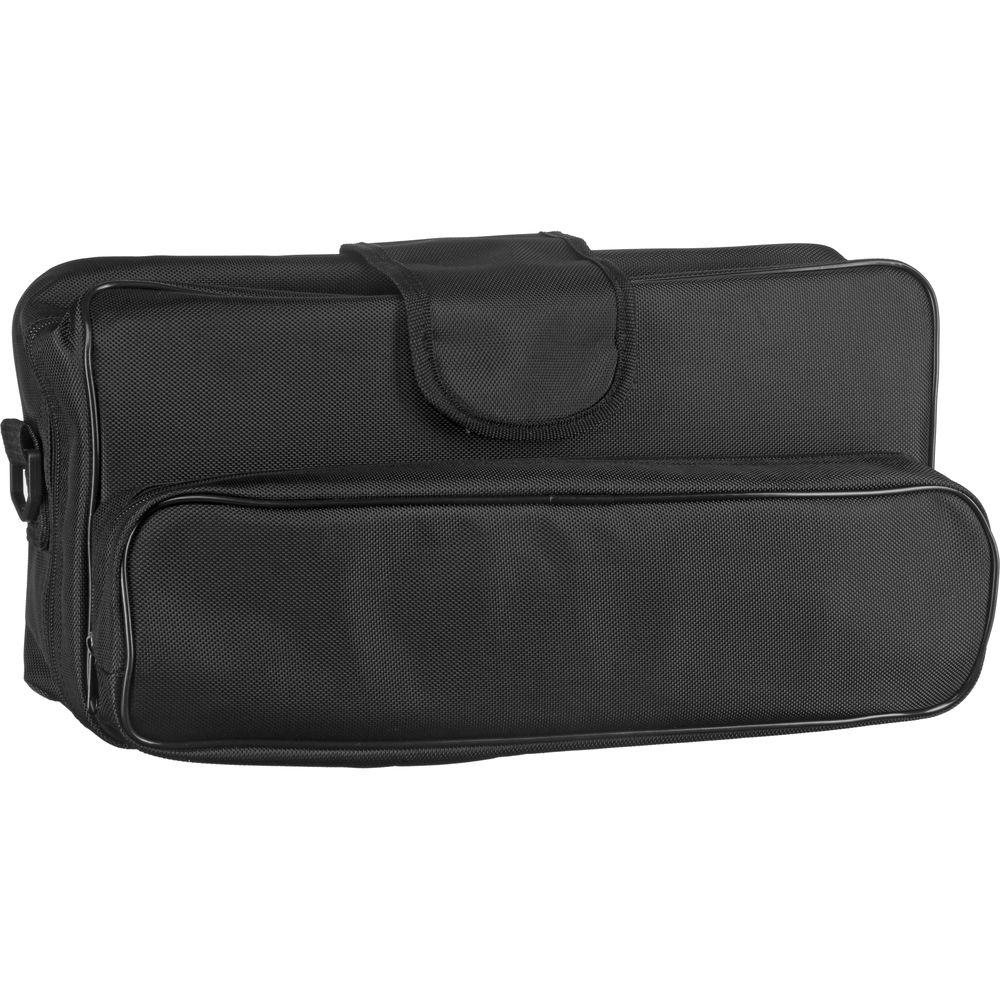

Bag:- Lightweight and water-resistant nylon
- Main compartment holds optical tube and tripod
- Outer pocket holds all accessories
- Removable shoulder strap makes it easy to carry
UPC: 750668012838 In the Box Carson SkyChaser 70mm f/6 Refractor AZ Telescope Aluminum Tabletop Tripod 3x Barlow Lens 90° Erecting Prism 9mm Eyepiece 25mm Eyepiece 8x21 Finderscope with Bracket Nylon Carrying Bag Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Carson SkyChaser 70mm f 6 Refractor AZ Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCarson SC-450 Specs | Optical Design | Refractor | | Aperture | 70mm | | Focal Length | 400mm | | Focal Ratio | f/5.7 | | Eyepiece Barrel Diameter | 1.25" | | Diagonal | 90° erecting | | Finderscope | 8 x 21 | | Tripod | Aluminum tabletop
Extendable center column
Min Height: 10" / cm
Max Height: 14.0" / cm | | Mount Type | 1/4"-20
Manual pan/tilt photo head | | Power Source | None | | Optical Tube Dimensions | 15.0 x 4" / cm | | Weight | OTA: 23.0 oz / g
Tripod: 14.0 oz / g | | | | Package Weight | 5.345 lb | | Box Dimensions (LxWxH) | 17.4 x 8.2 x 5.9" |
