User Manual for Cartoni Focus 12 Fluid Head with 2-Stage Carbon Fiber Smart-Stop SDS Tripod System

Click to enlarge the picture
Cartoni Focus 12 Fluid Head with 2-Stage Carbon Fiber Smart-Stop SDS Tripod System Contents of the user manual for the Cartoni Focus 12 Fluid Head with
  • Product category: Tripod Systems Cartoni
  • Brand: Cartoni
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Cartoni Tripod Systems

Cartoni Focus 12 Fluid Head with 2-Stage Carbon Fiber Smart-Stop SDS Tripod System Cartoni Focus 12 Fluid Head with 2-Stage Carbon Fiber Smart-Stop SDS Tripod System Cartoni Focus 12 Fluid Head with 2-Stage Carbon Fiber Smart-Stop SDS Tripod System
User manual for the Cartoni Focus 12 Fluid Head with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Cartoni product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Cartoni user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Cartoni product will considerably shorten its lifespan!



Product description

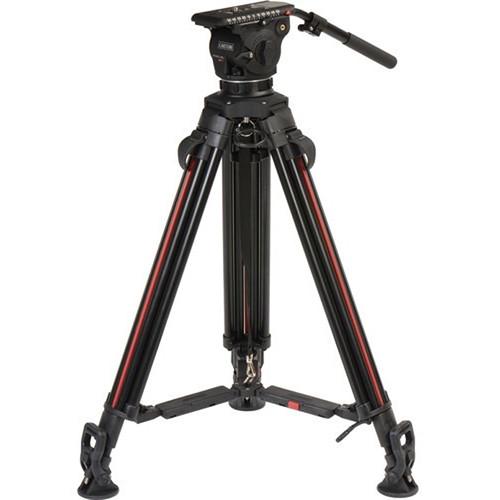

Featuring ±90° tilt, 360° pan range, and a continuously variable fluid-damping system on both pan and tilt movements, the Cartoni Focus 12 Fluid Head with 2-Stage carbon fiber Smart-Stop SDS Tripod System is suitable for use with cameras and accessories weighing up to 26 pounds. The fluid head features a quick release Euro-style camera plate, an illuminated spirit level, and a telescopic pan handle. The Focus 12 fluid head features a continuously variable counterbalance system. Its 100mm bowl base provides a wide support that makes it suitable for larger cameras.

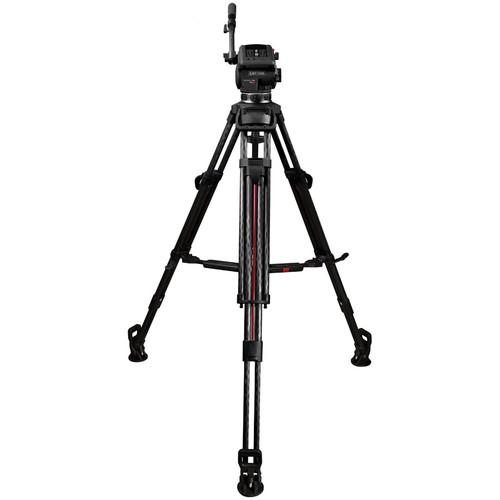

The Smart-Stop SDS legs are two-stage, single-lever carbon fiber tripod legs. An included mid-level spreader offers additional support while shooting on uneven surfaces, such as steps, rocky ground, and slopes, while the removable rubber feet provide improved grip on slippery surfaces and protection to delicate interior locations. The included carry bag provides protection during storage and transport.

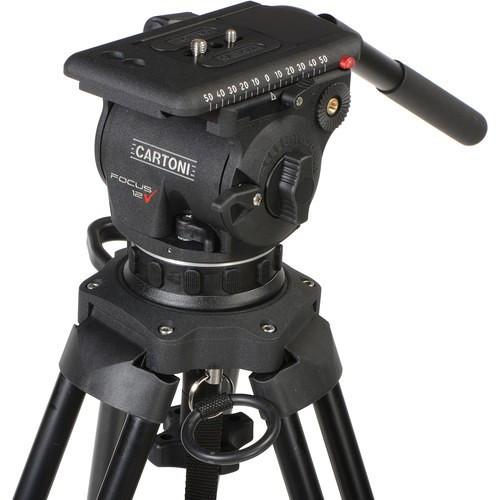

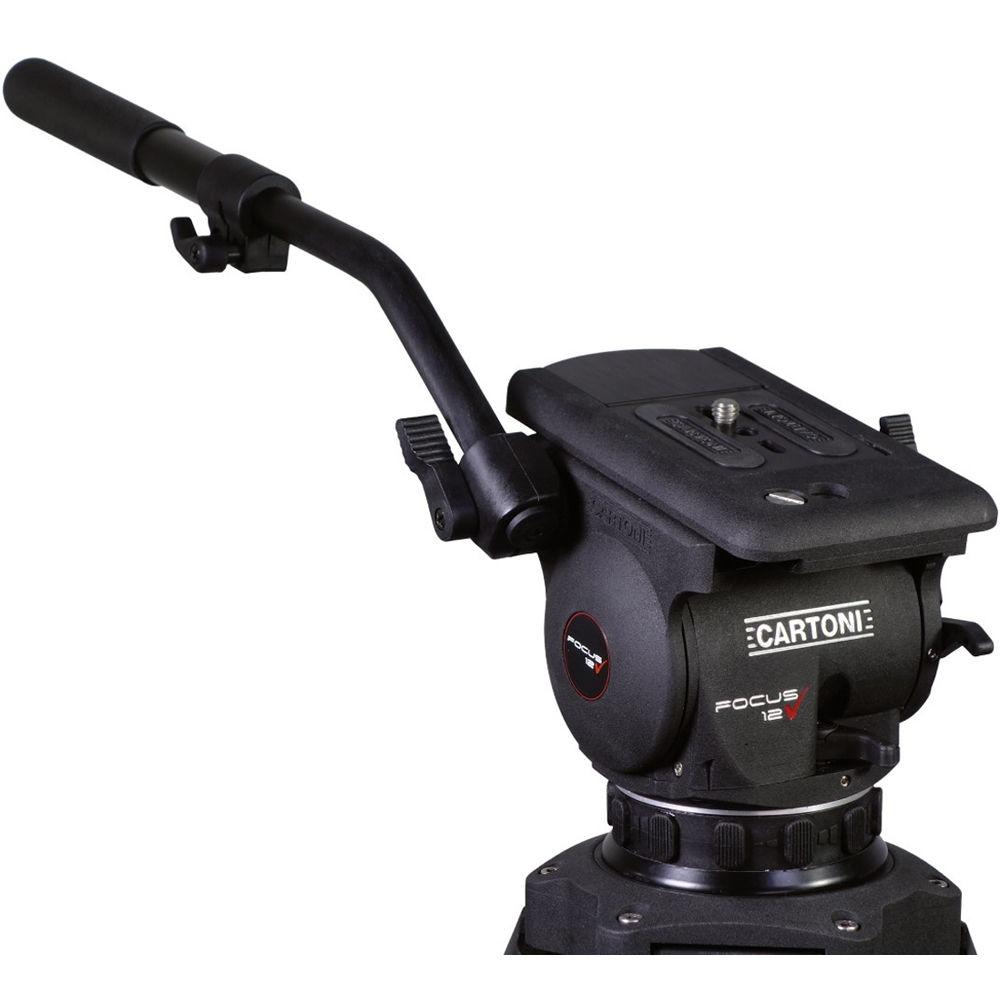

Head

  • Offers ±90° tilt and 360° pan range
  • Constant variable fluid damping system on both pan and tilt movements
  • Supports cameras weighing up to 26 pounds
  • Includes a quick release camera plate, an illuminated spirit level, and a telescopic pan bar
  • The 100mm half ball provides a wide platform that makes it easier to balance your camera on the head

Legs

  • Feature a single-lever lock on each of the legs that allows you to release both stages simultaneously
  • Mid-level spreader offers additional support while shooting on uneven surfaces, such as steps, rocky ground, slopes, etc.
  • Rubber feet prevent the legs from slipping on slippery surfaces
  • The soft carry case allows you to easily transport the system from location to location
In the Box Cartoni Focus 12 Fluid Head with 2-Stage Carbon Fiber Smart-Stop SDS Tripod System
  • Focus 12 Fluid Head (100mm)
  • SDS 100mm Carbon Fiber Tripod Legs
  • Mid-Level SDS Smart Lock Spreader
  • 3 x Rubber Feet
  • Soft Carry Case
  • Limited 5-Year Warranty (Head)
  • Limited 1-Year Warranty (Legs and Spreader)
  • Fluid Head - User Manual PDF 4.5mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Cartoni Focus 12 Fluid Head with 2-Stage Carbon Fiber Smart-Stop SDS Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Cartoni Focus 12 Specs

    Ball Diameter 100 mm
    Load Capacity 0 - 26 lb / 0 - 12 kg
    Pan Range 360°
    Tilt Range +/- 90°
    Counterbalance Continuous
    Fluid Drag Continuous
    Camera Attachment Euro-style quick release system
    Bubble Level Yes, illuminated
    Material Magnesium alloy and lightweight composite material
    Temperature Range -40 to 140°F (-40 to 60°C)
    Weight 5.5 lb (2.5 kg)
    Material Carbon fiber
    Fitting 100 mm
    Leg Stages 2
    Height Range 25 to 66.5" / 63.5 to 168.91 cm (head and legs)
    Package Weight 20.55 lb
    Box Dimensions (LxWxH) 43.0 x 8.0 x 8.0"
