Product description Cartoni Focus Heads: A Definitive New Lineup of Sleek Italian Tripod Design Read More dbfzevxbsc Featuring the lightweight 100mm Focus 12 Fluid Head, which provides perfect counterbalance for loads from 0 - 26 lb, including for small mirrorless cameras weighing just a couple of lb, this Cartoni Kit offers the flexibility to use a very wide variety of cameras.

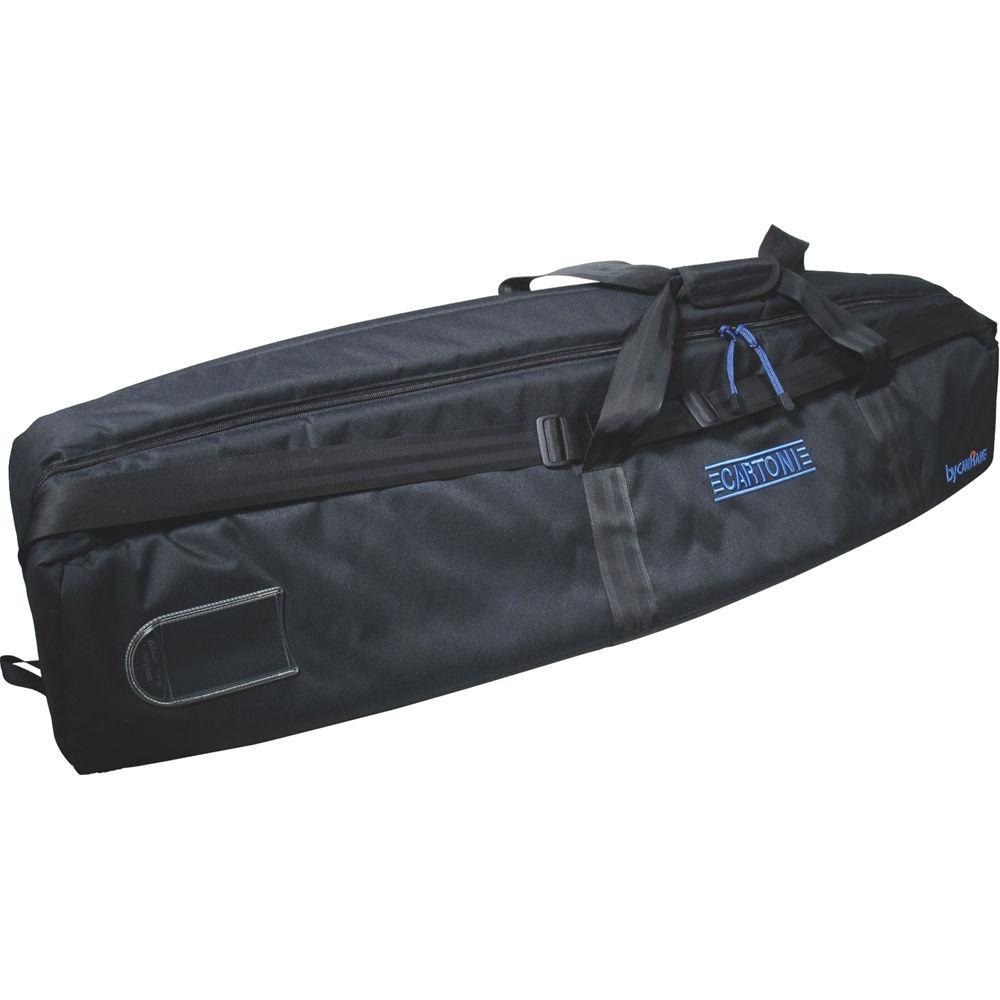

The kit also includes the A627 Aluminum Dual-Stage Tripod Legs, which feature 27 - 60" height adjustment and non-slip flip clamps; a mid-level spreader; rubber tripod feet; and a soft carry case with a foam interior, leather handles, shoulder strap, and exterior pockets. Everything is designed, manufactured, and assembled at the Cartoni factory in Rome, Italy. The Focus 12 Fluid Head comes with the peace-of-mind of a five-year warranty, and all the other items retain their standard one-year warranty.

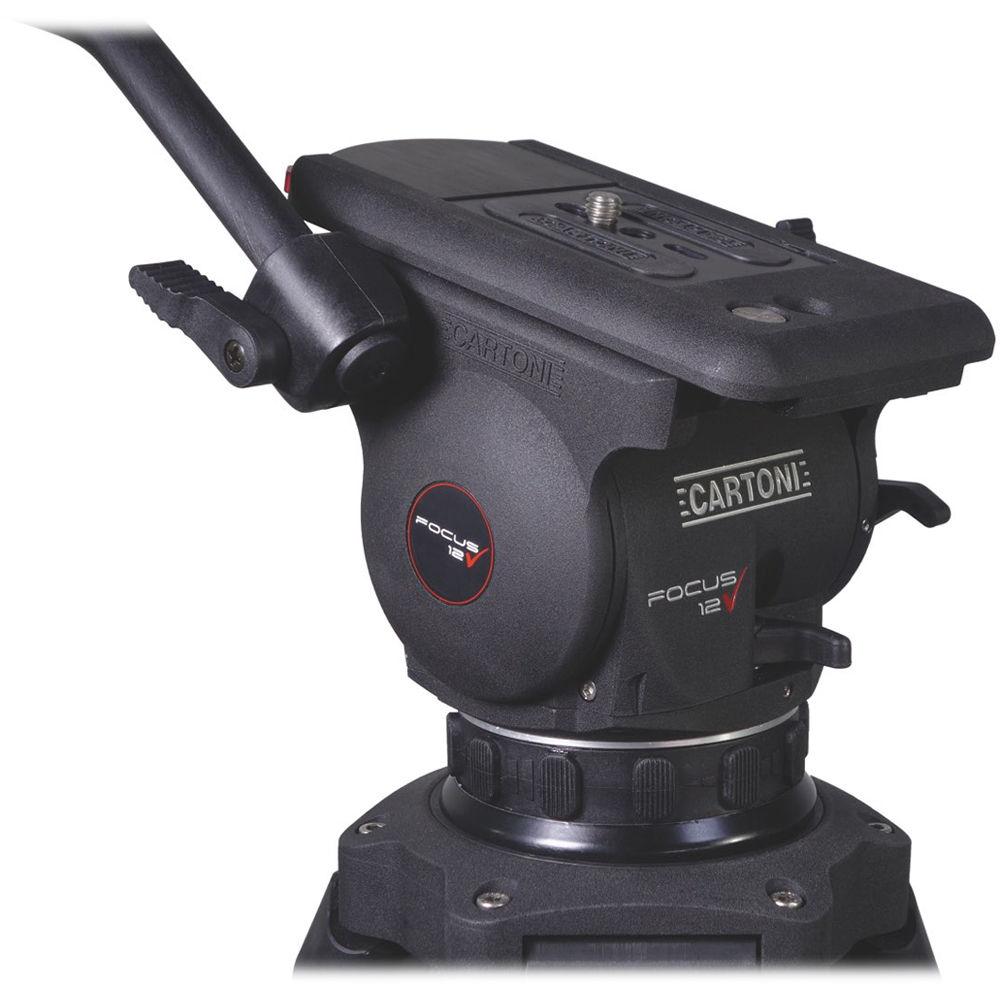

The Focus 12 consists of 127 parts, machined or cast to micro-metric precision and hand-assembled and adjusted to precision by one engineer at a time. A follow-up to the Cartoni Focus HD head and an evolution of the original Focus head, the Focus 12 incorporates the Sachtler Touch-and-Go 16 plate system, which is found on Sachtler's FSB and Video series heads, and integrates a new composite material in many parts that allows for a solid build while keeping the weight down. Of course, it also features Cartoni's renowned counterbalance and very smooth, "true" fluid drag. The Focus 12 uses the same patented spring-loaded counterbalance system used in the original Focus head. The Touch-and-Go 16 plate system will allow you to efficiently move your camera between compatible heads in a studio setting, and will also future-proof your head for such possible uses.
The new composite material that's used is a sophisticated non-metal that's much stronger than aluminum, and yet lighter. It replaces the brass parts in the counterbalance and is also used in the tilt fluid knobs, pan fluid gears, and other parts throughout the body. This composite is also highly resistant to the stress of weight, bending, rubbing, and extreme temperatures, so where it's used in the mechanisms of the head it actually provides for more stress endurance, in addition to saving weight. This composite is the result of a collaboration between Cartoni and the Department of Physics and Engineering at Sapienza University of Rome.
The Focus 12 features a Cartoni-patented labyrinth modular fluid drag system, which consists of individual pan and tilt modules. Each module contains two main sections that have thin concentric rings inside them. The rings in one section interact with the rings in the other, with aerospace industry silicon paste fluid between them that provides resistance. The two sections are never fully disengaged from one another, so movement is always smooth and with no play. With there being separate pan and tilt modules, pan drag and tilt drag are accordingly independent, yet work together to allow smooth, uninterrupted motion in any direction. Cartoni performs a laser-assisted, diagonal movement test on every head to ensure that there isn't even the slightest digression from a straight-line movement.
The pan drag control is a large ring in the center of the head that's easy to use even without looking. This and all other controls are designed with ergonomic grips that will feel secure between your fingers. There's also an illuminated bubble level that will be very helpful in dark settings. And a pan bar is included that can be attached to a rosette adapter on either side of the head. Additional pan bars are available and sold separately. - Kit Contents
-
- Focus 12 Fluid Head (100mm)

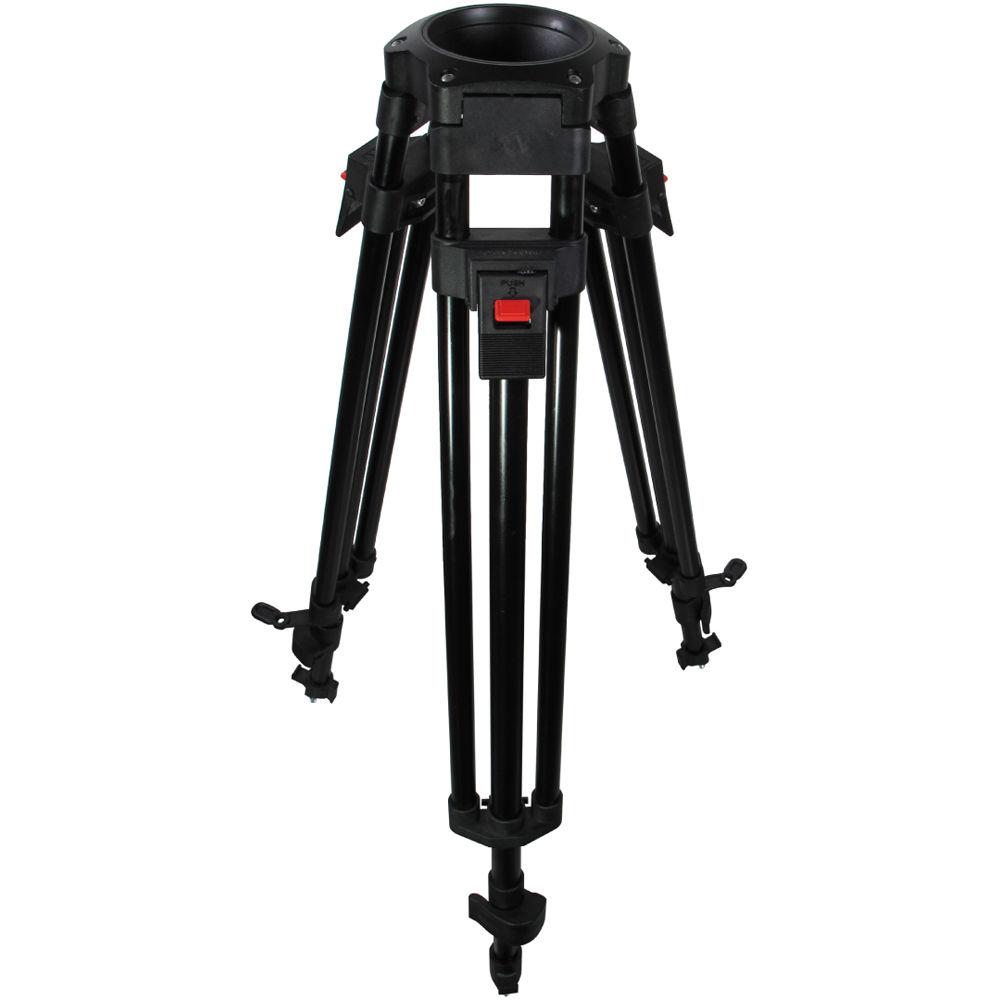

- A627 Aluminum Dual-Stage Tripod Legs

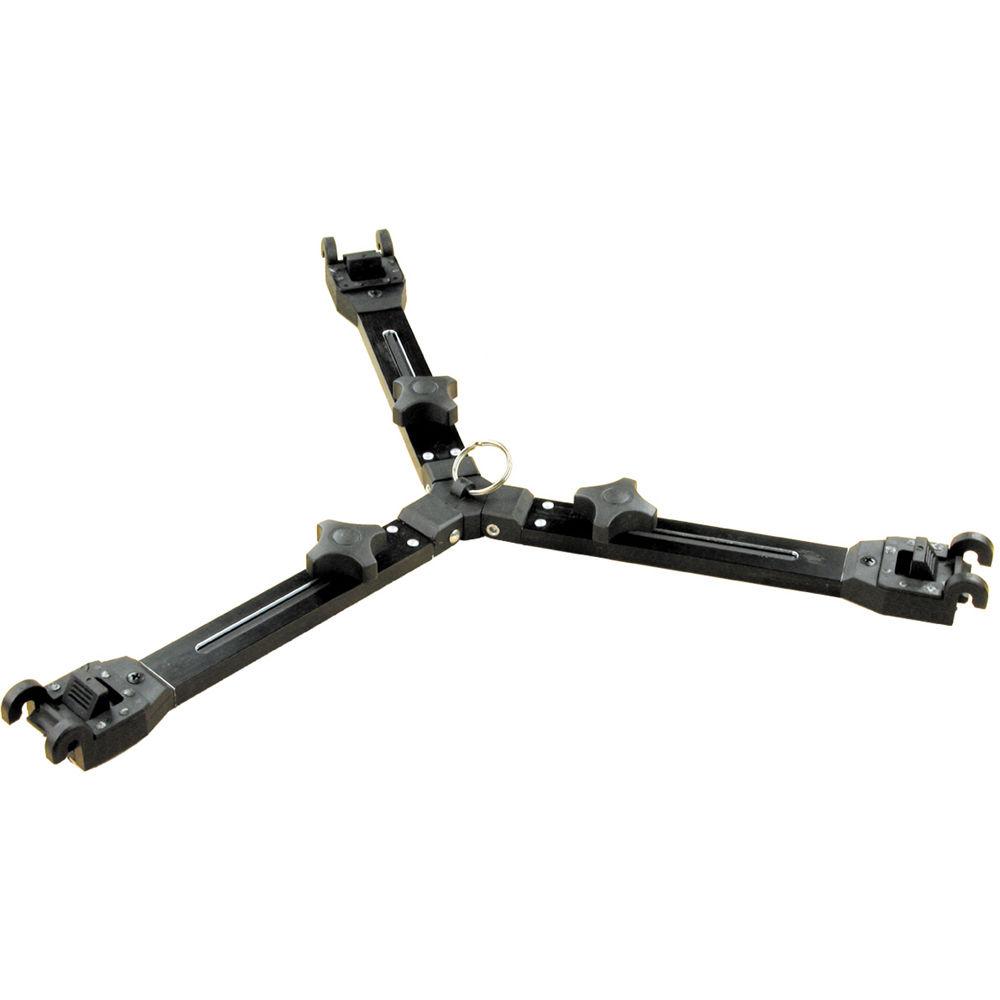

- Mid-level spreader

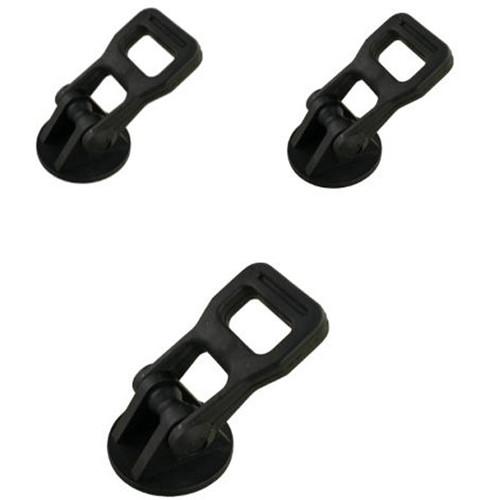

- Rubber tripod feet
- Soft carry case
- Focus 12 Fluid Head
-
- 100mm Ball base
- Supports loads between 0 to 26 lb
- Perfect balance along entire +/-90° tilt range
- Sachtler Touch-and-Go 16 Euro-style plate system
- Incorporates a sophisticated lightweight, extremely hard, and highly stress-resistant new composite material
- Labyrinth modular "true" fluid drag system
- Independent pan and tilt drag, with no play
- Continuous counterbalance and drag
- 127 Parts designed, manufactured, and hand-assembled at the Cartoni factory in Italy
- Five-year warranty
- Large pan drag ring in the center
- Ergonomic grips on all controls
- Illuminated bubble level
- Includes a pan bar attachable on either side
- A627 Tripod Legs
-
- Aluminum dual-stage tripod legs
- 110 lb Load capacity
- 27" Minimum height
- 60" Maximum height
- 31" Folded length
- Non-slip flip clamps with safety locks

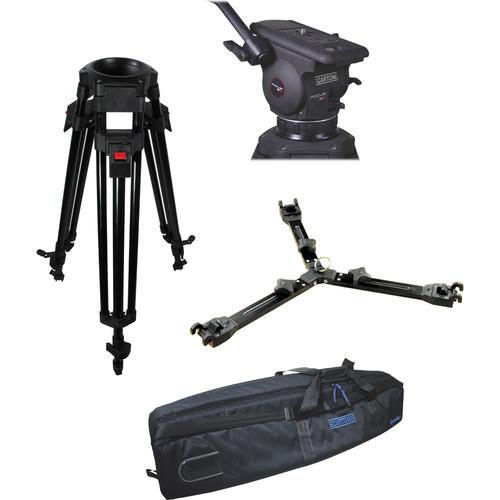

In the Box Cartoni Focus 12 Fluid Head with A627 Tripod Legs & Mid-Spreader (100mm) Focus 12 Fluid Head (100mm) A627 Ultra-light 2-Stage Aluminum Tripod P732 Mid-Level Spreader B458 Rubber Feet (Set of 3) C928-2 Soft Bag for Two-Stage Cartoni Video Tripod with 75mm or 100mm Bowl dbfzevxbsc Limited 5-Year Warranty for the Focus 12 Fluid Head Limited 1-Year Warranty for the Other Kit Contents Table of Contents
|
Upload User Manual
Have you got an user manual for the Cartoni Focus 12 Fluid Head with A627 Tripod Legs & Mid-Spreader in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCartoni KF12-2UM Specs | | | Ball Diameter | 100 mm | | Payload | 0 - 26 lb (0 - 12 kg) | | Pan Range | 360° | | Tilt Range | +/- 90° | | Counterbalance | Continuous from 0 - 26 lb (0 - 12 kg) | | Fluid Drag | Continuous | | Camera Attachment | Euro-style quick release system, quick release plate included | | Bubble Level | Yes, illuminated | | Material | Magnesium and lightweight composite | | Temperature Range | -40 to 140°F (-40 to 60°C) | | Weight | 5.5 lb (2.5 kg) | | | | Material | Aluminum | | Bowl Diameter | 100 mm | | Load Capacity | 110 lb (50 kg) | | Minimum Height | 27" (68.6 cm) | | Maximum Height | 60" (152 cm) | | Leg Stages | 2 | | Leg Sections | 3 | | Leg Lock Type | Non-slip flip locks with safety locks | | Spiked/Retractable Feet | Spiked | | Folded/Transport Length | 31" (78 cm) | | Weight | 6.8 lb (3 kg) |
