User Manual for Cartoni Focus 8 Fluid Head & Two-Stage Tripod SDS System Click to enlarge the picture
Contents of the user manual for the Cartoni Focus 8 Fluid Head &
- Product category: Tripod Systems Cartoni
- Brand: Cartoni
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cartoni Tripod Systems
 |
User manual for the Cartoni Focus 8 Fluid Head & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cartoni product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cartoni user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cartoni product will considerably shorten its lifespan!
|

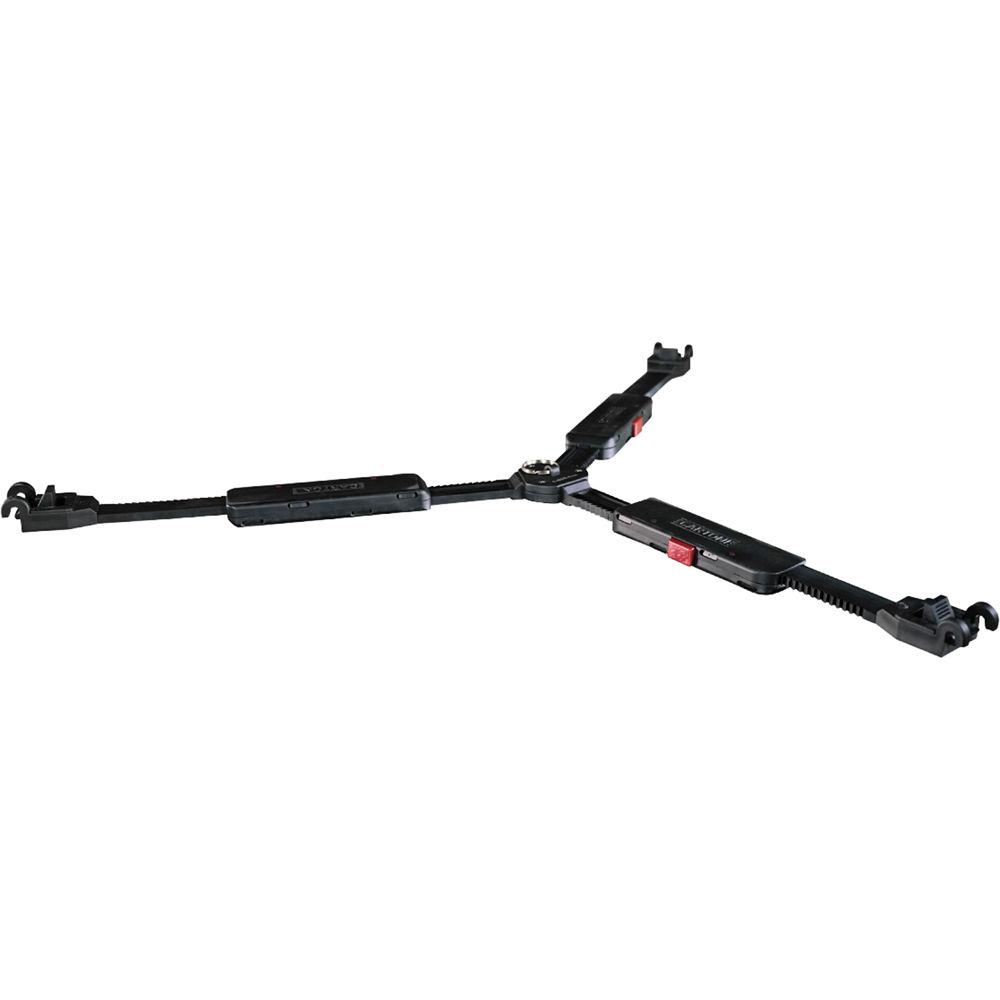

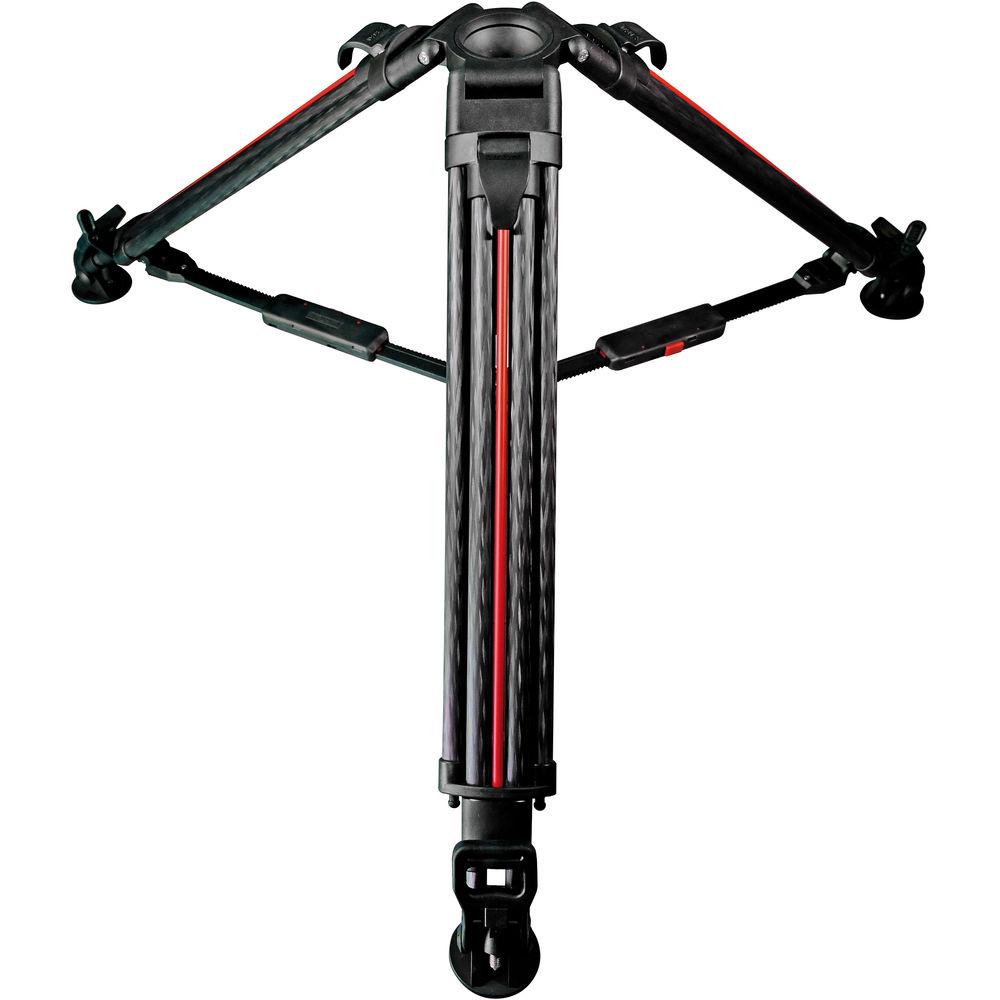

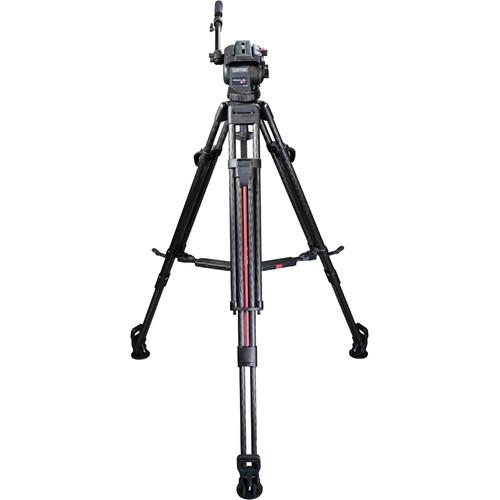

Product description Set up your shoot in a flash with the Focus 8 Fluid Head & Two-Stage Tripod System from Cartoni's Smart Deployment Series. Featuring a lightweight Focus 8 fluid head, a carbon fiber two-stage single-lever tripod, and a Smart Lock "no-bind" mid-level spreader, this system is specially designed for fast setup and teardown. The tripod's double-stage legs can be adjusted in a moment with just three moves of the Smart Stop lever. The legs deliver torsional rigidity and sturdy, stable support at any height between 25 and 66.5". A strap fixed to the center ring of the spreader and the tripod base allows you to fold the system in a single move.

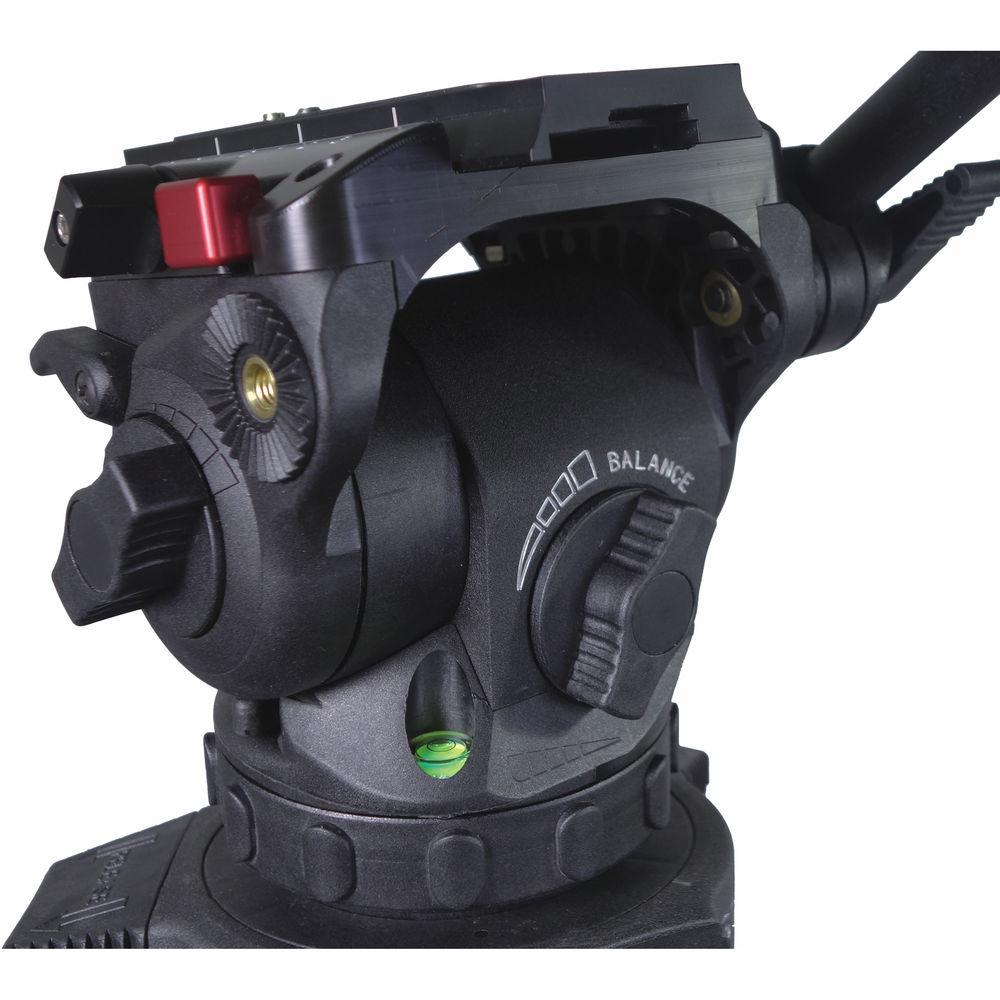

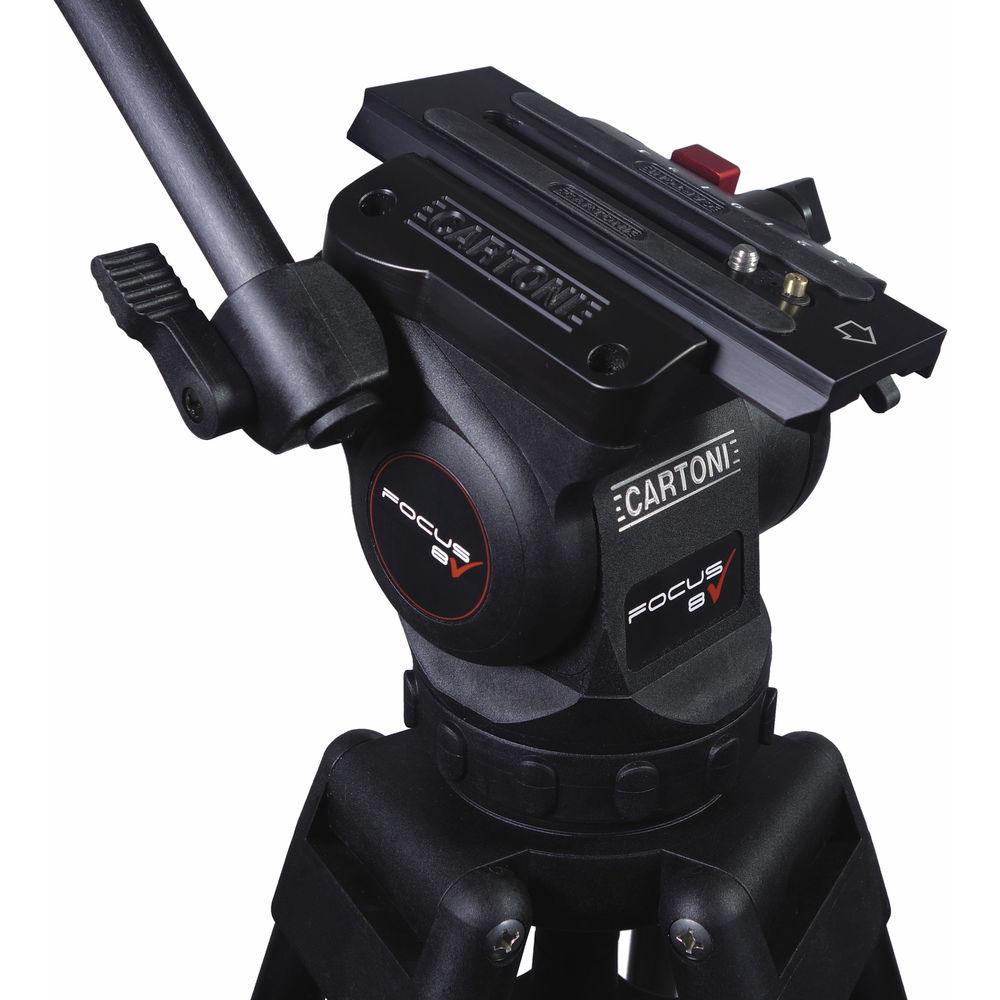

Supporting loads up to 18 lb, the Focus 8 SDS System is a good match for larger DSLR and mirrorless Micro Four Thirds cameras. The head has a 75mm ball base and offers ultralight adjustment across its ±90° tilt range with smooth, continuous counterbalance. The integrated sliding camera plate is compatible with Sachtler Ace and Manfrotto video heads. Included in the system are a set of hooking rubber tripod feet and a soft carry bag with foam interior, leather handles, shoulder strap, and exterior pocket. - Continuously adjustable fluid damping system for both pan and tilt
- Fluid head is lightweight at only 4 lb but supports loads up to 18 lb
- Suitable for cameras such as Blackmagic Design URSA Mini, Canon EOS C200/C300 Mark II, Sony PXW-FS5/FS7, and Panasonic AU-EVA1
- Tripod red-rod trigger mechanism and ergonomic carry handle
- Recommended for broadcast ENG, documentaries, and film shooting
- Designed, manufactured, and assembled in Rome, Italy
In the Box Cartoni Focus 8 Fluid Head & Two-Stage Tripod SDS System (Carbon Fiber) Mid-Level SDS Smart Spreader Hooking Rubber Tripod Feet (Set of 3) C928-2 Soft Bag for Two-Stage Cartoni Video Tripod with 75mm or 100mm Bowl Limited 5-Year Warranty on Fluid Head Limited 1-Year Warranty on All Other System Items User Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cartoni Focus 8 Fluid Head & Two-Stage Tripod SDS System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCartoni Focus 8 SDS Specs | | | Material | Carbon fiber | | Stages | 2 | | Spreader | Mid-level SDS Smart Lock | | Minimum Height | 25" (63.5 cm) | | Maximum Height | 66.5" (171.5 cm) | | Payload Capacity | 18 lb (8 kg) | | Total Weight | 11.5 lb (5.25 kg) | | | | Pan Range | 360° | | Tilt Range | ±90° | | Counterbalance | Continuous | | Fluid Drag | Continuous | | Bowl Diameter | 75 mm | | Camera Attachment | Sliding plate | | Temperature Range | -40 to 140°F (-40 to 60°C) | | Payload | Up to 18 lb (8 kg) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 16.9 lb | | Box Dimensions (LxWxH) | 43.0 x 8.2 x 8.0" |
