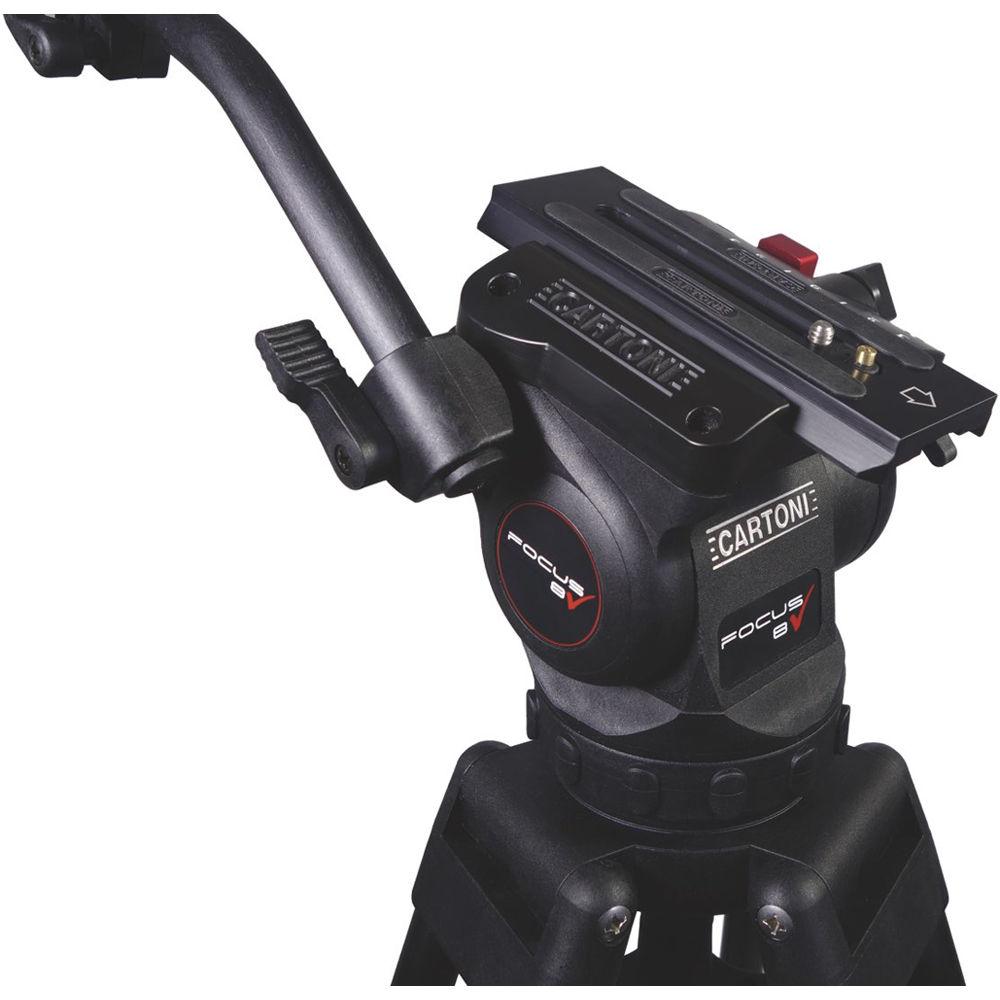

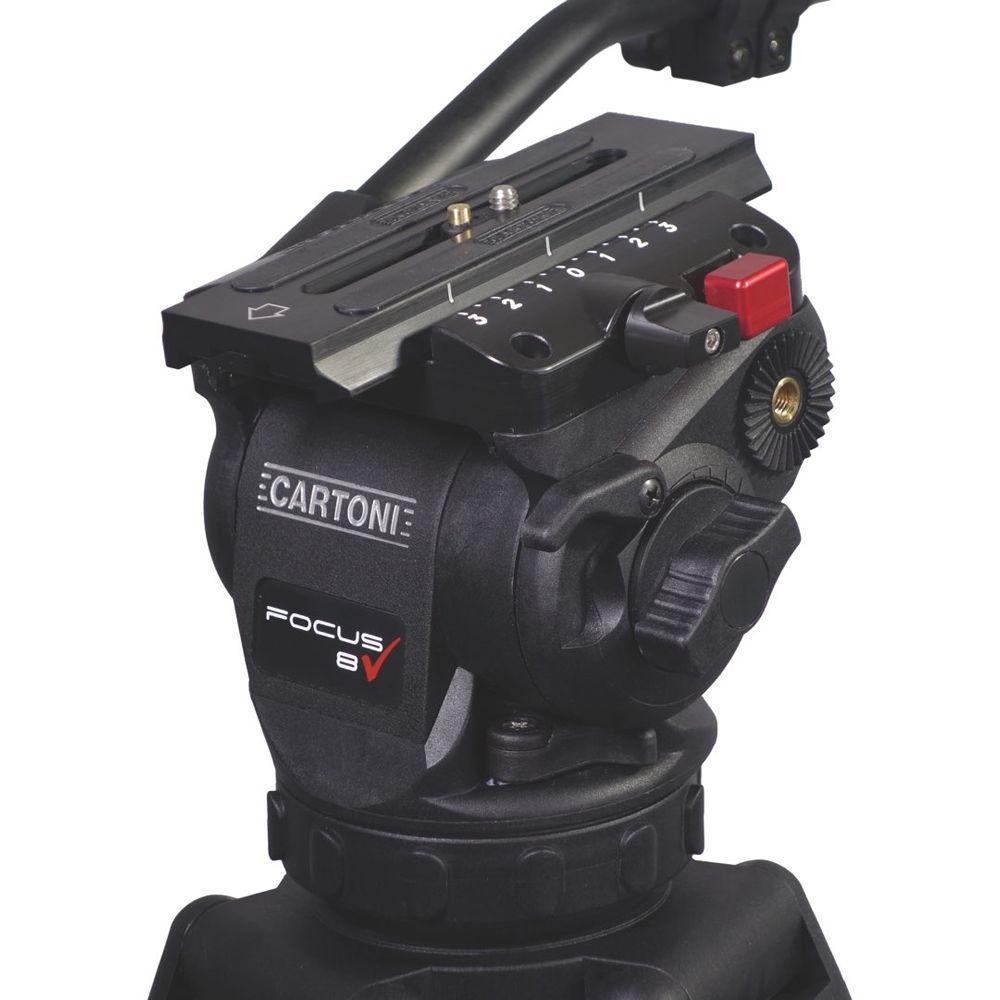

Product description Recommended Video Tripods Read More Featuring the lightweight 75mm Focus 8 Fluid Head with a Sliding Plate System, this Cartoni Kit is designed for entry-level users who shoot with up to 17.7 lb of load. The Focus 8 provides perfect balance along its entire +/-90° tilt range, and features continuous counterbalance adjustment.

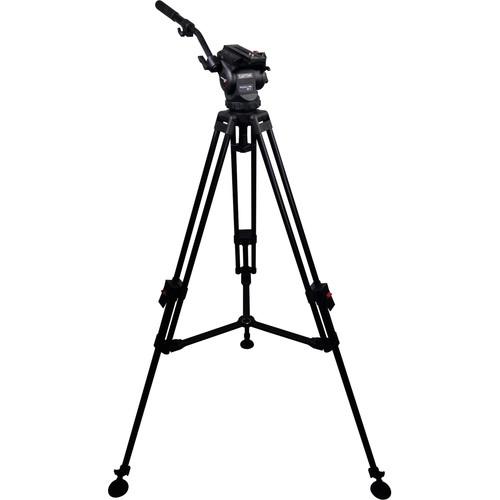

The kit also includes the APTP Aluminum Single-Stage Tripod Legs, which feature 30.5 - 53" height adjustment and non-slip flip clamps; a mid-level spreader; rubber tripod feet; and a soft carry case with a foam interior, leather handles, shoulder strap, and exterior pockets. Everything is designed, manufactured, and assembled at the Cartoni factory in Rome, Italy. The Focus 8 Fluid Head comes with the peace-of-mind of a five-year warranty, and all the other items retain their standard one-year warranty.
The Focus 8 consists of 127 parts, machined or cast to micrometric precision and hand-assembled and adjusted to precision by one engineer at a time. A follow-up to the Cartoni Focus HD head and an evolution of the original Focus head, this Focus 8 incorporates the same quick release plate system as on the Sachtler Ace and Manfrotto video heads, and integrates a new composite material in many parts that allows for a solid build while keeping the weight down. Of course, it also features Cartoni's renowned counterbalance and very smooth, "true" fluid drag. The Focus 8 uses the same patented spring-loaded counterbalance system used in the original Focus head.
The new composite material that's used is a sophisticated non-metal that's much stronger than aluminum, and yet lighter. It is used in the tilt fluid knobs, pan fluid gears, and other parts throughout the body. This composite is also highly resistant to the stress of weight, bending, rubbing, and extreme temperatures, so where it's used in the mechanisms of the head it actually provides for more stress endurance, in addition to saving weight. This composite is the result of a collaboration between Cartoni and the Department of Physics and Engineering at Sapienza University of Rome.
The Focus 8 features a Cartoni-patented labyrinth modular fluid drag system, which consists of individual pan and tilt modules. Each module contains two main sections that have thin concentric rings inside them. The rings in one section interact with the rings in the other, with aerospace industry silicon paste fluid between them that provides resistance. The two sections are never fully disengaged from one another, so movement is always smooth and with no play. With there being separate pan and tilt modules, pan drag and tilt drag are accordingly independent, yet work together to allow smooth, uninterrupted motion in any direction. Cartoni performs a laser-assisted, diagonal movement test on every head to ensure that there isn't even the slightest digression from a straight-line movement.
The pan drag control is a large ring in the center of the head that's easy to use even without looking. This and all other controls are designed with ergonomic grips that will feel secure between your fingers. A pan bar is included that can be attached to a rosette adapter on either side of the head, and additional pan bars are available and sold separately. - Kit Contents
-
- Focus 8 Fluid Head with Sliding Plate System (75mm)
- APTP Aluminum Single-Stage Tripod Legs
- Mid-level spreader
- Rubber tripod feet
- Soft carry case
- Focus 8 Fluid Head with Sliding Plate
-
- 75mm Ball base
- Supports loads between 0 and 17.7 lb
- Perfect balance along entire +/-90° tilt range
- Quick release sliding plate system compatible with Sachtler Ace and Manfrotto video heads
- Incorporates a sophisticated lightweight, extremely hard, and highly stress-resistant new composite material
- Labyrinth modular "true" fluid drag system
- Independent pan and tilt drag, with no play
- Continuous counterbalance and drag
- 127 Parts designed, manufactured, and hand-assembled at the Cartoni factory in Italy
- Five-year warranty
- Large pan drag ring in the center
- Ergonomic grips on all controls
- Includes a pan bar attachable on either side
- APTP Tripod Legs
-
- Aluminum single-stage tripod legs
- 88 lb Load capacity
- 30.5" Minimum height
- 53" Maximum height
- 32.5" Folded length
- Non-slip flip clamps with safety locks
In the Box Cartoni Focus 8 Fluid Head with Sliding Plate & APTP Tripod (75mm) Focus 8 Fluid Head with Sliding Plate System Long Slide-In Camera Plate for Focus 8 Fluid Heads with Pin and 1/4" Screw APTP Action-Pro Single-Stage Tripod Legs (75mm Bowl) P708 Quick Release Mid-Level Spreader B458 Rubber Feet (Set of 3) B410 Soft Carrying Case Limited 5-Year Warranty for the Focus 8 Fluid Head Limited 1-Year Warranty for the Other Kit Contents Cartoni Focus Heads: A Definitive New Lineup of Sleek Italian Tripod Design Ronald Francis 02/01/2016 Brochure PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cartoni Focus 8 Fluid Head with Sliding Plate & APTP Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCartoni KF08-1AM Specs | | | Ball Diameter | 75 mm | | Load Capacity | 0 - 17.7 lb (0 - 8 kg) | | Pan Range | 360° | | Tilt Range | +/- 90° | | Counterbalance | Continuous | | Fluid Drag | Continuous | | Camera Attachment | Quick release plate system compatible with Sachtler Ace and Manfrotto video heads
Long-style sliding plate included, 4" (10.2 cm) sliding range | | Material | Magnesium and lightweight composite | | Temperature Range | -40 to 140°F (-40 to 60°C) | | Weight | 4 lb (1.8 kg) | | | | Material | Aluminum | | Bowl Diameter | 75 mm | | Load Capacity | 88 lb (40 kg) | | Minimum Height | 30.5" (78 cm) | | Maximum Height | 53" (135 cm) | | Leg Stages | 1 | | Leg Sections | 2 | | Leg Lock Type | Non-slip flip locks with safety locks | | Spiked/Retractable Feet | Spiked | | Folded/Transport Length | 32.5" (83 cm) | | Weight | 4 lb (1.8 kg) | | | | Package Weight | 14.9 lb | | Box Dimensions (LxWxH) | 43.0 x 8.8 x 8.25" |
