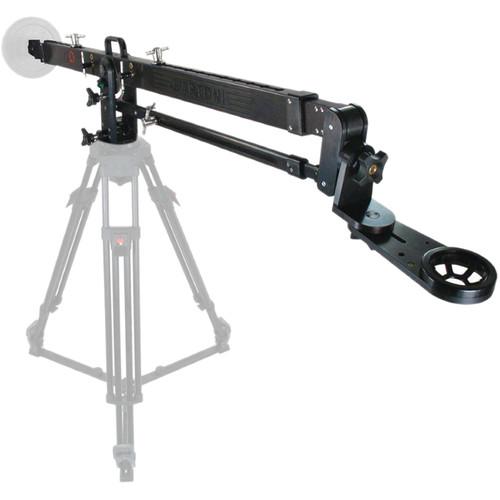

User Manual for Cartoni JIBO Three Section Compact Jib Click to enlarge the picture
Contents of the user manual for the Cartoni JIBO Three Section Compact Jib
- Product category: Cranes & Jibs Cartoni
- Brand: Cartoni
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cartoni Cranes & Jibs
|
User manual for the Cartoni JIBO Three Section Compact Jib contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cartoni product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cartoni user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cartoni product will considerably shorten its lifespan!
|
Product description The Cartoni JIBO is a lightweight, telescoping, three-section compact jib arm for motion-picture and video cameras weighing up to 44 lb (20 kg). - Camera Mount
- 100mm leveling bowl. Camera stage can be easily configured for over- or under-slung configurations, and the angle is maintained with a parallel adjustable leveling arm throughout the 78" (2m) range of travel.
- Counterbalance
- Payload is counterbalanced quickly with an adjustable rear section and standard barbell-type iron weights, which are not included.
- Base Mount
- Mounts on any 100mm heavy-duty tripod capable of bearing the combined weight of the payload and jib.
- Construction
- Telescoping anodized aluminum alloy box-beam sections.
- Portable
- Weighing just 25 lb (12 kg), the JIBO collapses without tools down to 38" (1m) in minutes for safe transport in a fitted hard case.
In the Box Cartoni JIBO Three Section Compact Jib Fitted Hard Case 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cartoni JIBO Three Section Compact Jib in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCartoni K102 Specs | Construction | Telescoping Aluminum Alloy Box-Beam | | Payload Capacity | 44 lb (20 kg) | | Counterbalance System | Barbell Weights (not included) | | Height Range | 0-78" (0-2 m) | | Tilt Lock | Gusset Plate (90º) | | Tilt Drag | Yes | | Pan Lock | Yes | | Pan Range | 360º | | Tripod Attachment | 100mm Bowl (Mitchell base adapter available) | | Head Attachment | 100mm Bowl | | Head Arm Leveling | Adjustable Secondary Leveling Arm | | Leveling Indicators | Bubble Level | | Fold Down | 38" (1 m) | | Weight | 25 lb (12 kg) | | | | Package Weight | 57.8 lb | | Box Dimensions (LxWxH) | 47.5 x 18.0 x 8.0" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
