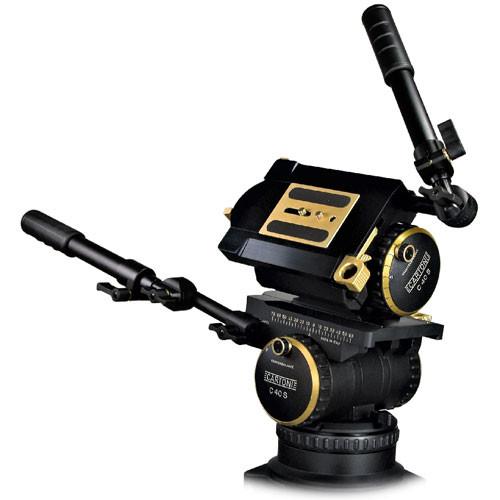

User Manual for Cartoni K500 C40S Dutch Head - Supports 100 lbs Click to enlarge the picture
Contents of the user manual for the Cartoni K500 C40S Dutch Head -
- Product category: Video Tripod Heads Cartoni
- Brand: Cartoni
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cartoni Video Tripod Heads
|
User manual for the Cartoni K500 C40S Dutch Head - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cartoni product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cartoni user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cartoni product will considerably shorten its lifespan!
|
Product description The C40S Dutch head is designed to make it simple and straightforward to execute exceptionally smooth side-tilt effects, whether you're shooting video, 16mm or 35mm. Features a patented fluid damping system with 7 precisely repeatable steps plus 0, assuring outstanding drag levels and extraordinary smoothness in both pan and tilt functions. The counterbalance system with its 8-position easy grip selector and frictionless sliding camera plate, allows the cameraperson to fine tune the balancing of any camera and lens combination. - Counterbalance System with 7 Settings plus 0
- The C40S Dutch features an 8-position easy grip selector with a sliding balance plate, allowing the cameraperson to fine tune an extremely wide range of cameras weighing up to 100 lbs throughout a tilt range of -/+ 65 degrees. Additional tilt angle can be also achieved by turning the tilt knob to OFF position, provided the counterbalance selector ring has been previously set to "0".
- Tilt Drag Control
- Features 3-fluid damping modules, which assure outstanding, drag levels and extraordinary smoothness in the tilt functions. Tilt movements can be dampened with 7 precisely repeatable steps of drag, while freewheeling is obtained by simply setting the relevant selector ring to position "0".
- Mounts directly on the C40S fluid head or any similar quick release type heads
- Built-in spirit level for easy horizontal leveling
- Maximum load capacity of: 100 lbs
In the Box Cartoni K500 C40S Dutch Head - Supports 100 lbs 1x Telescopic Pan Bar (#K520) Camera Mounting Plate (#K512) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cartoni K500 C40S Dutch Head - Supports 100 lbs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCartoni C40S Dutch Specs | | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | Cartoni K512, Large Euro Plate | | Camera Mounting Screw | 2 x 3/8"-16 Male | | | | Base Mount | 2 x 3/8"-16 Threads | | | | Drag Control | Tilt: 7-Step Plus 0 | | Vertical Tilt | +65
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
