User Manual for Cartoni L100 Lambda Nodal Swing Head - Supports 66 lbs Click to enlarge the picture
Contents of the user manual for the Cartoni L100 Lambda Nodal Swing Head
- Product category: Pan/Tilt Heads for Cranes Cartoni
- Brand: Cartoni
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cartoni Pan/Tilt Heads for Cranes
|
User manual for the Cartoni L100 Lambda Nodal Swing Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cartoni product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cartoni user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cartoni product will considerably shorten its lifespan!
|

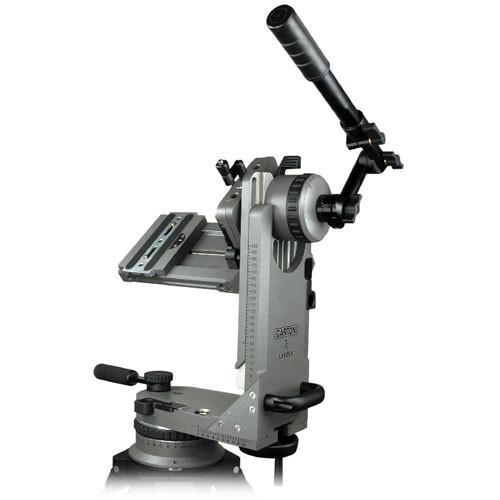

Product description The Lambda is a "Nodal Swing Head" ideally suited for 35mm film cameras fully equipped with long lenses, matte-box and extra large magazines.
Designed to provide a high level of operational flexibility, this fluid head can be easily fitted to a wide range of supports like tripods, dollies, cranes and camera cars.
The head comes equipped with a standard Mitchell flat base. Available as an option, a 150mm ball base, two balancing counterweights and a third axis to roll the camera 360° sidewise. - The mounting can be inverted for low line lens positioning allowing the camera to be moved all the way to the ground and provide for accurate images which normally cannot be obtained with other traditional fluid heads.
- With the Lambda, there is no need to change or disassemble a variety of additional platforms or risers to suit the optical center of the camera. Simply adjust the center of gravity by turning the two independent wheels which are easy to reach and smooth to operate; the vertical sliding platform will immediately rise or lowered with a precise positive movement and considerable time saving.
- The balance system is designed so that camera swings on its own center of gravity and rotates 360° on its vertical axis.
- No springs or similar counter reaction elements are required to set the head in a fixed tilt position allowing both pan and tilt movements to have identical feel. The lens focal distance can be kept constant by choosing the suitable camera position with its relevant sliding plate.
- The Lambda employs the patented fluid drag control system on both pan and tilt modes allowing the damping levels to range from "0" for freewheeling to "7" for maximum drag.
In the Box Cartoni L100 Lambda Nodal Swing Head (Mitchell Base) - Supports 66 lbs 1x Telescopic Pan Bar 5-Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cartoni L100 Lambda Nodal Swing Head - Supports 66 lbs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCartoni L100 Specs | Load Capacity | 66.0 lb | | Diameter/Thread | Mitchell Base | | Counter Balance System | N/A | | Counter Balance Range | 7 Settings | | Center of Gravity | N/A | | Quick Release/Wedge Plate | No | | Balance Plate | 2x 3/8" Screws | | Tilt Drag | 7 Settings | | Tilt Range | 360° | | Tilt Lock | Yes | | Spring Loaded Counter Balance | 7 Settings | | Pan Range | 360° | | Pan Lock | Yes | | Leveling Bubble/Illuminated | Yes, Non | | Temperature Range | -22° to +158°F (-30° to +70°C) | | Weight | 46.0 lb | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 26.15 x 20.1 x 14.5" |
