Cartoni M902 Magnum Pan Tilt System

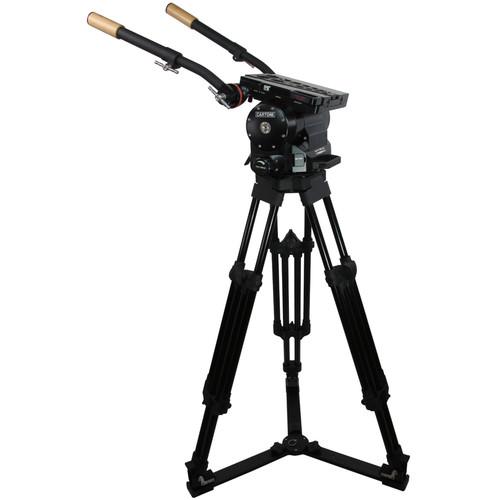

User Manual for Cartoni M902 Magnum Pan Tilt System with Ground Spreader

• Product category: Tripod Systems Cartoni
• Brand: Cartoni
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cartoni Tripod Systems

Product description

• Magnum Pan and Tilt Head The Magnum Pan and Tilt Head from Cartoni is designed to support fully decked Studio and OB cameras equipped with long boxed lenses, 7” viewfinder or large teleprompter. It is a compact fluid head incorporating a patented counterbalance system as well as an advanced fluid damping module. Manufactured with aluminum alloy, the Magnum provides precise movements and consistently high drag output.

  The patented counterbalance system is suited to operate with cameras featuring a high center of gravity and weighing from 88 to 209lb. Cameras within this range can be balanced through the entire 130° tilt angle. Calibrated with a variable adjustment connected to a digital readout display, the counterbalance operating knob is located on the side of the head. The frictionless fluid damping modules also feature a patented design for an extended temperature range, with smooth and precise movements together with a linear response in any critical environment.

  The continuously variable fluid control knobs located on sides of the head with flip folding design, are easy to reach and are connected to a digital readout which allows the cameraman for a quick set-up even in low light conditions. The effective control brakes on both, pan and tilt mode are located on the front left side of the control panel and can be operated with a single hand. Two threaded holes for the teleprompter tubes are provided on the front of the sliding platform.

  The Magnum interfaces directly with any Mitchell flat base heavy duty tripod and can be easily mounted on top of all existing pedestals featuring the 4-hole bores. The wedge camera plate has an ergonomic quick release and a wide range of centering slide for micrometric balance setting.
• Telescopic Handle and Attachment for Magnum Fluid Head (Wood)
  Key Features
  • • Telescopic handle
    • Wood construction
• K706 Aluminum 1-Stage Superpod HD Tripod Legs (Flat Base) Constructed from die cast alloy, the Superpod tripod is designed to provide extremely stable support for studio and OB cameras equipped with long lenses, large viewfinders and teleprompters.
  The Superpod available in a single-stage or a two-stage version, is fitted with two rotary clamping mechanisms and features 25mm diameter tubes, they perform unsurpassed torsional rigidity and structural integrity, while the locking knobs, which include over tightening protection, ensures maximum clamping efficiency maintained over the tripods lifetime.
  Features a Mitchell Flat Base or a 150 mm bowl and interfaces with a heavy-duty spreader or dolly. Ideal for Lambda and Omega fluid heads, the Superpod tripod provides for a payload of up to 440 lbs.
  • Aluminum alloy construction
  • Flat base mount
  • Single extension design
  • Maximum height of 54.0-inch
  • Supports up to 440.0 lb
  • Film-style twist locks
• P735 Heavy-Duty Metal On-Ground Tripod Spreader Suitable for heavy-duty Studio tripods, this heavy-duty ground spreader complements the rugged stability of the support. A comfortable foot operated pedal or rubber loops allow the tripod to firmly be attached to the tripod foot. Fits the K706 tripod.

• Limited 3-Year Warranty

• Limited 1-Year Warranty

• 1-Year Warranty
