User Manual for Cartoni Magnum Pan and Tilt Head Click to enlarge the picture
Contents of the user manual for the Cartoni Magnum Pan and Tilt Head
- Product category: Video Tripod Heads Cartoni
- Brand: Cartoni
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cartoni Video Tripod Heads
|
User manual for the Cartoni Magnum Pan and Tilt Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cartoni product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cartoni user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cartoni product will considerably shorten its lifespan!
|

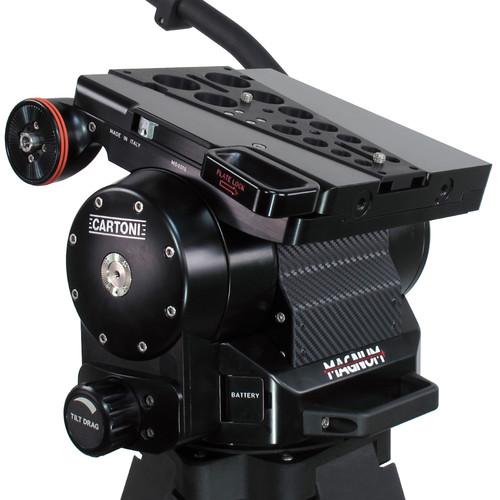

Product description The Magnum Pan and Tilt Head from Cartoni is designed to support fully decked Studio and OB cameras equipped with long boxed lenses, 7” viewfinder or large teleprompter. It is a compact fluid head incorporating a patented counterbalance system as well as an advanced fluid damping module. Manufactured with aluminum alloy, the Magnum provides precise movements and consistently high drag output.
The patented counterbalance system is suited to operate with cameras featuring a high center of gravity and weighing from 88 to 209lb. Cameras within this range can be balanced through the entire 130° tilt angle. Calibrated with a variable adjustment connected to a digital readout display, the counterbalance operating knob is located on the side of the head. The frictionless fluid damping modules also feature a patented design for an extended temperature range, with smooth and precise movements together with a linear response in any critical environment.
The continuously variable fluid control knobs located on sides of the head with flip folding design, are easy to reach and are connected to a digital readout which allows the cameraman for a quick set-up even in low light conditions. The effective control brakes on both, pan and tilt mode are located on the front left side of the control panel and can be operated with a single hand. Two threaded holes for the teleprompter tubes are provided on the front of the sliding platform.
The Magnum interfaces directly with any Mitchell flat base heavy duty tripod and can be easily mounted on top of all existing pedestals featuring the 4-hole bores. The wedge camera plate has an ergonomic quick release and a wide range of centering slide for micrometric balance setting. In the Box Cartoni Magnum Pan and Tilt Head Limited 3-Year Warranty Table of Contents
|
