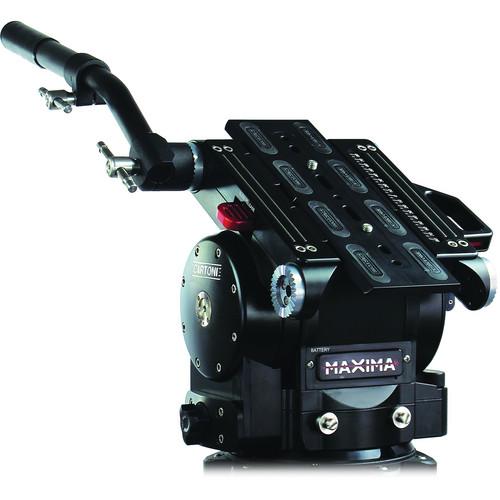

User Manual for Cartoni Maxima Fluid Action Head for Film AL1F GS Kit Click to enlarge the picture
Contents of the user manual for the Cartoni Maxima Fluid Action Head for
- Product category: Tripod Systems Cartoni
- Brand: Cartoni
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cartoni Tripod Systems
|
User manual for the Cartoni Maxima Fluid Action Head for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cartoni product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cartoni user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cartoni product will considerably shorten its lifespan!
|
Product description Featuring the Maxima fluid head with one pan bar and one short handle for better control with a short eyepiece, this Cartoni Maxima Fluid Action Head for Film AL1F/GS Kit is assembled for film applications. The kit also includes aluminum single-stage tripod legs, a heavy-duty ground spreader, and cine style sliding plate.
The Maxima head and the tripod feature a Mitchell flat base. The Maxima head supports 88 lb at 8" center of gravity and offers infinite counterbalance and fluid drag with +/-90° tilt. The tripod is adjustable from 35.5 to 68" and has twist-lock leg locks. The cine style sliding plate is interchangeable with Arri and OConnor plates, allowing for flexibility in the studio. - Key Features
-
- Maxima fluid head with one length-adjustable pan bar and one short handle
- Aluminum single-stage tripod legs
- Heavy-duty ground spreader
- Cine style sliding plate interchangeable with Arri and OConnor plates
- Mitchell flat base mount
- 88 lb Capacity at 8" center of gravity
- Infinite counterbalance and fluid drag
- +/-90° Tilt
- Height adjustment from 35.5 to 68"
- Twist-lock leg locks
In the Box Cartoni Maxima Fluid Action Head for Film AL1F/GS Kit Maxima Film Style Fluid Action Head K701 Aluminum 1-Stage Tripod Legs (Mitchell Flat Base) P736 Heavy-Duty On-Ground C40 Tripod Spreader Limited 5-Year Warranty User Manual PDF 82.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cartoni Maxima Fluid Action Head for Film AL1F GS Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCartoni M772 Specs | | | Load Capacity | 88 lb at 8" C/G (40 kg at 20 cm C/G) | | Bowl | Mitchell flat base | | Counterbalance | Infinite | | Fluid Drag | Infinite | | Tilt Range | +90°/-90° | | Weight | 32 lb (14.5 kg) | | | | Material | Aluminum | | Load Capacity | 330 lb (150 kg) | | Base | Mitchell flat base | | Minimum Height | 35.5" (90 cm) | | Maximum Height | 68" (173 cm) | | Leg Stages/Sections | 1/2 | | Leg Lock Type | Twist locks | | Center Brace/Mid-Level Spreader | No | | Spiked/Retractable Feet | Spiked | | Folded/Transport Length | 42" (107 cm) | | Weight | 16 lb (7.3 kg) |
