User Manual for Cartoni P7MA1 P70 Pneumatic Pedestal System Click to enlarge the picture
Contents of the user manual for the Cartoni P7MA1 P70 Pneumatic Pedestal System
- Product category: Pedestals Cartoni
- Brand: Cartoni
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cartoni Pedestals
 |
User manual for the Cartoni P7MA1 P70 Pneumatic Pedestal System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cartoni product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cartoni user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cartoni product will considerably shorten its lifespan!
|

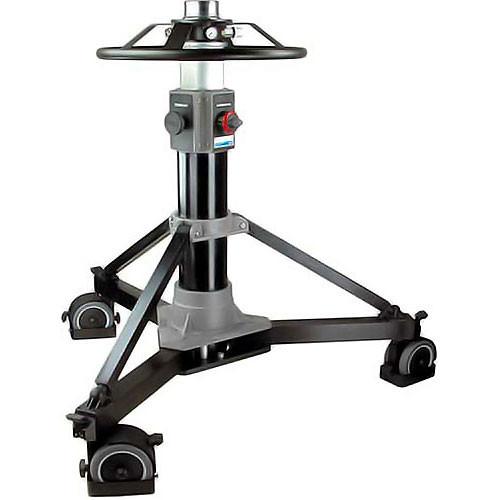

Product description The Cartoni P7MA1 Pedestal System is a lightweight, yet paradoxically thoroughly robust, pedestal for handling payloads up to 150 lbs (68.0 kg) in outside broadcast settings. The one-shot pneumatic column may be pressurized using bottled gas, a compressor, or manually with no danger of over-inflation, thanks to a built-in safety valve. The dolly is foldable for easy transport, and comes equipped with 4.5" (125mm) twin wheels which may be replaced with optional 7.8" (200mm) pneumatic wheels. Designed to support cameras weighing from 10 kg (22 lbs) to 30 kg (66 lbs) the CARTONI MASTER combines a wide range of counterbalance capabilities with an outstanding fluid damping system. - P-70 Pedestal
-
- Payload capacity of 150.0 lbs (68.0 kg) with pneumatic positioning
- 17.7" (45.0 cm) Steering wheel
- Column equipped with safety valve to prevent over-inflation
- Folds down easily and compactly without tools, for convenient transport
- On-shot stroke capability of 19.7" (50.0 cm)
- 125 mm twin wheels with fast-action brakes and cable guards

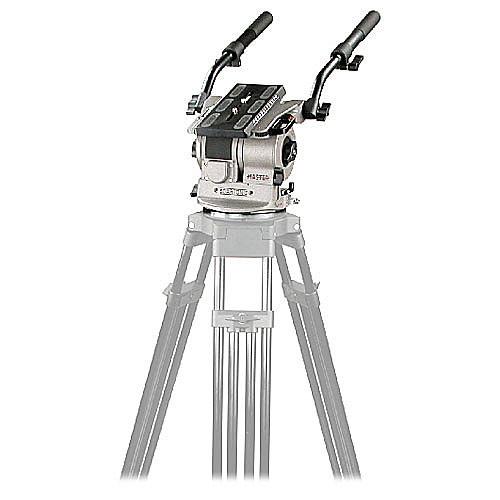

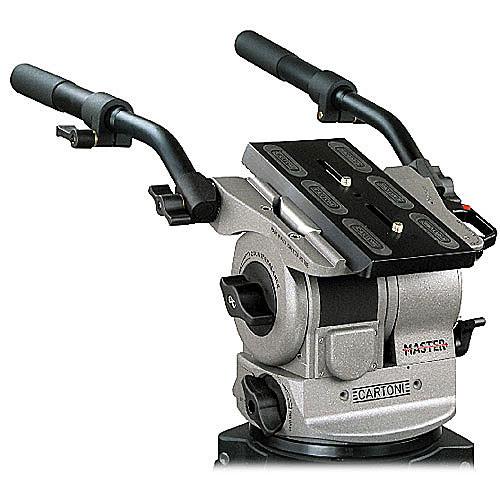

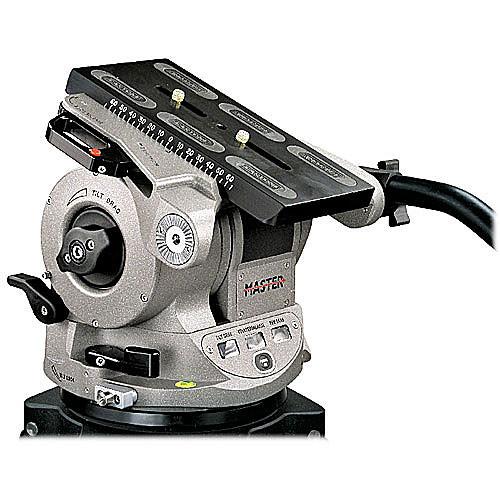

- Master Fluid Head

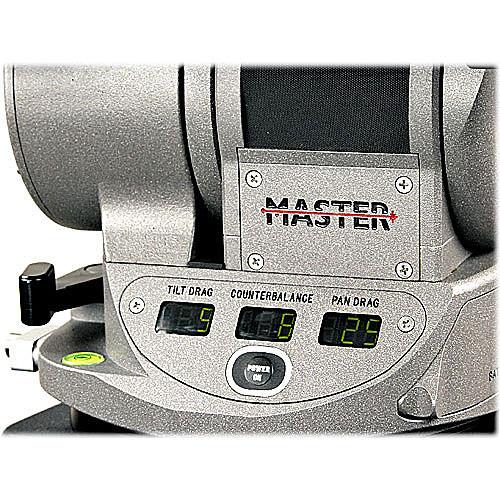

- The patented counterbalance system supports a wide range of payloads at any angle throughout the +/- 90° tilt angle. All operating knobs and levers are conveniently located and easy to reach with special care for ergonomics.
In the Box Cartoni P7MA1 P70 Pneumatic Pedestal System P-70 Pedestal Master Fluid Head 2 x Pan Bars 5-Year Parts and Labor Warranty (Head)
5-Year Warranty (Pedestal) Table of Contents
|
Upload User Manual
Have you got an user manual for the Cartoni P7MA1 P70 Pneumatic Pedestal System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCartoni P7MA1 Specs | | | Load Capacity | 66 lbs (30 kg) | | Trim Ring | No | | Bowl Diameter/Thread | 100 mm | | Steering Ring Diameter | 17.7" (45.0 cm) | | Folded/Transport Length | Not Specified By Manufacturer | | Minimum Height | 30" (75 cm) | | Maximum Height | 55.1" (140.0 cm) | | Weight | 62 lbs (28 kg) | | | | Stages | 1 | | On-Shot Stroke | 19.7" (50.0 cm) | | | | Doorway Tracking Width | 39.4" (100.0 cm) | | Transit Doorway Width | N/A | | Narrow Doorway Width | N/A | | Wheel Diameter | 4.5" (12.5 cm) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 84 owners. Add your rating and experience with the product.
