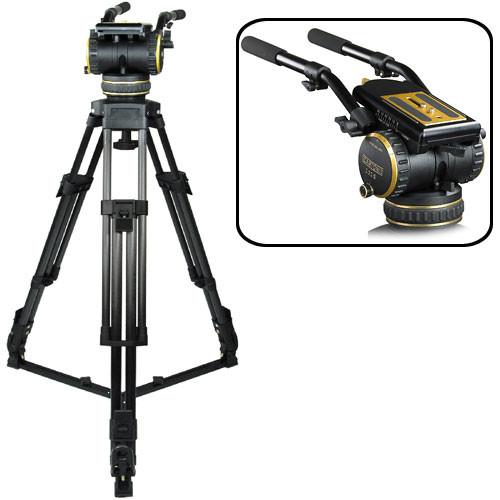

User Manual for Cartoni S423 C20S Carbon Fiber Tripod System - consists of: S422 C20S Head, H603 1-Stage Heavy-Duty Tripod and On-Ground Spreader - Supports 61 lbs Click to enlarge the picture
Contents of the user manual for the Cartoni S423 C20S Carbon Fiber Tripod
- Product category: Tripod Systems Cartoni
- Brand: Cartoni
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cartoni Tripod Systems
|
User manual for the Cartoni S423 C20S Carbon Fiber Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cartoni product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cartoni user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cartoni product will considerably shorten its lifespan!
|
Product description The C20 S tripod system, consisting of the C20 S fluid head and the Studio heavy-duty tripod. Designed to provide an extremely stable support system either for standard EFP camcorder configurations and Super 16mm film cameras, weighing from 15 to 61 lbs. The C20 S fluid head, features a patented fluid damping system with 7 precisely repeatable steps plus 0, assuring outstanding drag levels and extraordinary smoothness in both pan and tilt functions. The counterbalance system with its 8-position easy grip selector and 55mm sliding camera plate, allows the cameraperson to fine tune the balancing of any camera and lens combination. The included Studio film-style twist lock aluminum or carbon fiber heavy-duty tripod, available in both single stage or two stage versions, provides for outstanding rigidity and robustness, for perfect pictures without jerks and vibrations under any condition. C20 S Fluid Head - Counterbalance System with 7 Settings plus 0
- Features an 8-position easy grip selector with a 55mm sliding balance plate, allows the cameraperson to fine-tune the balancing of any camera and lens combination. By simply presetting the differential spring reactive elements, its unique counterbalance system is ready to support a wide range of cameras weighing from 15 to 61 lbs. Additional tilt angle can be also achieved by turning the tilt knob to OFF position, provided the counterbalance selector ring has been previously set to "0".
- Pan and Tilt Control
- Features an 8-position easy grip selector with a 55mm sliding balance plate, allows the cameraperson to fine-tune the balancing of any camera and lens combination. By simply presetting the differential spring reactive elements, its unique counterbalance system is ready to support a wide range of cameras weighing from 15 to 61 lbs. Additional tilt angle can be also achieved by turning the tilt knob to OFF position, provided the counterbalance selector ring has been previously set to "0".
- Built-in illuminated spirit level allows easy set-up even in low light conditions.
H603 ENG Tripod - Heavy-duty carbon fiber construction
- Maximum height 57.0-inch (not including head)
- Non-slip Flip Locks, ensures maximum clamping efficiency at any height
In the Box Cartoni S423 C20S Carbon Fiber Tripod System - consists of: S422 C20S Head, H603 1-Stage Heavy-Duty Tripod and On-Ground Spreader - Supports 61 lbs C20 S Fluid Head (#S422) Carbon Fiber Tripod Legs (#H603) On-Ground Spreader (#P734) 2x Telescopic Pan Bar (#D515) Camera Mounting Plate (#K512) Tie Down Cup (#D514) 5-Year Parts and Labor Warranty (Head)
1-Year Warranty (Tripod) User Manual PDF 277.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Cartoni S423 C20S Carbon Fiber Tripod System - consists of: S422 C20S Head, H603 1-Stage Heavy-Duty Tripod and On-Ground Spreader - Supports 61 lbs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCartoni C20S Specs | Load Capacity | 61.0 lbs (27.67 kg) | | Mount/Base | 100mm 4" Half Ball | | Balance Plate | Yes, 60mm Sliding Plate | | Pan & Tilt Range | 360°, -60/+60° | | Pan & Tilt Drag | 7 Settings | | Leveling Bubble/Illuminated | Yes / Illuminated | | Material | Carbon Fiber | | Leg Stages/Sections | 1/2 | | Minimum Height | 34.5" (87.63 cm) | | Maximum Height | 65.0" (165.1 cm) | | Folded Length | 41.5" (105.41 cm) | | Weight | 26.0 lbs (11.79 kg) | | | | Package Weight | 39.0 lb | | Box Dimensions (LxWxH) | 48.5 x 12.5 x 12.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
