User Manual for Cascade Microphones DR-2 Dual-Ribbon Microphone with LL2913 Transformer Click to enlarge the picture
Contents of the user manual for the Cascade Microphones DR-2 Dual-Ribbon Microphone with
- Product category: Ribbon Microphones Cascade Microphones
- Brand: Cascade Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cascade Microphones Ribbon Microphones
 |
User manual for the Cascade Microphones DR-2 Dual-Ribbon Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cascade Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cascade Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cascade Microphones product will considerably shorten its lifespan!
|

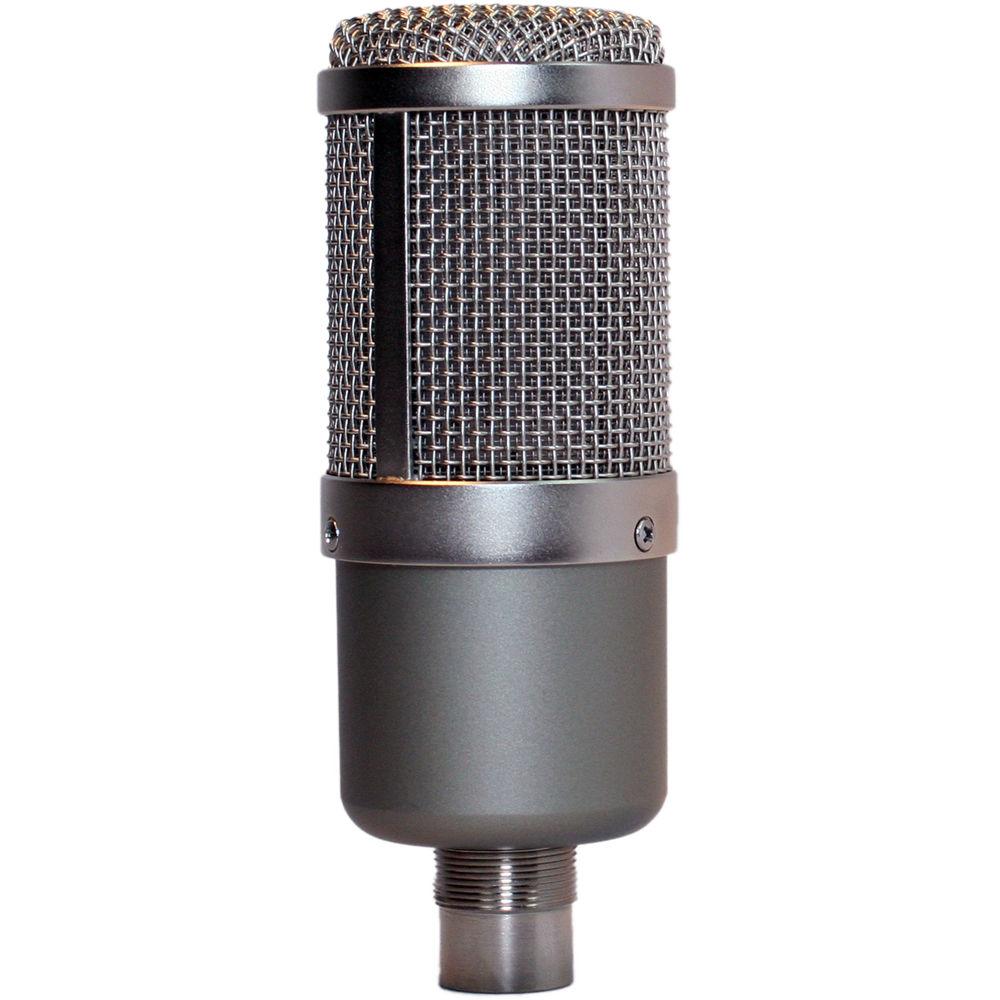

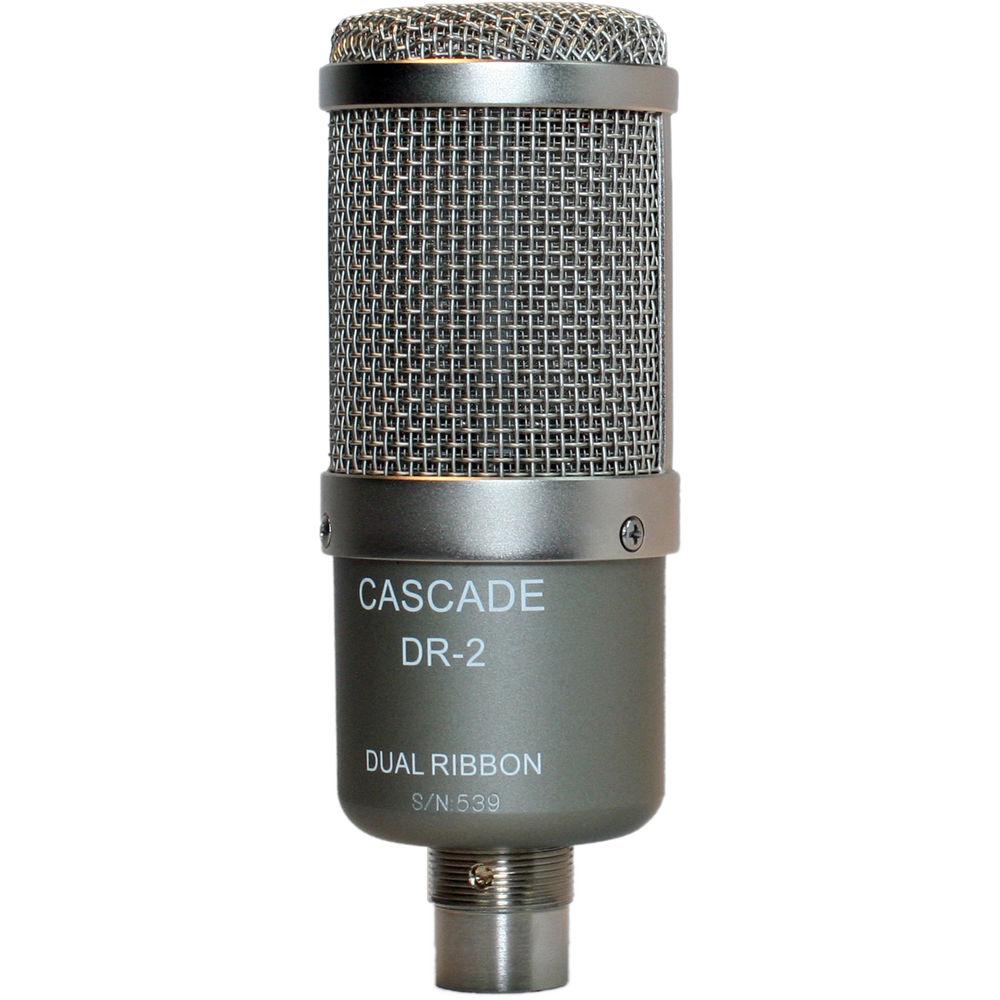

Product description The gray DR-2 Dual-Ribbon Microphone from Cascade Microphones is a passive, double-ribbon design with a symmetrical figure-8 pickup pattern. Unlike offset ribbon designs, this microphone produces equal (but out-of-phase) response from the front and back sides of the motor, making it useful as the side channel in a mid-side setup, or within a Blumlein array. The ribbons are corrugated aluminum measuring 1.5'' in length and 0.15'' in width, mounted parallel 5/8'' apart. The design intent of using two ribbons is to increase sensitivity.
The ribbon motors are housed within a mesh grille. The mic provides no other screening or blast filtering, which has the benefit of reducing unwanted resonance but does expose the ribbon elements to contamination. The use of a pop filter when tracking vocals is recommended. The frequency response is slightly elevated from 40 to 100 Hz, flat through 4 kHz, and rolls off through 15 kHz.
Furthermore, the microphone comes equipped with a transformer to transform low-voltage and low-impedance ribbon motors to normal microphone output levels. - Suggested Uses
-
- Electric Guitars
- Drum Overheads
- Horns
- Strings
- Banjo
- Mandolin
- Dobro
UPC: 608766969977 In the Box Cascade Microphones DR-2 Dual-Ribbon Microphone with LL2913 Transformer (Gray) Microphone Clip Leatherette Storage Pouch Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cascade Microphones DR-2 Dual-Ribbon Microphone with LL2913 Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCascade Microphones 95-DL-A Specs | | | Sound Field | Mono | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 25 Hz to 9 kHz | | Maximum SPL | Figure 8: 135 dB SPL | | THD | 1% | | Impedance | Figure 8: 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | Figure 8: -56 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 1.5" / 3.81 cm | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 10.3 x 8.5 x 3.6" |
