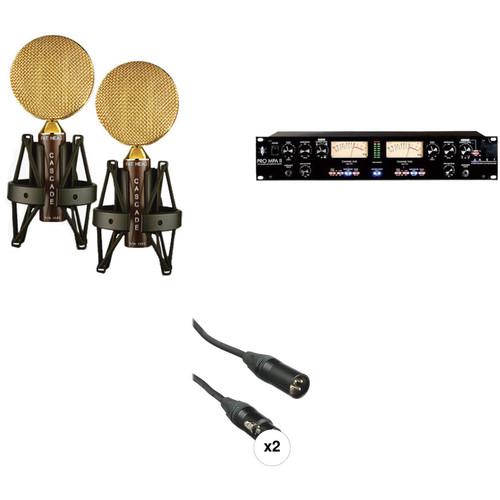

User Manual for Cascade Microphones Fat Head Ribbon Microphone Pair & ART Pro MPAII Kit

• Product category: Ribbon Microphones Cascade Microphones
• Brand: Cascade Microphones
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cascade Microphones Ribbon Microphones

Product description

• Cascade Microphones FAT HEAD Ribbon Microphones (Brown Body and Gold Grill, Stock Transformer, Pair) These FAT HEAD Ribbon Microphones from Cascade Microphones are sold as a stereo matched pair and are versatile enough to handle almost any vocal or instrument recording, and live sound application. The FAT HEAD features a hand-tuned ribbon element that incorporates the legendary symmetrical ribbon design in order to achieve a true symmetrical figure-8 polar pattern. Its frequency and sensitivity response are engineered to deliver pristine audio results, and the element's design is very useful when executing a mid-side or Blumlein recording.
  • Stock Transformer
  • Stereo matched pair
  • Hand-tuned ribbon element
  • True figure-8 pattern
  • Balanced audio input signal to both sides of the ribbon assembly
  • Suited for guitar cabinets, drum over-heads, vocal, piano, horns, strings, and more
  UPC: 608766969793
• ART PRO MPA II - Microphone Preamplifier The Pro MPA II from ART is a 2-channel microphone preamplifier that delivers a total of 70dB of gain, and can operate in either stereo or dual-mono mode. Perfect for any sized studio, production facility, or live sound environment, the preamp provides variable input impedance, and a dual-tube gain stage with selectable plate voltages (high or normal). The unit has the ability to process a mid/side microphone set-up, and can also function as a dual-channel DI box using the 2 front panel instrument inputs. Two backlit VU meters display output level, while multi-colored LED arrays provide a visual reference of tube gain for each channel. The Pro MPA II is rack mountable and housed in a sturdy, 2U steel chassis.
  • 2-channel, variable input impedance microphone preamplifier
  • Tube based gain stage with selectable plate voltages
  • Instrument input on front panel with automatic input selection
  • Selectable Stereo/Dual operation of output controls
  • Variable low-cut filter per channel
  • Switchable +48V phantom power per channel
  • Supports Mid/Side miking technique
  • Large, dual, back-lit VU meters
  • Phase reverse per channel
  • Switchable for either +4dBu or -10dBV output
  UPC: 840402018360
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (15') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558281

• FAT HEAD Ribbon Microphones (Brown Body and Gold Grill, Stock Transformer, Pair) dbvfuxxeaayefvuubwybxwercbwafbqer
• Stereo Blumlein Bar
• 2 x Premium Suspension Shockmounts
• Hard Travel Case
• Limited 5-Year Warranty
• Limited 1-Year Warranty on Ribbon Capsules

• ART - PRO MPA II - Microphone Preamplifier

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Cascade Microphones FAT HEAD Ribbon Microphones (Brown Body and Gold Grill, Stock Transformer, Pair)

  Transducer	Ribbon
  Polar Pattern	Figure-8
  Frequency Range	25 Hz to 16 kHz
  Maximum SPL	135 dB SPL
  THD	1%
  Impedance	200 Ohms
  Load Impedance	1000 Ohms
  Sensitivity	-54 dB -56 dB -58 dB

  Output Connectors	1 x 3-Pin XLR
  Length	6.5" / 165.10 mm
  Diameter	3" / 76.20 mm

  Box Dimensions (LxWxH)	17.1 x 12.9 x 4.7"

• ART PRO MPA II - Microphone Preamplifier

  Number of Channels	2
  Inputs	2 x XLR 2 x 1/4" TS phone Instrument (front panel)
  Output	2 x XLR 2 x 1/4" TRS phone
  Phantom Power	+48VDC, individually switchable
  Multi Function	No
  Gain Range	70dB
  Maximum Output Level	+27dBu
  Frequency Response	15Hz to 48kHz, +0/-1dB @ normal plate voltage 15Hz to 120kHz, +0/-1dB @ high plate voltage
  Noise	EIN: -129dBu, A-weighted
  Power Requirements	105~125VAC, 60Hz
  Dimensions (WxDxH)	19 x 8.75 x 3.5" (483 x 222 x 89mm)
  Weight	10.5 lbs (4.7kg)
  Specialties	Microphone impedance variable from 150Ω to 3kΩ Supports Mid/Side microphone recording

  Box Dimensions (LxWxH)	21.8 x 11.0 x 5.3"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 15' (4.6 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	15' / 4.6 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	5.8 x 2.9 x 1.3"
