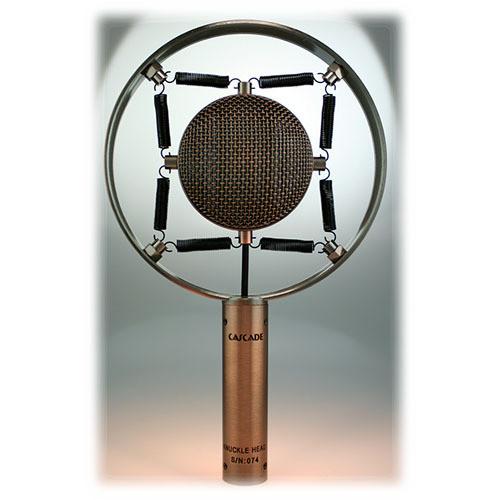

User Manual for Cascade Microphones Knuckle Head Short Ribbon Microphone with Distressed Antique Copper Finish Click to enlarge the picture
Contents of the user manual for the Cascade Microphones Knuckle Head Short Ribbon
- Product category: Ribbon Microphones Cascade Microphones
- Brand: Cascade Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cascade Microphones Ribbon Microphones
|
User manual for the Cascade Microphones Knuckle Head Short Ribbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cascade Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cascade Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cascade Microphones product will considerably shorten its lifespan!
|
Product description The Knuckle Head Short Ribbon Microphone with Distressed Antique Copper Finish from Cascade Microphones is a passive ribbon microphone that combines the acoustic components of the Fat Head ribbon mic with a shockmounted headbasket design reminiscent of early broadcast microphones. The ribbon motor uses Neodymium magnets surrounding a 2.2-micron corrugated aluminum ribbon measuring 5mm x 45mm. The ribbon is mounted symmetrically within the magnetic gap, designed so the front and back of the mic produces the same voicing. The ribbon motor and headbasket are suspended within a 6-inch diameter metal hoop by eight springs. The output transformer is located within the cylindrical shaft below the shockmount hoop. - Passive ribbon mic that combines the acoustic components of the Fat Head ribbon with a shockmounted headbasket design reminiscent of early broadcast microphones
- Ribbon motor uses Neodymium magnets surrounding a 2.2-micron corrugated aluminum ribbon measuring 5mm x 45mm
- Symmetrically mounted ribbon within the magnetic gap designed so the mic produces the same voicing from the front and back
UPC: 608766969878 In the Box Cascade Microphones Knuckle Head Short Ribbon Microphone with Distressed Antique Copper Finish (Lundahl LL2912 Transformer) Aluminum Case Premium Adjustable Mounting Clip Microfiber Cleaning Cloth Limited 5-Year Warranty Limited 1-Year Warranty on Ribbon Capsule Table of Contents
|
Upload User Manual
Have you got an user manual for the Cascade Microphones Knuckle Head Short Ribbon Microphone with Distressed Antique Copper Finish in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCascade Microphones 97-CL-A Specs | | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 25 Hz to 16 kHz | | Maximum SPL | 135 dB SPL | | THD | 1% | | Impedance | 200 Ohms | | Load Impedance | 1000 Ohms | | Sensitivity | -54 dB
-56 dB
-58 dB | | | | Output Connectors | 1 x 3-Pin XLR | | Length | 10" / 254.00 mm | | Diameter | 3" / 76.20 mm | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 12.0 x 10.0 x 0.3" |
