User Manual for Cascade Microphones V55 Large-Diaphragm Multi-Pattern Tube Microphone Click to enlarge the picture
Contents of the user manual for the Cascade Microphones V55 Large-Diaphragm Multi-Pattern Tube
- Product category: Tube Microphones Cascade Microphones
- Brand: Cascade Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cascade Microphones Tube Microphones
 |
User manual for the Cascade Microphones V55 Large-Diaphragm Multi-Pattern Tube contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cascade Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cascade Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cascade Microphones product will considerably shorten its lifespan!
|

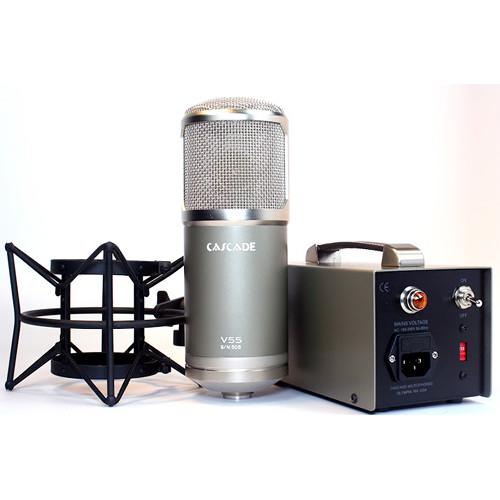

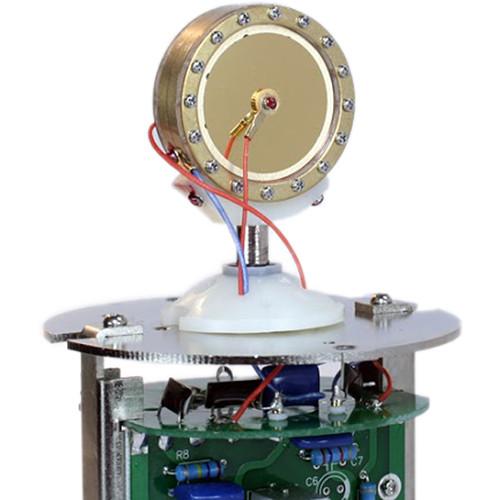

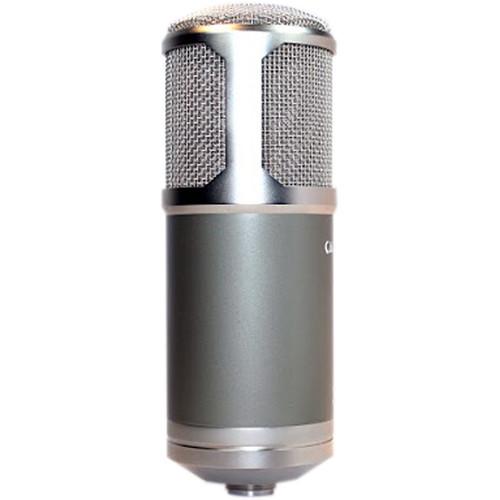

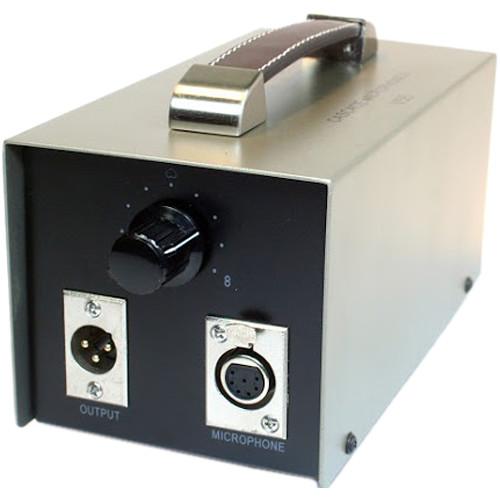

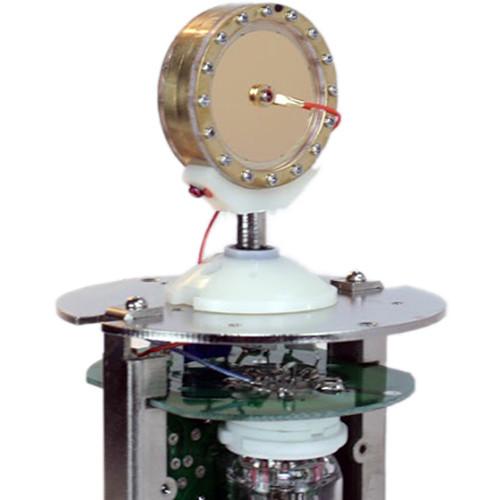

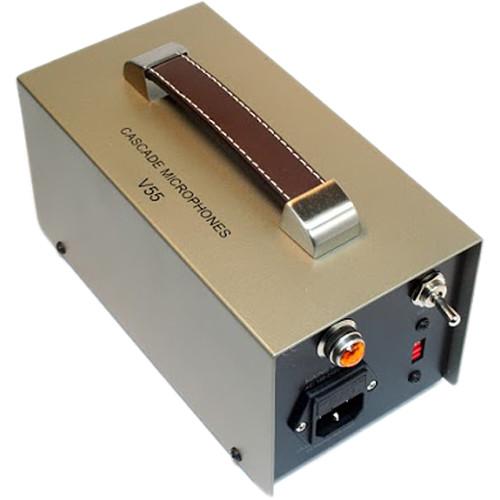

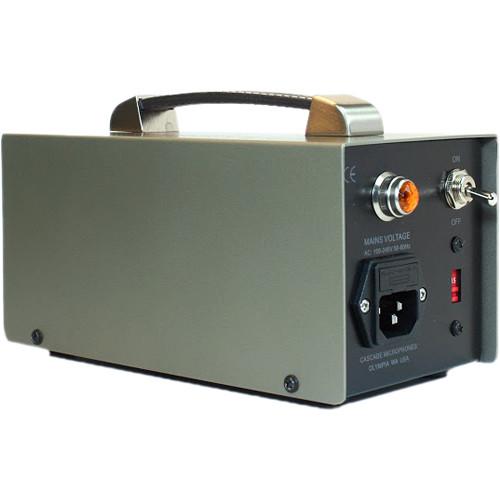

Product description The V55 from Cascade Microphones is a multi-pattern tube condenser microphone featuring an oversized dual-backplate, 6-micron, 35mm capsule for capturing audio. The microphone has 9 polar patterns which include omni, cardioid, figure-8, and 6 intermediate stages that are selectable on the custom vintage-style power supply. It can be used in several recording applications for acoustic and electric guitars, vocals, horns, strings, drums and more.The tube preamp circuit uses a hand-selected EH 6072a vacuum tube, which can be combined with a variety of other 7-pin preamp tubes for optimizing the tone of the mic. Finally, the V55 microphone is fitted with a Lundahl LL 1935 transformer making it a suitable choice for recording in studio applications. - Oversized dual-backplate 6-micron, 35mm capsule
- Built-in Swedish-made Lundahl LL1935 transformer
- Front and rear sides of the capsule are matched to within 1 dB in sensitivity
- Diaphragm diameter: 27.1mm
Capsule depth: 12.3mm - Membrane composition: 6-micron Mylar, gold-sputtered

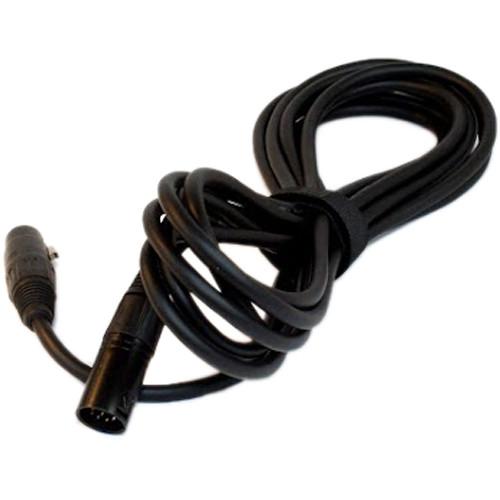

In the Box Cascade Microphones V55 Large-Diaphragm Multi-Pattern Tube Microphone 2 x EH 6072/12AY7 Russian Tubes 15' Mogami Microphone Cable with Neutrik 7-Pin XLR Suspension Shockmount Leatherette Storage Pouch Microfiber Pouch Classic Tweed Flight Case Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Cascade Microphones V55 Large-Diaphragm Multi-Pattern Tube Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCascade Microphones 55-V-A Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 1.07" / 27.1 mm | | Tube | Yes | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Continuously Variable | | Frequency Range | 20 Hz to 20 kHz | | Equivalent Noise Level | 16 dB A-Weighted | | Maximum SPL | 34 dB SPL RMS | | THD | 0.5% | | Impedance | 200 Ohms | | Sensitivity | 25 mV/Pa | | | | Output Connectors | 1 x 3-Pin XLR
1 x 7-Pin XLR | | Cable Length | 15' / 4.6 m | | Weight | 3 lb / 1.36 kg |
