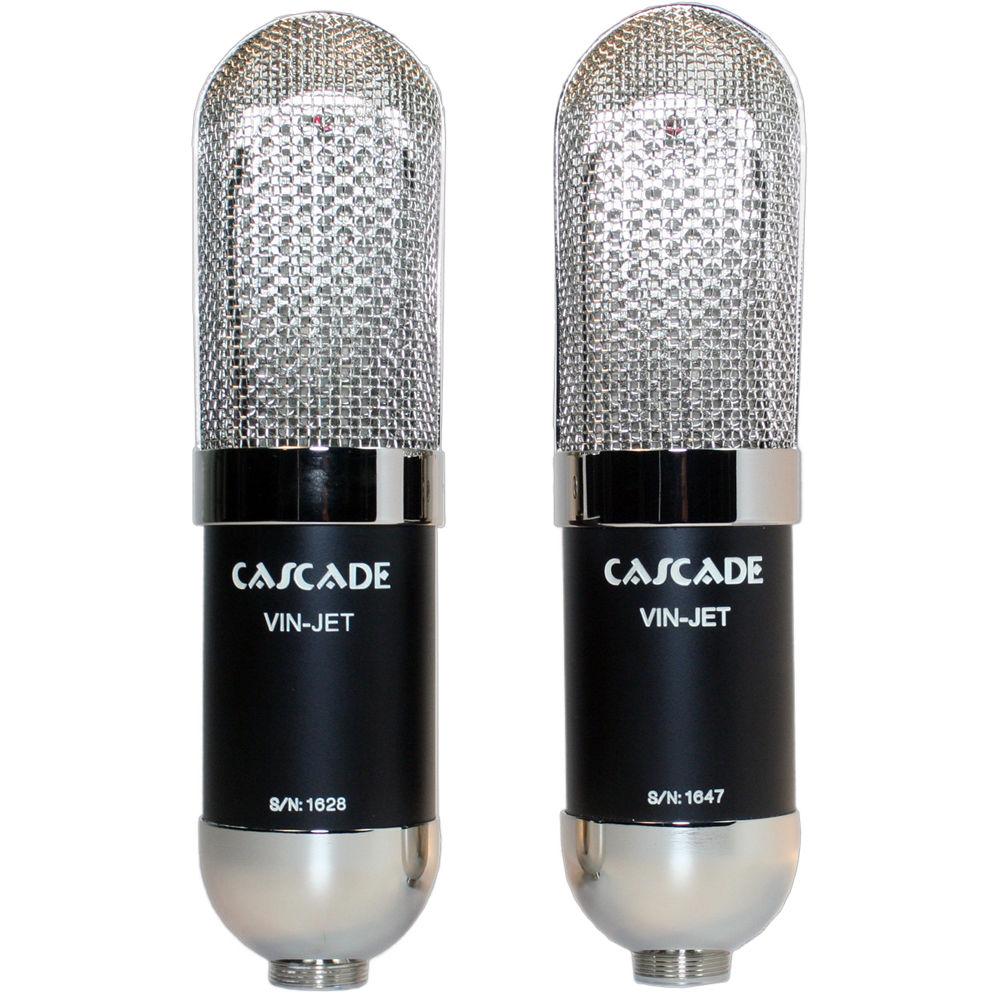

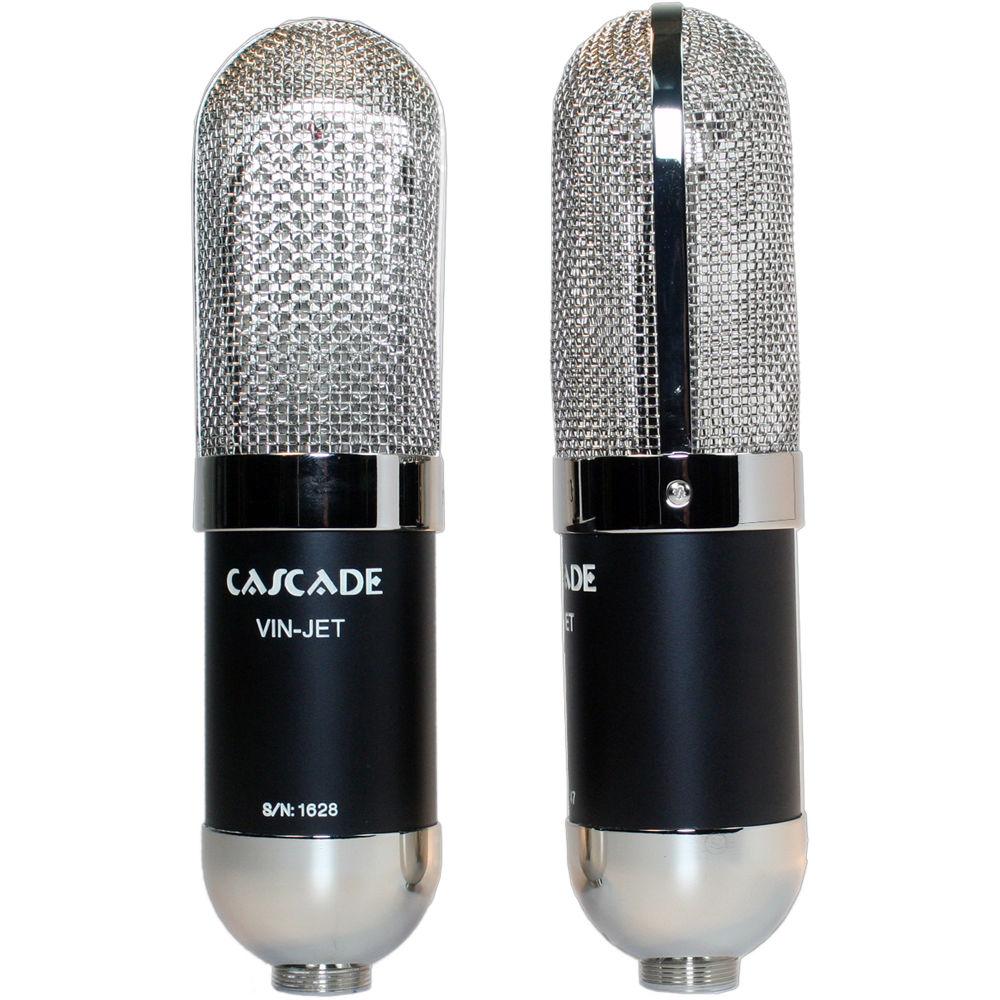

User Manual for Cascade Microphones Vin-Jet Long-Ribbon Microphone with Lundahl Transformer Click to enlarge the picture
Contents of the user manual for the Cascade Microphones Vin-Jet Long-Ribbon Microphone with
- Product category: Ribbon Microphones Cascade Microphones
- Brand: Cascade Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cascade Microphones Ribbon Microphones
 |
User manual for the Cascade Microphones Vin-Jet Long-Ribbon Microphone with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cascade Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cascade Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cascade Microphones product will considerably shorten its lifespan!
|
Product description This stereo pair of Vin-Jet Long-Ribbon Microphones with Lundahl Transformers from Cascade Microphones is best suited for recording vocals, guitars, drum overheads, strings sections, and orchestral performances in controlled studio situations. The Vin-Jet's sensitive aluminum ribbon is suspended between two powerful neodymium magnets and delivers a warm & natural sound with fast transient response, extended sweet spots, and distortion-free, high-SPL handling (up to 135 dB). With its custom winding and core materials, the Lundahl LL-2913 transformer offers improved definition with extended high- and low-end reproduction. Using the included Blumlein stereo bar, these two microphones can be positioned on top of each other at 90° for stereo recording. Their wide figure-8 patterns pick up the sound on the front and rear and leave large nulls on either side, for accurate spatial imaging and ambience capture. The microphones are phantom-power-safe and equipped with an open grille (without screening added) for an open and detailed sound. The pair comes with two premium shockmounts, a microfiber cleaning cloth, and an aluminum flight case. - Lundahl LL-2913 transformers
- Figure-8, symmetrical-design polar pattern
- Ideal for Blumlein stereo-miking technique
- Ribbon is 99% pure aluminum, 2.5µ thick, and 2.43 x 0.18"
- Ribbon is suspended between a pair of powerful neodymium rare-earth permanent magnets
- Can handle up to 135 dB SPL for miking guitar cabinets and drum overheads
- Fast transient response, extended low- and high-end reproduction, and wide sweet spots
- Open grille design with no interior grille screening, for an open and detailed sound
- Stereo Blumlein bar and aluminum flight case included
UPC: 608766969892 In the Box Cascade Microphones Vin-Jet Long-Ribbon Microphone with Lundahl Transformer (Stereo Pair) 2 x Premium Shockmounts Stereo Blumlein Bar Aluminum Flight Case Microfiber Cleaning Cloth Limited 5-Year Warranty Limited 1-Year Warranty on Ribbon Capsules Table of Contents
|
Upload User Manual
Have you got an user manual for the Cascade Microphones Vin-Jet Long-Ribbon Microphone with Lundahl Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCascade Microphones 201-BL-A Specs | | | Transducer | Ribbon | | Polar Pattern | Figure-8 | | Frequency Range | 25 Hz to 16 kHz | | Maximum SPL | 135 dB SPL | | Sensitivity | 54.8 dB | | | | Length | 8.375" / 212.72 mm | | Diameter | 2.125" / 53.97 mm | | | | Package Weight | 11.8 lb | | Box Dimensions (LxWxH) | 19.8 x 14.9 x 6.3" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
