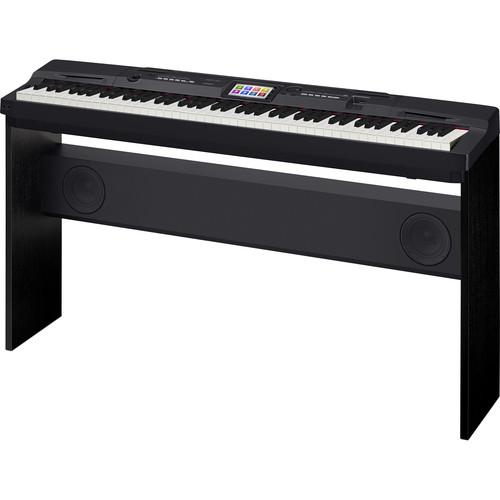

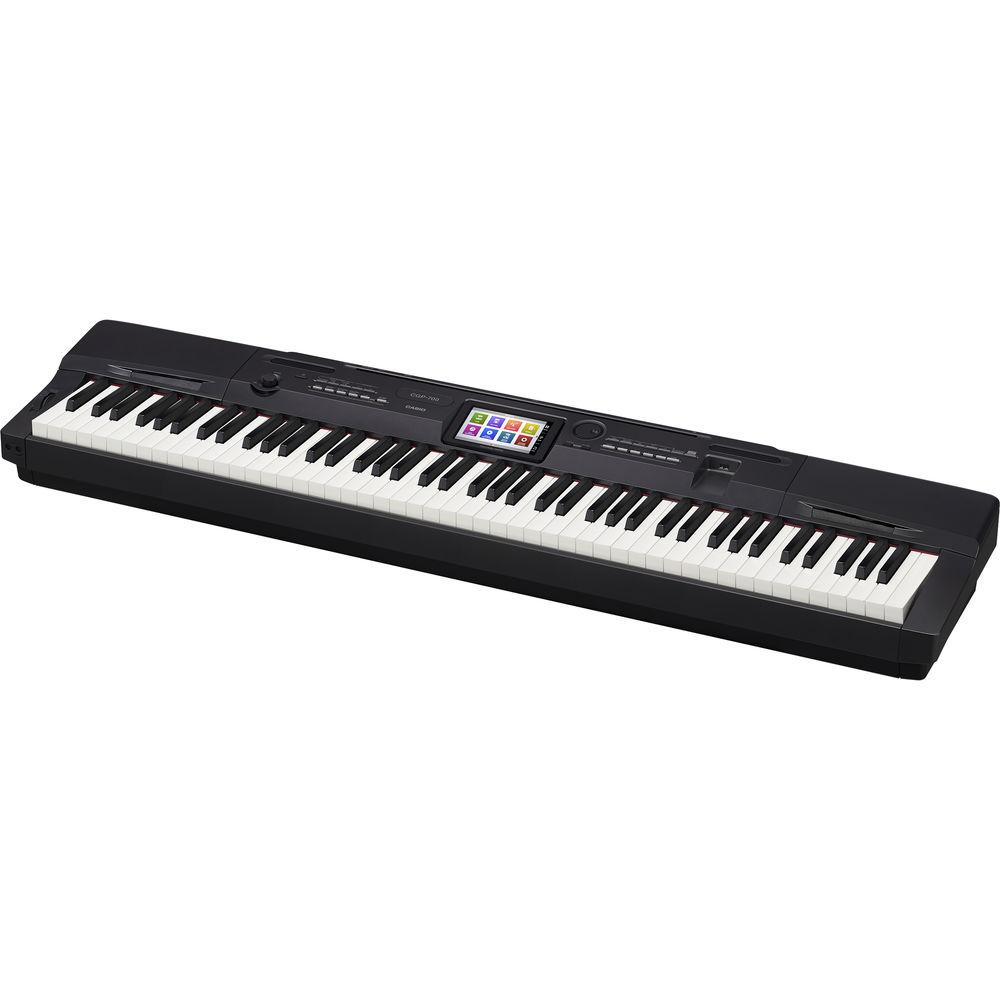

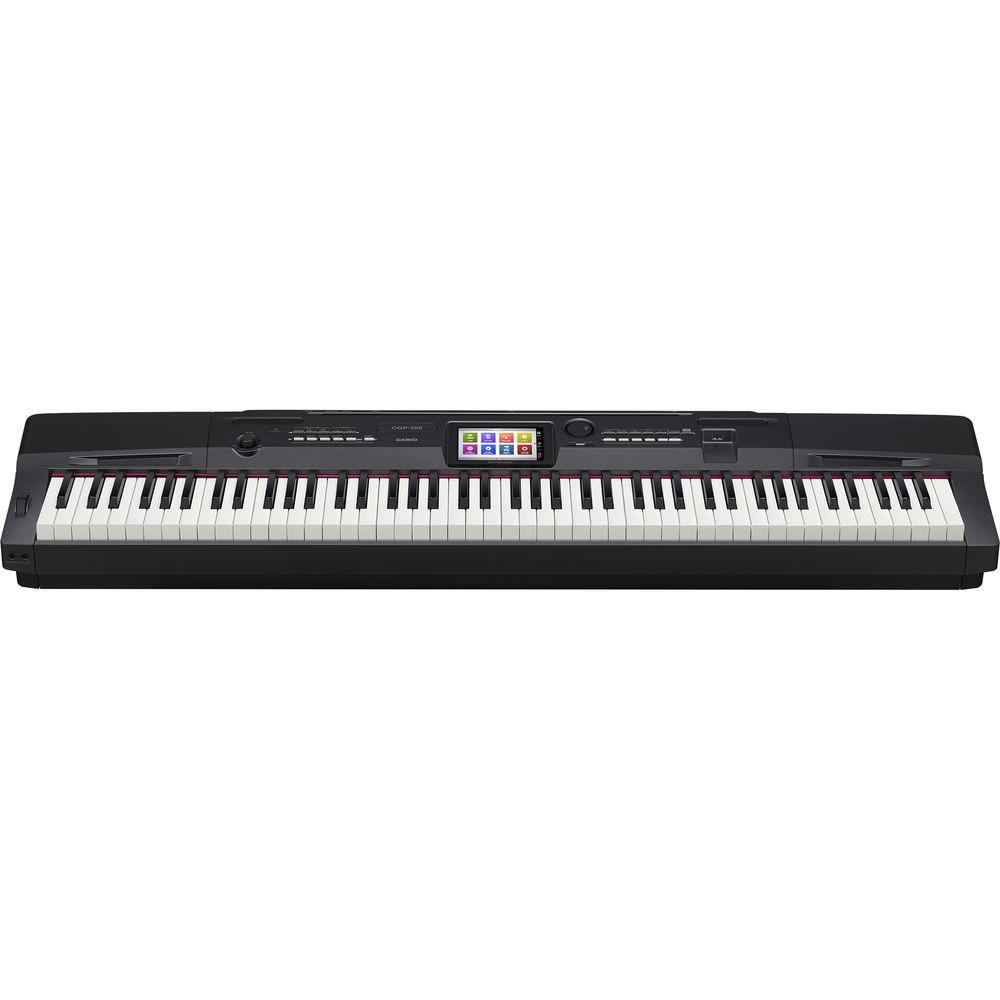

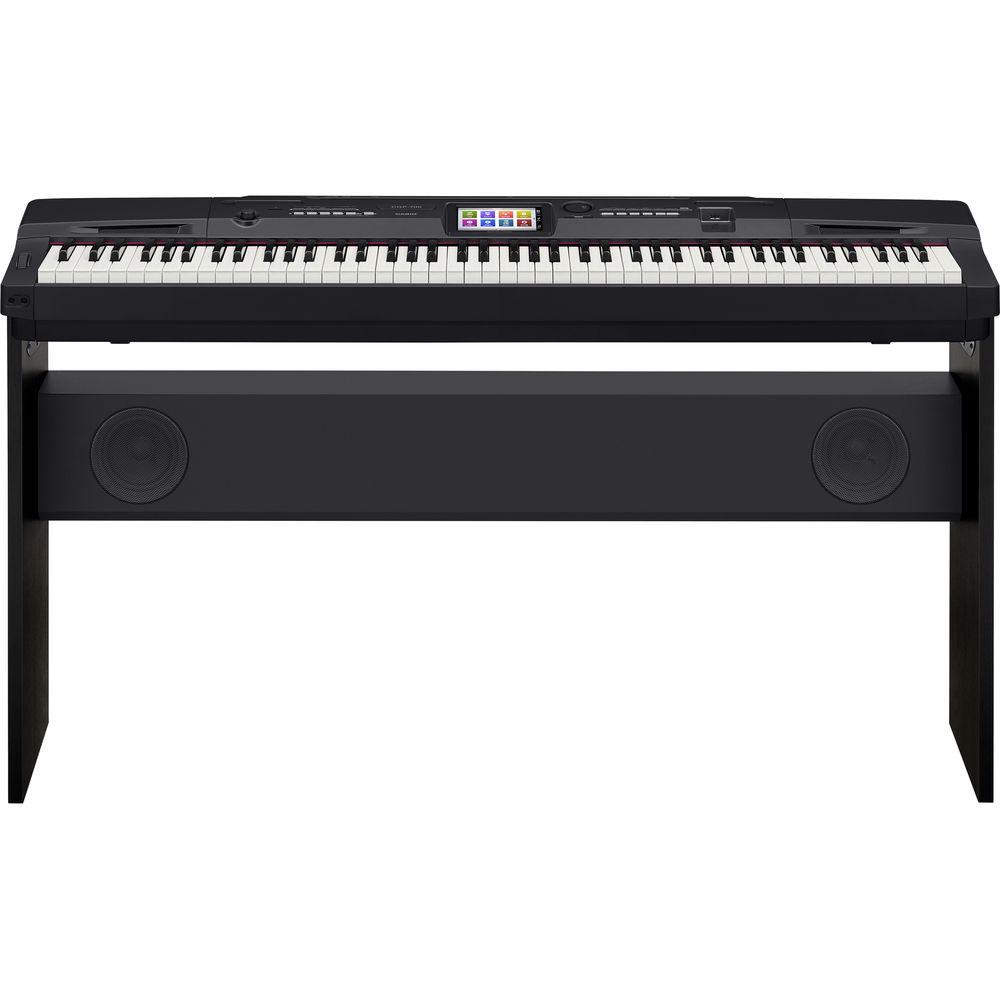

User Manual for Casio CGP-700 Compact Grand Piano with Stand & Pedal Click to enlarge the picture
Contents of the user manual for the Casio CGP-700 Compact Grand Piano with
- Product category: Digital Pianos Casio
- Brand: Casio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Casio Digital Pianos
 |
User manual for the Casio CGP-700 Compact Grand Piano with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Casio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Casio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Casio product will considerably shorten its lifespan!
|
Product description The black CGP-700 from Casio is a compact grand piano that has a six-speaker sound system, 550 different tones, 200 ensemble rhythms, and a Tri-Sensor Scaled Hammer Action II 88-note keyboard. It can be used in applications for home, live stage, recording studios, and more.The CGP-700 is loaded with impressive features, starting with the 5.3" color touchscreen. Navigating through the tones and rhythms with touch and swipe gestures is a breeze. It also has a Grand Piano button, which gets you to the grand piano sound instantly. The transpose buttons allow you to quickly shift to a different key. In addition, you'll find instant settings to adjust the piano for rock, jazz, classical, and other styles to suit your needs.Some other features include a USB port to connect to a PC, Mac, or other devices such as an iPad. The CGP-700 has both MIDI and USB audio recorders and allows you to transfer your recordings to a computer to share your music. There is a powerful effects system with reverbs, delays, and other effects such as rotary speakers for organs and phasers for electric pianos. Select one of the 200 ensemble rhythms to accompany your playing; it's like having a backing band that reacts to the chords you play.Furthermore, the CGP-700 is suitable for any educational environment. Duet Mode splits the keyboard into two equal ranges, so two people can play side by side on one instrument. An additional Classroom Mode splits the keyboard and configures the audio outputs to work with third party piano lab systems. The front panel also has two headphone jacks for a teacher and student.Finally, the CGP-700 delivers an authentic sound and feel with its six-speaker sound system and Tri-Sensor Scaled Hammer Action keyboard. An SP-3 sustain pedal, a stand, and an AC adapter are included. - 6 Speakers
- The CGP-700 has four speakers in the top panel, and two low-frequency speakers in its included stand, with a total of 40 watts of power. Whether you're enjoying the 9-foot concert grand piano, playing along with the built-in rhythms, or listening to your MP3 player via the stereo aux input, the 3-way speaker system fills the room with sound.
- Scaled Hammer Action Keyboard
- Casio's Tri-Sensor Scaled Hammer Action II 88-note keyboard accurately recreates the touch and response of a concert grand piano with 127 times the resolution of traditional keyboards. Suitable for the most demanding pianist, this keyboard also enables beginning players to develop proper playing technique.
- World-Class Piano Sounds
- The CGP-700's 9-foot concert grand piano sound is as impressive as it is thanks to a meticulous recording session using over two dozen microphones for audio capture. The result is an expressive concert grand piano that can be used in stereo or mono, and even includes damper resonance simulation.
- Sounds, Rhythms, and More
- The CGP-700 goes far beyond piano, with 550 different instrument tones. You'll find a variety of guitars, strings, basses, drums, synths, and more. There is also a powerful effects system with reverbs, delays, and other essential add-ons such as rotary speakers for organs, and phasers for electric pianos.
- Keep Your Creations
- When you are inspired, it's quick and easy to record your performance. The CGP-700 includes both MIDI and USB audio recorders. Transfer your recordings easily to a computer to share your music.
UPC: 079767362218 In the Box Casio CGP-700 Compact Grand Piano with Stand & Pedal (Black) SP-3 Sustain Pedal Stand AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Casio CGP-700 Compact Grand Piano with Stand & Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCasio CGP-700 Specs | Keyboard | Tri-sensor Scaled Hammer Action keyboard
Simulated ebony and ivory keys
3 sensitivity levels, off | | Polyphony | 128 notes | | Sound Source | MXi (Multi-Expressive Integrated) sound source | | Tones | 550 | | Duet Mode | Yes | | Octave Shift | Yes | | Layer/Split | Yes | | Simulator | Acoustic piano tones
Damper resonance & damper noise | | Audio Recorder | 100 songs
Recording/Playback Format: .wav (16-bit, 44.1 kHz, stereo)
Length per Song: Approx 74 minutes | | MIDI Recorder | 100 songs, 16 multi-track + 1 system track, approx. 50,000 notes, real-time recording, punch-in/out
Song & Track Edit: Delete, copy, rename | | Digital Effects | Reverb: 17 types
Chorus: 16 types
Delay: 6 types
DSP (preset for some tones) | | Auto Harmonize | Yes | | Key Transpose | 25 steps (-12 semitones ~ 0 ~ +12 semitones) | | Tuning | Control: A4 = 415.5 ~ 440.0 ~ 465.9 Hz | | Temperament | Preset: 17 types | | Rhythm Patterns | 200 built-in rhythms, one-touch preset | | Music Presets | 305 (including chord progressions) | | Registration | 96 (4 areas x 24 banks) | | Demo Songs | 6 | | Lesson | Function: Part on/off (16-channel mixer) | | Metronome | Yes | | Tempo Setting | 20 to 255 BPM (tapping function) | | Display | 5.3" / 13 cm color touch panel | | Pitch Bend Wheel | Yes | | Terminals | USB port (to host), USB flash drive port, pedal (1 damper), connector for 3-pedal unit
2 x 1/8" / 3.5 mm mini-jack headphone on front
Line out (L/Mono, R: 1/4" / 6.3 mm jack
Audio in: 1/8" / 3.5 mm stereo mini-jack
Speaker jack (for included speaker stand) | | Speakers | 2 x tweeters 2" / 5 cm (on keyboard)
2 x round speakers 4.7" / 12 cm (on keyboard)
2 x round speakers 4.7" / 12 cm (in stand) | | Amplifier | 20 W + 20 W | | Power Source | 24 VDC | | Power Consumption | 20 W | | Auto Power Off | Yes | | Dimensions (W x D x H) | 52 x 11.5 x 5.5" / 132 x 29.2 x 14.0 cm (without stand)
52 x 11.5 x 31.2" / 132 x 29.2 x 79.2 cm (with stand) | | Weight | 26.2 lb / 12 kg (without stand)
56.7 lb / 26 kg (with stand) | | | | Package Weight | 72.2 lb | | Box Dimensions (LxWxH) | 58.0 x 15.0 x 15.0" |
