User manual
Casio PX-S1000 Digital Piano Essentials Stage

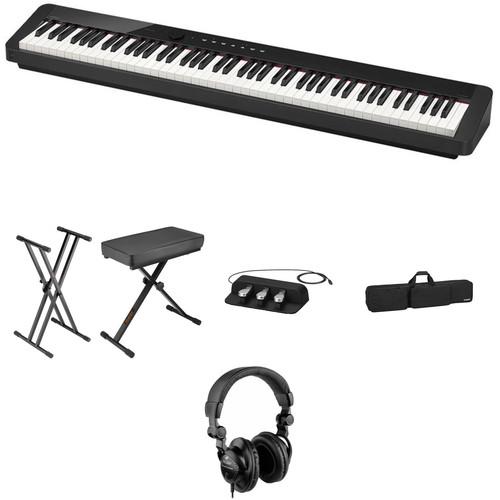

User Manual for Casio PX-S1000 Digital Piano Essentials Stage Bundle Kit

• Product category: Digital Pianos Casio
• Brand: Casio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Casio Digital Pianos

Product description

• Casio PX-S1000BK Privia 88-Key Digital Piano (Black)
  • CASIO "Privia" PX-S1000 / PX-S3000 Promotion Video
  The black PX-S1000BK Privia 88-Key Digital Piano from Casio features a scaled, hammer-action keyboard that provides built-in speakers, eighteen built-in tones with layer, split, and duet modes and is designed to fit in any room, with any decor, and with any mood. Five Sensitivity levels, 192-note maximum polyphony, and an acoustic simulator, result in string resonance, damper resonance, and key-action noise to offer a grand piano sound with seamless transitions and excellent dynamic range.Along with the grand piano sound in the Privia keyboard, you'll also find lifelike tine and reed electric pianos, organs, strings, vibraphone, and harpsichord sounds. It is equipped with digital effects like reverb, surround, chorus, and preset DSP for some tones. Additional features include: connectivity to Chordana Play for Piano (download), Bluetooth audio, a 2-track recorder, octave shift, metronome, and equal temperament variations with key-transpose functions.Two headphone jacks, two pedal connectors (connector for 3-pedal unit), and USB audio and Host connections are featured on the back of the unit. An AC adapter is included with the option to use six AA alkaline batteries to power the Privia 88-Key Digital Piano. An SP-3 pedal and a music stand are also included.
  Designed Inspiration
  • The PX-S1000's design fits any room, any decor, and any mood. The black finish with its sleek glossy panel and unibody case evokes an acoustic grand in a case that's barely larger than the keys themselves.
  The Perfect Touch
  • The touch of the PX-S1000 is due to the updated and designed fully weighted smart-scaled, hammer-action keyboard, which delivers an authentic and uncompromising piano touch with an incredibly small footprint. Casio's proprietary key-scaling system reproduces the individual characteristics of each of the 88 keys, while ebony and ivory key textures ensure confident playing in any climate.
  Piano and Beyond
  • The PX-S1000 includes 18 tones including a breathtaking acoustic grand piano. Advanced string resonance exposes the harmonic relationships between vibrating strings, while damper resonance adds depth and richness. You'll even hear the damper rise and fall when the pedal is pressed along with the subtle mechanical sound of the keys being played and returning to their original position. Hammer response and key-off simulation deliver even greater detail, reacting naturally to your playing dynamics. Along with piano, you'll find lifelike tine and reed electric pianos, organs, strings, vibraphone, harpsichord and more.
  Now Your See It
  • The PX-S1000's touch sensor controls are revealed only when the power button is pressed and are easy to see and use in any light. They fade away when powered off, leaving only a clean, seamless top panel.
  Blue Notes
  • Integrated Bluetooth audio lets you connect your device wirelessly to the PX-S1000, playing your music through its powerful stereo amplification system. Now, instead of just enjoying your favorite music, you can join the band.
  Stereo Speaker System
  • A stereo speaker system delivers crystal-clear sound towards both the player and the audience and is engineered to sound accurate when facing a wall, placed on a table, or in an open performance space. The speakers project towards the player from subtle ports just above the keys and towards the audience from rear-facing drivers behind a beautifully designed grill. Two headphone jacks allow quiet play at any time. The PX-S1000's newly developed Sound Mode gives your playing new perspective. You can select from four types of hall simulations to place your PX-S1000 in the virtual concert space of your dreams.
  The Perfect Fit
  • Privia pianos are already known for replicating grand piano sound and feel in a compact package, but the PX-S1000 will make you rethink how portable a piano can be. It's 43% smaller than previous generation Privias and takes up literally less than half as much space as its competition while retaining true piano touch and sound. It fits anywhere you need it to: on a table, on a counter, on a desk, on your bed, the list goes on. Weighing under 25 pounds and with optional 6 x AA battery power, the possibilities are endless.
  Connect and Create
  • Download the free Chordana Play for Piano app (available on Google Play and the iTunes Store) and customize your PX-S1000 to suit your mood. Change instrument settings, control the MIDI recorder, and interact with MIDI files from your favorite device. View PDF scores, and use the optional SP-34 3-pedal unit (or third-party Bluetooth-compatible pedals) to turn pages while playing. You can even learn your favorite songs with a graphical piano roll which grades you on how well you play.
  In Command
  • The PX-S1000 is also an ideal master controller for your home studio. It's more affordable than most dedicated 88-key MIDI controllers, delivers a piano feel, and includes a collection of studio-quality sounds. Best of all, it fits easily into any desk designed to hold an 88-note instrument with room to spare. Class-compliant USB means you can connect to any Mac/Windows/iOS/Android device with no drivers or installation needed.
  Piano to Go
  • When it's time to play out, the PX-1000's lightweight and slim design will make you wonder why you ever used anything else. The optional carrying case (sold separately) includes space for the PX-S1000, its music rest, and the portable SP-34-pedal unit (sold separately). Connect via left & right 1/4" outputs to any amplification or recording destination.
  Higher Education
  • Like all Privia instruments, the PX-S1000 features Duet mode, which splits the keys into two equal pitch ranges for performances or educational settings. A teacher and student, or two students, can be seated at the same instrument. The PX-S1000's Duet mode also has a Pan feature, which allows true two-student-per-instrument compatibility with all popular piano-lab systems.
  UPC: 079767362478
• Auray KSPL-2X Double-X Keyboard Stand with Pull Lock
  • CASIO "Privia" PX-S1000 / PX-S3000 Promotion Video
  The KSPL-2X Double-X Keyboard Stand with Pull Lock from Auray is a keyboard stand that holds up to 154 pounds and features sturdy metal construction for strength and enhanced stability. A spring-loaded pull lock with five preset heights makes it easy to adjust. There are non-slip end rings on crossbars to ensure the keyboard doesn't move once it's on the stand, and additional traction for the feet to prevent the stand from shifting. The removable end caps allow you to mount a 2nd tier (sold separately).
  Sturdy Double-X Design
  • The KSPL-2X's sturdy metal construction and double-X design provide solid stability for your keyboard or gear and support for up to 154 pounds. It conveniently folds up for easy transport and storage.
  Adjustable Height
  • The spring-loaded pull lock with five preset heights allows for precise adjustment. Whether you prefer to play while you're sitting or standing, you can position your keyboard at a comfortable height.
  Second Tier
  • The KSPL-2X accepts a second tier (available separately). The end caps can be removed so you can install the second-tier add-on.
  Non-Slip Rubber Rings
  • Non-slip rubber rings on the crossbars ensure that your keyboard doesn't move once it's on the stand. They also offer additional traction for the feet to prevent the stand from shifting.
  UPC: 847628598164
• Auray PBS-24 X-Style Piano Bench (Black, Large)
  • CASIO "Privia" PX-S1000 / PX-S3000 Promotion Video
  The large black Auray PBS-24 is a lightweight X-style piano bench designed to provide stability, comfort, and support for keyboardists and pianists on stage, at home and rehearsals, or in the studio. Its strong steel frame supports a weight capacity of up to 240 lb. Courtesy of four height positions, the bench can be adjusted from 19 to 25” tall.The 24 x 12” seat features 3” of high-density foam for padding that offers both comfort and support, even for long sessions. Setup is simple and quick due to the double spring-loaded locks and X-style design, which folds flat to minimize space during transport and storage.
  Foldable X-Style
  • The X-style design is lightweight and foldable to allow for space-saving storage and transport
  Adjustable Height
  • Four positions yield a height range from 19 to 25"
  Comfortable Support
  • The seat is loaded with 3" of high-density foam, which delivers supportive cushioning to keep you comfortable through long practices and gigs
  Solid Durability
  • The strong steel frame offers tour-ready toughness and a weight capacity of up to 240 lb
  Fast Setup
  • The design is optimized for minimal setup time; simply adjust the double spring-loaded locks, then have a seat
  UPC: 847628003217
• Casio SP-34 Triple Pedal
  • CASIO "Privia" PX-S1000 / PX-S3000 Promotion Video
  The SP-34 Triple Pedal from Casio is designed for Casio's PX-S1000 and PX-S3000 Privia digital pianos. It can be used to configure sustain, soft, and sostenuto pedal functions and has an extended damper function that simulates the response of a half-pressed pedal on acoustic grand pianos. UPC: 079767349561
• Casio SC-800 Keyboard Case
  • CASIO "Privia" PX-S1000 / PX-S3000 Promotion Video
  The SC-800 Keyboard Case from Casio is a slimline, water-repellent, nylon softcase for the PX-S1000 and PX-S3000 Privia digital pianos. It can be used to transport the 88-note keyboard and is built with two zippered pouches on the front for accessories and cables. It is equipped with a durable carry handle.
• Polsen HPC-A30 Closed-Back Studio Monitor Headphones
  • CASIO "Privia" PX-S1000 / PX-S3000 Promotion Video
  The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488

• PX-S1000BK Privia 88-Key Digital Piano (Black) aeyvxdvavqvuacwasu
• AC Power Adapter
• Music Stand
• SP-3 Sustain Pedal
• Limited 1-Year Warranty

• Auray - KSPL-2X Double-X Keyboard Stand with Pull Lock aeyvxdvavqvuacwasu

• Auray - PBS-24 X-Style Piano Bench (Black, Large)

• SP-34 Triple Pedal

• SC-800 Keyboard Case

• Polsen - HPC-A30 Closed-Back Studio Monitor Headphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Casio PX-S1000BK Privia 88-Key Digital Piano (Black)

  Keyboard	88 Full-Size Keys, Graded/Scaled-Hammer Action
  Touch Response	5 Levels of Sensitivity, Plus Fixed

  Number of Sound Presets	18 x Sounds
  Number of Song Presets	60 x Demo 1 x User
  Effects	Brilliance, Chorus, Reverb
  Maximum Polyphony	192 Notes
  Performance Functions	Duet Mode, Split/Layer, Temperament Adjustment, Transpose, Tuning Adjustment

  Supported MIDI Standards	GM

  I/O	2 x 1/8" / 3.5 mm TRS Headphone Output 2 x 1/4" TS Mono Output 1 x 1/8" / 3.5 mm TRS Stereo Input
  Pedal Support	2 x 1/4" TS Damper
  Data Port	1 x USB Type-A (Computer Transfer, MIDI)
  Bluetooth	Yes (Audio, MIDI)
  OS Compatibility	iOS Android

  Amplifiers	2 x 8 W
  Oval Speakers	2 x 6.3 x 3.15" / 16 x 8 cm

  AC/DC Power Adapter	AD-A12150 (Included)
  Battery Type	6 x AA

  Display	None
  Included Accessories	Damper Pedal, Music Rest
  Dimensions	52.0 x 9.0 x 4.0" / 132.1 x 22.9 x 10.2 cm (Keyboard Only)
  Weight	24.7 lb / 11.2 kg (Keyboard Only)

  Box Dimensions (LxWxH)	57.0 x 12.0 x 8.0"

• Auray KSPL-2X Double-X Keyboard Stand with Pull Lock

  Material of Construction	Metal tubing
  Locking Positions	5
  Finish	Black Matte
  Height Range	24.75 to 37.25" / 62.9 to 94.6 cm
  Maximum Weight Capacity	154.3 lb / 70 kg
  Dimensions (D x W x H)	Folded: 18.5 x 38.5 x 2.75" / 47.0 x 97.8 x 7.0 cm
  Weight	9.2 lb / 4.17 kg

  Box Dimensions (LxWxH)	40.0 x 19.0 x 4.0"

• Auray PBS-24 X-Style Piano Bench (Black, Large)

  Construction Material	Steel
  Height	19 to 25" / 483 to 635 mm
  Seat Size (WxD)	24 x 12" / 610 x 305 mm
  Cushion Depth	3" / 76 mm
  Weight Capacity	Up to 240 lb / 108.9 kg
  Weight	14.3 lb / 6.5 kg

  Box Dimensions (LxWxH)	31.0 x 13.5 x 6.5"

• Casio SP-34 Triple Pedal

  Compatible with	Casio Privia PX-S1000 and PX-S3000 Digital Pianos
  Dimensions	Not Specified by Manufacturer
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	16.3 x 7.7 x 4.5"

• Casio SC-800 Keyboard Case

  Number of Keys	88 Keys
  Carry/Transport Options	Top Handle
  Closure Type	Zipper
  Exterior Material	Nylon

  Box Dimensions (LxWxH)	55.5 x 12.75 x 7.5"

• Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"
