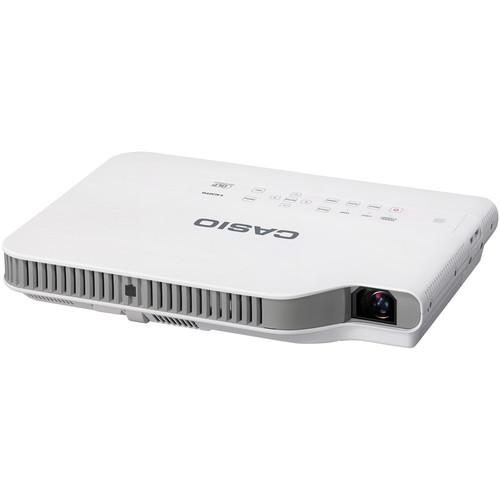

User Manual for Casio XJ-A242 Slim Series 16:10 Multimedia Projector Click to enlarge the picture
Contents of the user manual for the Casio XJ-A242 Slim Series 16:10 Multimedia
- Product category: Multimedia Projectors Casio
- Brand: Casio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Casio Multimedia Projectors
|
User manual for the Casio XJ-A242 Slim Series 16:10 Multimedia contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Casio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Casio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Casio product will considerably shorten its lifespan!
|
Product description The XJ-A242 Slim Series 16:10 Multi-Media Projector from Casio puts emphasis on portability, with a thickness of 1.7" and an adaptable 2x optical zoom and 1.2 to 2.2:1 throw ratio. The projector is perhaps most notable for its hybrid LED/laser light source that is estimated to last up to 20,000 hours and boasts lower power consumption (165 watts maximum) than tungsten-based alternatives. The light source generates 2500 lumens at full brightness, and the single-chip DLP imager features native resolution of 1280 x 800 (WXGA) which translates to a 16:10 aspect ratio. In addition, it can adapt to non-native resolutions up to 1600 x 1200 (UXGA) for computer sources and 1920 x 1080 (Full HD) for HDTV video sources.
For connection to a computer, Blu-ray or DVD player, A/V system, document camera, or just about any other video source, the XJ-A147 features an HDMI input, a VGA input, and a legacy composite input. The VGA input also supports component by using a separately available component (YCbCr/YPbPr) to VGA adapter or cable.
A wireless IR remote is included that works up to 16.4' away. For integration with automation systems like Crestron or control via custom software, there is an RS-232C port on a proprietary "mini" connector. You can adapt this port to work with standard 8- or 9-pin RS-232C cables and devices using the separately available YK-60 adapter and any additional RS-232 cables that might be required. - Laser/LED Hybrid Light Source
- Combines the light produced by a laser array and an LED lamp to provide a light source that is more energy efficient than conventional projector lamps. It features a brightness of 2500 lumens in normal mode and a life up to 20,000 hours
Note: The Slim Hybrid Light Source can only be replaced by the Casio Factory Service Center. Disassembly of the projector and/or use of its technology or components for other purposes is potentially dangerous - 2x Optical Zoom
- Throw ratio is one of the most important characteristics of a projector - it tells you how wide the image will be at a given distance from the screen. Many portable projectors have 1.5x or less optical zoom, potentially forcing you to except a non-ideal image size when presenting in venues outside your control. With 2x optical zoom and a 1.2 to 2.2:1 throw ratio, the XJ-A242 gives you significantly greater flexibility compared to these projectors in terms of projection distance
- Slim Form Factor
- The XJ-A242 is designed to give you a foot print that is similar to a laptop, and be not much thicker either. Including protrusions, the dimensions are 11.7 x 8.3 x 1.7. On top of that it weighs in at 5.1 pounds
- Single Chip DLP Technology
- Uses a combination of a 0.65" chip covered in millions of micro-mirrors and a color wheel to produce an image. DLP features less spacing between pixels and better contrast than many comparable LCD-based systems, and the design does not require a filter that needs to be replaced
- 16:10 Native Aspect Ratio
- This projector features a 16:10 native aspect ratio. This is considered a widescreen format, and comes very close to the 16:9 standard of HDTV. This format is ideal if you plan to show HD video, and can still be used for presentations - though in the case of PowerPoints some extra space may be leftover on the sides. The projector can show 4:3 too; however black bars (pillaring) will have to be applied, or the image will have to be stretched or cropped to fit
- Automatic Brightness Adjustment
- Adjusts lumen output based on the level of ambient light detected in the room to help conserve power and reduce eye-strain from over-bright images
UPC: 079767466817 In the Box Casio XJ-A242 Slim Series 16:10 Multimedia Projector AC Power Cord Wireless Remote Control (YT-130) Carrying Case 6' VGA Cable 6' AV Cable Limited 3-Year Warranty on Projector Limited 3-Year or 6000 Hour Warranty on Light Source (Whichever Comes First) User Manual PDF 569.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Casio XJ-A242 Slim Series 16:10 Multimedia Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCasio XJ-A242 Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | UXGA - 1600 x 1200 | | Max Brightness | 2500 Lumens | | Aspect Ratio | Native: 16:10 | | Contrast Ratio | 1800:1 | | DLP Link 3D | Yes | | Color Depth | 8-Bit (16.78 Million Colors) | | | | Optical Zoom | Powered: 2x | | Throw Ratio | 1.15 - 2.3:1 | | Projection Size | 18 - 300" / 45.72 - 762.00 cm | | | | Keystone Correction | Auto-Vertical: + 30°
Manual-Vertical: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 1W | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x HDMI Audio/Video (Input)
1 x Composite (RCA) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control RS-232C requires YK-60 cable, available separately | | Internal Storage | None | | Wireless LAN / Wi-Fi | Yes, with Included Adapter Using included YW-40 adapter | | | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Security | Cable Lock Slot
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 165 W
Low Brightness: 120 W
Standby Mode (Lamp Off): 0.14 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 11.7 x 8.3 x 1.7" / 29.7 x 21.1 x 4.3 cm including projections
11.7 x 8.3 x 1.6" / 29.7 x 21.1 x 4.1 cm Excluding Projections | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 8.55 lb | | Box Dimensions (LxWxH) | 15.1 x 10.5 x 6.1" |
