Casio XJ-A257 Slim Series 16:10 Multi-Media

User Manual for Casio XJ-A257 Slim Series 16:10 Multi-Media Projector with Wireless LAN Adapter

• Product category: Multimedia Projectors Casio
• Brand: Casio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Casio Multimedia Projectors

Product description

Laser/LED Hybrid Light Source
• Combines the light produced by a laser array and an LED lamp to provide a light source that is more energy efficient than conventional projector lamps. It features a brightness of 3000 lumens in normal mode and a life up to 20,000 hours

  Note: The Slim Hybrid Light Source can only be replaced by the Casio Factory Service Center. Disassembly of the projector and/or use of its technology or components for other purposes is potentially dangerous

2x Optical Zoom
• Throw ratio is one of the most important characteristics of a projector - it tells you how wide the image will be at a given distance from the screen. Many portable projectors have 1.5x or less optical zoom, potentially forcing you to except a non-ideal image size when presenting in venues outside your control. With 2x optical zoom and a 1.2 to 2.3:1 throw ratio, the XJ-A257 gives you significantly greater flexibility compared to these projectors in terms of projection distance

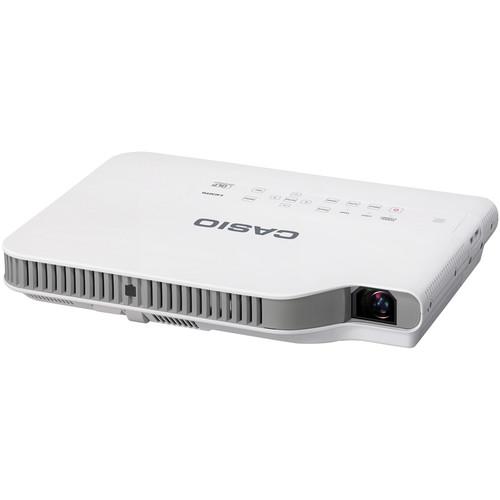

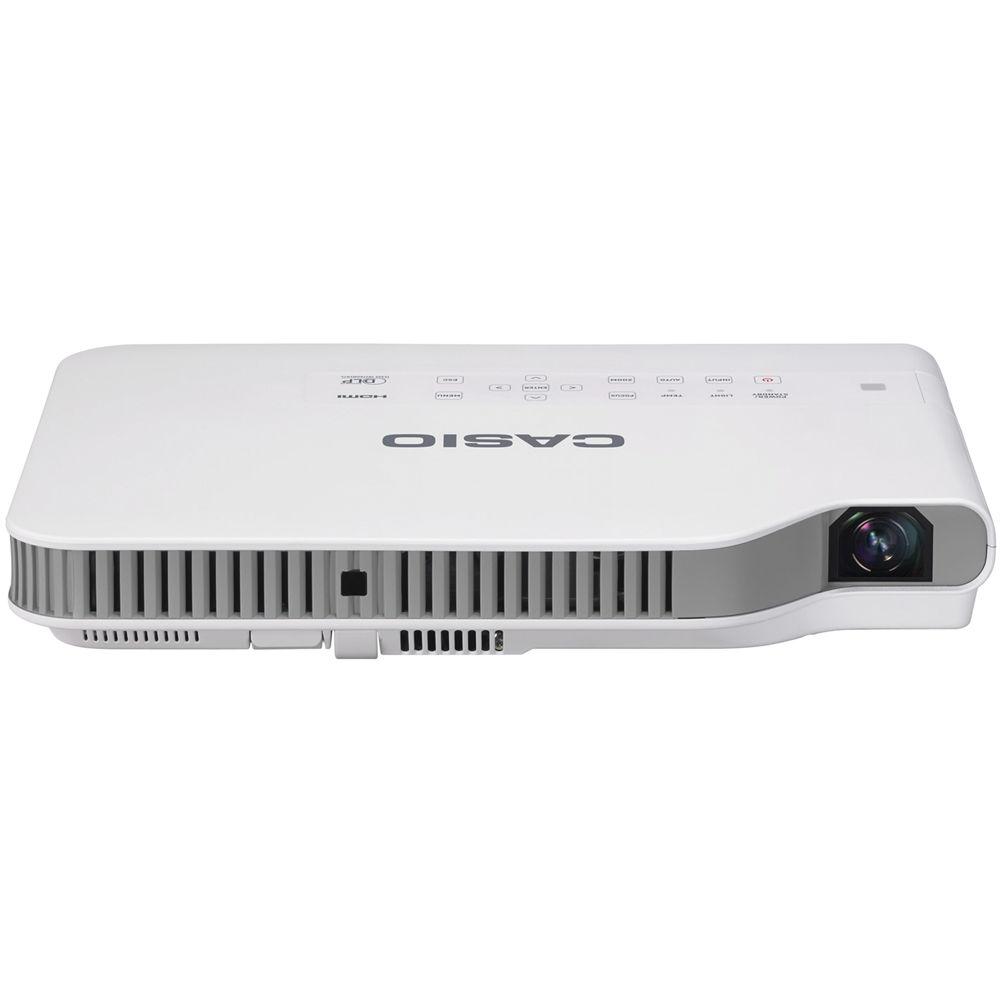

Slim Form Factor
• The XJ-A257 is designed to give you a foot print that is similar to a laptop, and be not much thicker either. Including protrusions, the dimensions are 11.7 x 8.3 x 1.7. On top of that it weighs in at 5.1 pounds

Single Chip DLP Technology
• Uses a combination of a 0.65" chip covered in millions of micro-mirrors and a color wheel to produce an image. DLP features less spacing between pixels and better contrast than many comparable LCD-based systems, and the design does not require a filter that needs to be replaced

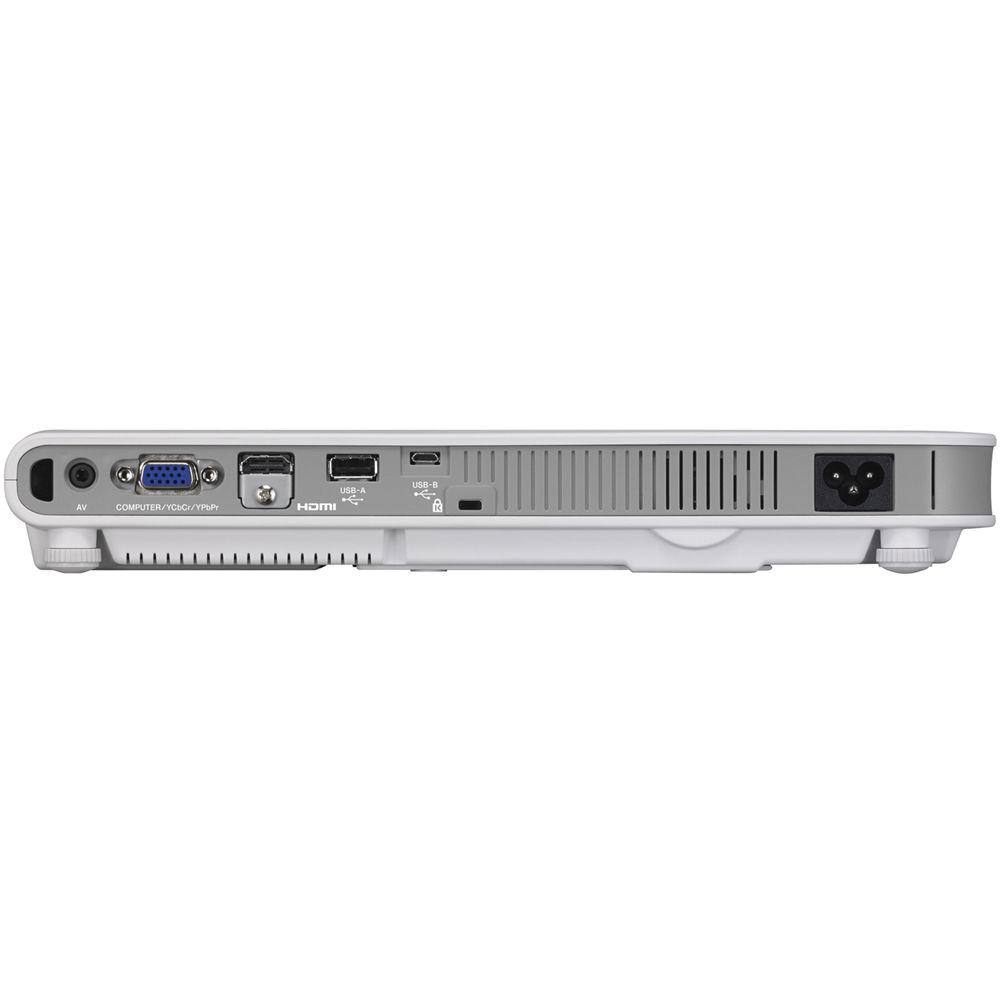

USB Functionality
• • Provides an alternative way of connecting the projector to a computer - besides HDMI or VGA- to give presentations (requires admin privileges for first-time connection). You can also use USB to transfer data to the project's 2GB built-in memory
  • For connecting the included YW-40 wireless LAN adapter for projecting wirelessly from a computer or mobile device that has the MobiShow app installed
  • Connect a USB flash drive for "PC-less" presentations
    PC-Less Presentations
    • Using a USB flash drive, card reader, other USB storage device, or the 2GB internal memory you can give presentations or play video directly from the projector. File types supported include: PDF, JPEG, BMP, PNG, GIF, AVI, MOV, and MP4. In addition, PowerPoint files can be converted using EZ-Converter FA for Windows, available for download from the CASIO website
    Wireless Presentations with MobiShow
    • With the MobiShow app you beam presentations wirelessly from your smartphone or tablet. The app is compatible with iOS, Android, and Windows Mobile, and requires the device have a Wi-Fi interface so that an ad-hoc connection can be made with the projector's WLAN adapter
    wePresent YW-40 Wireless LAN Adapter
    • • Give presentations from a Mac or Windows computer with Wi-Fi (requires installation of wePresent software). For classroom and workshop applications, or presentations with multiple speakers, you can connect up to 32 computers simultaneously
      • Transfer files to the internal memory from a computer with Wi-Fi
      • Connect a mobile device that has the MobiShow app installed
      • Supports 802.11b/g/n standards
    16:10 Native Aspect Ratio
    • This projector features a 16:10 native aspect ratio. This is considered a widescreen format, and comes very close to the 16:9 standard of HDTV. This format is ideal if you plan to show HD video, and can still be used for presentations - though in the case of PowerPoints some extra space may be leftover on the sides. The projector can show 4:3 too; however black bars (pillaring) will have to be applied, or the image will have to be stretched or cropped to fit
    Automatic Brightness Adjustment
    • Adjusts lumen output based on the level of ambient light detected in the room to help conserve power and reduce eye-strain from over-bright images
    UPC: 079767466848 In the Box Casio XJ-A257 Slim Series 16:10 Multi-Media Projector with Wireless LAN Adapter
  • AC Power Cord
  • Wireless Remote Control (YT-130)
  • Carrying Case
  • YW-40 Wireless LAN Adapter
  • 6' VGA Cable
  • 6' AV Cable
  • Limited 3-Year Warranty on Projector
  • Limited 3-Year or 6000 Hour Warranty on Light Source (Whichever Comes First)
