User Manual for Casio XJ-F10X LampFree Advanced Series 3300-Lumen XGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Casio XJ-F10X LampFree Advanced Series 3300-Lumen
- Product category: Multimedia Projectors Casio
- Brand: Casio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Casio Multimedia Projectors
 |
User manual for the Casio XJ-F10X LampFree Advanced Series 3300-Lumen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Casio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Casio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Casio product will considerably shorten its lifespan!
|

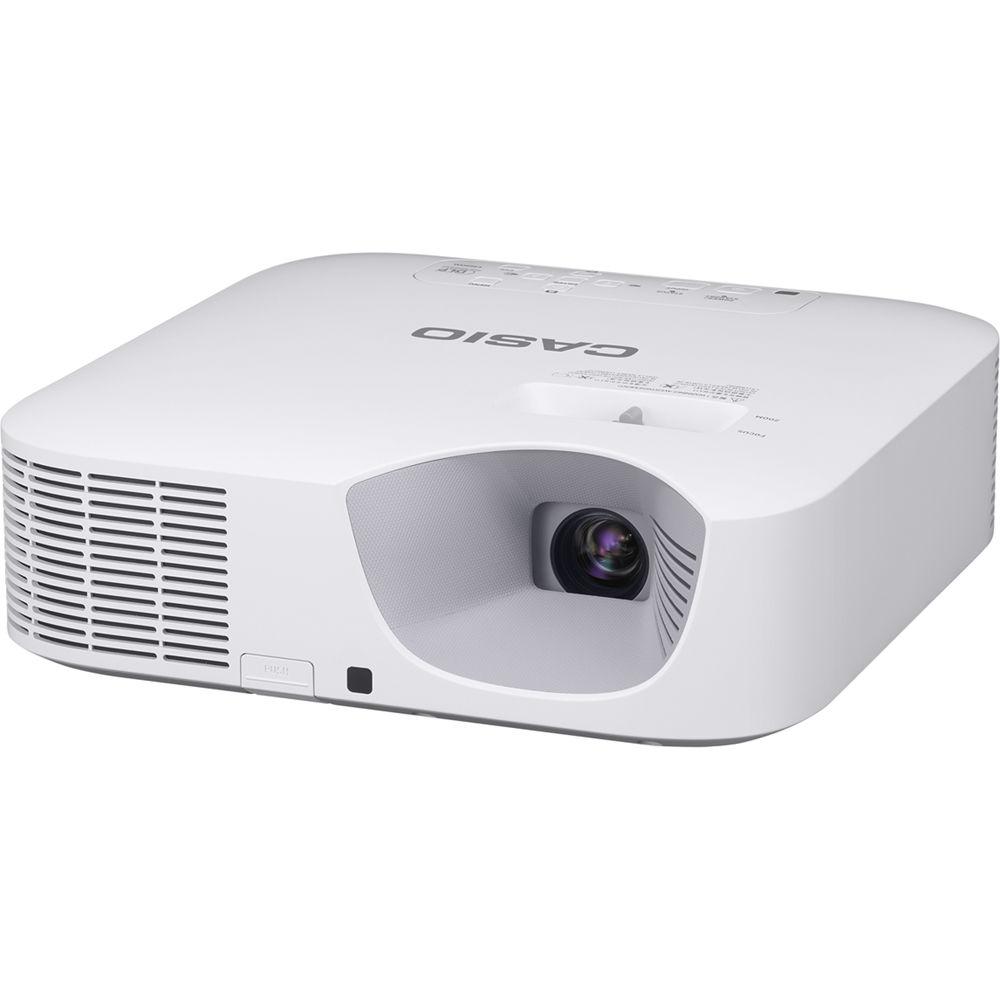

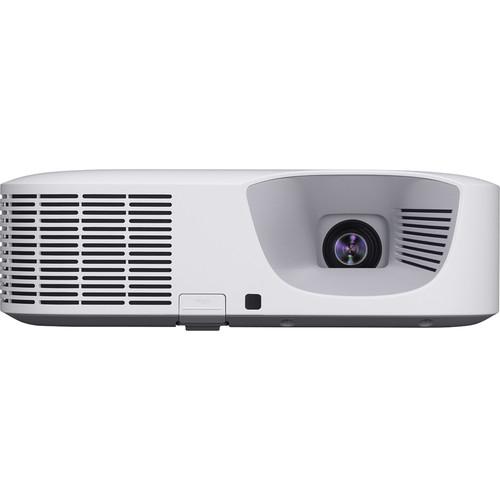

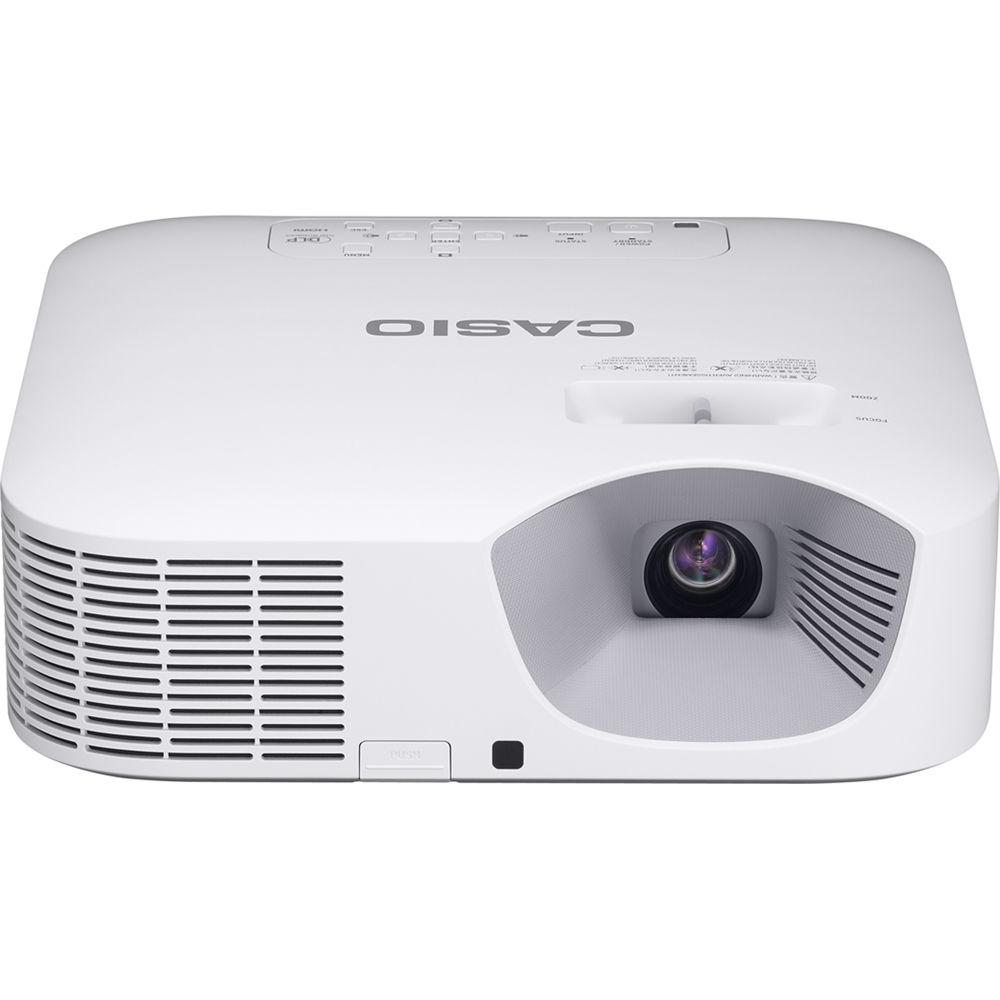

Product description Reduce your carbon footprint and lamp costs with the Casio XJ-F10X LampFree Advanced Series 3300-Lumen XGA DLP Projector. It features a non-replaceable laser and LED hybrid light source with a 20,000-hour estimated life to minimize cost, environmental impact, and down time. Its 1.66 to 2.42:1 throw ratio will allow you to place the projector at relatively long distances from the screen, while its 3300 lumens of brightness and 20,000:1 dynamic contrast ratio will produce clear images at these distances, even with some ambient light.

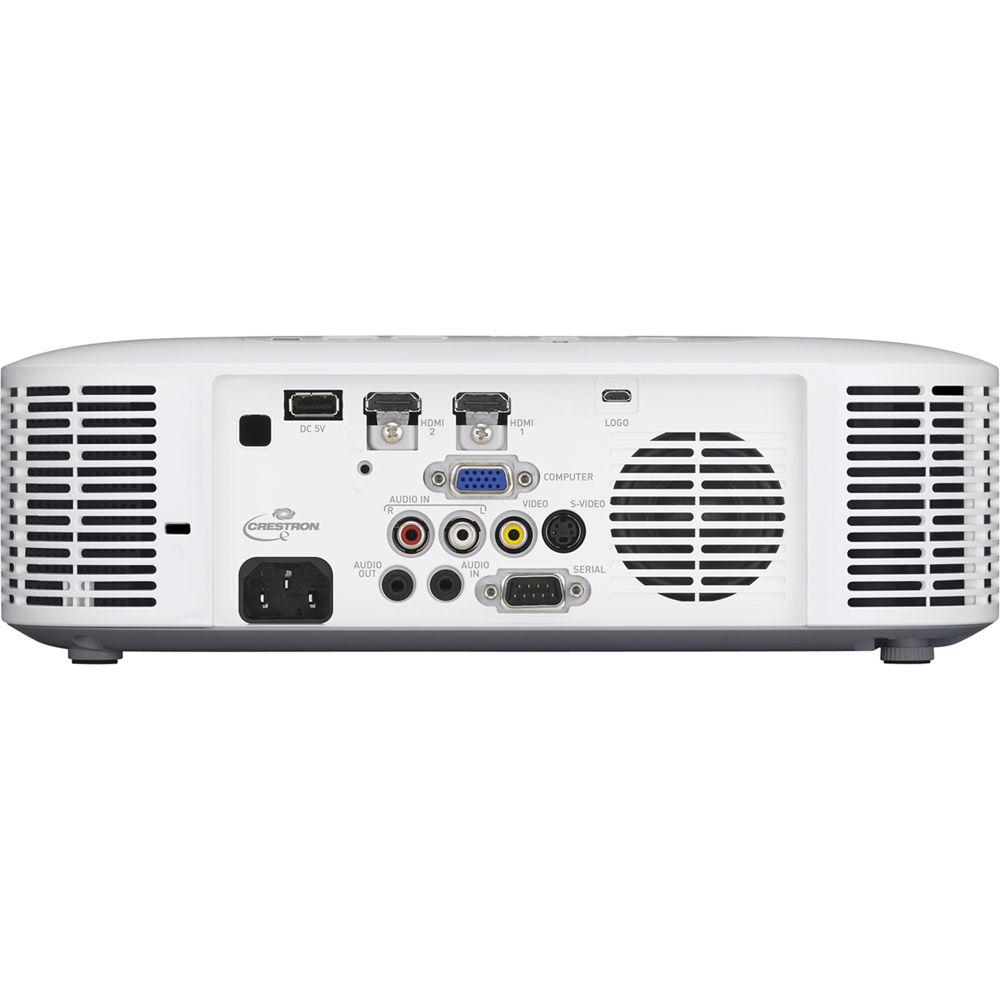

The XJ-F10X has VGA, RCA composite video, S-video, and two HDMI inputs and will pass-through audio with its 1/8" analog input and output. The projector also features a built-in 16-Watt speaker to provide audio, plus a VGA output to daisy chain other projectors or displays. It is controllable by AMX, Crestron, or Extron systems via RS-232 or by the included IR remote. An RGB cable is also included for instant connectivity. - Multi-Purpose
- Presentation materials stored in the internal memory (2GB) can be projected without a computer. Operators can project still or moving images as well as files in PDF and other formats without conversion. Operation can be conducted with the included remote control or via AMX, Crestron, or Extron.
- C-Assist
- Wireless connection with a smartphone or tablet via the C-Assist mobile application permits remote control of the projector by a computer. The ability to change from one projected image to another, project digital images taken with a camera in real-time, and share web pages contributes to more efficient conferences and impressive presentations.
- LampFree Features
-
- Laser & LED light source
- 20,000-Hour estimated operating life
- No lamp replacement required
- No down time
- Low power consumption
- Mercury-free
- Instant On - five seconds to full brightness
- Instant Off - no cool down required
- Additional Features
-
- Dust-resistant design

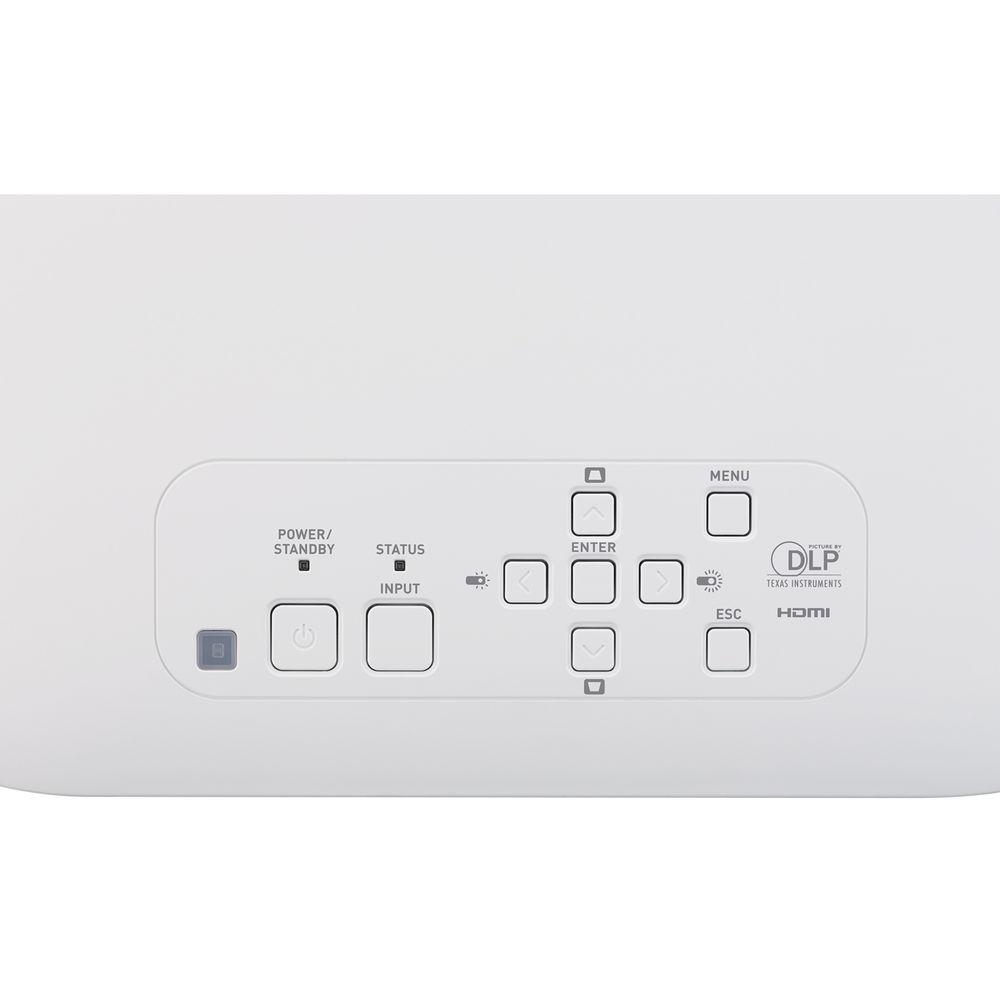

- Instant Light Control - seven levels
- Built-in 16-Watt speaker
UPC: 079767468842 In the Box Casio XJ-F10X LampFree Advanced Series 3300-Lumen XGA DLP Projector Remote Control 2 x AAA Batteries RGB Cable AC Power Cord Limited 3-Year Warranty on Projector Limited 5-Year or 10,000-Hour Warranty on Light Source More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Casio XJ-F10X LampFree Advanced Series 3300-Lumen XGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

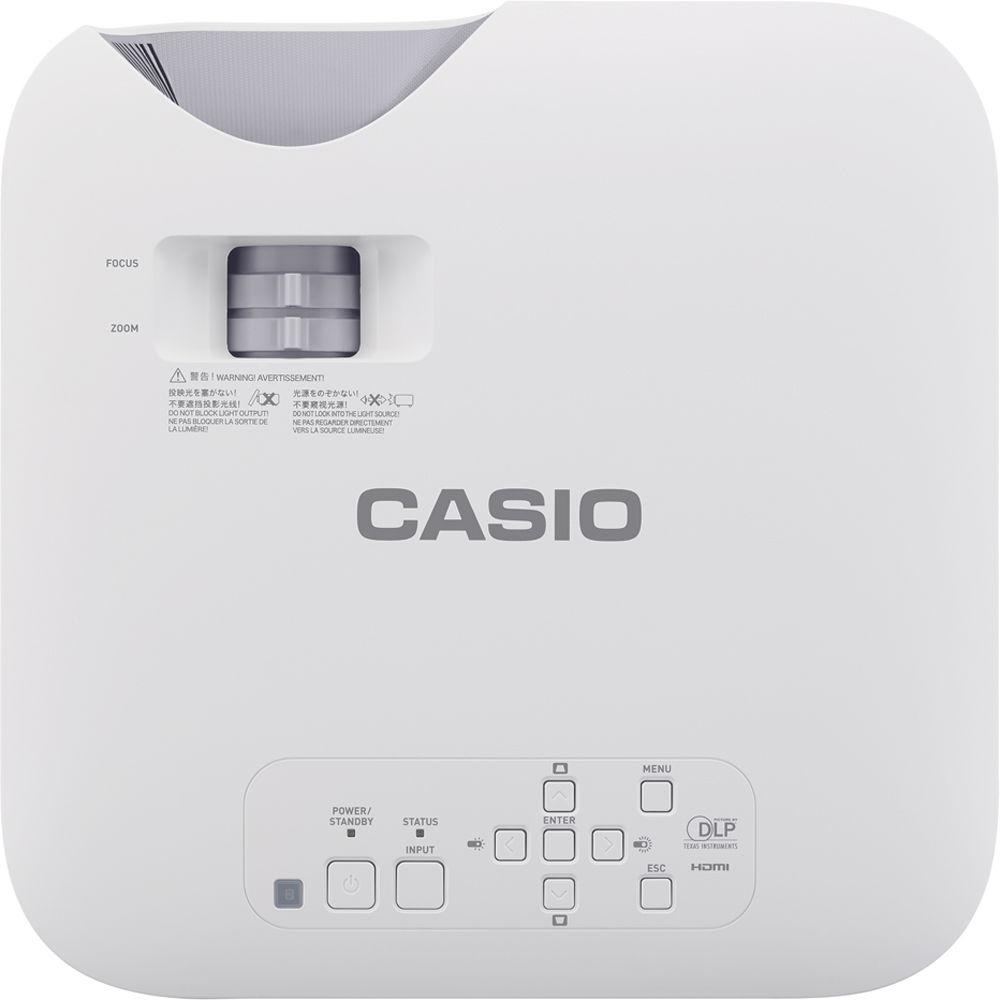

Technical parametersCasio XJ-F10X Specs | | | Display System | 0.55" DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Max Brightness | 3300 Lumens | | Offset | 50% | | Aspect Ratio | Native: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Optical Zoom | Manual: 1.5x | | Throw Ratio | 1.66 - 2.42:1 | | Projection Size | 30 - 300" / 76.20 - 762.00 cm | | | | Keystone Correction | Auto-Vertical: + 30°
Manual-Vertical: ± 30° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 16W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x VGA (DE-15) Video (Input)
1 x RS-232C (Unspecified Connector) Control (Input) | | Internal Storage | 2.0GB | | | | Light Source | Laser-LED hybrid | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Security | Cable Lock Slot
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Full Brightness: 195 W
Low Brightness: 160 W
Standby Mode (Lamp Off): 0.12 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 11.8 x 3.8 x 11.8" / 30.0 x 9.7 x 30.0 cm Including protrusions | | Weight | 8.4 lb / 3.8 kg | | | | Package Weight | 11.9 lb | | Box Dimensions (LxWxH) | 15.0 x 13.7 x 6.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 41 owners. Add your rating and experience with the product.
