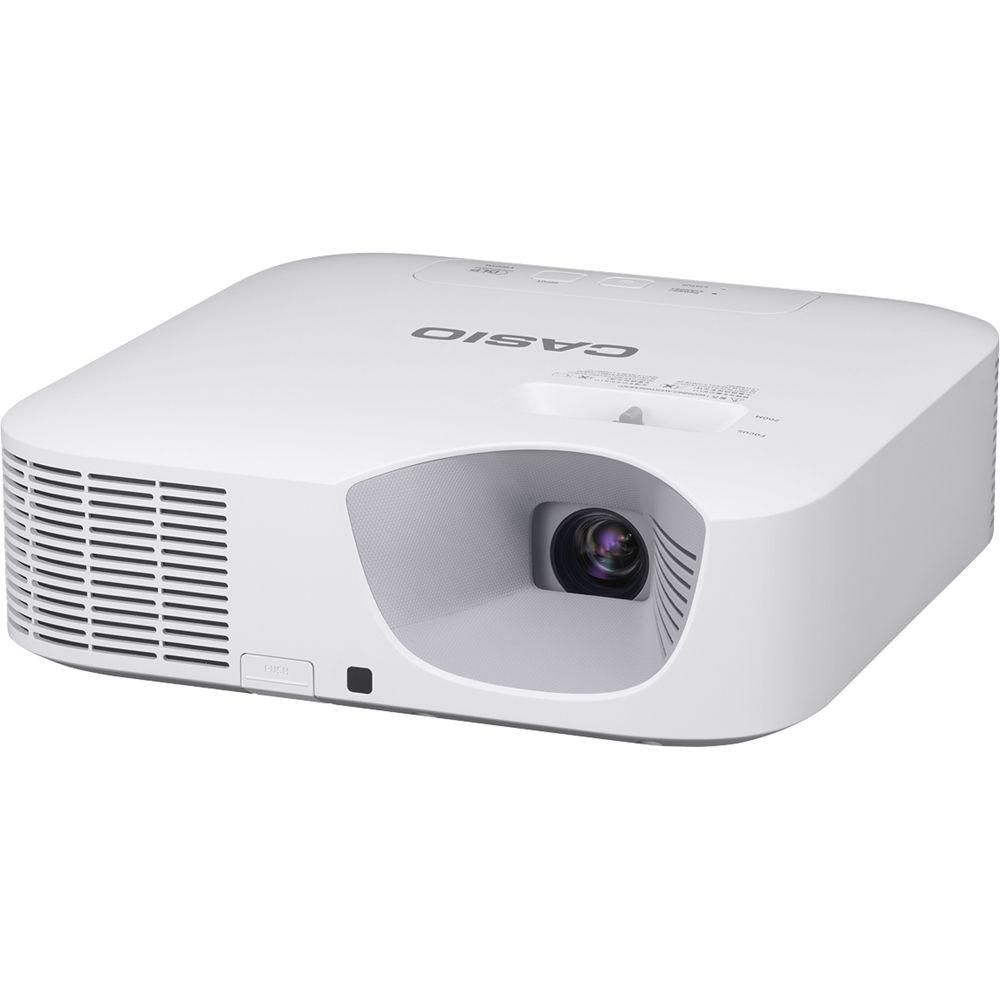

User Manual for Casio XJ-V100W LampFree Core Series 3000-Lumen WXGA DLP Projector Click to enlarge the picture
Contents of the user manual for the Casio XJ-V100W LampFree Core Series 3000-Lumen
- Product category: Multimedia Projectors Casio
- Brand: Casio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Casio Multimedia Projectors
 |
User manual for the Casio XJ-V100W LampFree Core Series 3000-Lumen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Casio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Casio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Casio product will considerably shorten its lifespan!
|
Product description Reduce your carbon footprint and lamp costs with the Casio XJ-V100W LampFree Core Series 3000-Lumen WXGA DLP Projector. It features a non-replaceable laser and LED hybrid light source with a 20,000-hour estimated life to minimize cost, environmental impact, and down time. Its 1.32 to 1.93:1 throw ratio will allow you to place the projector at relatively long distances from the screen, while its 3000 lumens of brightness and 20,000:1 dynamic contrast ratio will produce clear images at these distances, even with some ambient light.

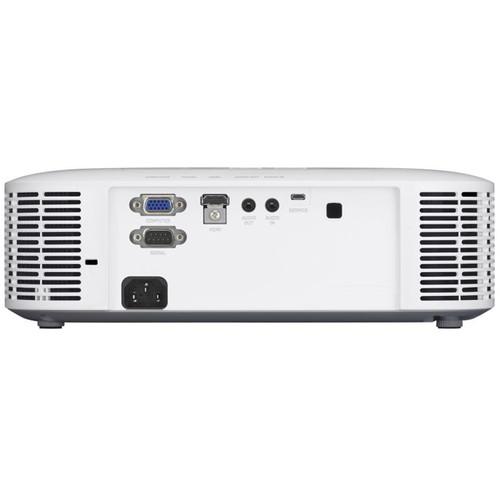

The XJ-V100W has a VGA and an HDMI input, and will pass through audio to your speaker system with its 1/8" analog input and output. It is controllable by RS-232 or the included IR remote. An RGB cable is also included for instant connectivity. - Consistent Brightness
- The hybrid light source is designed for reduced brightness degradation compared to mercury-based lamps, showing your work in the best possible light.
- Dust-Resistant
- The Core Series' cabinet is designed with three separate blocks while the primary light source unit is shielded, suppressing dust intrusion and improving dust resistance, ensuring worry-free performance even in dusty environments.
- Auto-Brightness
- The Automatic Brightness Adjustment feature will adjust lumen output based on the level of ambient light in the room, reducing power, cost of use, and eyestrain.
- Reliable Operation with a Low TCO
- The estimated light source life of up to 20,000 hours will reduce lamp costs over your entire period of ownership.
- LampFree Benefits:
-
- Laser & LED hybrid light source
- 20,000 Hour estimated operating life
- Mercury-free
- No lamp replacement
- No down time
- Quick on – full brightness in six seconds
- Instant off
UPC: 079767468828 In the Box Casio XJ-V100W LampFree Core Series 3000-Lumen WXGA DLP Projector RGB Cable Remote Control Power Cord Limited 3-Year Warranty on Projector Limited 5-Year or 10,000-Hour Warranty on Light Source, Whichever Comes First Table of Contents
|
Upload User Manual
Have you got an user manual for the Casio XJ-V100W LampFree Core Series 3000-Lumen WXGA DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCasio XJ-V100W Specs | | | Display System | 1-Chip 0.65" DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: 1920 x 1080 | | Max Brightness | 3000 Lumens | | Offset | 33% | | Aspect Ratio | Native: 16:10 | | Dynamic Contrast Ratio | 20,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Optical Zoom | Manual: 1.5x | | Throw Ratio | 1.32 - 1.93:1 | | Projection Size | 35 - 300" / 88.90 - 762.00 cm | | | | Keystone Correction | Manual-Vertical: ± 30°
Auto-Vertical: + 30° | | Ceiling Mountable | Yes | | | | Inputs/Outputs | 1 x VGA (DE-15) Video (Input)
1 x HDMI Audio/Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input)
1 x 1/8" (3.5 mm) Mini Audio (Output)
1 x RS-232C (Unspecified Connector) Control (Input) | | | | Light Source | Laser-LED hybrid | | Expected Lamp Life | Medium Brightness: 20,000 Hours | | Security | Cable Lock Slot
Password Protection | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Low Brightness: 125 W
Full Brightness: 150 W
Standby Mode (Lamp Off): 0.12 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
41 to 95°F (5 to 35°C)
Humidity: 20 - 80% | | Dimensions (W x H x D) | 10.6 x 10.6 x 3.3" / 26.9 x 26.9 x 8.4 cm Excluding protrusions
10.6 x 10.6 x 3.5" / 26.9 x 26.9 x 8.9 cm Including protrusions | | Weight | 6.2 lb / 2.8 kg | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 15.0 x 13.0 x 7.0" |
