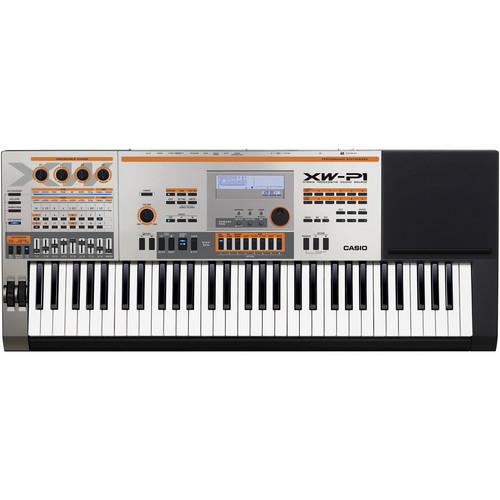

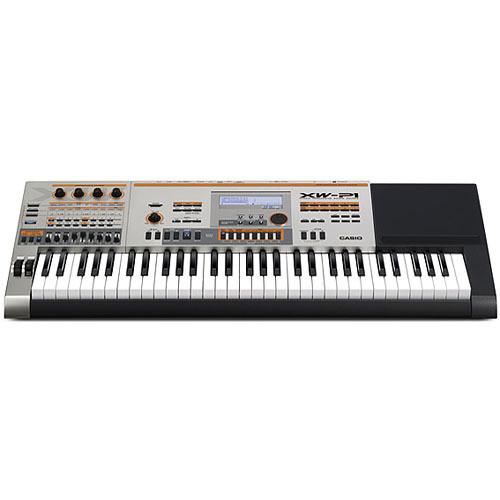

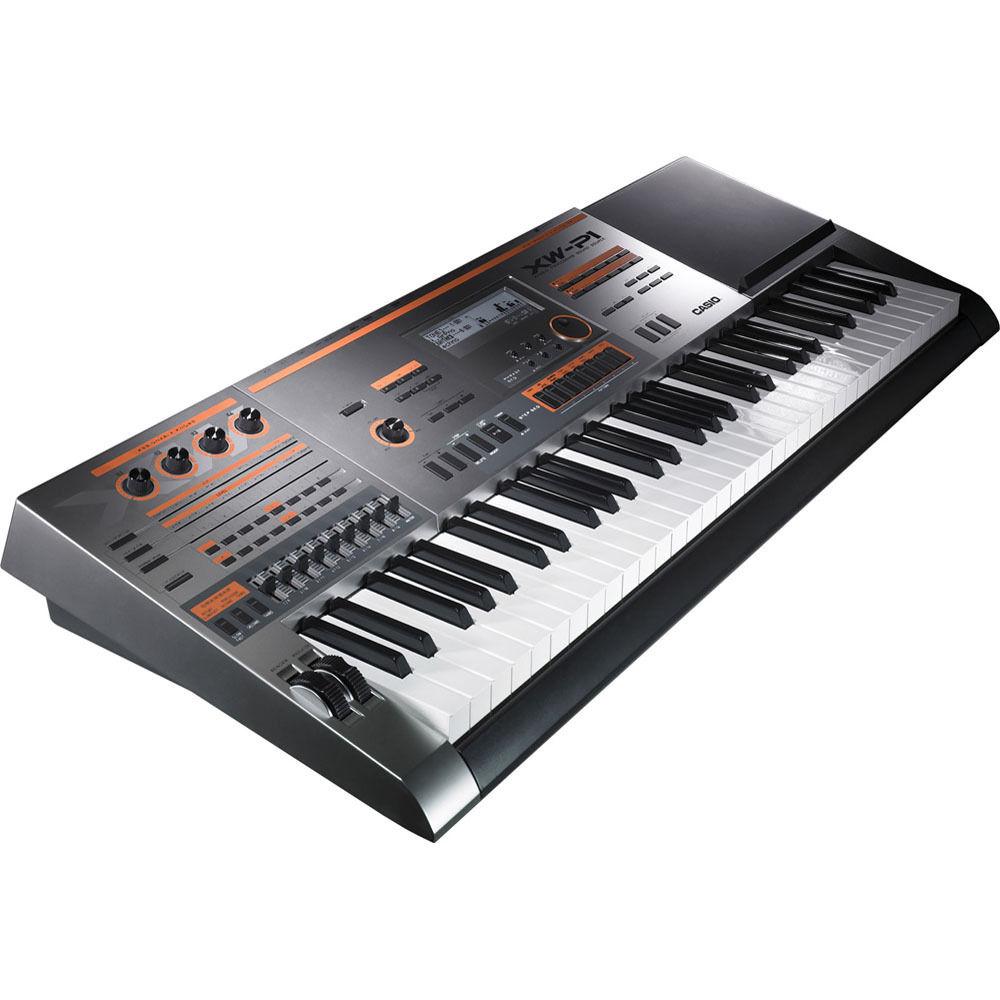

User Manual for Casio XW-P1 61-Key Performance Synthesizer Click to enlarge the picture
Contents of the user manual for the Casio XW-P1 61-Key Performance Synthesizer
- Product category: Synthesizer Keyboards Casio
- Brand: Casio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Casio Synthesizer Keyboards
 |
User manual for the Casio XW-P1 61-Key Performance Synthesizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Casio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Casio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Casio product will considerably shorten its lifespan!
|
Product description The Casio XW-P1 61-Key Performance Synthesizer represents a major comeback for Casio in the professional keyboard / synthesizer market. After twenty years without making a new pro synth, they have engineered one with their exclusive Hybrid Processing Sound Source (HPSS), an innovative twist on drawbar operation, iPad integration options that are sure to be popular, and a built-in step sequencer--and that's just scratching the surface.
The XW-P1 features a Solo Synth mode, a monophonic lead instrument with a six oscillator design, which can be controlled in real time via four knobs and nine sliders. Two virtual analog oscillators, two PCM oscillators, and a noise oscillator are at your fingertips. You've also got a sixth oscillator, which is external; mic and line inputs on the back of the instrument can be harnessed to function as the audio source for this sixth oscillator. Simply plug your iPod, iPhone, iPad or other device into this input, and it adds to your sound. Conveniently, there's even a dedicated spot on the right-hand side of the keyboard for placing external gear, large enough to accommodate your iPad.
Your 9 sliders bring the different oscillators in and out of the sound, as well as offering control for other elements, such as the noise generator. The sliders truly give you a more interactive playing experience. The presets in Solo Synth mode offer everything from bright leads to ripping basses, with deeply editable sounds you can customize to your taste. Hundreds of waveforms give you ample choices; you can even access those from Casio's original CZ synthesizers. Enjoy powerful tools, such as reverse key scaling on pitch, enabling you to have sounds or oscillators running in different directions. There are also envelopes galore: Pitch envelopes for each oscillator, plus a master for merged sound. Each oscillator also has an independent filter, with numerous options for filter types, as well as independent key tracking, portamento, dual LFO's and access to a master resonant filter.
A number of different sound engines designed for the performing musician are here accessible to you. You'll find a stunning 400 fully editable PCM based sounds, including pianos, electric pianos, strings, brass, guitars, basses, drums, acoustic sounds mixed with synths, and a powerful drawbar organ. Employ orchestral combination patches with velocity switch sounds, allowing you to play a string instrument and, if you hit the keys with sufficient velocity, trigger more strings, timpani and brass to accompany you. We also feel pretty confident that you'll enjoy the performance mode that enables you to produce 4 sounds simultaneously: A HexLayer, Solo Synth or drawbar organ for the first sound, with three other zones that can be populated by either internal or external sounds. What's more is that you get instant recall of effects, step sequences, arpeggiators and phrases.
The impressive HexLayer is a dedicated polyphonic mode featuring 6 components that join forces to make one instrument. Stacked sounds can easily be turned into pads, and you can also blend the various elements using the 9 sliders. Dig into complex layering, splits and additional velocity switched sounds. The formidable drawbar organ grants you control of key percussion sounds and rotary speaker effects. Feel free to add vibrato or distortion to get the organ sound you want. As if all this weren't enough, add a 13 track step sequencer, a 16 step programmable arpeggiator, pitch bend and modulation wheels, and a phrase sequencer for recording and playing back sounds, and you've got one amazing piece of musical genius on your hands.
Take advantage of the USB port for class compliant connection to Mac and Windows computers. The keyboard also has a MIDI port and 1/4" line outputs, in addition to the 1/4" mic and line inputs for the sixth oscillator and the 1/8" stereo mini-plug line input for connecting and monitoring an iPad or other device without a mixer. The XW-P1 comes with a power supply and can also run on 6 D batteries. Solo Synth Mode - Utilizes Casio's exclusive Hybrid Processing Sound Source (HPSS)
- Monophonic lead instrument with a six oscillator design, which can be controlled in real time via four knobs and nine sliders
- Two virtual analog oscillators, two PCM oscillators, and a noise oscillator are at your fingertips. You've also got a sixth oscillator, which is external; mic and line inputs on the back of the instrument can be harnessed to function as the audio source for this sixth oscillator. Simply plug your iPod, iPhone, iPad or other device into this input, and it adds to your sound. A dedicated spot on the right-hand side of the keyboard provides space for this external gear and is large enough to fit your iPad
- 9 sliders bring the different oscillators in and out of the sound, as well as offering control for other elements, such as the noise generator. Sliders truly give you a more interactive playing experience
- Presets offer everything from bright leads to ripping basses, with deeply editable sounds you can customize to your taste
- Hundreds of waveforms give you ample choices; you can even access those from Casio's original CZ synthesizers
- Enjoy powerful tools, such as reverse key scaling on pitch, enabling you to have sounds or oscillators running in different directions
- Envelopes galore: Pitch envelopes for each oscillator, plus a master for merged sound
- Each oscillator also has an independent filter, with numerous options for filter types, as well as independent key tracking, portamento, dual LFO's and access to a master resonant filter
Numerous Sound Engines For The Performing Musician - 400 fully editable PCM based sounds, including pianos, electric pianos, strings, brass, guitars, basses, drums, acoustic sounds mixed with synths, and a powerful drawbar organ
- Employ orchestral combination patches with velocity switch sounds, allowing you to play a string instrument and, if you hit the keys with sufficient velocity, trigger more strings, timpani and brass to accompany you
- A performance mode that enables you to produce 4 sounds simultaneously: A HexLayer, Solo Synth or drawbar organ for the first sound, with three other zones that can be populated by either internal or external sounds. Instant recall of effects, step sequences, arpeggiators and phrases
HexLayer - Dedicated polyphonic mode featuring 6 components that join forces to make one instrument
- Stacked sounds can easily be turned into pads, and you can also blend the various elements using the 9 sliders
- Dig into complex layering, splits and additional velocity switched sounds
Drawbar Organ - Grants you control of key percussion sounds and rotary speaker effects. Feel free to add vibrato or distortion to get the organ sound you want
13 Track Step Sequencer - Offering everything from pulsing dance beats to animated synth textures and arpeggios, this step sequencing tool is a true original
- Boasts nine tracks for drums, basses, synths and chordal parts, as well as four controller tracks to add panning, filter changes and other animation to existing parts
- Eight patterns comprise each sequence
- You have the freedom to develop and mix your performances on the fly
- You can even transpose sequences live directly from the keyboard, for a totally immersive and interactive experience
16 Step Programmable Arpeggiator - In addition to conventional arpeggio patterns, this tool is capable of producing polyphonic synth gated patterns and acoustic instrument emulations
- Fully programmable, enabling you to create your own distinct sounds
Phrase Sequencer - For recording and playing back sounds
- Gives you the power to quickly capture any riff you play on the keyboard and make it available on a front panel switch, or trigger and transpose it live from a range of notes on the keyboard
Additional Controls And Connectivity - Pitch bend and modulation wheels
- Take advantage of the USB port for class compliant connection to Mac and Windows computers
- Also has a MIDI port and 1/4" line outputs, in addition to the 1/4" mic and line inputs for the sixth oscillator and the 1/8" stereo mini-plug line input for connecting and monitoring an iPad or other device without a mixer
Power - Comes with a power supply and can also run on 6 D batteries
UPC: 079767314156 In the Box Casio XW-P1 61-Key Performance Synthesizer Power Supply 1-Year Limited Warranty User Manual PDF 2.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Casio XW-P1 61-Key Performance Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCasio XW-P1 Specs | Keyboard | 61 keys
Hybrid Processing Sound Source (HPSS) | | Polyphony | HexLayer: 6 components combining into a single instrument
4 zone performance mode: HexLayer, Solo Synth or drawbar organ, plus 3 other zones for internal or external sounds | | Oscillator | 6x oscillators: 2x virtual analog, 2x PCM, noise and external (for iPod, iPhone, iPad or other device) | | Presets | Broad array of editable sounds from leads to basses | | Arpeggiator | 16 step
Fully programmable
Produces conventional arpeggio patterns plus polyphonic synth gated patterns and acoustic instrument emulations | | Sequencer | 13 Track Step Sequencer:
9 tracks for drums, basses, synths and chordal parts
4 controller tracks to add panning, filter changes and other animation
8 patterns comprise each sequence
Phrase Sequencer for recording and playing back sounds | | Controllers | 9 sliders
4 controller knobs | | Sounds | 400 fully editable PCM based sounds
Pianos, electric pianos, strings, brass, guitars, basses, drums, acoustic sounds mixed with synths, drawbar organ | | Effects | 2 global effects: Reverb and chorus - shared between all parts, different effect send levels for each part
1 insert effect - usable on Solo Synth or other specialty sound; other parts can share effect, enabling delay line on different parts simultaneously | | Sample RAM | Not specified by manufacturer | | Outputs | 1/4" line | | Inputs | 1/4" mic and line
1/8" stereo mini-plug line | | Ports | USB, MIDI | | External Storage | SD card slot in rear | | Display | Yes | | Power | Included power supply
Can also operate on 6x D batteries (not included) | | Dimensions (WxDxH) | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 18.85 lb | | Box Dimensions (LxWxH) | 39.0 x 17.8 x 6.9" |
