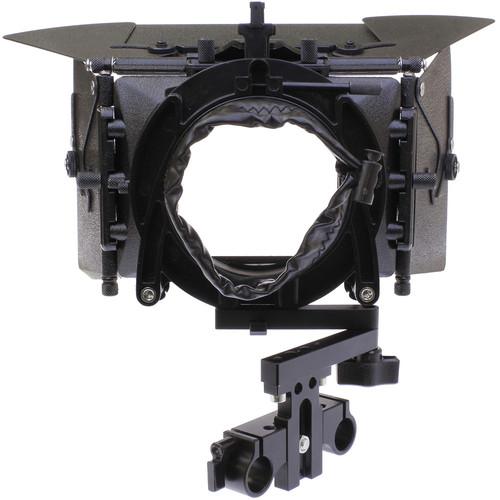

User Manual for Cavision 3 x 3 Matte Box Package with Swing Away Component & 15mm Bracket for DSLR Cameras Click to enlarge the picture
Contents of the user manual for the Cavision 3 x 3 Matte Box
- Product category: Matte Boxes & Sunshades Cavision
- Brand: Cavision
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Cavision Matte Boxes & Sunshades
|
User manual for the Cavision 3 x 3 Matte Box contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Cavision product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Cavision user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Cavision product will considerably shorten its lifespan!
|
Product description The Cavision 3 x 3 Matte Box Package is suitable for Panasonic AF100, Blackmagic Cinema Camera, and most DSLR cameras with small to medium size lenses. This package includes a 3 x 3 hard shade matte box with top & side flags, donut-style adapter ring for 50 to 80mm diameter lenses, front bracket for 15mm rods, and swing away component. The matte box features two filter stages, one fixed and one 270° rotating, which is used with polarizing and graduated filters. Each stage accepts 3 x 3" glass or resin filters with a max thickness of 4mm. The swing away component connects the matte box and the front bracket. The front bracket adds 15mm rod support to the matte box. - 3x3" Matte Box with Top and Side Flags Cavision's 3x3" Matte Box with Top and Side Flags features an ABS hood with an 85mm rear clamp, two 3 x 3" filter holders, a top mounted French flag and two adjustable side flags. A matte box is an excellent tool for maximizing light control and an efficient means of deploying and adjusting filters. This model can accommodate wide-angle lenses and is a great fit for a DSLR or nearly any video camera.
- Key Features
-
- Clamp-on hood with 85 mm inside diameter
- Rotating filter stage for adjusting polarizers
- Wide shade allows for wide lenses
- Durable ABS construction
- Includes top flag and adjustable side flags
- Flags can be removed for storage and transport
- Matte Box Donut Lens Adapter Ring (85mm) The Cavision Matte Box Donut Adapter Ring has on outer diameter of 85 mm and is designed to work with select Cavision matte boxes. The donut adapter prevents light from leaking around the lens and reflecting off filters in the matte box. The cloth features an adjustable sizing cord that allows you to fit lenses with an outer diameter of approximately 50 to 85 mm without having to swap out donuts.
The aluminum ring of the donut adapter fits into the back of the matte box, and the cloth fits around the lens. The adjustable sizing cord allows you to snug the cloth around the lens. The cloth also extends up to 45 mm away from the matte box, which makes this donut usable with lenses that have a front that moves forward and back. - RST2550 T-Part for Matte Box 25x50mm The Cavision RST2550 is the part at the end of the support rod that resemples a T and is used for attaching a matte box. The RST2550 will hold a matte box 25mm wide by 50mm high.
- R156025 Bracket for 15mm Diameter Rods w/60mm Spacing The Cavision R156025 is a bracket for use with 15mm diameter rods, and features 60mm spacing.
- Swing Away Component for MB3485 and MB4512H2-BFI Series Matte Boxes
In the Box Bundle Items 3x3" Matte Box with Top and Side Flags artedyqxryxdreycwv - ABS Hood with Two Filter Bays and 85mm Rear Clamp
- 2 x Filter Holders (3 x 3")
- Adjustable Top and Side Flags
Matte Box Donut Lens Adapter Ring (85mm) - Limited 3-Month Warranty for Business, Rental or Industrial Use, 6-Month for Personal Use
RST2550 T-Part for Matte Box 25x50mm R156025 Bracket for 15mm Diameter Rods w/60mm Spacing Swing Away Component for MB3485 and MB4512H2-BFI Series Matte Boxes Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision 3 x 3 Matte Box Package with Swing Away Component & 15mm Bracket for DSLR Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 3x3" Matte Box with Top and Side Flags
| Interface | Rear clamp with 85mm inside diameter (adapter rings and mounting brackets for 8 or 15mm rods sold separately) | | Filter Stages | 3 x 3" fixed (x1)
3 x 3" 270° rotating (x1) | | Filter Sizes | 3 x 3" | | Dimensions | 6.77 x 5.12 x 2.68" (17.2 X 13 X 6.8 cm) | | Weight | Matte Box: 6.35 oz (180 g)
Top Flag: 3.53 oz (100 g)
Side Flags: 2.82 oz (80 g) | | | | Box Dimensions (LxWxH) | 7.4 x 5.5 x 2.9" | - Matte Box Donut Lens Adapter Ring (85mm)
| Compatibility | For Lenses with an Outer Diameter of ~50 to 85mm
For use with the Cavision 3 x 3 Mattebox
May be used with the following Cavision matte boxes by using additional Cavision ARP series adapter rings: | | Materials | Aluminum and imitation leather | | Dimensions | 85 mm - Front O.D.
45 mm - When cloth fully extended | | Weight | Approximately 0.8 oz (24 g) | | | | Box Dimensions (LxWxH) | 3.5 x 3.5 x 0.75" | - RST2550 T-Part for Matte Box 25x50mm
| | | Box Dimensions (LxWxH) | 3.0 x 1.5 x 0.4" | - R156025 Bracket for 15mm Diameter Rods w/60mm Spacing
| | | Box Dimensions (LxWxH) | 3.7 x 2.1 x 0.3" | - Swing Away Component for MB3485 and MB4512H2-BFI Series Matte Boxes
| | | Accessory Type | Swing away component |
