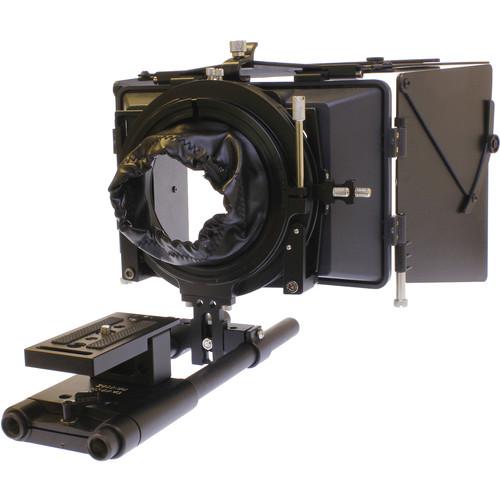

Product description The Cavision 4 x 5.65 Matte Box Package is suitable for Panasonic AF100, Blackmagic Cinema Camera, and most DSLR cameras.The package consists of a MB4512H-2 4 x 5.65 hard shade matte box, ARP1210 120 to 100mm step down insert ring, ADU100-D45 100mm Donut Adapter Ring for 60-95mm Diameter Lenses, MBF-5PA Expandable Top French Flap, MBF-4SA Expandable Side Flaps, and RS-15IIMQRB 15mm rods support with quick release. - MB4512-H2 4x5.65 Hard Shade 16x9 Matte Box The Cavision MB4512-H2 is a wide 16x9 Hard Shade Matte Box. Matte boxes control light better than a regular lens shade and offer the videographer the ability to use high quality 4x4 and 4x5.65 glass filters for image effects. Note: Does NOT include top french flap, side flaps, rods connection bracket, rods support system or step-down rings. For a complete listing of all components required for your camera setup please contact Cavision
- Wide Hard Shade
- The wide hard shade used with this matte box system allows 16:9 aspect ratios and will accept 4x5.65 and 4x4 filters.
- 4x4 and 4x5.65 Filters
- 4x4 Glass Filters can be used with one stationary holder and one rotating for polarizers and gradient filters. This unit will accept wider 4x5.65 filters for 16:9 aspect ratios and HDTV.
- ARP1210 Adapter Ring for Lens Accessories The Cavision ARP1210 is an adapter ring for lens accessories; it adapts from a 120mm lens diameter stepping down to 100mm lens accessory.
- MBF-5PA Expandable French Flag The Cavision MBF-5PA is an expandable top french flag accessory for matte boxes and sunshades. French flags allow more control over production lighting; enables filters and lenses to operate with favorable results. The expanding and contracting system on this model features a better fit and collapsing capabilities for efficiency and portability.
- MBF4SA Adjustable Side Flaps for 4x4 and 4.45 Matte Box The Cavision MBF4SA is a pair of side flaps for both the 4x4 and 4x4.45 matte boxes. The side flaps increase the ability of the matte box to block unwanted light, preventing a multitude of optical anomalies, such as lens flares.
- Rods Support for Mini-DV or DSLR Camera with Quick Release Button The Cavision Rods Support is suitable for use with small cameras with short lenses such as mini-DV, 5DMII, or other DSLR cameras. It features a height adjustable front bracket for connecting a matte box.
- Height adjustable front Bracket for connecting a matte box
- Balance bracket (with tripod connection thread at the bottom) and heavy duty riser
- Quick release plate with quick release button and a locating pin for enhanced stability
- Ideal ideal for small cameras with short lenses (such as mini-DV, 5DMII, or other DSLR cameras)
- Plate quick release function
In the Box Bundle Items MB4512-H2 4x5.65 Hard Shade 16x9 Matte Box fywdrraffwuqrzrr ARP1210 Adapter Ring for Lens Accessories MBF-5PA Expandable French Flag MBF4SA Adjustable Side Flaps for 4x4 and 4.45 Matte Box Rods Support for Mini-DV or DSLR Camera with Quick Release Button - Limited 3-Month Warranty for Commercial, Rental, Business, or Industrial Use
- Limited 6-Month Warranty for Personal Use
Also Includes - 100mm Donut Ring for 60-95mm Diameter Lenses
- Limited 3-Month Warranty when used for Commercial, Rental, Business or Industrial Purposes
- Limited 6-Month Warranty when used for Personal Use
Table of Contents
|
Upload User Manual
Have you got an user manual for the Cavision 4 x 5.65 Matte Box Package for DSLR, Panasonic AF100, & Blackmagic Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MB4512-H2 4x5.65 Hard Shade 16x9 Matte Box
| Lens Fit and Mount | A Clamp-On system allows this matte box to attach to an adapter for a specific camera lens | | Type | Hard Shade | | Filter Type | 4x4 and 4x5.65 Glass Filters | | Total Filter Stages | 2 | | Rotating Stages | 1 | | Degree of Rotation | 360° | | Materials | ABS Matte Box
Metal Back Mount | | Dimensions (WxHxD) | 11.4 x 7.9 x 5.9"
29 x 20 x 15cm | | Weight | 0.6 lbs
259g | | | | Box Dimensions (LxWxH) | 9.3 x 7.3 x 4.4" | - ARP1210 Adapter Ring for Lens Accessories
| | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 0.25" | - MBF-5PA Expandable French Flag
| | | Box Dimensions (LxWxH) | 9.1 x 6.4 x 0.9" | - MBF4SA Adjustable Side Flaps for 4x4 and 4.45 Matte Box
| | | Box Dimensions (LxWxH) | 6.0 x 5.0 x 1.0" | - Rods Support for Mini-DV or DSLR Camera with Quick Release Button
| Rod Spacing | 60 mm (r.c. to r.c.) | | Rod Material | Carbon fiber | | Height Adjustment | Front Bracket: 25 mm | | Adjustable Length | Back and Forwards: 200 mm | | Fits Devices | Most centered mini-DV / HDV / DSLR cameras | | Mounting Hole | 1/4" & 3/8" thread | | Fits On | Consumer, Miller, Cartoni, Vinten, and Sachtler ENG tripod heads | | Material | Aluminum | | Rod Diameter | 15 mm | | Rod Length | Rail: 10" (250 mm) | | Thickness | 1.8 mm | | | | Box Dimensions (LxWxH) | 10.2 x 3.75 x 3.45" |
