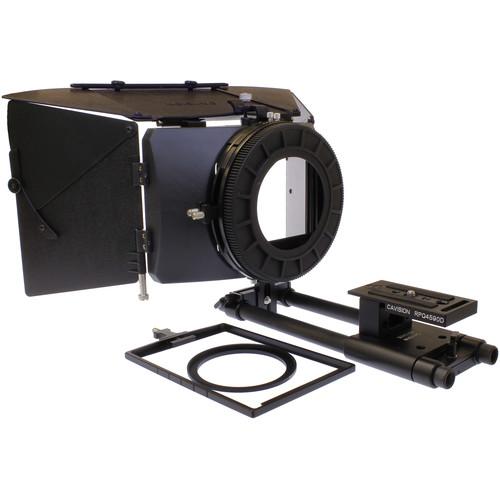

User Manual for Cavision 4 x 5.65 Matte Box Package for Panasonic DVX200

• Product category: Camcorder Supports & Rigs Cavision
• Brand: Cavision
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Cavision Camcorder Supports & Rigs

Product description

• 72 to 82mm Threaded Step-Up Ring This Cavision 72-82mm Step-Up Ring enables the use of 82mm threaded filters on lenses with 72mm filter threads. The 6mm depth enables this ring to fill the gap between the lens and the back of select rod-mounted matte boxes, helping to keep reflections from hitting your lens. The step-up ring has an 85mm outside diameter for use with clip-on matte boxes. It features a lightweight, aluminum-alloy construction with a black anodized finish.
  • Use alone or with select matte boxes
  • This adapter ring features a depth of 6mm, suiting it for reflection prevention use with rod-mounted matte boxes
  • Lightweight, durable anodized aluminum construction
• ARR1385 Rubber Adapter Ring The Cavision ARR1385 is an rubber adapter ring for MB4169H or MB413B series Matte Boxes; it adapts from a 130mm lens diameter stepping down to 85mm lens accessory.
• MB4169H-2M 4 x 4 & 4 x 5.56 Hard Shade Matte Box The MB4169H-2M Hard Shade Matte Box from Cavision is an ABS plastic rod-mount matte box with a 130mm rear lens opening. It features one 360° rotation filter stage, one fixed filter stage, two 4 x 4" metal filter trays, plus one 4 x 5.65" metal filter tray in the stationary stage. A 130 to 85mm rubber step-down ring is included. A Cavision rod-mount bracket and top and side flags are sold separately. The rod-mount bracket is required. Note: The 360° filter stages only rotate 270° when the matte box used with the Sony FX1 and Z1 cameras.
• MBF4SA Adjustable Side Flaps for 4x4 and 4.45 Matte Box The Cavision MBF4SA is a pair of side flaps for both the 4x4 and 4x4.45 matte boxes. The side flaps increase the ability of the matte box to block unwanted light, preventing a multitude of optical anomalies, such as lens flares.
• MBF-5PA Expandable French Flag The Cavision MBF-5PA is an expandable top french flag accessory for matte boxes and sunshades. French flags allow more control over production lighting; enables filters and lenses to operate with favorable results. The expanding and contracting system on this model features a better fit and collapsing capabilities for efficiency and portability.
• Rods Support for Mini-DV or DSLR Camera with Quick Release Button The Cavision Rods Support is suitable for use with small cameras with short lenses such as mini-DV, 5DMII, or other DSLR cameras. It features a height adjustable front bracket for connecting a matte box.
  • 2 carbon fiber rods
  • Height adjustable front Bracket for connecting a matte box
  • Balance bracket (with tripod connection thread at the bottom) and heavy duty riser
  • Quick release plate with quick release button and a locating pin for enhanced stability
  • Ideal ideal for small cameras with short lenses (such as mini-DV, 5DMII, or other DSLR cameras)
  • Plate quick release function

• Limited 6-Month Warranty (Personal Use)

• Limited 3-Month Warranty (Commercial, Rental, or Industrial Use)

• 90 Day Warranty

• ARR1385 Rubber Adapter Ring

• Limited 1-Year Warranty

• 1 Year Warranty

• Limited 3-Month Warranty for Commercial, Rental, Business, or Industrial Use

• Limited 6-Month Warranty for Personal Use

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 72 to 82mm Threaded Step-Up Ring

  Size	72-82 mm
  Depth	6 mm
  Outside Diameter	85 mm
  Material	Aluminum alloy

  Box Dimensions (LxWxH)	3.4 x 3.4 x 0.2"

• ARR1385 Rubber Adapter Ring

  Box Dimensions (LxWxH)	5.5 x 5.5 x 0.1"

• MB4169H-2M 4 x 4 & 4 x 5.56 Hard Shade Matte Box

  Mount Type	Optional rod bracket required
  Lens Opening	130 mm
  Filter Trays	Two 4 x 4" and one 4 x 5.65"
  Filter Stages	1 x 360° rotation filter stage 1 x fixed filter stage * The 360° filter stage only rotates 270° when the matte box is used with the Sony FX1 and Z1 cameras.
  Materials	ABS plastic matte box, aluminum filter trays

  Box Dimensions (LxWxH)	9.2 x 7.35 x 4.35"

• MBF4SA Adjustable Side Flaps for 4x4 and 4.45 Matte Box

  Box Dimensions (LxWxH)	6.0 x 5.0 x 1.0"

• MBF-5PA Expandable French Flag

  Box Dimensions (LxWxH)	9.1 x 6.4 x 0.9"

• Rods Support for Mini-DV or DSLR Camera with Quick Release Button

  Rod Spacing	60 mm (r.c. to r.c.)
  Rod Material	Carbon fiber
  Height Adjustment	Front Bracket: 25 mm
  Adjustable Length	Back and Forwards: 200 mm
  Fits Devices	Most centered mini-DV / HDV / DSLR cameras
  Mounting Hole	1/4" & 3/8" thread
  Fits On	Consumer, Miller, Cartoni, Vinten, and Sachtler ENG tripod heads
  Material	Aluminum
  Rod Diameter	15 mm
  Rod Length	Rail: 10" (250 mm)
  Thickness	1.8 mm

  Box Dimensions (LxWxH)	10.2 x 3.75 x 3.45"
