Product description

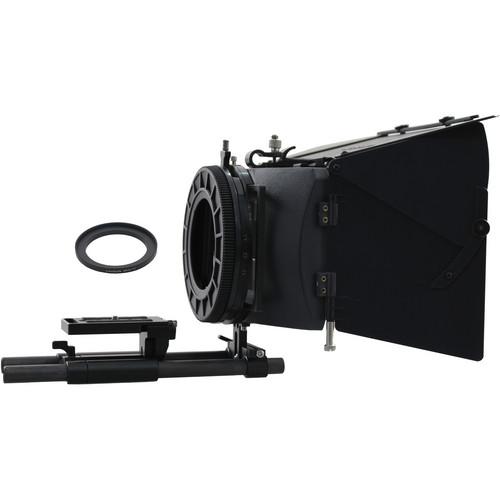

• MB4169H-2M 4 x 4 & 4 x 5.56 Hard Shade Matte Box The MB4169H-2M Hard Shade Matte Box from Cavision is an ABS plastic rod-mount matte box with a 130mm rear lens opening. It features one 360° rotation filter stage, one fixed filter stage, two 4 x 4" metal filter trays, plus one 4 x 5.65" metal filter tray in the stationary stage. A 130 to 85mm rubber step-down ring is included. A Cavision rod-mount bracket and top and side flags are sold separately. The rod-mount bracket is required. Note: The 360° filter stages only rotate 270° when the matte box used with the Sony FX1 and Z1 cameras.
• ARR1385 Rubber Adapter Ring The Cavision ARR1385 is an rubber adapter ring for MB4169H or MB413B series Matte Boxes; it adapts from a 130mm lens diameter stepping down to 85mm lens accessory.
• 67 to 82mm Threaded Step-Up Ring This Cavision 67-82mm Step-Up Ring enables the use of 82mm threaded filters on lenses with 67mm filter threads. The 10mm depth of this ring provides more surface area than a standard step-up ring. This provides a more secure grip to the clamp of your Cavision Clamp-On Matte Box. The step-up ring features a lightweight, aluminum-alloy construction that has a black anodized finish.
  • Use alone or with select matte boxes
  • This adapter ring features a depth of 10mm, providing a generous surface for a clip-on matte box to grab onto.
  • Lightweight, durable, anodized aluminum construction
• MBF-5PA Expandable French Flag The Cavision MBF-5PA is an expandable top french flag accessory for matte boxes and sunshades. French flags allow more control over production lighting; enables filters and lenses to operate with favorable results. The expanding and contracting system on this model features a better fit and collapsing capabilities for efficiency and portability.
• MBF4SA Adjustable Side Flaps for 4x4 and 4.45 Matte Box The Cavision MBF4SA is a pair of side flaps for both the 4x4 and 4x4.45 matte boxes. The side flaps increase the ability of the matte box to block unwanted light, preventing a multitude of optical anomalies, such as lens flares.
• Rods Support for Mini-DV or DSLR Camera with Quick Release Button The Cavision Rods Support is suitable for use with small cameras with short lenses such as mini-DV, 5DMII, or other DSLR cameras. It features a height adjustable front bracket for connecting a matte box.
  • 2 carbon fiber rods
  • Height adjustable front Bracket for connecting a matte box
  • Balance bracket (with tripod connection thread at the bottom) and heavy duty riser
  • Quick release plate with quick release button and a locating pin for enhanced stability
  • Ideal ideal for small cameras with short lenses (such as mini-DV, 5DMII, or other DSLR cameras)
  • Plate quick release function

• ARR1385 Rubber Adapter Ring

• Limited 1-Year Warranty

• 90 Day Warranty

• Limited 6-Month Warranty (Personal Use)

• Limited 3-Month Warranty (Commercial, Rental, or Industrial Use)

• 1 Year Warranty

• Limited 3-Month Warranty for Commercial, Rental, Business, or Industrial Use

• Limited 6-Month Warranty for Personal Use

Also Includes

• Limited 3-Month Warranty when used for Commercial, Rental, Business or Industrial Purposes
• Limited 6-Month Warranty when used for Personal Use

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MB4169H-2M 4 x 4 & 4 x 5.56 Hard Shade Matte Box

  Mount Type	Optional rod bracket required
  Lens Opening	130 mm
  Filter Trays	Two 4 x 4" and one 4 x 5.65"
  Filter Stages	1 x 360° rotation filter stage 1 x fixed filter stage * The 360° filter stage only rotates 270° when the matte box is used with the Sony FX1 and Z1 cameras.
  Materials	ABS plastic matte box, aluminum filter trays

  Box Dimensions (LxWxH)	9.2 x 7.35 x 4.35"

• ARR1385 Rubber Adapter Ring

  Box Dimensions (LxWxH)	5.5 x 5.5 x 0.1"

• 67 to 82mm Threaded Step-Up Ring

  Size	67-82 mm
  Depth	10 mm
  Material	Aluminum alloy

  Box Dimensions (LxWxH)	3.5 x 3.5 x 0.2"

• MBF-5PA Expandable French Flag

  Box Dimensions (LxWxH)	9.1 x 6.4 x 0.9"

• MBF4SA Adjustable Side Flaps for 4x4 and 4.45 Matte Box

  Box Dimensions (LxWxH)	6.0 x 5.0 x 1.0"

• Rods Support for Mini-DV or DSLR Camera with Quick Release Button

  Rod Spacing	60 mm (r.c. to r.c.)
  Rod Material	Carbon fiber
  Height Adjustment	Front Bracket: 25 mm
  Adjustable Length	Back and Forwards: 200 mm
  Fits Devices	Most centered mini-DV / HDV / DSLR cameras
  Mounting Hole	1/4" & 3/8" thread
  Fits On	Consumer, Miller, Cartoni, Vinten, and Sachtler ENG tripod heads
  Material	Aluminum
  Rod Diameter	15 mm
  Rod Length	Rail: 10" (250 mm)
  Thickness	1.8 mm

  Box Dimensions (LxWxH)	10.2 x 3.75 x 3.45"
